AF09-30-10-11 – ABB | “AF09 3P CONTR, 1NO, 24-60VAC, 20”

Description

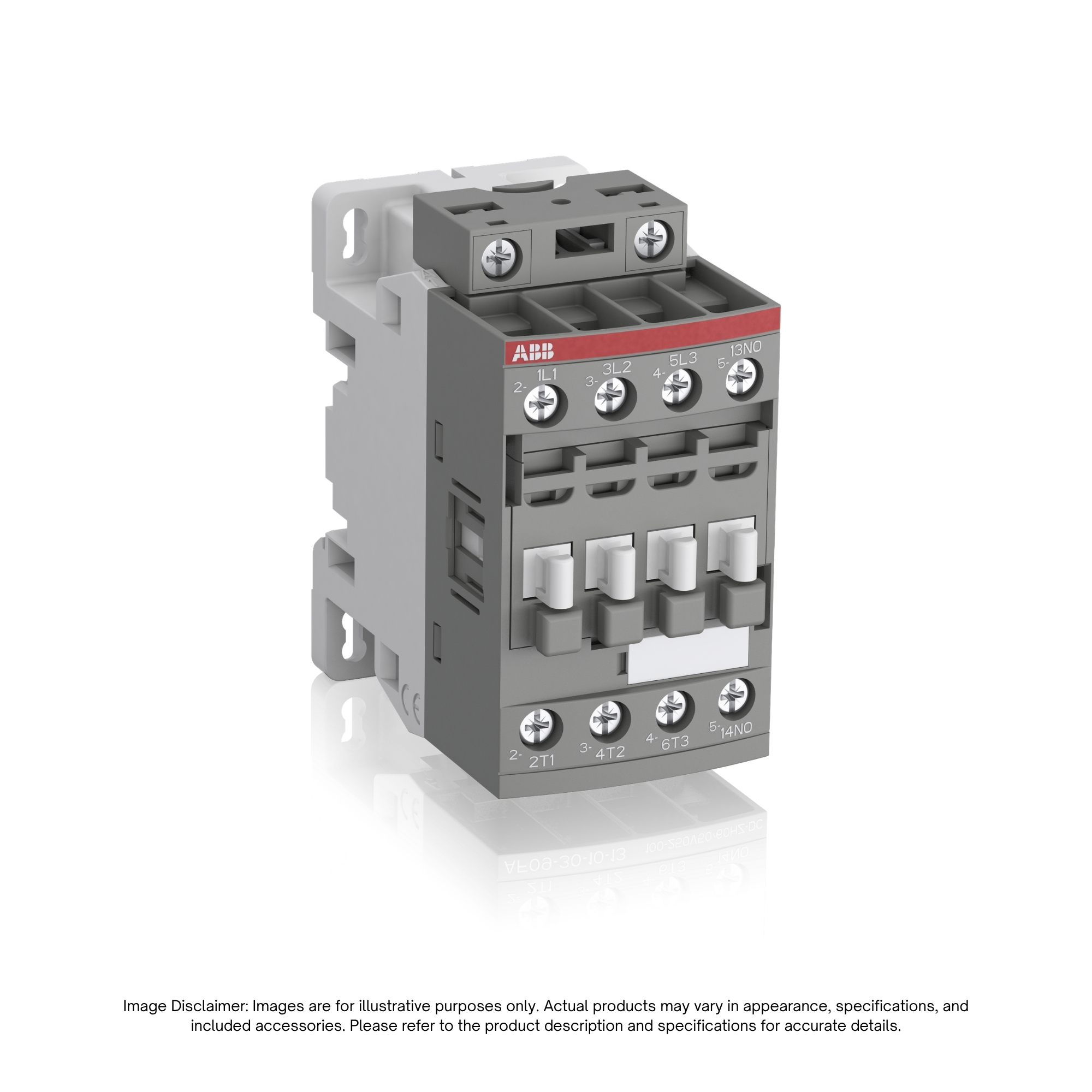

The ABB AF09-30-10-11 Contactor (1SBL137001R1110) is a compact, 3-pole block-type industrial contactor featuring advanced electronically controlled AF coil technology. Designed for wide voltage operational flexibility, its electronic coil manages large control voltage variations across 24–60 V AC (50/60 Hz) and 20–60 V DC, reducing control panel energy consumption and ensuring stable operation even in unstable electrical networks.

Rated for controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL, and switching resistive power circuits up to 25 A (AC-1 / UL general use), the AF09-30-10-11 includes 1 built-in normally open (1 NO) auxiliary contact and screw terminal connections. With built-in surge suppression, it offers a space-saving solution that easily expands with add-on auxiliary contact blocks and modular ABB accessories.

Key Features

• Advanced AF Coil Technology: Wide control voltage coil range (24–60 V 50/60 Hz / 20–60 V DC) handles network fluctuations and lowers coil power consumption.
• Motor & Power Switching: Controls 3-phase AC-3 motors up to 4 kW (400 V) / 5 hp (480 V UL) and switches general loads up to 25 A.
• Built-in Auxiliary Contact: Factory-equipped with 1 NO integrated auxiliary contact for signal monitoring and interlocking.
• Integrated Surge Suppression: Built-in surge protection safeguards control circuits without requiring external suppressor blocks.
• Modular Expansion: Block-type chassis accepts front- and side-mounted auxiliary contact blocks and modular accessories.

Specifications
