Description

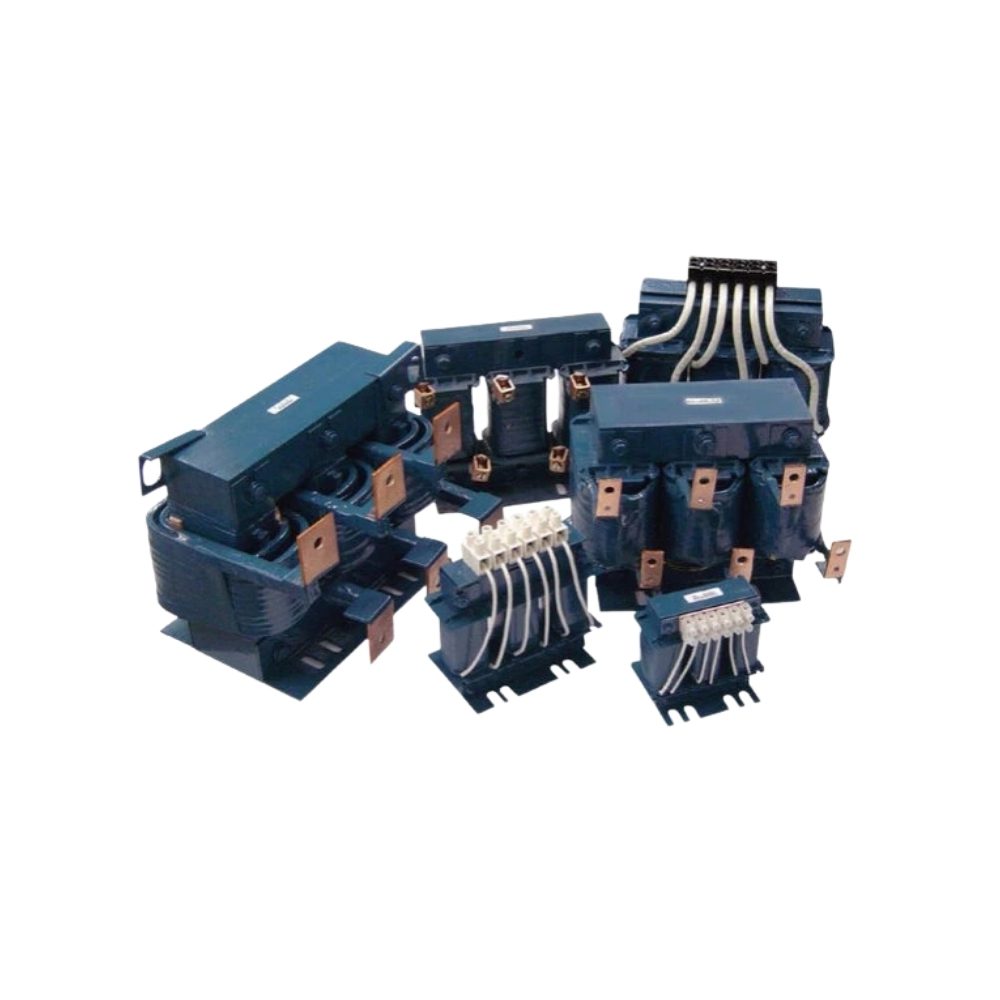

The MTE Line/Load Reactor RL-03532 is designed to protect and enhance the performance of motors and other sensitive electronic equipment in three-phase systems. With an inductance of 0.8mH and a current rating of 35A, this reactor is ideal for industrial applications requiring robust power conditioning and motor protection.
Features
- Motor Protection: Safeguards motors from long lead effects, significantly extending their operational lifespan.
- Voltage Stabilization: Minimizes output voltage dv/dt, ensuring smoother motor performance.
- Harmonic Mitigation: Effectively reduces harmonics generated by inverters and drives, helping to meet IEEE 519 standards.
- Surge Suppression: Protects equipment from sudden current surges.
- Temperature Management: Lowers motor temperature, enhancing reliability.
- Noise Reduction: Reduces motor audible noise, creating a quieter environment.
- Power Factor Improvement: Enhances true power factor, optimizing energy consumption.
Specifications
- Manufacturer: MTE
- Model: RL-03532
- Family Series: MTE Line Reactors, RL Series
- Phase: 3
- Enclosed Unit: Yes
- Current Rating: 35 A
- Inductance: 0.0008 H (0.8mH)
- Watt Loss: 54 W
- HP @ 240 VAC: 7.5 hp, 10 hp
- Impedance @ 240 VAC: 5 %
- HP @ 480 VAC: 20 hp, 25 hp
- Impedance @ 480 VAC: 3 %
- Terminals: Terminal Block
- Mounting: Surface
- NEMA Rating: NEMA 3R
- Approvals: CE, CSA, UL, UR
- Net Weight: 113 lbs
