Description

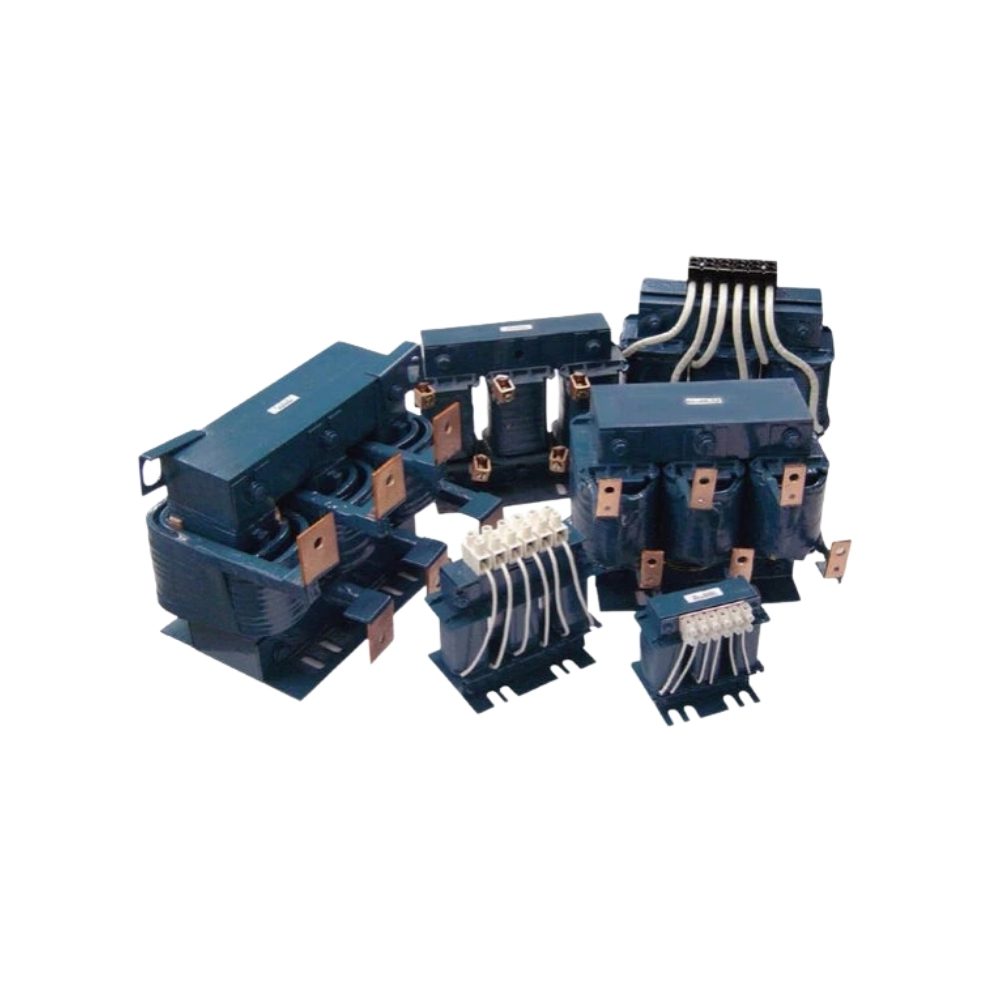

The MTE Line/Load Reactor RL-01832 is designed to enhance the performance and lifespan of motors and sensitive equipment in three-phase systems. With an inductance of 1.5mH and a current rating of 18A, this reactor effectively reduces harmonic distortion, mitigates power line disturbances, and optimizes the performance of inverters and variable frequency drives (VFDs).
Features
- Motor Protection: Guards motors against long lead effects, extending their operational lifespan.
- Voltage Stabilization: Reduces output voltage dv/dt, ensuring stable motor operation.
- Harmonic Reduction: Minimizes harmonic distortion produced by inverters and drives.
- Surge Current Suppression: Protects equipment from sudden current spikes.
- Temperature Control: Lowers motor temperature, enhancing efficiency and reliability.
- Noise Reduction: Reduces motor audible noise during operation.
- Improved Power Factor: Enhances true power factor, optimizing energy usage.
Specifications
- Manufacturer: MTE
- Model: RL-01832
- Family Series: MTE Line Reactors, RL Series
- Phase: 3
- Enclosed Unit: Yes
- Current Rating: 18 A
- Inductance: 0.0015 H (1.5mH)
- Watt Loss: 43 W
- HP @ 240 VAC: 5 hp
- Impedance @ 240 VAC: 5 %
- Terminals: Terminal Block
- Mounting: Surface
- NEMA Rating: NEMA 3R
- Approvals: CE, CSA, UL, UR
- Net Weight: 80 lbs
