Description

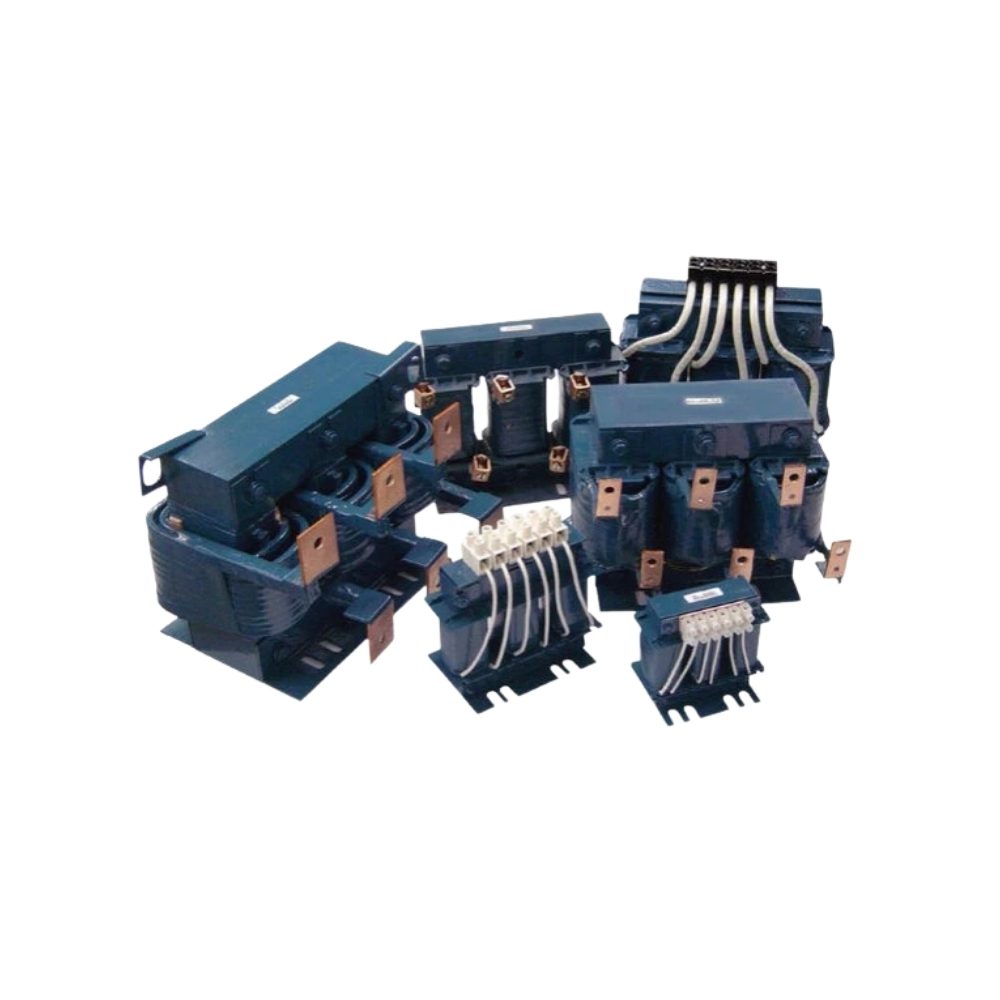

The MTE Line/Load Reactor RL-00232 is designed to enhance the performance and lifespan of motors and sensitive electronic equipment by mitigating electrical disturbances. This reactor, with an inductance of 20mH and a current rating of 2A, is ideal for three-phase applications, providing reliable protection and efficiency improvements.
Features
- Motor Protection: Mitigates long lead effects, ensuring extended motor life.
- Voltage Smoothing: Reduces output voltage dv/dt for stable operation.
- Harmonic Mitigation: Efficiently reduces harmonics produced by inverters and drives, aiding compliance with IEEE 519 standards.
- Performance Improvement: Enhances true power factor, leading to better system efficiency.
- Durable Construction: Built to stringent standards for reliability and long-term performance.
- Outdoor Installation: Enclosed unit with NEMA 3R rating, suitable for outdoor environments.
Specifications
- Manufacturer: MTE
- Model: RL-00232
- Family Series: MTE Line Reactors, RL Series
- Phase: 3
- Enclosed Unit: Yes
- Current Rating: 2 A
- Inductance: 0.02 H (20 mH)
- Watt Loss: 11.3 W
- HP @ 240 VAC: 0.25 hp
- Impedance @ 240 VAC: 5 %
- Terminals: Terminal Block
- Mounting: Surface
- NEMA Rating: NEMA 3R
- Approvals: CE, CSA, UL, UR
