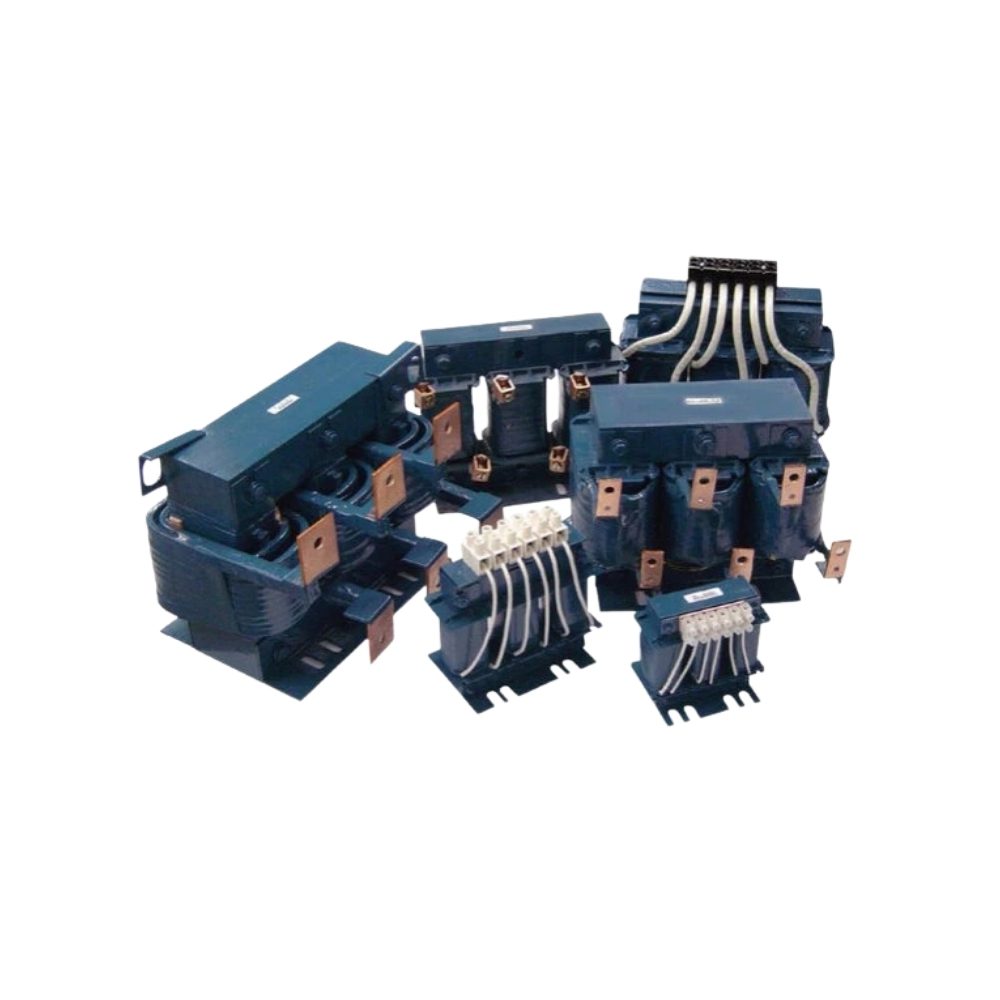

RL-00134 – MTE | Line/Load Reactor, 18mH, 1Amps, NEMA3R

Description

The MTE Line/Load Reactor RL-00134 is a robust and reliable reactor designed to improve the performance and longevity of motors and sensitive equipment by mitigating power line disturbances. With an inductance of 18mH and a current rating of 1A, this reactor is ideal for three-phase applications and provides significant protection and efficiency enhancements.

Features

• Motor Protection: Prevents long lead effects, ensuring extended motor life.
• Voltage Smoothing: Reduces output voltage dv/dt for stable operation.
• Harmonic Mitigation: Efficiently reduces harmonics produced by inverters and drives, aiding compliance with IEEE 519 standards.
• Performance Improvement: Enhances true power factor, leading to better system efficiency.
• Durable Construction: Built to stringent standards for reliability and long-term performance.
• Outdoor Installation: Enclosed unit with NEMA 3R rating, suitable for outdoor environments.

Specifications

• Manufacturer: MTE
• Model: RL-00134
• Family Series: MTE Line Reactors, RL Series
• Phase: 3
• Enclosed Unit: Yes
• Current Rating: 1 A
• Inductance: 0.018 H (18 mH)
• Watt Loss: 9.6 W
• HP @ 480 VAC: 0.33 hp
• Impedance @ 480 VAC: 1.5 %
• Terminals: Terminal Block
• Mounting: Surface
• NEMA Rating: NEMA 3R
• Approvals: CE, CSA, UL, UR
