$ 31.75

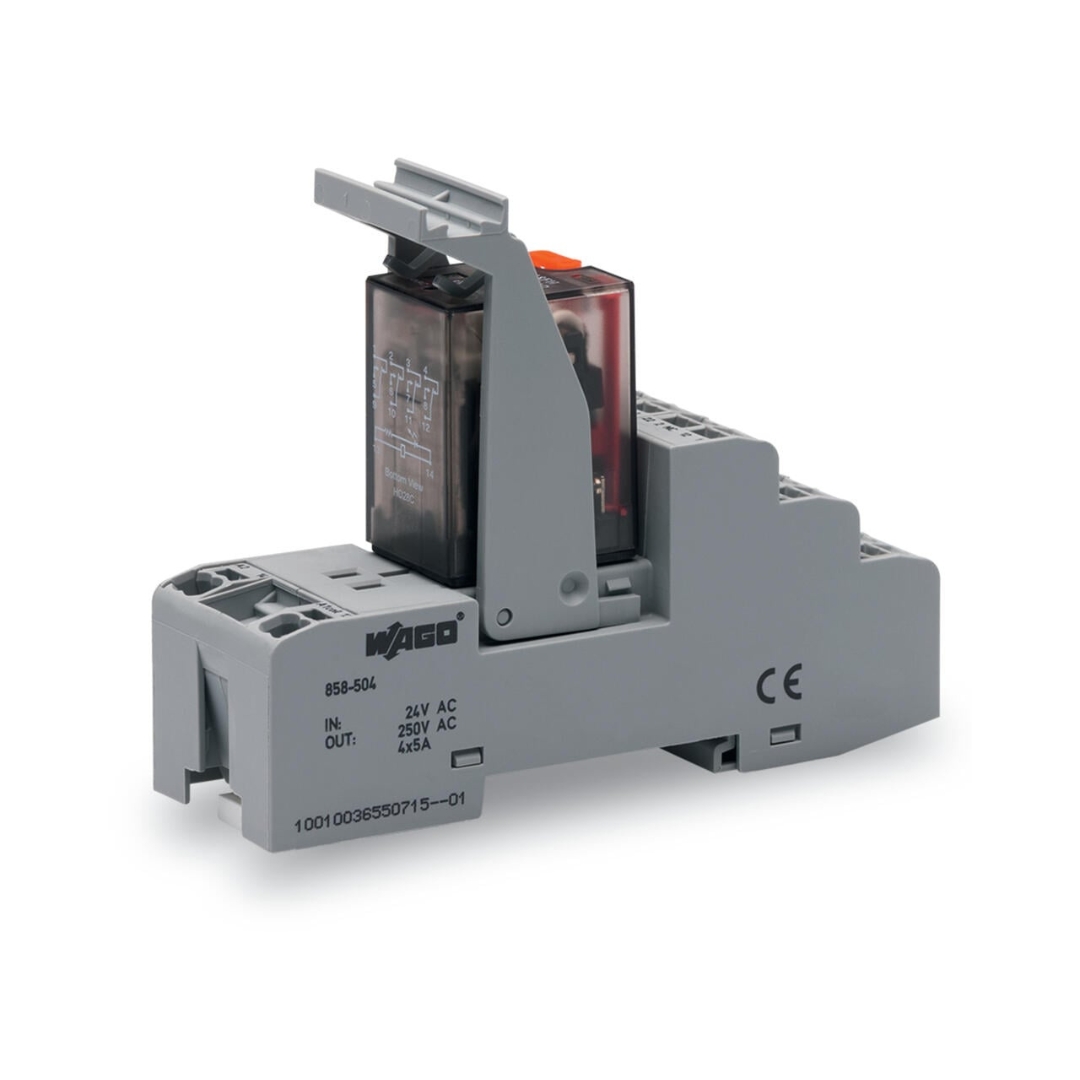

The WAGO 858‑504 Relay Module is a robust 31 mm‑wide DIN‑rail mount interface featuring four changeover (SPDT) contacts driven by a 24 VAC coil. Ideal for AC control applications, it supports manual override for testing and maintenance. Each AgCe contact switches up to 5 A continuously (15 A inrush) at 250 VAC. A red LED provides clear status feedback. Push‑in CAGE CLAMP® terminals enable fast, tool‑free wiring of 0.34 – 1.5 mm² conductors. IP20 protection and wide operating temperatures (–25 … +70 °C) ensure reliable performance in industrial environments.

8 in stock (can be backordered)

SKU: 858-504 Categories: ,

Product Description

The WAGO 858‑504 Relay Module is a robust 31 mm‑wide DIN‑rail mount interface featuring four changeover (SPDT) contacts driven by a 24 VAC coil. Ideal for AC control applications, it supports manual override for testing and maintenance. Each AgCe contact switches up to 5 A continuously (15 A inrush) at 250 VAC. A red LED provides clear status feedback. Push‑in CAGE CLAMP® terminals enable fast, tool‑free wiring of 0.34 – 1.5 mm² conductors. IP20 protection and wide operating temperatures (–25 … +70 °C) ensure reliable performance in industrial environments.

Key Features

  • 4 × SPDT Contacts: AgCe material, 5 A continuous / 15 A inrush

  • Manual Override: Mechanical test button for easy relay activation

  • Clear Status Indication: Red LED for real‑time coil status

  • Push‑in CAGE CLAMP®: Tool‑free termination for 0.34 – 1.5 mm² conductors

  • Compact Footprint: 31 mm width saves DIN‑rail space

  • Wide Temperature Range: –25 … +70 °C operating, IP20 protection

  • Reinforced Adjacent Insulation: Safe isolation between neighboring devices

Specifications

Parameter Value
Item Number 858‑504‑WAGO
Coil Voltage 24 VAC (–20 … +10 %)
Coil Current 50 mA

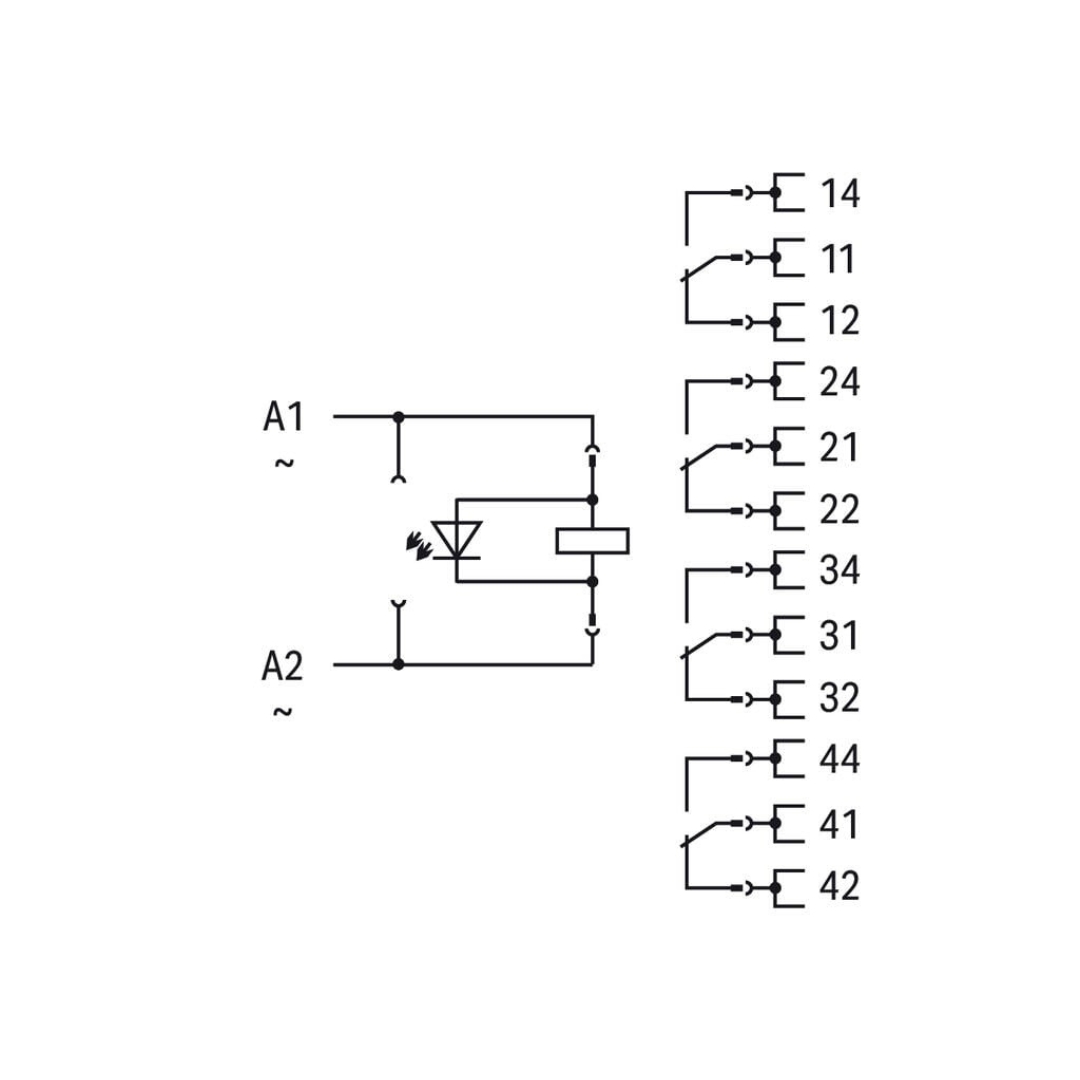

Contacts 4 × changeover (SPDT)
Contact Material Silver‑ceramic (AgCe)
Continuous Current 5 A
Inrush Current 15 A / 4 s
Max. Switching Voltage 250 VAC

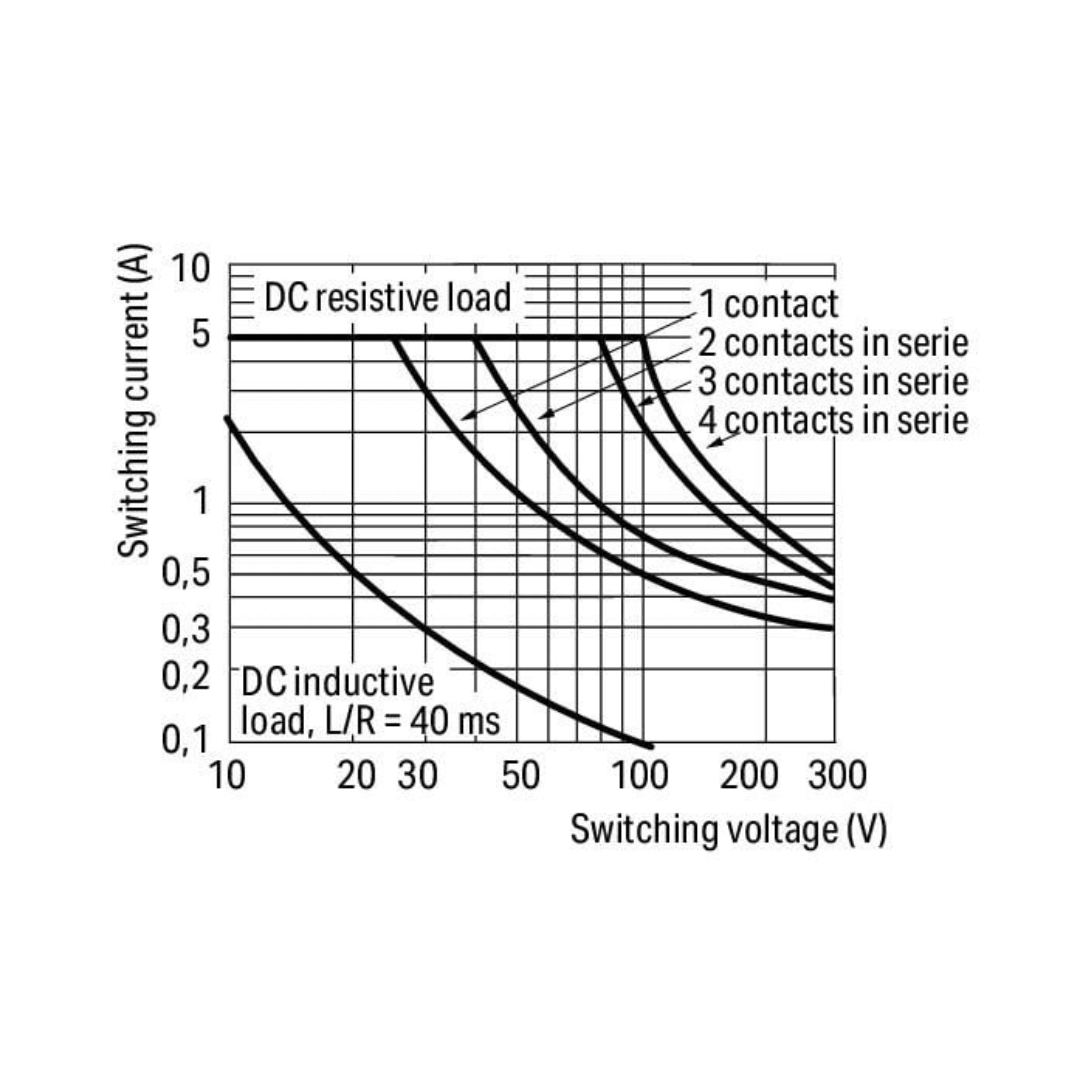

Switching Capacity AC‑15: 1 A/240 VAC; DC‑13: 2 A/24 VDC
Min. Load 12 V/100 mA
Response Times Pull‑in: 25 ms; Drop‑out: 35 ms; Bounce: 4 ms
Electrical Life 100 000 operations (resistive load)
Mechanical Life 20 × 10⁶ operations
Status Indicator Red LED
Insulation Basic (control/load); reinforced (adjacent devices)
Protection IP20
Terminal Type Push‑in CAGE CLAMP®
Conductor Size 0.34 … 1.5 mm² / 22 … 16 AWG
Strip Length 9 … 10 mm

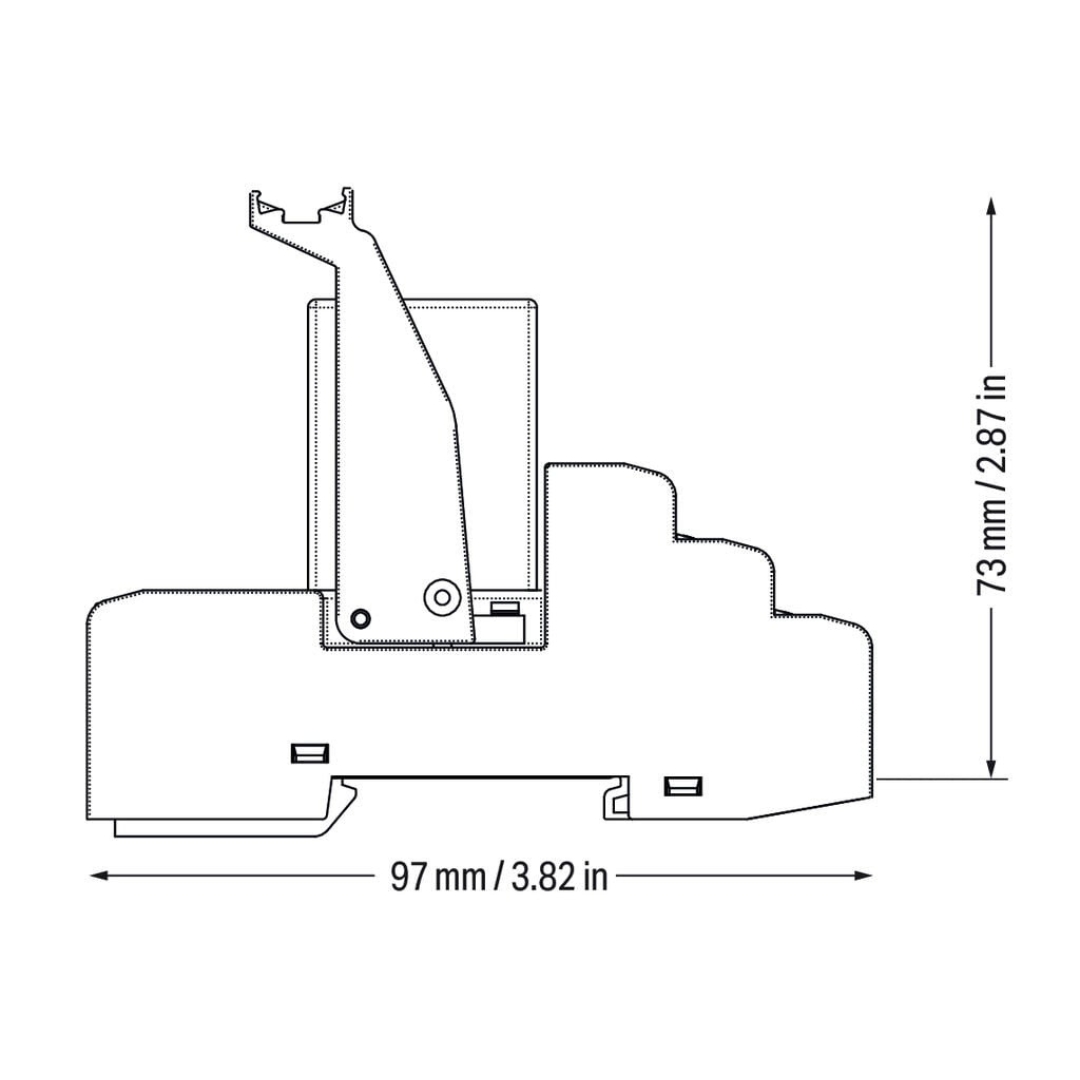

Dimensions (W × H × D) 31 × 97 × 73 mm (1.22 × 3.819 × 2.874 in)
Mounting DIN‑35 rail
Operating Temp. (UN) –25 … +70 °C; UL: –25 … +50 °C
Weight 95.2 g
Weight 0.20988 lbs
Dimensions 2.874 × 1.22 × 3.819 in
