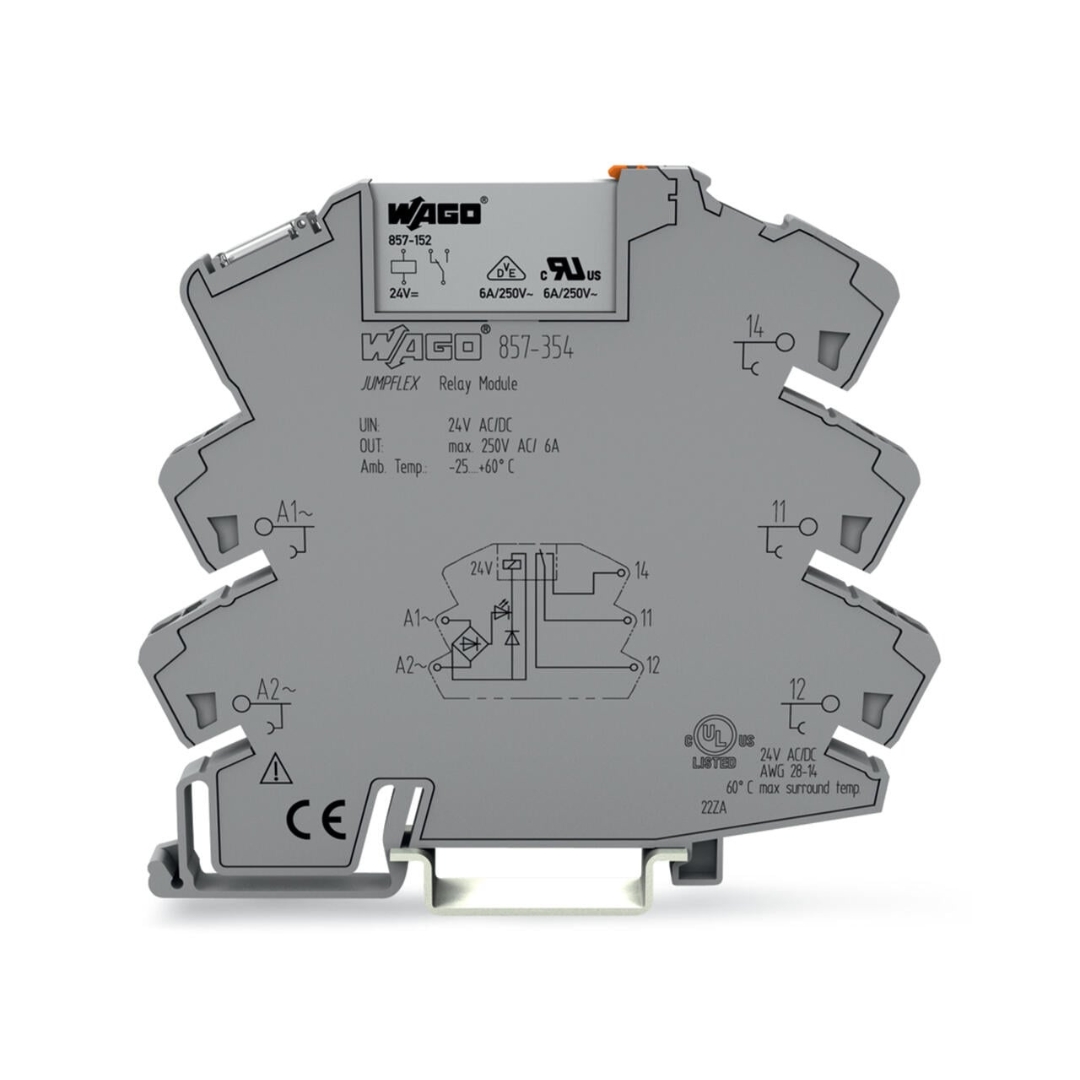

857-354-WAGO | Relay module; Nominal input voltage: 24 V AC/DC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm
857-354-WAGO | Relay module; Nominal input voltage: 24 V AC/DC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm - Image 2
857-354-WAGO | Relay module; Nominal input voltage: 24 V AC/DC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm - Image 3
857-354-WAGO | Relay module; Nominal input voltage: 24 V AC/DC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm - Image 4

857-354-WAGO | Relay module; Nominal input voltage: 24 V AC/DC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm

$ 34.36

The WAGO 857‑354 Relay Module is a slim 6 mm DIN‑rail mount interface designed for versatile AC/DC control applications. With a universal 24 V AC/DC coil input and one changeover (SPDT) contact rated for 6 A continuous, it reliably switches both AC and DC loads. A yellow LED provides clear status indication, while Push‑in CAGE CLAMP® terminals enable fast, tool‑free wiring of 0.34 – 2.5 mm² conductors. Reinforced insulation between coil and contact, double insulation between like modules, and compliance with ATEX/IECEx make it suitable for safe operation in harsh industrial environments.

17 in stock (can be backordered)

SKU: 857-354 Categories: ,

Product Description

The WAGO 857‑354 Relay Module is a slim 6 mm DIN‑rail mount interface designed for versatile AC/DC control applications. With a universal 24 V AC/DC coil input and one changeover (SPDT) contact rated for 6 A continuous, it reliably switches both AC and DC loads. A yellow LED provides clear status indication, while Push‑in CAGE CLAMP® terminals enable fast, tool‑free wiring of 0.34 – 2.5 mm² conductors. Reinforced insulation between coil and contact, double insulation between like modules, and compliance with ATEX/IECEx make it suitable for safe operation in harsh industrial environments.

Key Features

  • Universal Coil: 24 V AC/DC (–15 … +20 %) with 50 … 60 Hz AC capability

  • Compact Design: Only 6 mm module width for space‑saving installation

  • Robust Contact: 1 × SPDT contact (AgSnO₂) rated 6 A continuous, 20 A inrush

  • Status LED: Yellow indicator for real‑time relay state monitoring

  • Push‑in CAGE CLAMP®: Tool‑free termination for 0.34 – 2.5 mm² conductors

  • High Insulation: Reinforced isolation coil‑to‑contact; double insulation for adjacent modules

  • Industrial Standards: IP20, –40 … +60 °C operation; EN 61010, UL 508, ATEX, IECEx certified

Specifications

Parameter Value
Item Number 857‑354‑WAGO
Coil Voltage 24 V AC/DC (–15 … +20 %)
Frequency Range 50 … 60 Hz AC / 0 Hz DC
Coil Current 9 mA

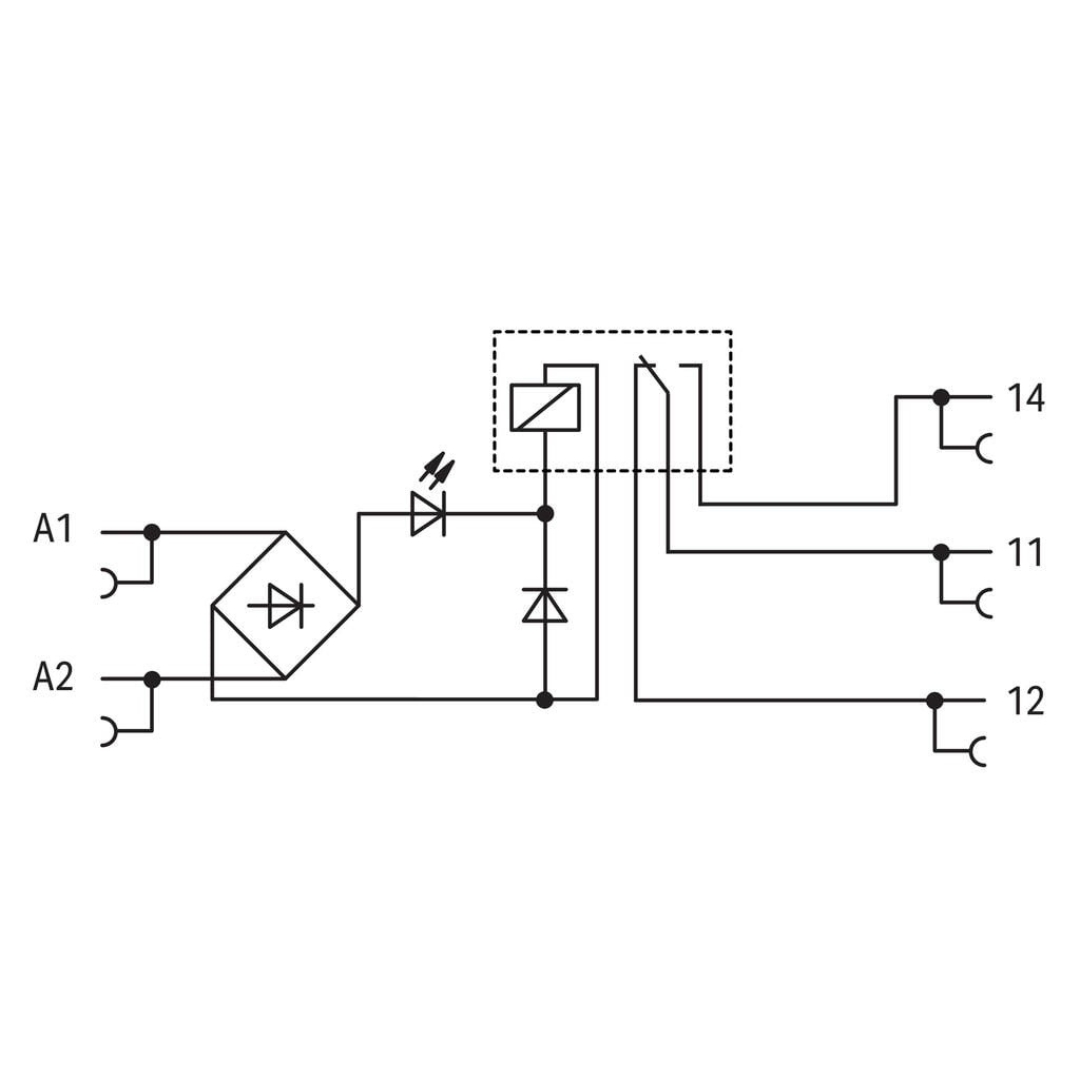

Contact Configuration 1 × changeover (SPDT)
Contact Material AgSnO₂
Continuous Current 6 A
Inrush Current 20 A for 0.02 s
Max. Switching Voltage 250 VAC

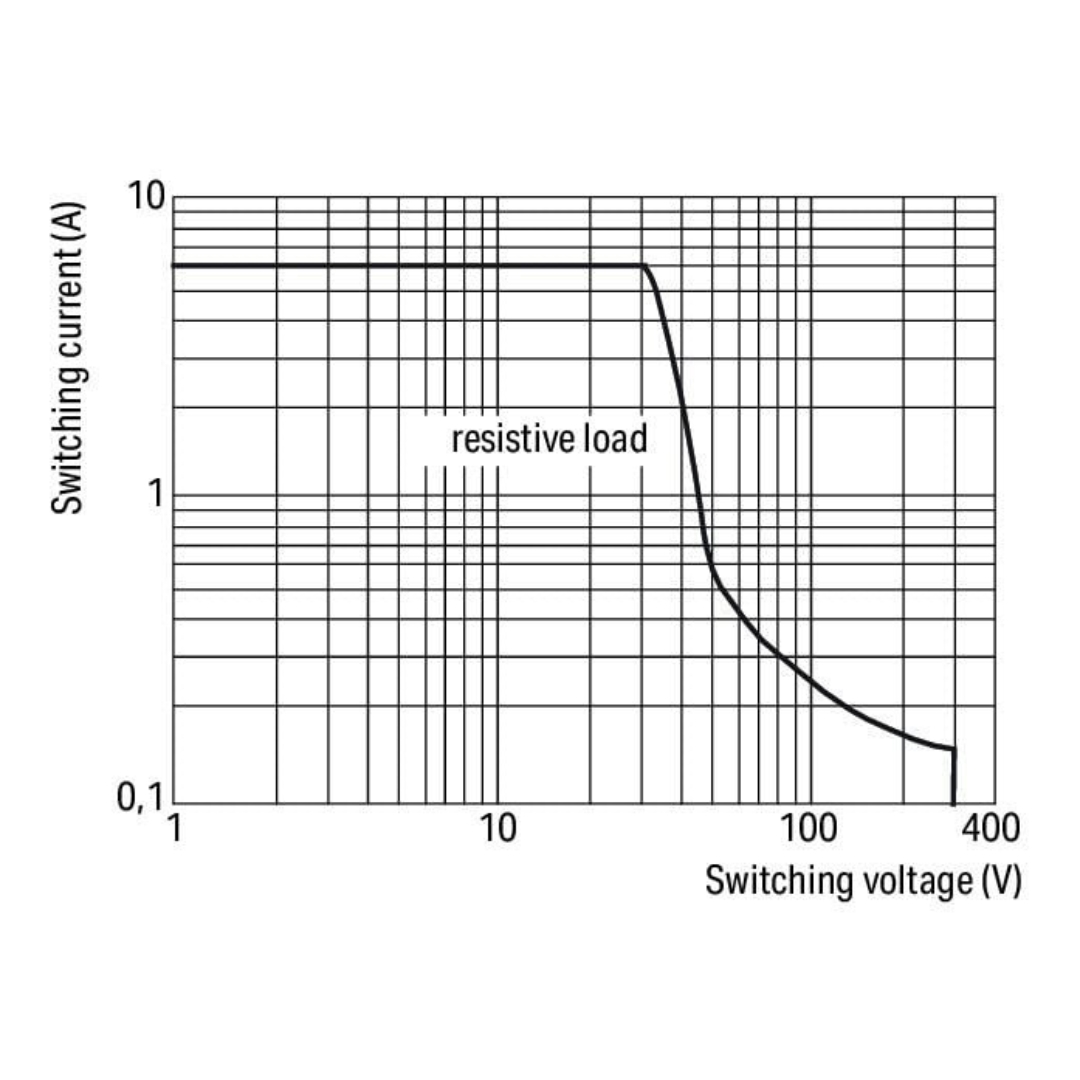

Switching Capacity AC‑15: 3 A/250 VAC; DC‑13: 2 A/24 VDC
Min. Load 10 V/10 mA; 24 V/1 mA
Response Times Pull‑in: 15 ms; Drop‑out: 25 ms; Bounce: 3.5 ms
Electrical Life 50 000 switching operations (resistive load)
Mechanical Life 5 × 10⁶ operations
Status Indicator Yellow LED
Insulation Reinforced (coil/contact); double (adjacent modules)
Protection IP20
Terminal Type Push‑in CAGE CLAMP®
Conductor Size 0.34 … 2.5 mm² / 22 … 14 AWG; ferrules up to 1.5 mm²
Strip Length 9 … 10 mm

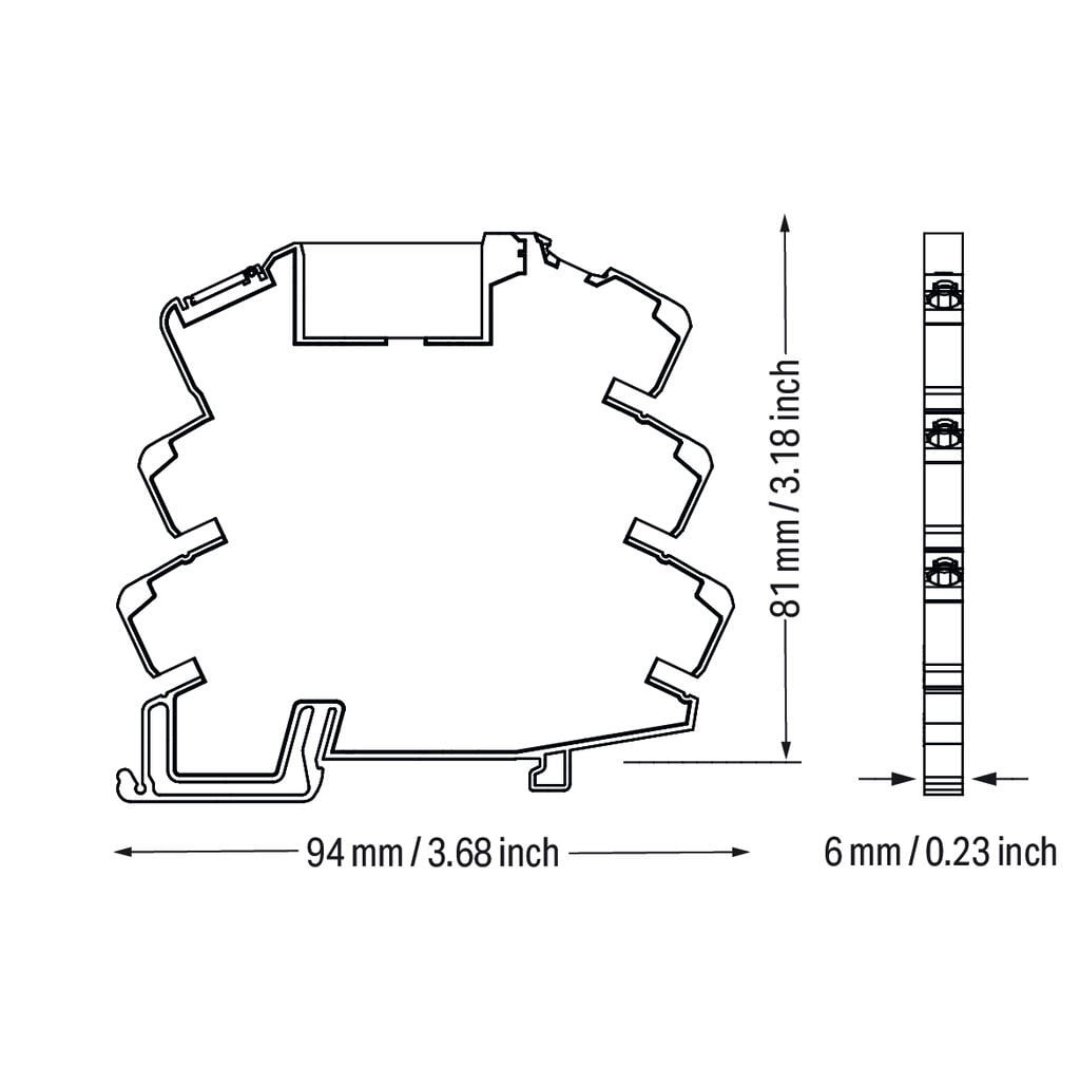

Dimensions (W × H × D) 6 × 94 × 81 mm (0.236 × 3.701 × 3.189 in)
Mounting DIN‑35 rail
Operating Temp. –40 … +60 °C
Weight 30.9 g
Weight 0.068123 lbs
Dimensions 3.189 × 0.236 × 3.701 in
