Product Description

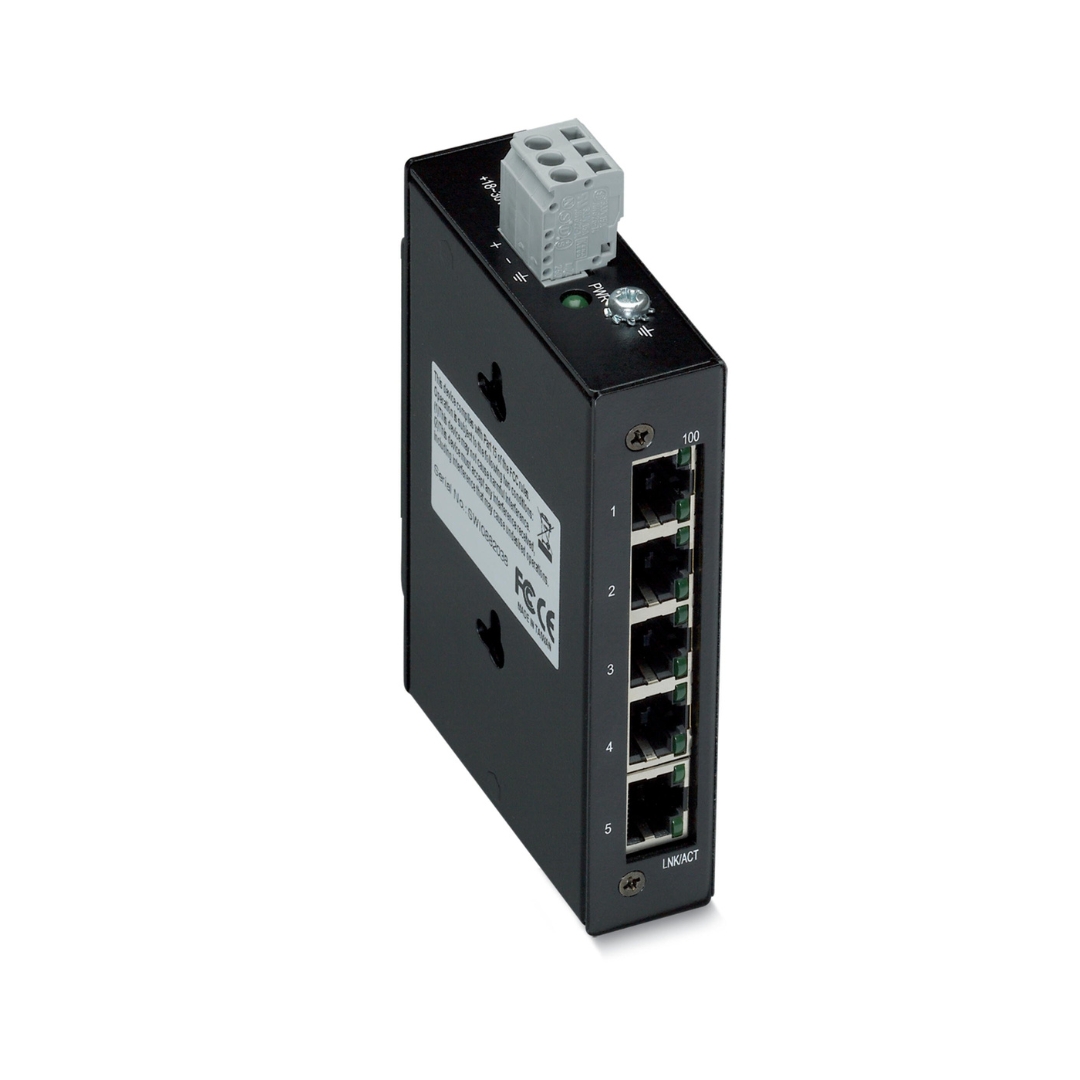

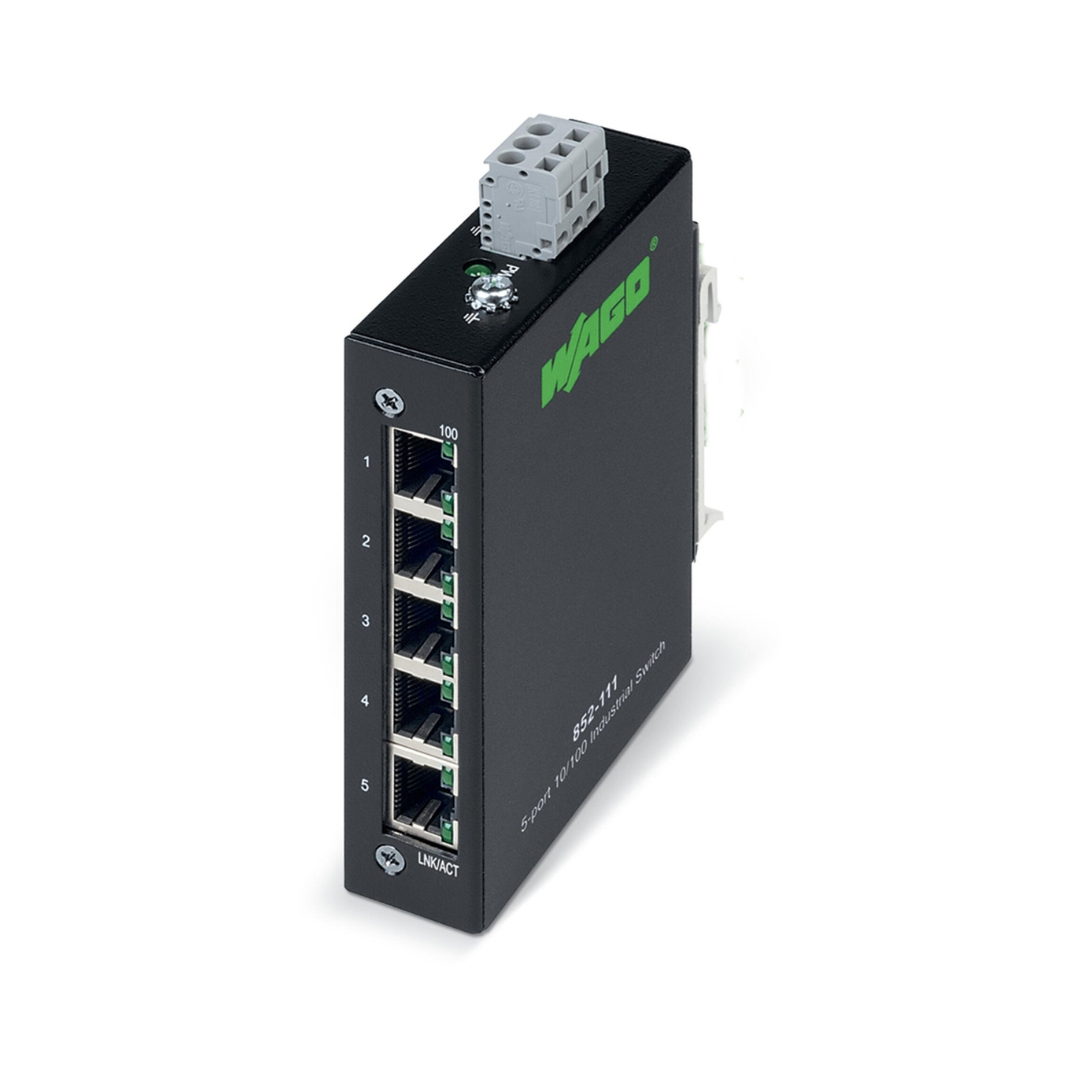

The WAGO 852‑111 Industrial‑ECO‑Switch is a rugged, unmanaged Ethernet switch designed for reliable operation in harsh industrial environments. With five 10/100 Mbps ports, it supports store‑and‑forward switching, jumbo frames up to 1536 bytes, and flow control (IEEE 802.3x), ensuring smooth data traffic. Housed in a compact, IP30‑rated steel enclosure, it operates from 18 – 30 V DC with just 3 W consumption, and withstands –40 … +70 °C, vibration, and shock. Front‑panel LEDs provide real‑time status of power and link/activity, while auto‑negotiation and Auto‑MDI/MDI‑X simplify plug‑and‑play setup.
Key Features
- 5× 10/100 Mbps Ports: Auto‑negotiation & Auto‑MDI/MDI‑X
- Store‑and‑Forward Switching: 2 000 MAC addresses, jumbo frames to 1536 bytes
- Industrial Grade: –40 … +70 °C, IP30 steel housing, vibration/shock resistant
- Low Power: 18 – 30 V DC supply, 3 W typical consumption

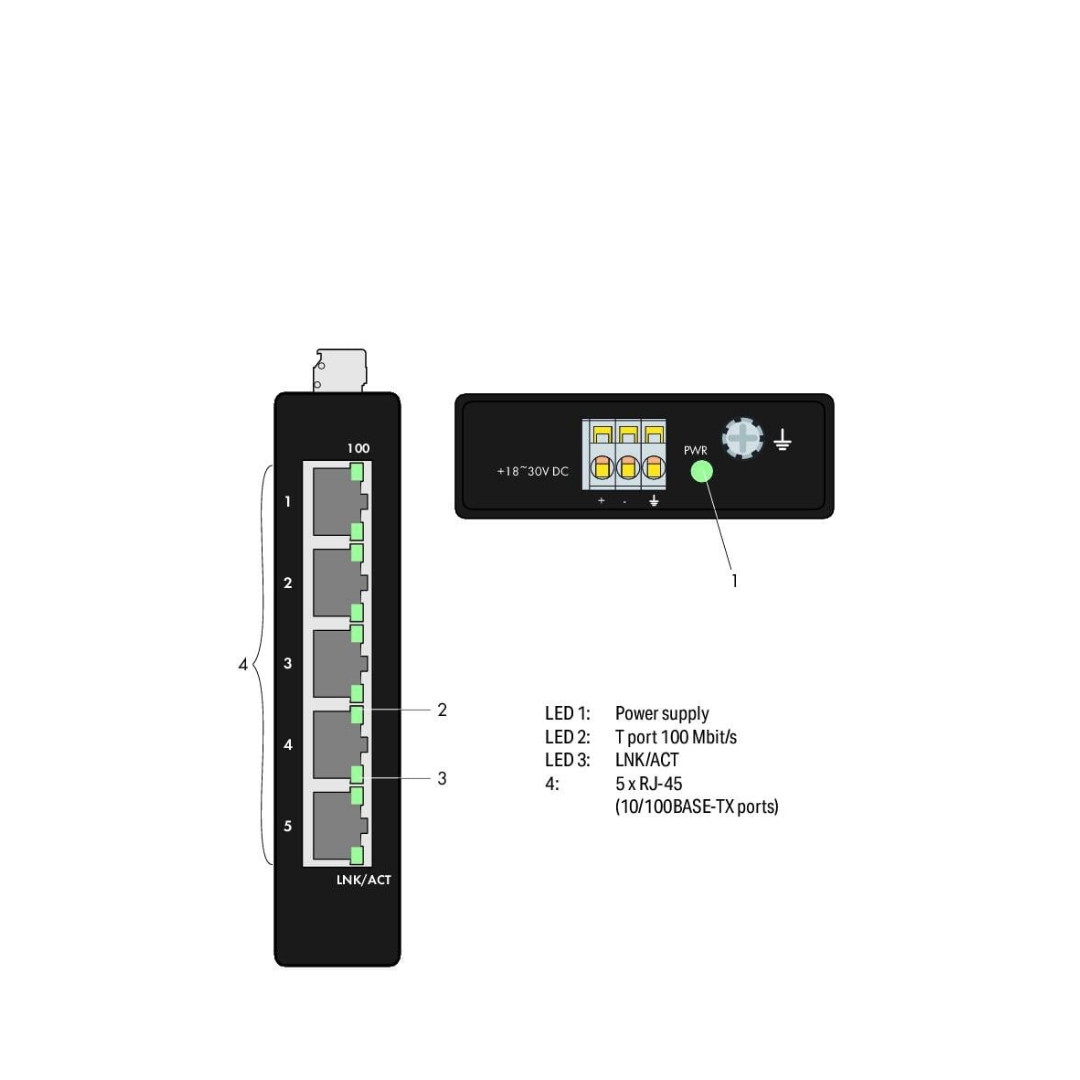

- Diagnostic LEDs: Power (green) + per‑port 100 Mbps & link/activity indicators
Specifications
| Parameter | Value |
|---|---|
| Item Number | 852‑111 |
| Switching Mode | Store‑and‑forward; non‑blocking |
| Ports | 5 × RJ‑45 10BASE‑T/100BASE‑TX |
| MAC Table Size | 2 000 addresses |
| Jumbo Frame | 1536 bytes |
| Supply Voltage | 18 … 30 V DC |
| Power Consumption | 3 W (no PoE) |
| Current Consumption (max) | 150 mA |
| ESD Protection | 4 kV contact / 8 kV air discharge |
| Transmission Rate | 10/100 Mbps |
| Topology | Star |
| Indicators | PWR (green); per‑port 100 / LNK/ACT (green) |
| Dimensions (W × H × D) | 23.4 × 109.2 × 73.8 mm |
| Weight | 302 g |
| Housing Material | Sheet steel, black |
| Protection Type | IP30 |
| Operating Temperature | –40 … +70 °C (UL max. +60 °C) |
| Storage Temperature | –40 … +80 °C |
| Humidity | 95 % RH (non‑condensing) |
| Mounting | Wall mount (horizontal/vertical) or DIN‑35 rail |
| Certifications | IEEE 802.3/802.3u/802.3x, RoHS Compliant |
| Country of Origin | Taiwan |
