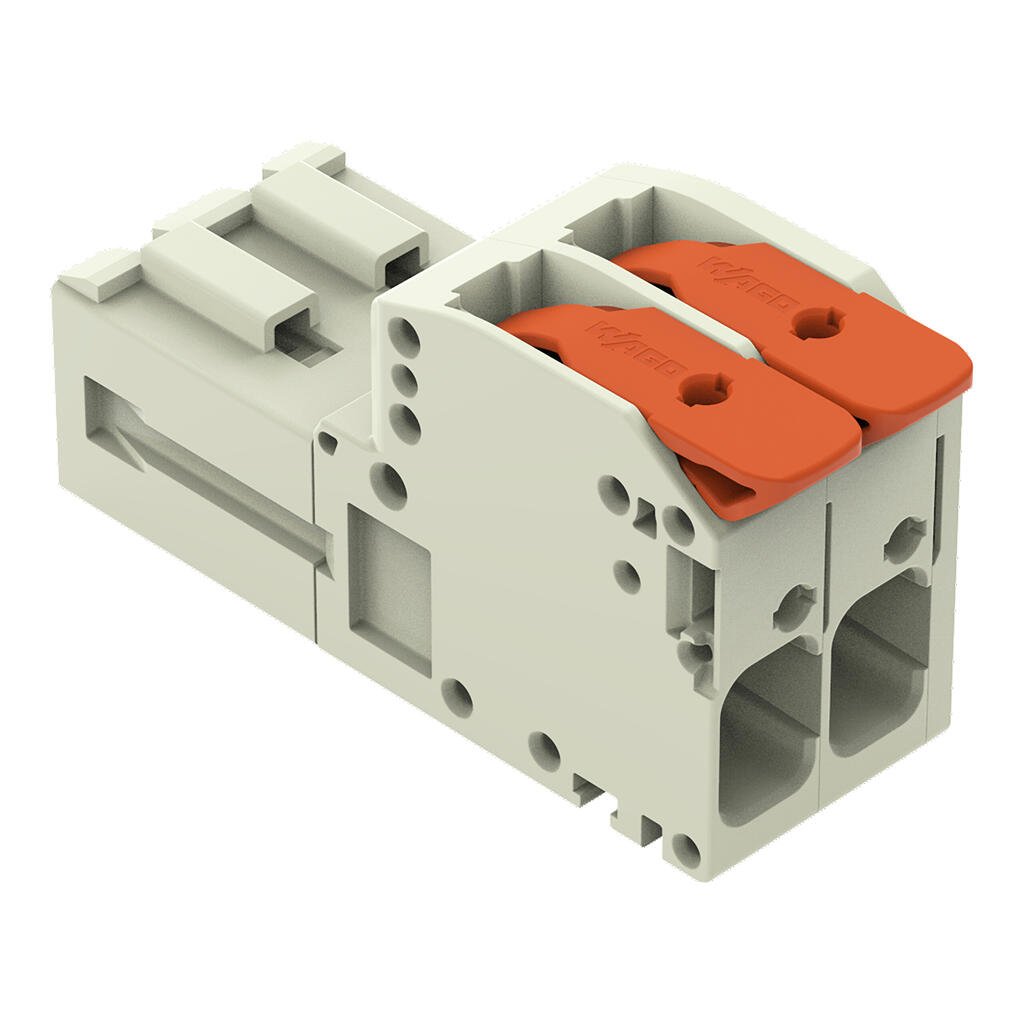

831-1202 – WAGO | 1-conductor male connector; lever; Push-in CAGE CLAMP®; 10 mm²; Pin spacing 7.62 mm; 2-pole; 100% protected against mismating; 10,00 mm²; light gray

$ 6.00

This WAGO 831 Series 1-conductor male connector (Item No. 831-1202) delivers a secure, high-performance solution for your electrical installations. Utilizing the innovative Push-in CAGE CLAMP® connection technology, it ensures quick, tool-free wiring for solid and fine-stranded conductors with ferrules up to 1$10 \text{ mm}^2$.2 The connector features a $0^{\circ}$ conductor exit relative to the connection direction, a light gray polyamide housing, and $7.62 \text{ mm}$ pin spacing. With a 2-pole configuration and 3$100\%$ protection against mismating, this plug provides reliable and error-free connections, making it ideal for robust industrial and commercial applications.4 Its high current rating of $41 \text{ A}$ (IEC) and versatile conductor compatibility across a wide range of cross-sections solidify its position as a top-tier component for demanding electrical systems.

Available on backorder

SKU: 831-1202 Category:

Description

This WAGO 831 Series 1-conductor male connector (Item No. 831-1202) delivers a secure, high-performance solution for electrical installations. Utilizing the Push-in CAGE CLAMP® connection technology, it ensures quick, tool-free wiring for solid and fine-stranded conductors (with ferrules) from 0.5 to 10 mm². The connector features a 0° conductor exit relative to the connection direction, a light-gray polyamide housing, and 7.62 mm pin spacing (0.3 inches). With a 2-pole configuration and 100% protection against mismating, this plug provides reliable and error-free connections, making it ideal for robust industrial and commercial applications. Its high current rating of 41 A (IEC) and broad conductor compatibility make it suitable for demanding electrical systems.

Key features

  • Connection technology: Lever-operated Push-in CAGE CLAMP® for fast, reliable, tool-free connection of solid and fine-stranded conductors (with ferrules).

  • High current & voltage ratings: Rated 41 A and 800 V nominal (IEC) — Overvoltage Category II/3.

  • Mating security: 100% protection against mismating to ensure correct assembly.

  • Durable materials: Light-gray polyamide (PA66) housing with UL94 V-0 flammability rating; tin-plated contact surfaces (electrolytic copper).

Specifications

Characteristic Specification
WAGO Item No. 831-1202
Number of poles 2
Pin spacing 7.62 mm / 0.3 inches
Connection technology Push-in CAGE CLAMP® (lever actuation)
Conductor cross-section (solid) 0.5–10 mm² / 20–8 AWG
Conductor cross-section (fine-stranded) 0.5–10 mm² / 20–8 AWG
Strip length 11–13 mm / 0.43–0.51 inches
Nominal voltage (IEC) 800 V (Overvoltage Category II/3)
Rated surge voltage (IEC) 8 kV
Rated current (IEC) 41 A
Rated voltage (UL 1059) 600 V (Use Group B/C)
Rated current (UL 1059) 37 A (Use Group B)
Color Light gray (housing) / Orange (actuator)
Dimensions (W × H × D) 18.1 mm × 25 mm × 49.2 mm
Temperature range −60 to +105 °C (limit)
Weight 0.03 lbs
Dimensions 1 × 1 × 2 in
