Product Description

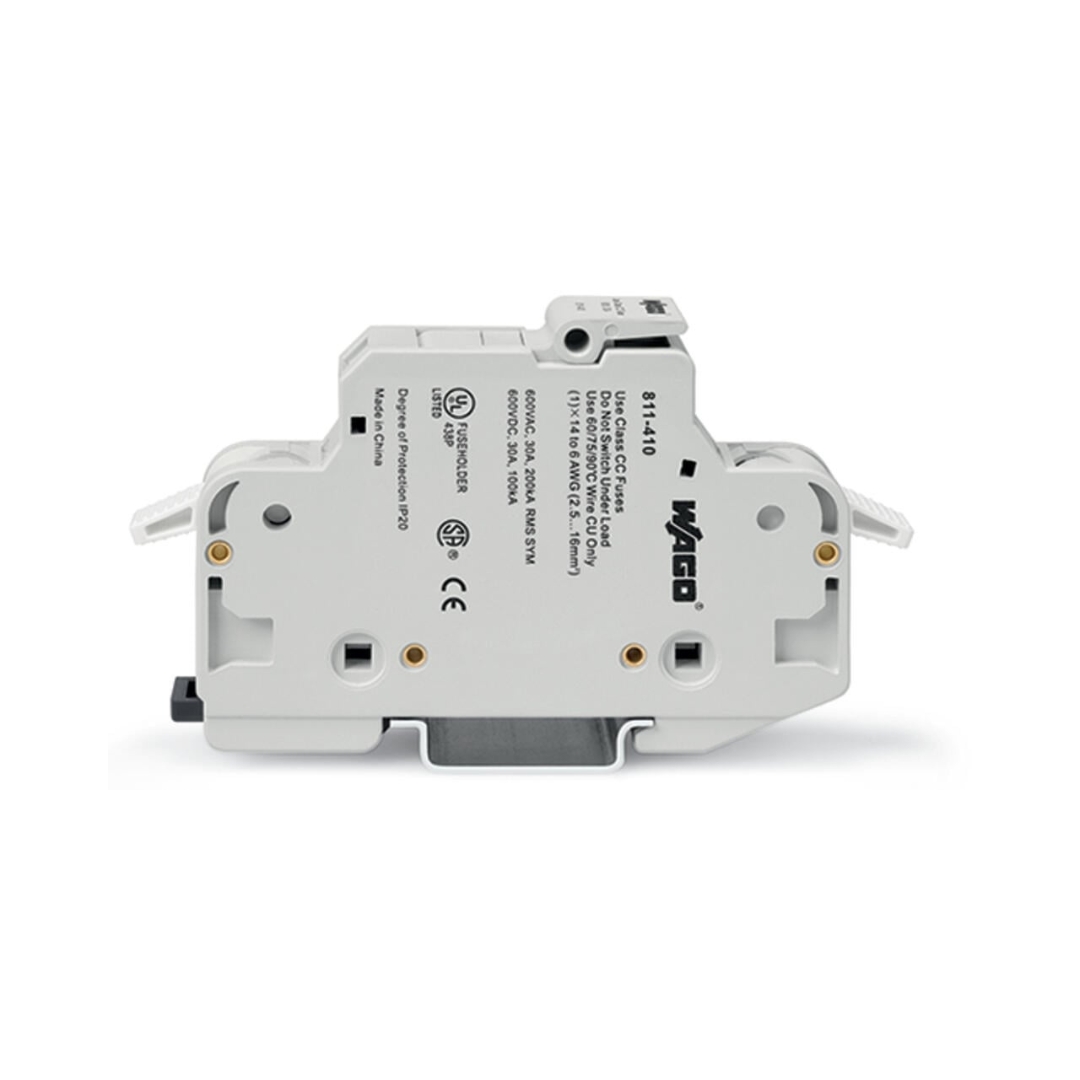

The WAGO 811‑410 is a robust 2‑conductor fuse terminal block designed for fast, tool‑free electrical protection in control panels and distribution systems. It accepts Class CC cylindrical fuses (10 × 38 mm) and features WAGO’s maintenance‑free CAGE CLAMP® connection technology, ensuring secure copper conductor terminations without ferrule crimping. Rated for 600 V AC/DC and up to 30 A, its compact 17.5 mm width and side‑entry wiring make it ideal for space‑constrained DIN‑rail installations. The light‑gray polyamide housing (PA66, UL94 V0) provides high insulation and durability across –35 °C to +85 °C.
Key Features
- Class CC Fuse Holder: Pluggable receptacle for 10 × 38 mm fuses
- CAGE CLAMP® Technology: Tool‑free push‑in connection for solid and fine‑stranded copper (2.5 – 16 mm²)
- High-Rating: 600 V AC/DC, 30 A nominal, 8 kV surge withstand
- Compact Design: 17.5 mm width with side‑entry wiring for DIN‑35 rails
- Safety Built‑In: UL94 V0 housing; load must be removed before fuse replacement
Specifications
| Parameter | Value |
|---|---|
| Item Number | 811‑410‑WAGO |
| Fuse Type | Cylindrical 10 × 38 mm, Class CC |
| Voltage Rating | 600 V AC/DC |
| Current Rating | 30 A |
| Surge Withstand | 8 kV |
| Power Loss | 3 W (overload & short‑circuit) |
| Connection Technology | CAGE CLAMP® |
| Conductor Range | Solid: 2.5 – 16 mm² (14 – 6 AWG) |
| Strip Length | 12 – 13 mm |
| Clamping Units / Poles | 2 units / 1 pole |
| Mounting | DIN‑35 rail (fixed foot up) |
| Housing Material | Polyamide (PA66), UL94 V0 |
| Color | Light gray |
| Operating Temp. | –35 … +85 °C |
| Dimensions (W × H × D) | 17.5 × 105 × 55 mm |
| Weight | 1.1 g |
| Packaging Unit | 12 pcs (box) |
| Country of Origin | China |
| RoHS Compliance | Compliant, No Exemption |
