Product Description

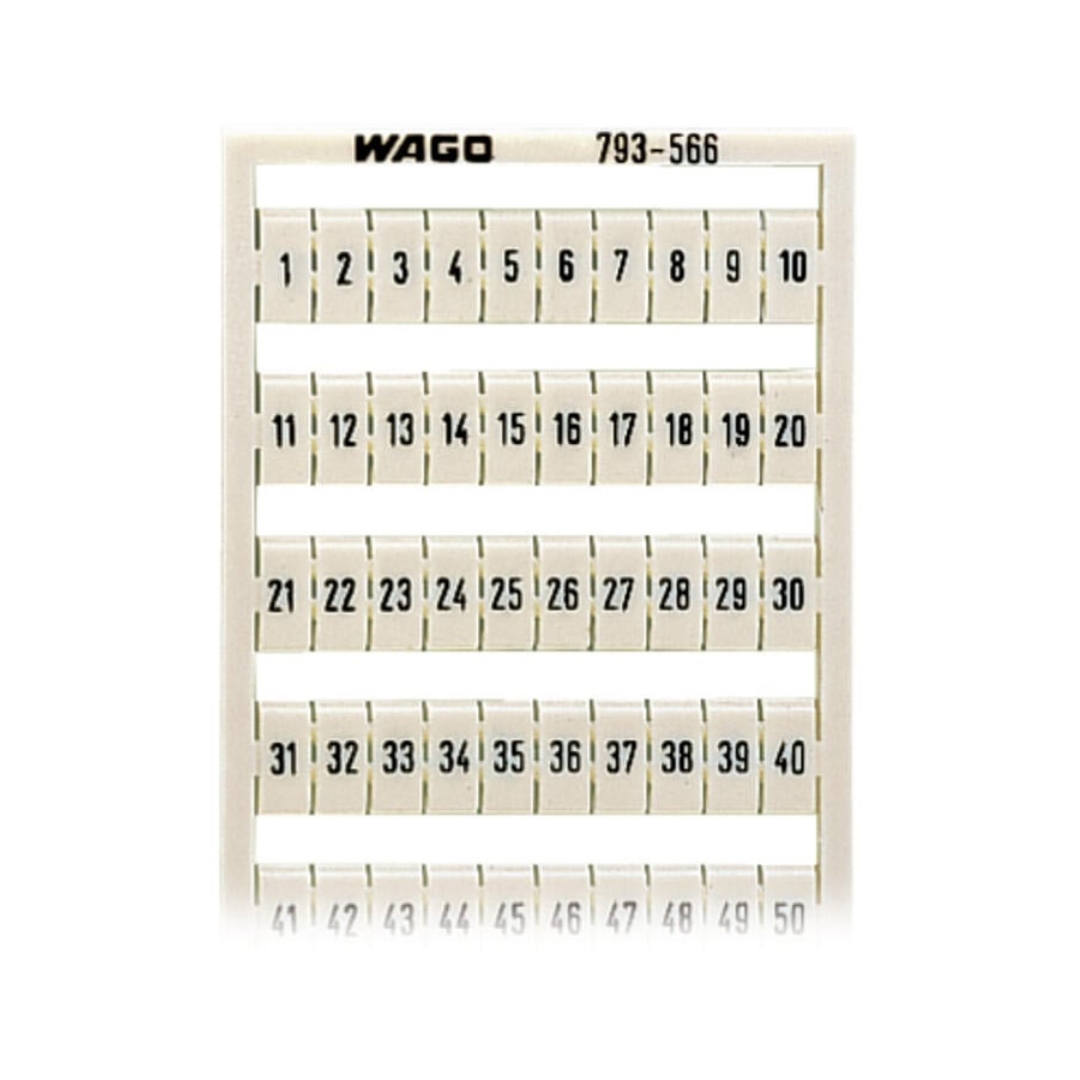

The WAGO 793‑566 WMB Marking Card provides a complete set of consecutive markers from 1 to 50, printed twice per card, for clear identification of terminal blocks. Each white, snap‑on card contains 10 strips of 10 markers, totaling 100 labels (1…50 × 2). The horizontal, thermal‑transfer printed numbers in crisp black on a durable polyamide substrate ensure long‑lasting readability. Engineered for easy, tool‑free installation on DIN‑35 rails, these non‑stretchable markers streamline wiring organization and maintenance tasks.
Key Features
-
Full Range 1…50: Two complete sets of numbers 1 through 50
-
Thermal Transfer Print: Sharp, fade‑resistant black markings
-
Snap‑On Installation: Quick, tool‑free mounting on WAGO terminal rails
-
Standard 5 mm Width: Fits all WAGO 5 mm marker channels
-
Durable Construction: Halogen‑free, UV‑ and smear‑resistant (EN 60998‑1)
-
Bulk Configuration: 10 strips × 10 markers per card = 100 markers
Specifications
| Attribute | Details |
|---|---|
| Product Code | 793‑566‑WAGO |
| Marker Range | 1 … 50 (two sets) |
| Markers per Card | 100 (10 strips × 10) |
| Printing Method | Thermal transfer |
| Orientation | Horizontal |
| Marker Width | 5 mm |
| Stretchable | No |
| Mounting Type | Snap‑on |
| Material | Polyamide (PA) |
| Color | White background, black print |
| Smear Resistance | EN 60998‑1:2004 |
| UV Resistance | EN 60068‑2‑5:2010 Procedure B |
| Halogen‑Free | Yes |
| Flammability Class | UL94 V2 |
| Weight | 8.8 g |
| Fire Load | 0.264 MJ |
| Packaging Unit | 5 pcs (bag) |
| Country of Origin | Germany (DE) |
| GTIN | 4017332529723 |
| RoHS Compliance | Compliant, No Exemption |
