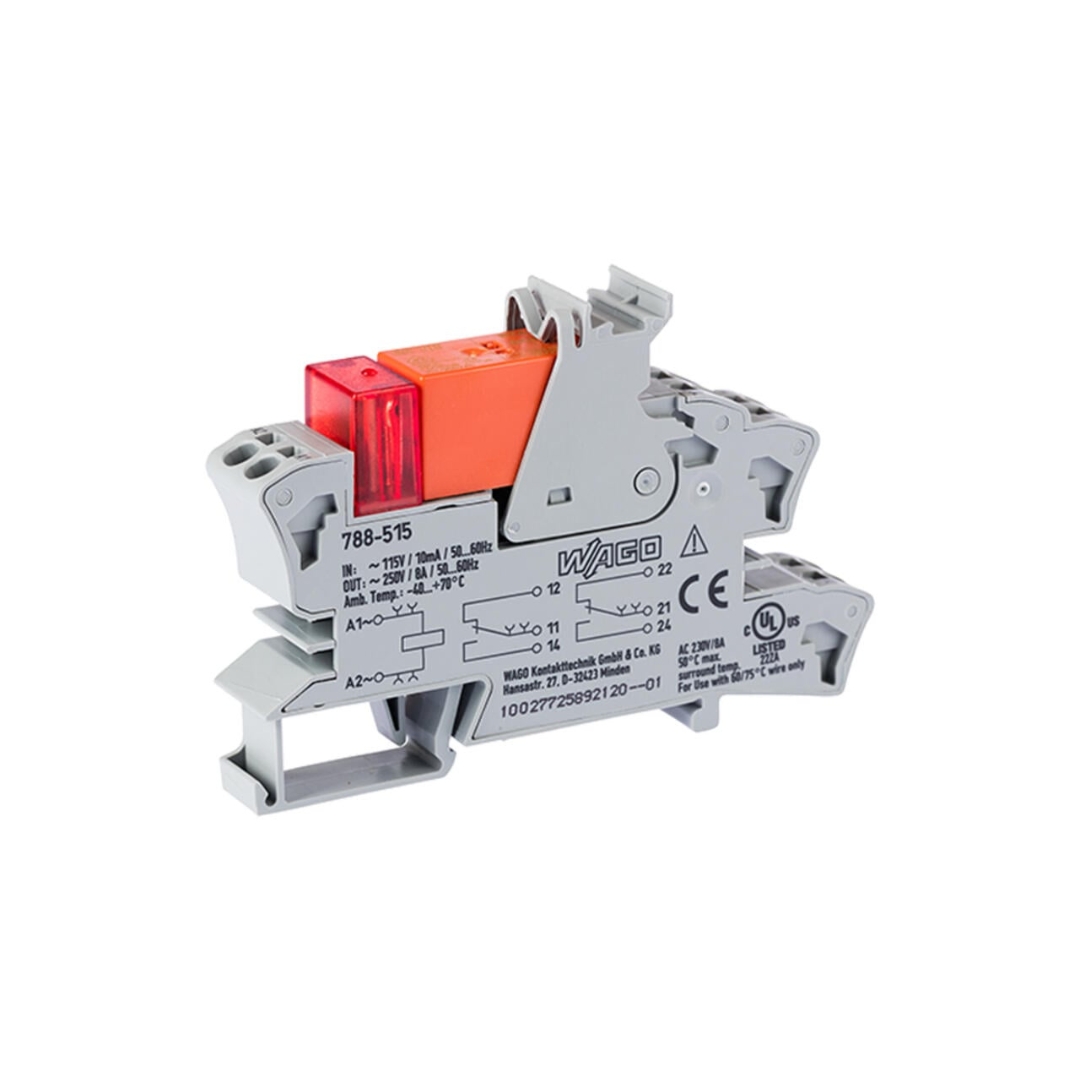

788-515-WAGO | Relay module; Nominal input voltage: 115 VAC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray
788-515-WAGO | Relay module; Nominal input voltage: 115 VAC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray - Image 2
788-515-WAGO | Relay module; Nominal input voltage: 115 VAC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray - Image 3
788-515-WAGO | Relay module; Nominal input voltage: 115 VAC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray - Image 4
788-515-WAGO | Relay module; Nominal input voltage: 115 VAC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray - Image 5

788-515-WAGO | Relay module; Nominal input voltage: 115 VAC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray

$ 28.79

The WAGO 788-515 Relay Module is a compact and efficient interface solution designed for reliable switching operations in industrial control applications. Featuring two changeover contacts and a nominal input voltage of 115 VAC, this DIN-rail mountable relay is ideal for systems requiring robust performance and easy integration. With its push-in CAGE CLAMP® connection technology and red LED status indicator, the module provides both fast wiring and visual feedback. Its 15 mm width saves space in control cabinets, while reinforced insulation between coil and contacts ensures safety in high-voltage environments.

Available on backorder

SKU: 788-515 Categories: ,

Product Description

The WAGO 788-515 Relay Module is a compact and efficient interface solution designed for reliable switching operations in industrial control applications. Featuring two changeover contacts and a nominal input voltage of 115 VAC, this DIN-rail mountable relay is ideal for systems requiring robust performance and easy integration. With its push-in CAGE CLAMP® connection technology and red LED status indicator, the module provides both fast wiring and visual feedback. Its 15 mm width saves space in control cabinets, while reinforced insulation between coil and contacts ensures safety in high-voltage environments.

Key Features

  • Operates at 115 VAC with ±10% input tolerance
  • Dual changeover contacts for versatile switching
  • Compact 15 mm module width for space-efficient mounting
  • High continuous current capacity up to 8 A
  • Red LED status indicator for quick status verification
  • Reinforced insulation between coil and contacts for added safety
  • IP20 protection and wide operating temperature range (-40 to +70 °C)
  • Reliable push-in CAGE CLAMP® terminals for fast and secure connections
  • DIN-rail mountable design for standard control panels

Specifications

Category Details
Input Voltage (Nominal) 115 VAC
Input Voltage Range ±10%
Input Current at UN 8 mA

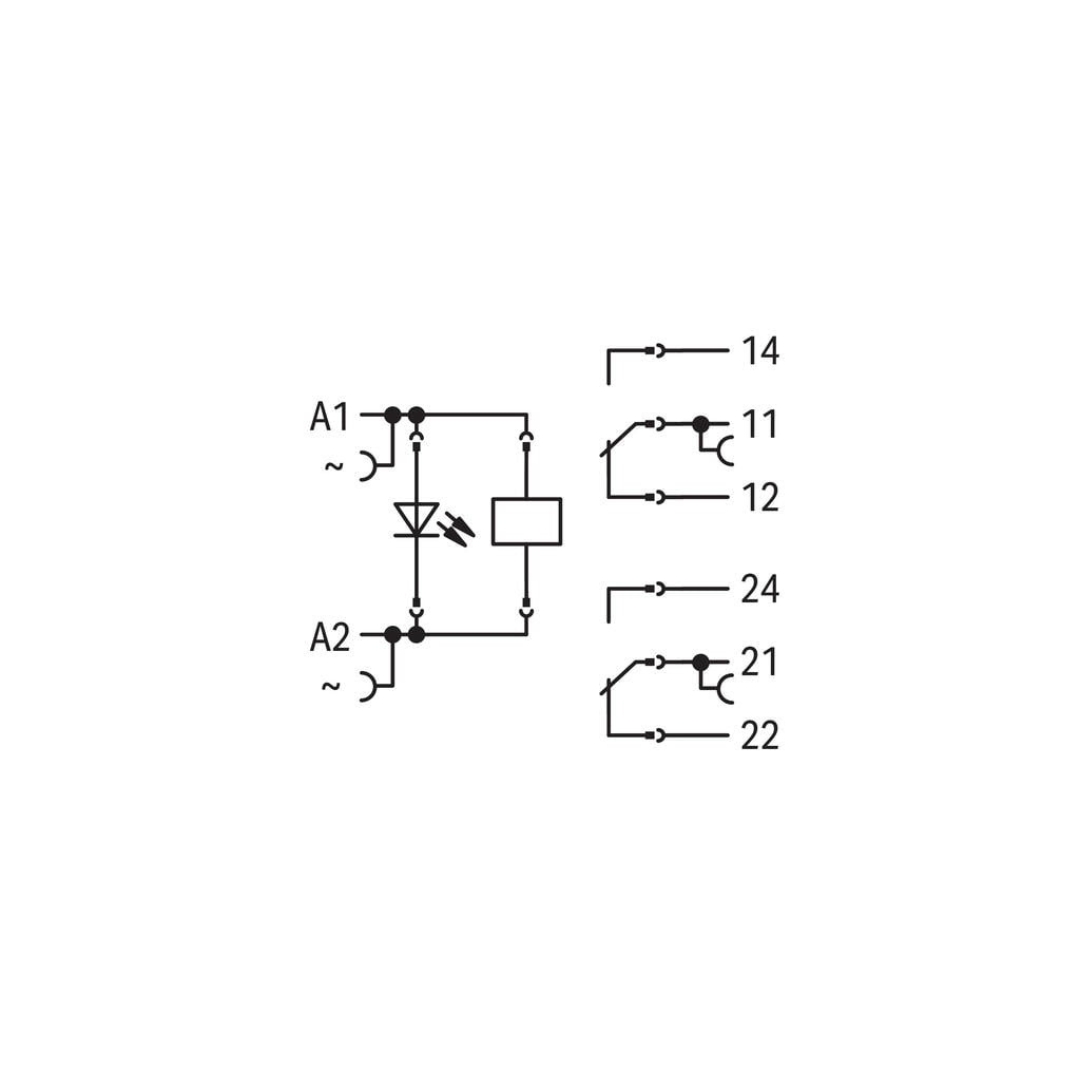

Contacts 2 changeover (SPDT)
Contact Material AgNi 90/10

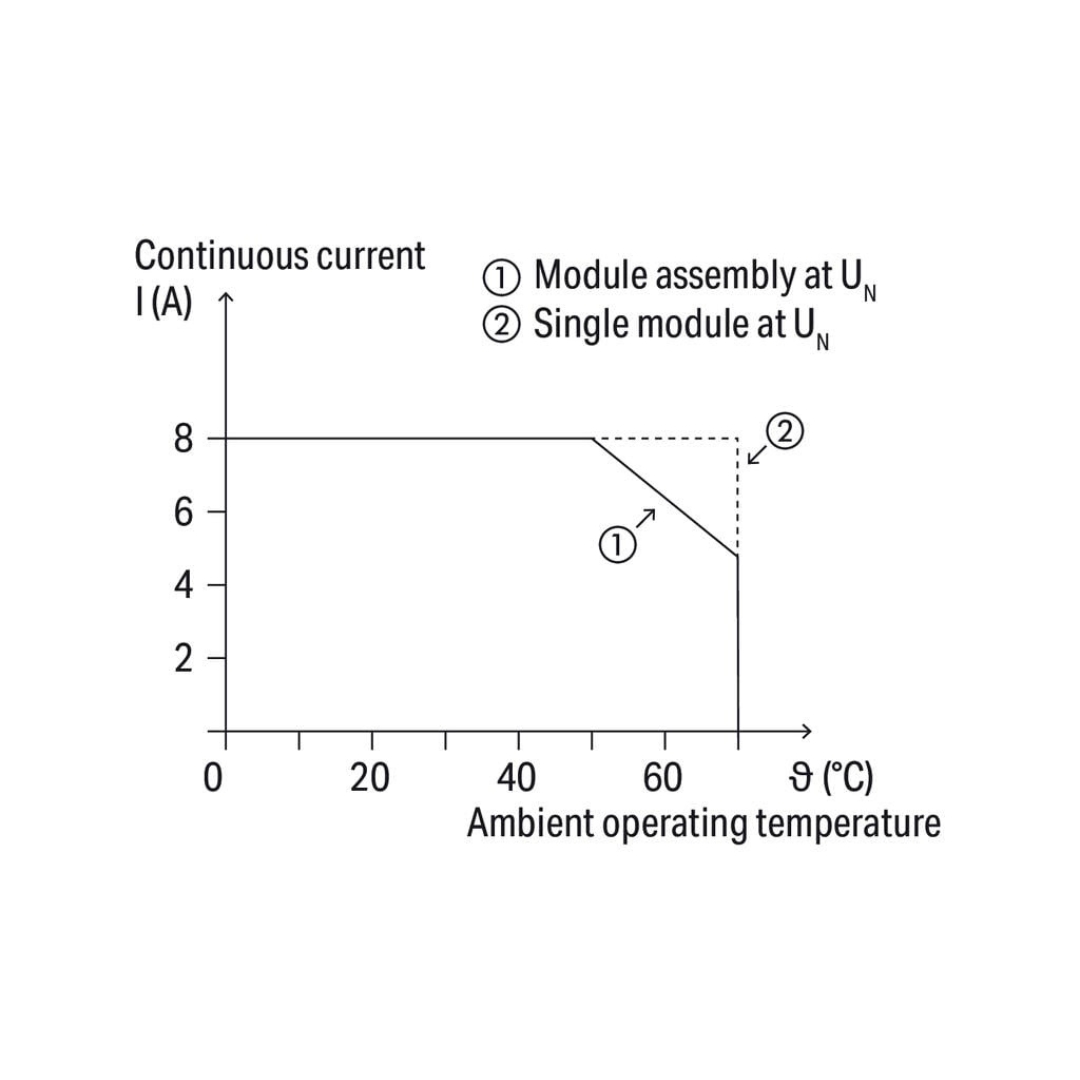

Continuous Current 8 A
Inrush Current (Max) 15 A / 4 s (resistive)
Switching Voltage (Max) 250 VAC

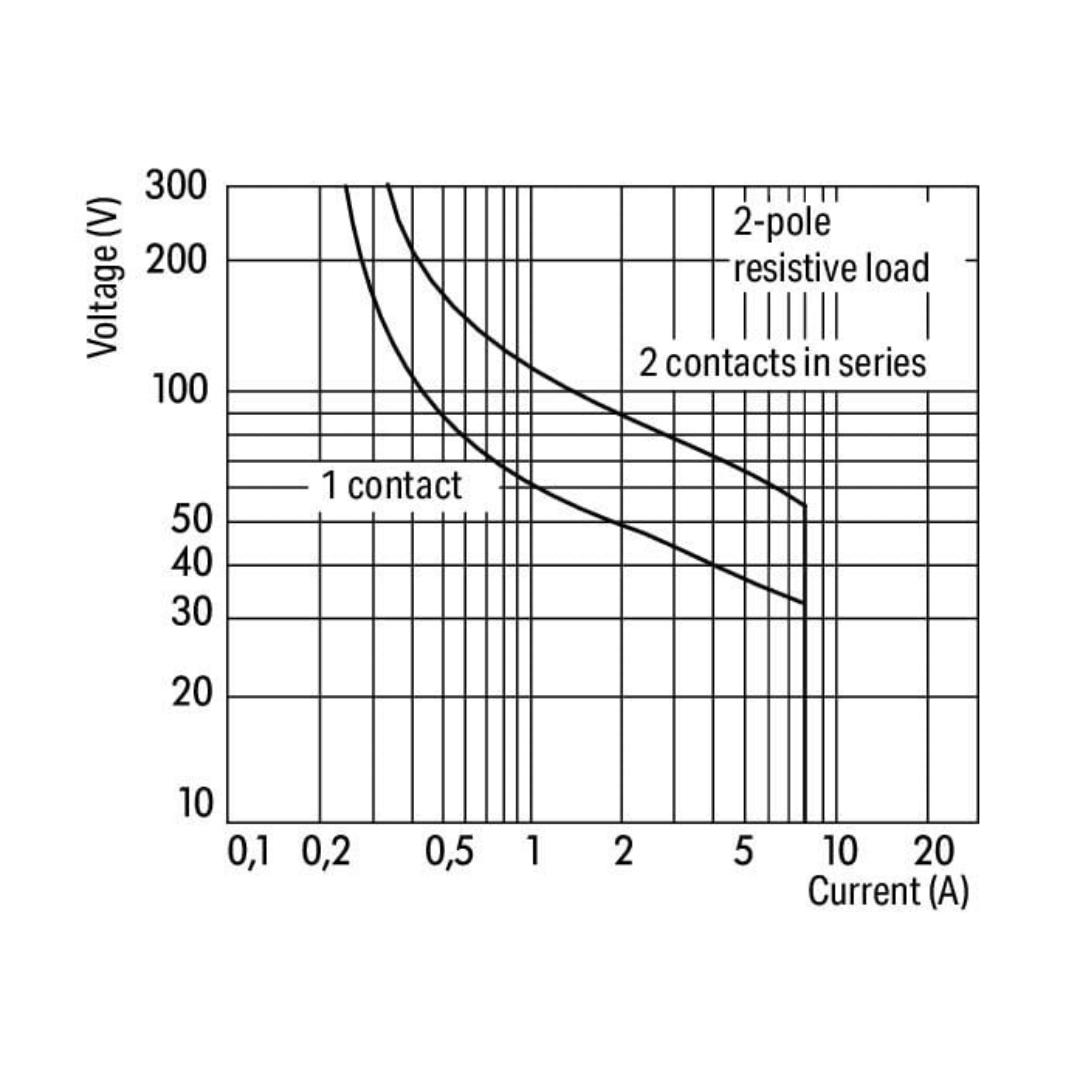

Switching Capacity (Max) AC: 2000 VA; DC: See load limit curve
Status Indicator Red LED
Pull-in/Drop-out Time 10 ms / 35 ms
Bounce Time 10 ms
Electrical Life 10,000 cycles (NO, resistive load, 23°C)
Mechanical Life 30 million cycles
Protection Type IP20
Dielectric Strength Coil/Contact: 5 kVrms; Open Contact: 1 kVrms
Mounting Type DIN-35 rail

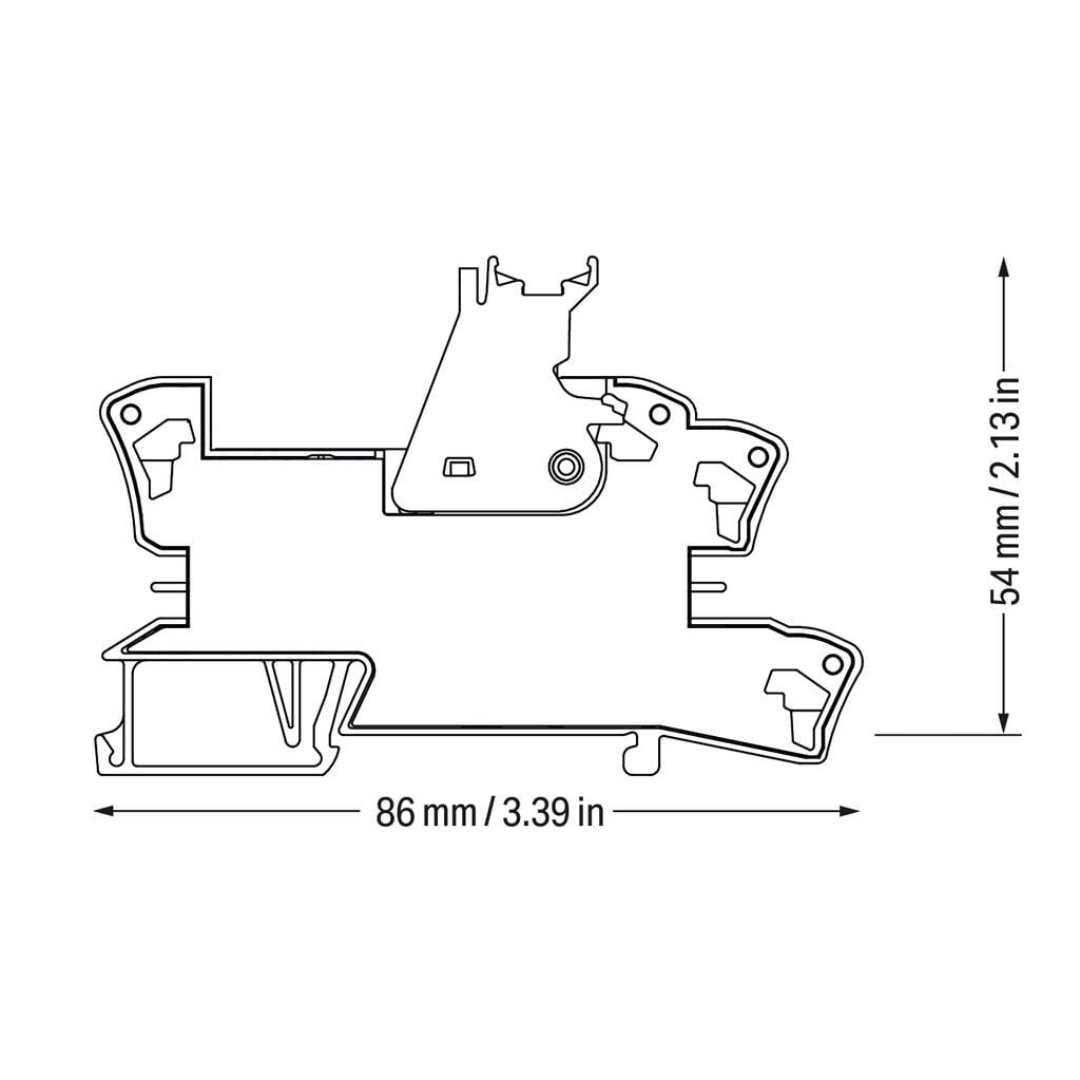

Width / Height / Depth 15 mm / 86 mm / 54 mm
Connection Technology Push-in CAGE CLAMP®
Conductor Size 0.34 – 2.5 mm² (22 – 14 AWG)
Ambient Operating Temp. -40 to +70 °C
Weight 45 g
Color Gray
Compliance RoHS Compliant (with exemption), EN/UL/DNV certified



Weight 0.099208 lbs
Dimensions 2.126 × 0.591 × 3.386 in
