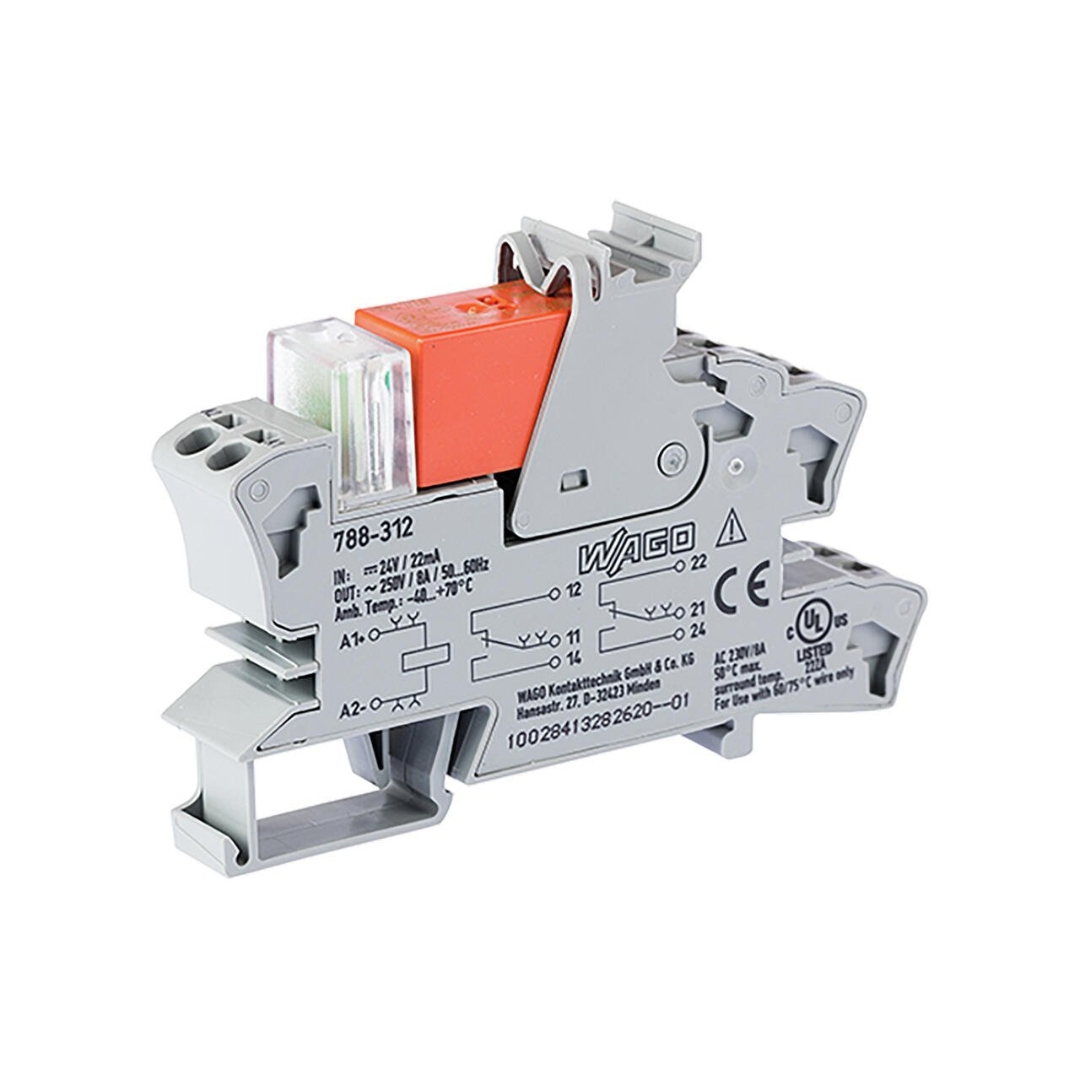

788-312-WAGO | Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray
788-312-WAGO | Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray - Image 2
788-312-WAGO | Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray - Image 3
788-312-WAGO | Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray - Image 4
788-312-WAGO | Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray - Image 5

788-312-WAGO | Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray

$ 21.06

The WAGO 788-312 Relay Module is a compact and high-performance interface relay designed for industrial automation and control applications. Featuring a 24 VDC nominal input voltage and two changeover contacts, this relay delivers a reliable switching capacity of up to 8 A with a robust AgNi contact system. The integrated red status LED provides immediate visual feedback, while the push-in CAGE CLAMP® technology ensures quick, vibration-resistant wiring. Designed for DIN-rail mounting, this 15 mm wide gray module meets demanding environmental and electrical standards, with reinforced insulation and excellent surge protection, making it ideal for high-reliability switching tasks in compact control panels.

Available on backorder

SKU: 788-312 Categories: ,

Product Description

The WAGO 788-312 Relay Module is a compact and high-performance interface relay designed for industrial automation and control applications. Featuring a 24 VDC nominal input voltage and two changeover contacts, this relay delivers a reliable switching capacity of up to 8 A with a robust AgNi contact system. The integrated red status LED provides immediate visual feedback, while the push-in CAGE CLAMP® technology ensures quick, vibration-resistant wiring. Designed for DIN-rail mounting, this 15 mm wide gray module meets demanding environmental and electrical standards, with reinforced insulation and excellent surge protection, making it ideal for high-reliability switching tasks in compact control panels.

Key Features

  • 24 VDC Nominal Input Voltage with ±10% tolerance
  • 2 Changeover Contacts with up to 8 A continuous current
  • Integrated Red LED for clear status indication
  • Push-in CAGE CLAMP® terminals for fast, tool-free wiring
  • Slim 15 mm Profile saves space on DIN-rail installations
  • Wide Operating Temperature Range: -40 to +70 °C
  • Reinforced Insulation between coil and contacts for added safety
  • RoHS Compliant and meets multiple international safety standards

Specifications

Category Specification
Input Voltage (Nominal) 24 VDC ±10%
Input Current at UN 19 mA

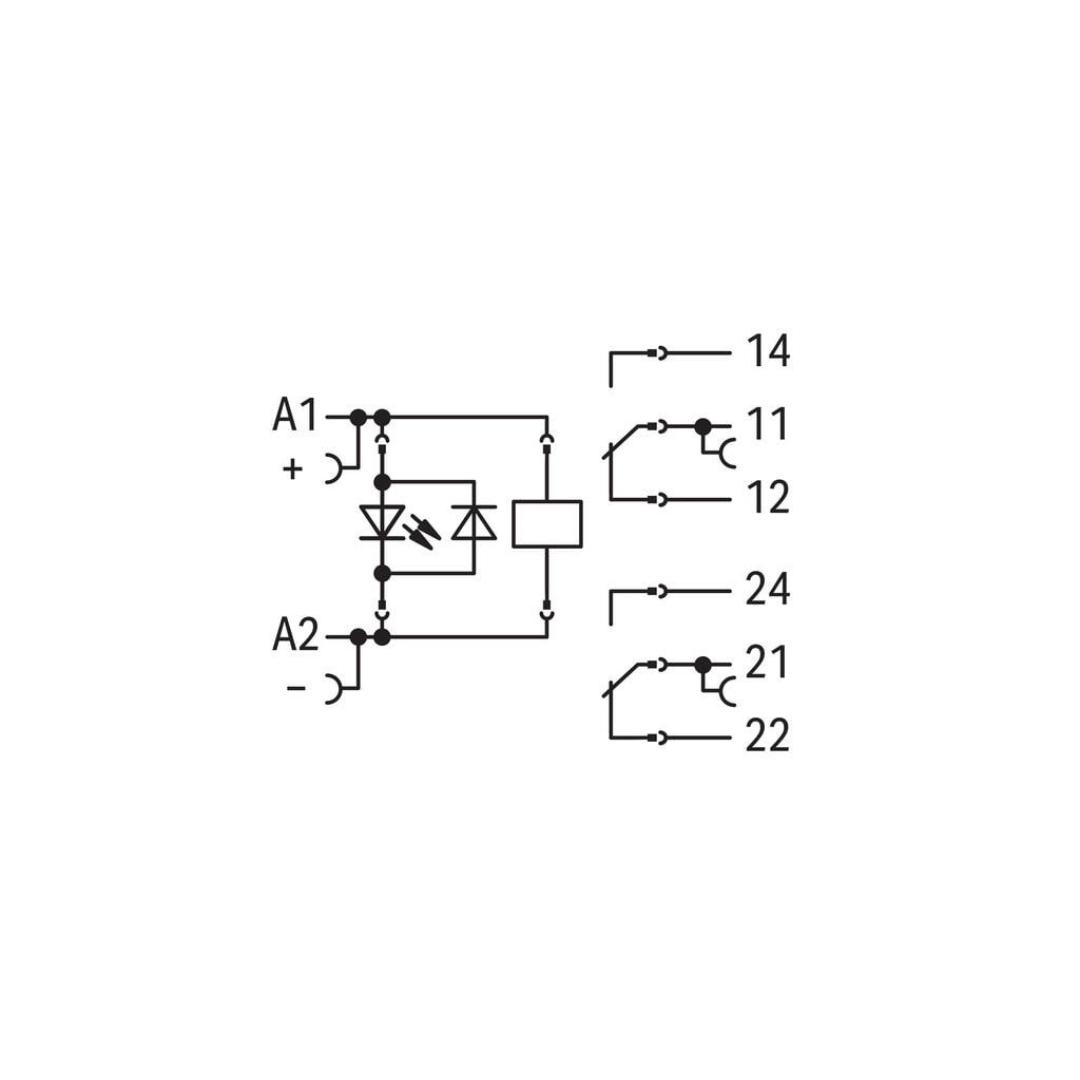

Contacts 2 changeover contacts
Contact Material AgNi 90/10

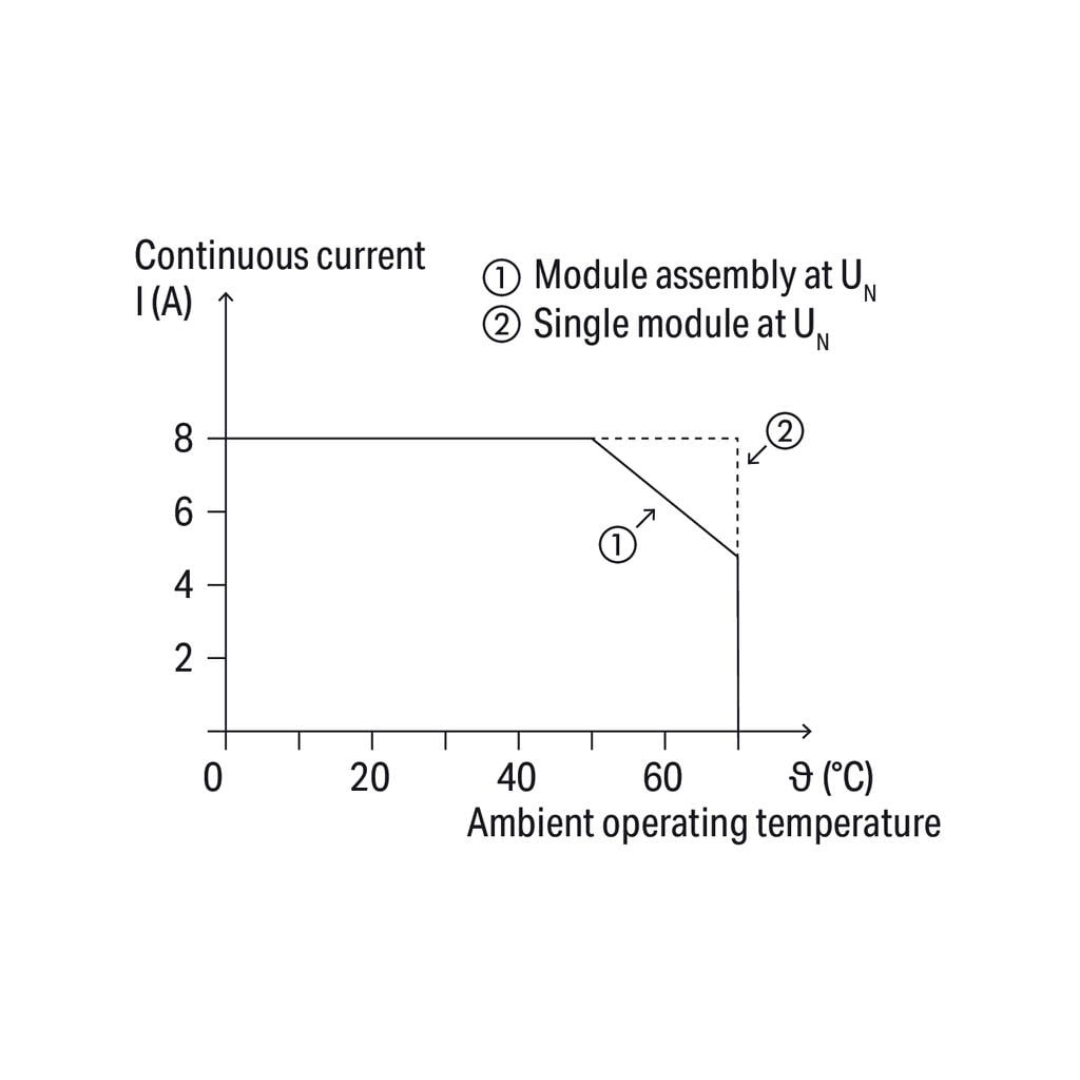

Continuous Current Limit 8 A
Inrush Current (AC) 15 A / 4 s
Switching Voltage (Max) 250 VAC

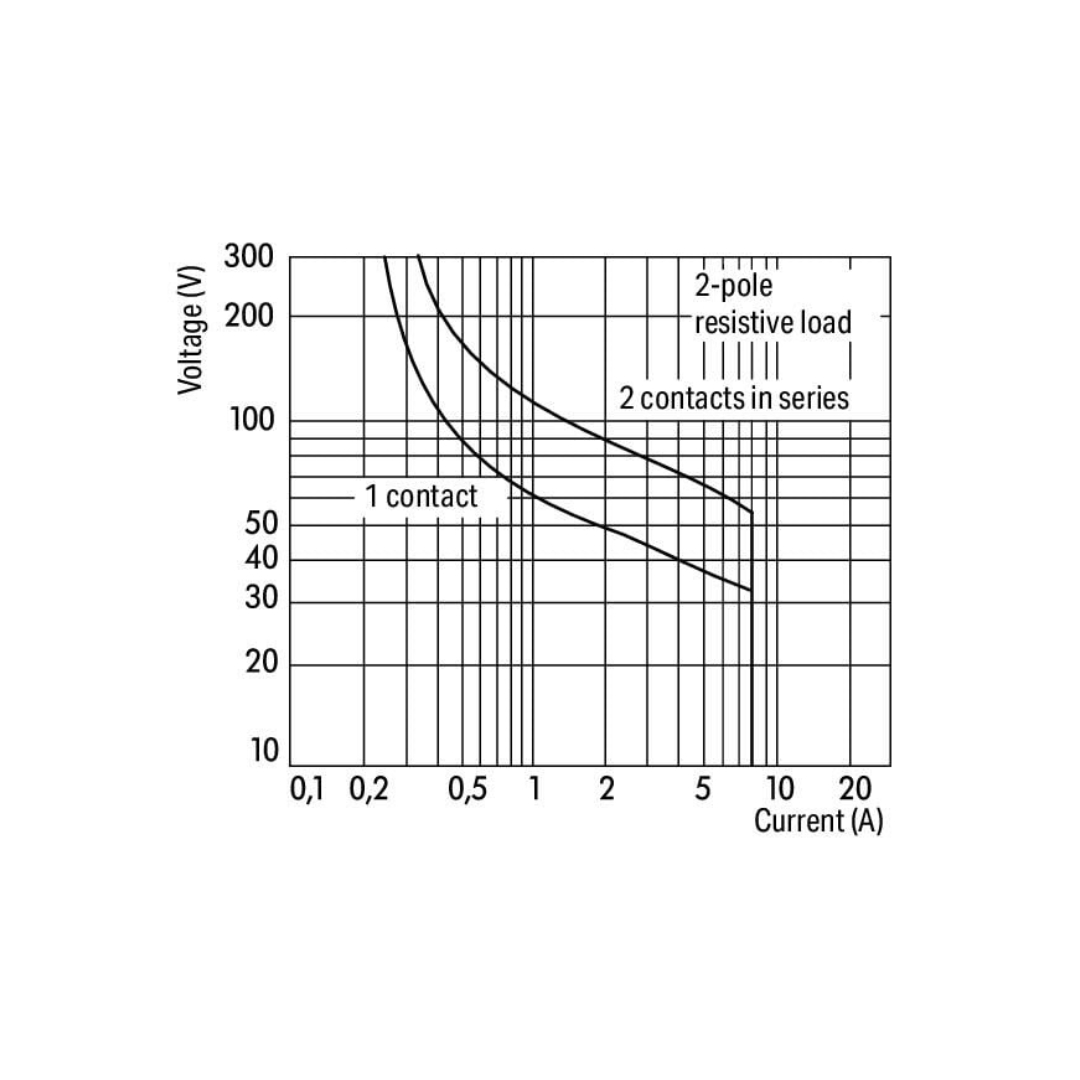

Switching Power (Resistive) AC: 2000 VA; DC: see load curve
Switching Capacity AC-15: 3 A @ 250 VAC; DC-13: 2 A @ 24 VDC
Min. Recommended Load 12 V / 10 mA
Pull-in / Drop-out Time 8 ms / 13 ms
Bounce Time (Typ.) 10 ms
Electrical Life (NO) 10,000 operations @ 23°C resistive load
Mechanical Life 30 million operations
Switching Frequency 6 min⁻¹ (with load) / 1200 min⁻¹ (without load)
Status Indicator Red LED
Rated Voltage / Impulse 250 V / 4 kV
Protection Type IP20
Mounting Type DIN-35 rail
Connection Technology Push-in CAGE CLAMP®
Conductor Size (Solid/Fine) 0.34–2.5 mm² (22–14 AWG)
Strip Length 9–10 mm (0.35–0.39 in)

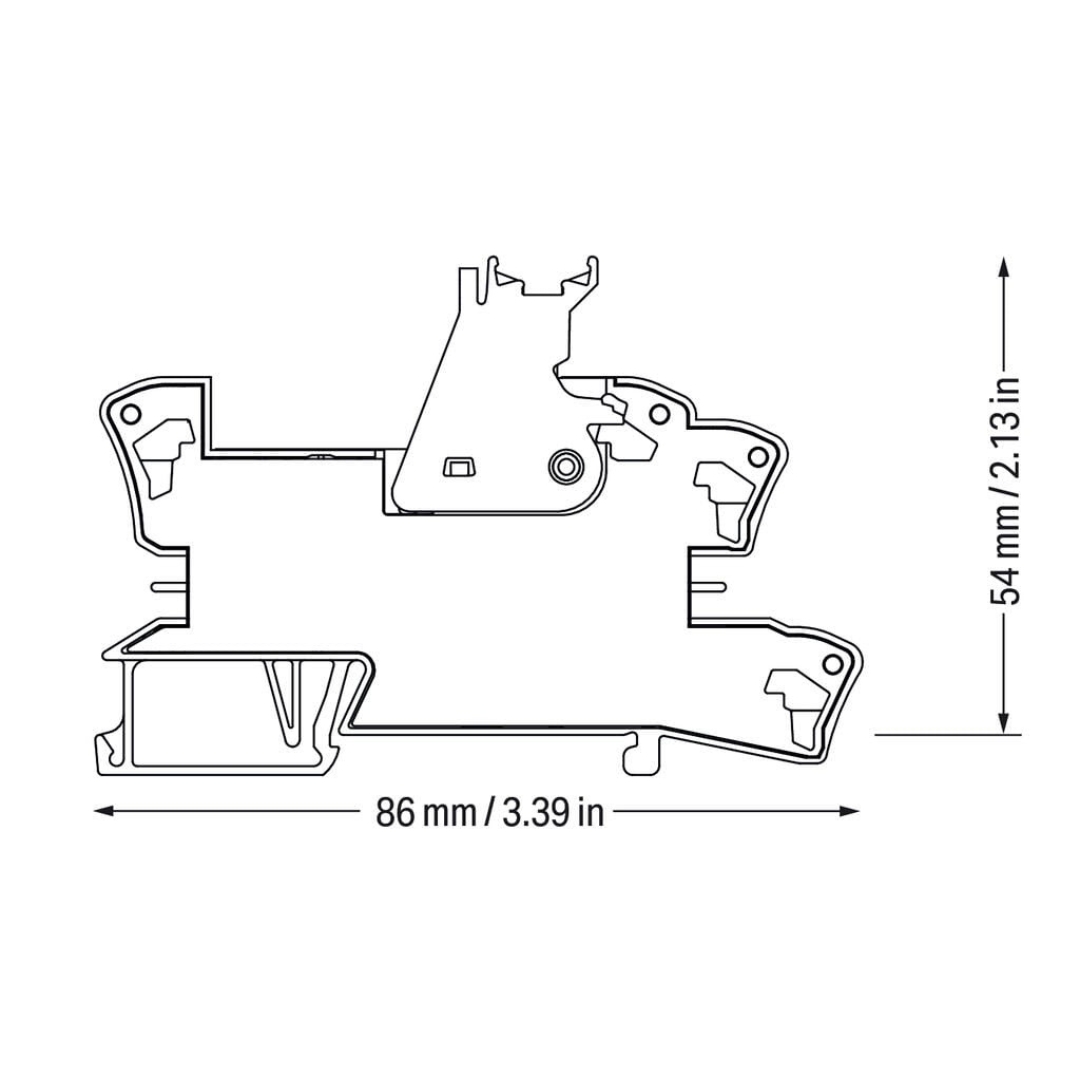

Module Dimensions (W x H x D) 15 mm x 86 mm x 54 mm
Weight 45.5 g
Ambient Temp (Operating) -40 to +70 °C
Color / Fire Load Gray / 1.35 MJ
Standards EN 61010-2-201, EN 61810-1, EN 61373, UL 508
RoHS Compliance Compliant, No Exemption
GTIN 4055143184137
Country of Origin China
UNSPSC / eCl@ss / ETIM 39122334 / 27-37-16-01 / EC001437
SCIP Notification (Examples) Germany: 29efa91e-de52-404a-a3b5-7a02ea50bbb5
Weight 0.10031 lbs
Dimensions 2.126 × 0.591 × 3.386 in
