Description

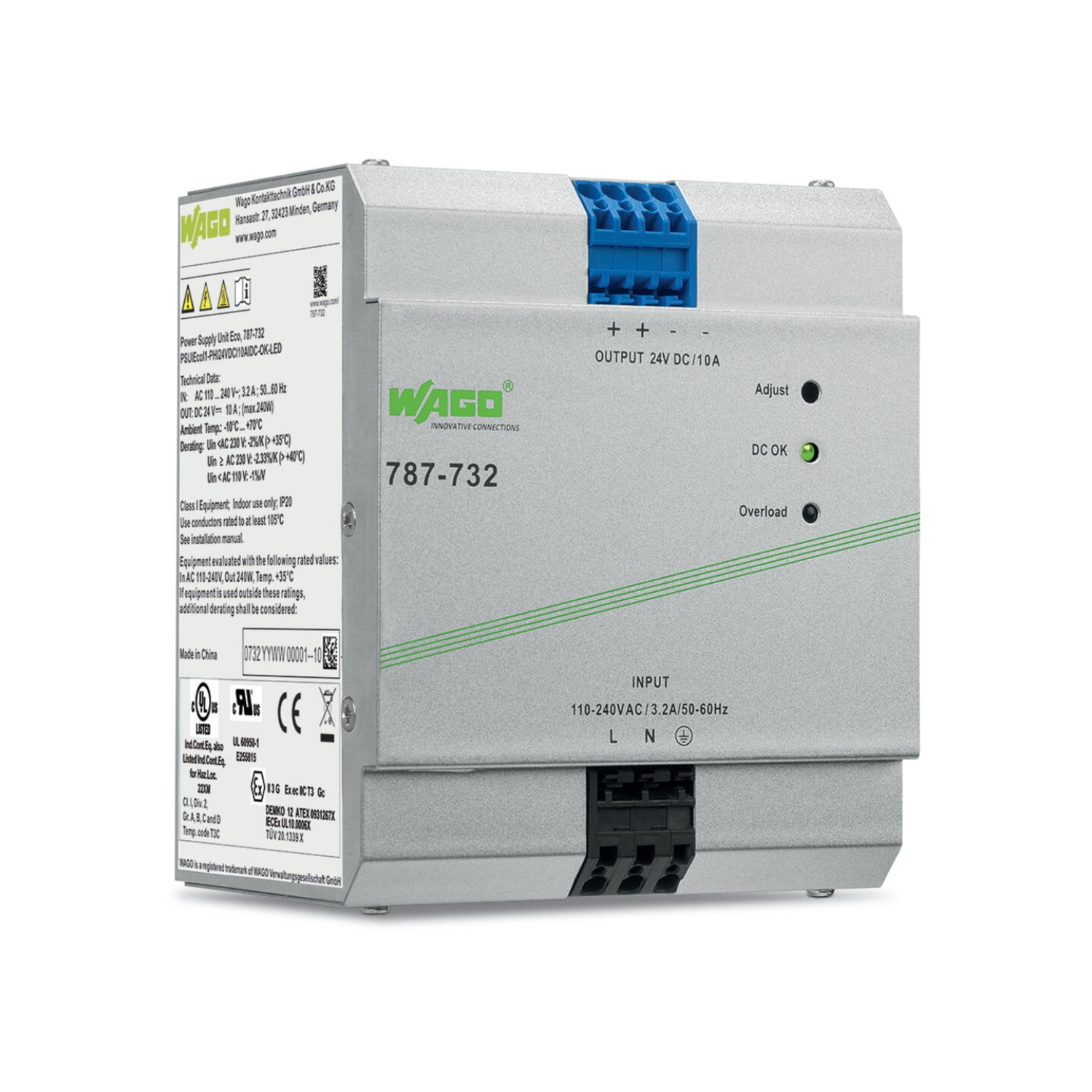

The WAGO 787-732 Eco Power Supply is a high-performance, single-phase switched-mode power supply designed to deliver a stable 24 VDC output for demanding industrial control cabinets. Engineered for reliability and cost-effectiveness, this unit provides a robust 10 A output current, making it an ideal choice for powering PLCs, sensors, and actuators. Its encapsulated design and natural convection cooling ensure longevity and dependable operation in standard horizontal mounting positions. With advanced safety certifications including SELV and PELV, the 787-732 offers a secure and efficient power solution that integrates seamlessly into your automated systems via standard DIN-35 rail mounting.
Key Features
-
Reliable Performance: Delivers a steady 240 W of power with an active Power Factor Correction (PFC).
-
Intuitive Signaling: Equipped with clear DC OK (Green) and Overload (Red) LED indicators for real-time status monitoring.
-
Versatile Operation: Supports both parallel and series operation, allowing for scalable power configurations.
-
Industrial Durability: Features a rugged encapsulated housing designed for IP20 protection and natural convection cooling.
-
Easy Installation: Utilizes WAGO’s legendary CAGE CLAMP® technology for fast, vibration-proof, and maintenance-free wiring.
-
Safety First: Electrically isolated output voltage (SELV/PELV) and comprehensive short-circuit and open-circuit protection.
Specifications
| Feature | Specification |
| Input Voltage | 110 … 240 VAC (Nominal); 100 … 264 VAC (Range) |
| Output Voltage | 24 VDC (SELV) |
| Output Current | 10 A |
| Output Power | 240 W |
| Efficiency | Typ. 86% (at 230 VAC) |
| Connection Technology | CAGE CLAMP® (WAGO 745 Series) |
| Conductor Range | 0.08 … 4 mm² / 28 … 12 AWG |
| Mounting Type | DIN-35 rail |
| Dimensions (W x H x D) | 110 x 136 x 92 mm |
| Operating Temperature | -10 … +70 °C (Derating > 40 °C) |
| Standards / Approvals | CE, UKCA, UL 61010, SEMI F47, RoHS Compliant |
