Product Description

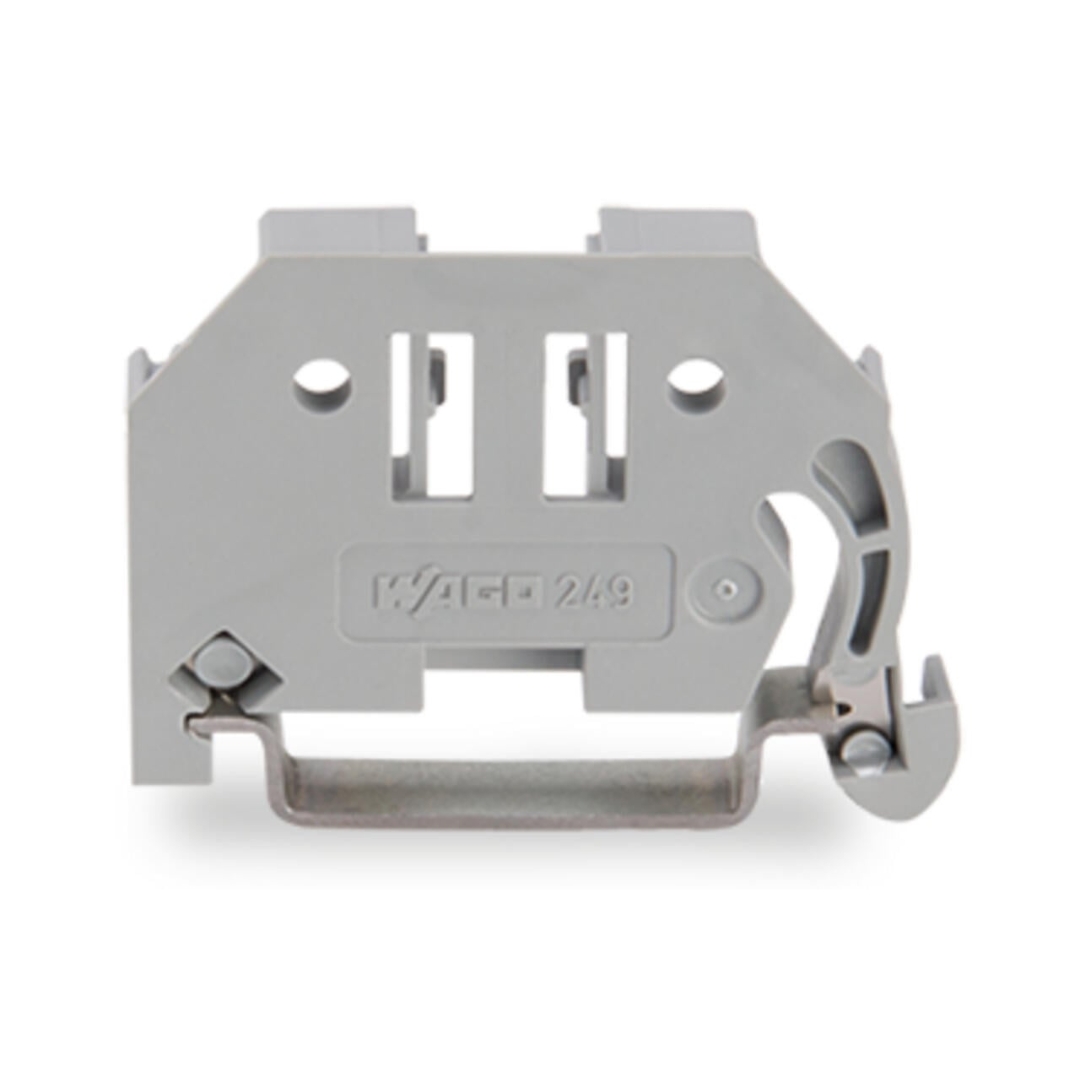

The WAGO 249-116 Screwless End Stop is the ideal solution for securing rail-mount terminal blocks to DIN rails without the need for any tools. Designed for both DIN-35 35 x 7.5 mm and 35 x 15 mm rails, this end stop uses a simple snap-on mechanism to secure the blocks in place, ensuring fast and reliable installation. Made from high-quality polyamide, the end stop offers superior durability and is flame retardant (UL94 V0). It also features three marker slots for easy labeling and a snap-in hole for adjustable height group marker carriers. Whether mounted vertically or horizontally, this end stop guarantees the safe and economical securing of terminal blocks.
Key Features
- Tool-Free Installation: Snap-on design for quick and easy mounting without tools.
- Secure and Durable: Clamping plates ensure a perfect fit and prevent movement even on vertical rails.
- Versatile Marking Options: Includes three marker slots and a snap-in hole for adjustable height group markers.
- Compatible with DIN-35 Rails: Works with both 35 x 7.5 mm and 35 x 15 mm rails.
- Flame Retardant: Made from polyamide (PA66) with a UL94 V0 flammability rating for safety.
- Cost-Effective: Reduces costs, especially when used in large quantities.
Specifications
| Property | Details |
|---|---|
| Mounting Type | DIN-35 rail |

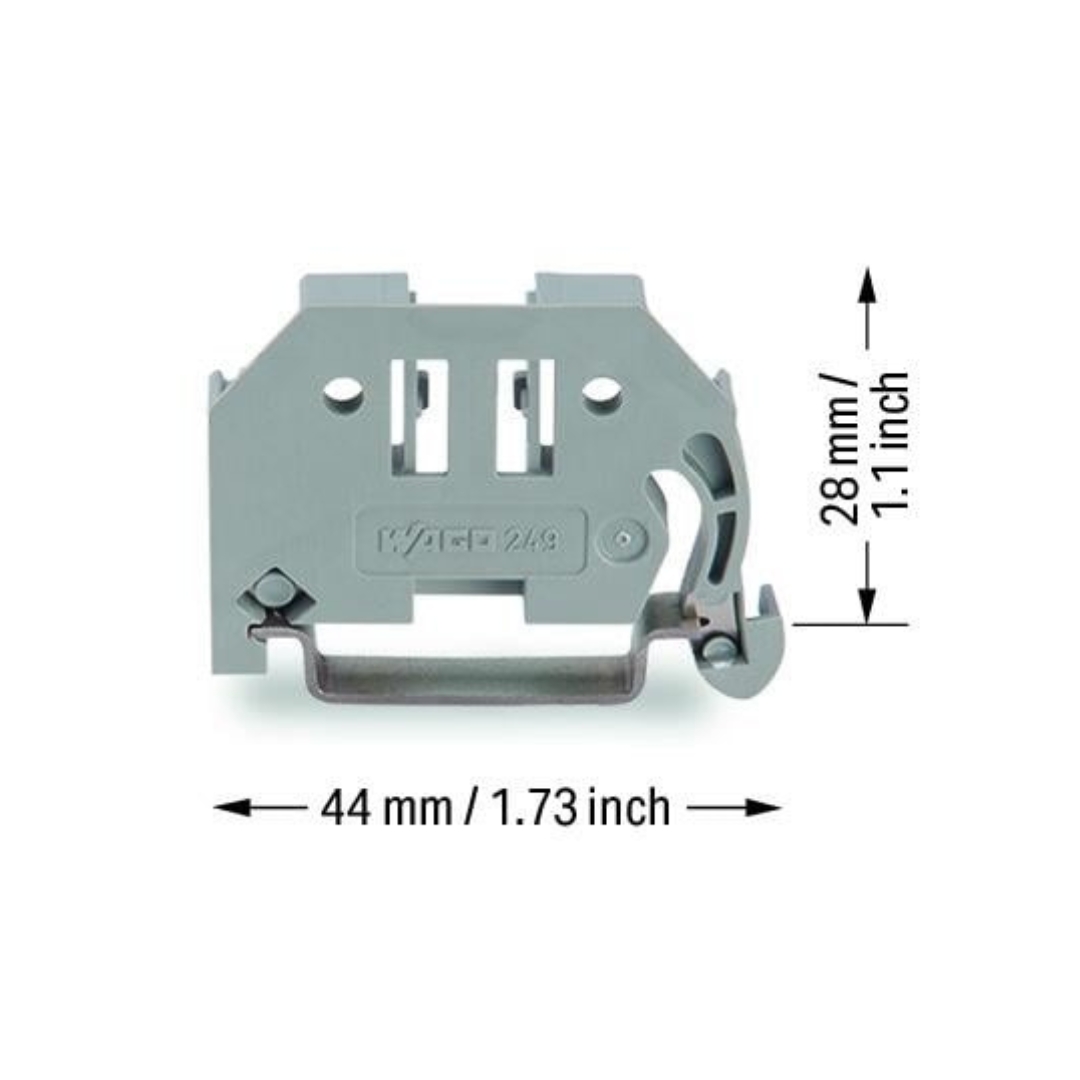

| Width | 6 mm / 0.236 inches |
| Height | 44 mm / 1.732 inches |
| Depth | 35 mm / 1.378 inches |
| Depth from Upper-Edge of DIN Rail | 28 mm / 1.102 inches |
| Material | Polyamide (PA66) |
| Color | Gray |
| Flammability Class per UL94 | V0 |
| Fire Load | 0.099 MJ |
| Weight | 3.4 g |
| Packaging Type | Box (100 pieces) |
| Country of Origin | Germany |
| GTIN | 4017332270823 |
| RoHS Compliance | Compliant, No Exemption |
