Product Description

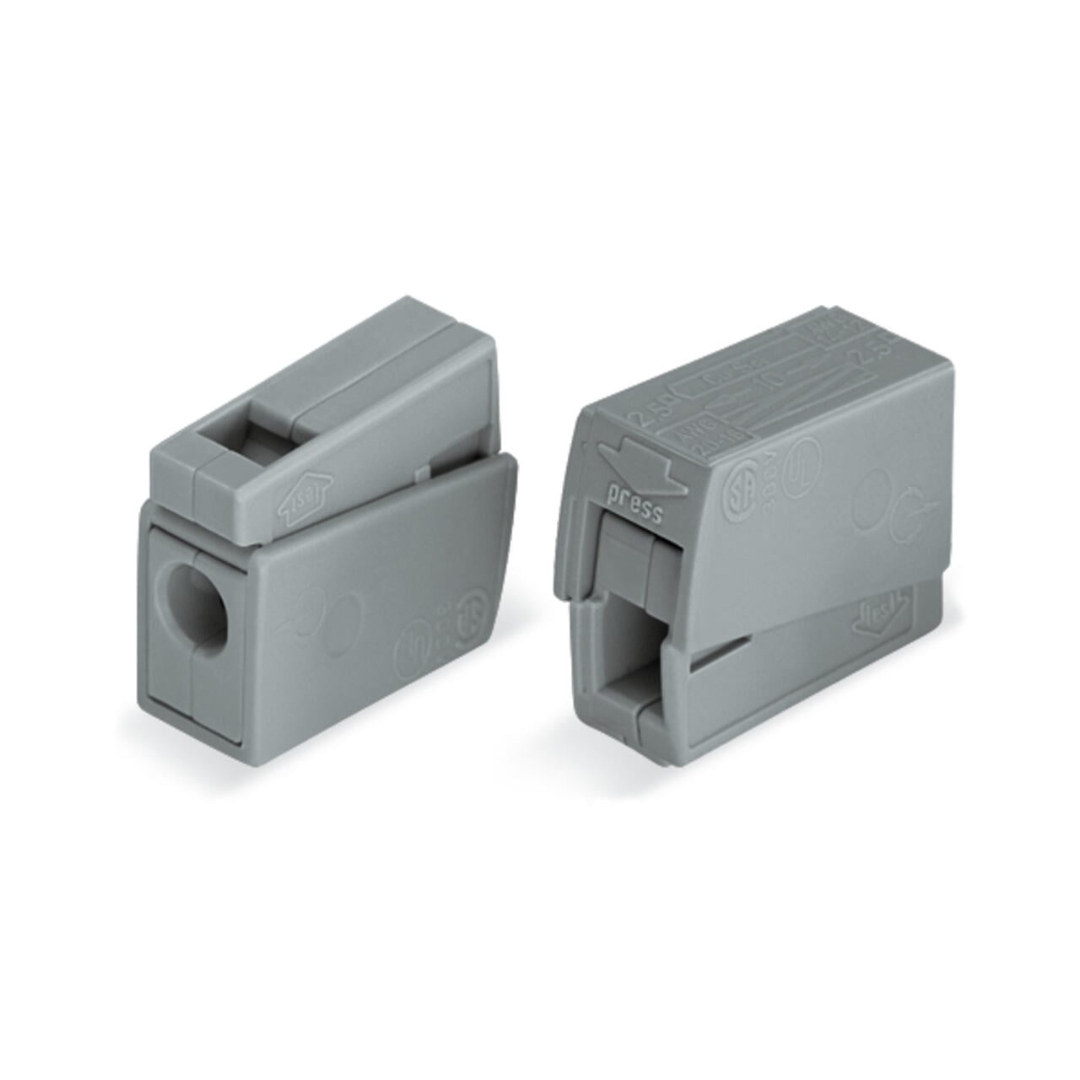

The WAGO 224-101 PUSHWIRE® Inline Connector is designed for fast and reliable conductor connections, particularly in lighting systems. It utilizes WAGO’s innovative PUSH WIRE® technology for solid and fine-stranded conductors, allowing for quick installation without the need for special tools or preparation. Whether you are wiring in office buildings, homes, or other locations, this connector simplifies the process. It’s designed for high-load applications with a rated voltage of 400 V and a rated current of 24 A, making it ideal for most lighting installations. The connector’s compact dimensions (8 x 15.5 x 20.4 mm) allow for easy integration into tight spaces, while its gray, durable material ensures long-lasting performance.
Key Features
- PUSHWIRE® Technology: Simple, tool-free wire insertion for faster installations.
- CAGE CLAMP® Connection: Maintenance-free, versatile connection for various conductor types.
- Wide Compatibility: Works with solid and fine-stranded copper conductors.
- High Rated Current & Voltage: Rated for 24 A current and 400 V voltage, suitable for most lighting systems.

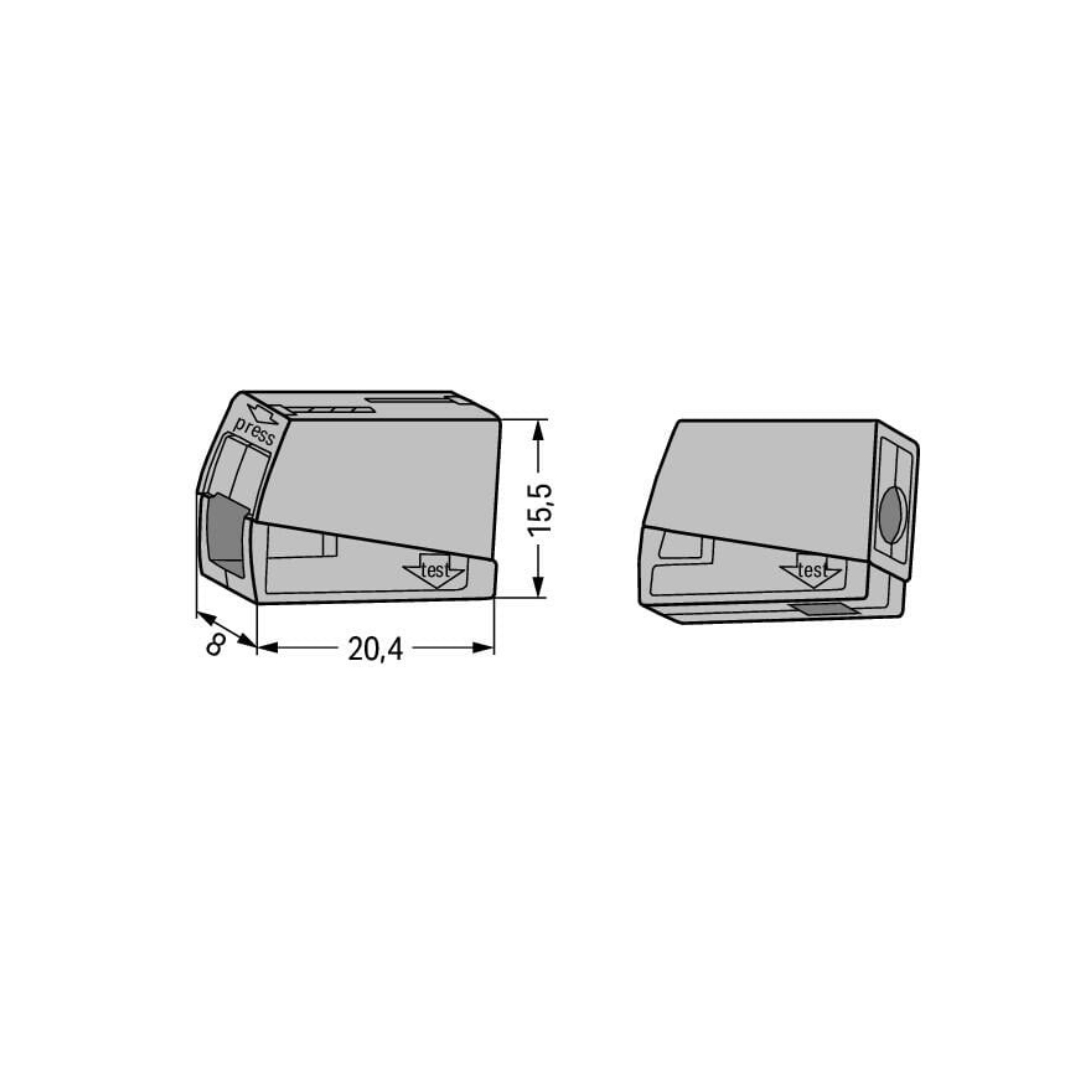

- Compact & Durable: Measures 8 mm x 15.5 mm x 20.4 mm and features a robust gray housing.
- Easy to Use: Push-in technology for effortless conductor insertion with no crimping required.
- Environmental Compliance: RoHS compliant for environmental safety.
Specifications
| Property | Details |
|---|---|
| Connection Technology | PUSHWIRE® (Installation side), CAGE CLAMP® (Lighting side) |
| Clamping Units | 2 |
| Total Number of Potentials | 1 |
| Conductor Materials | Copper (solid or fine-stranded) |
| Solid Conductor Range (Installation side) | 1 … 2.5 mm² / 14 … 12 AWG |
| Fine-stranded Conductor Range (Lighting side) | 0.5 … 2.5 mm² / 20 … 16 AWG |
| Strip Length | 9 … 11 mm / 0.35 … 0.43 inches |
| Wiring Direction | Side-entry |
| Width | 8 mm / 0.315 inches |
| Height | 15.5 mm / 0.61 inches |
| Depth | 20.4 mm / 0.803 inches |
| Color | Gray |
| Fire Load | 0.04 MJ |
| Weight | 1.8 g |
| Operating Temperature | +60 °C |
| Continuous Operating Temperature | 105 °C |
| Packaging Type | Box (100 pieces) |
| GTIN | 4044918583817 |
| Country of Origin | Switzerland |
| RoHS Compliance | Yes |
