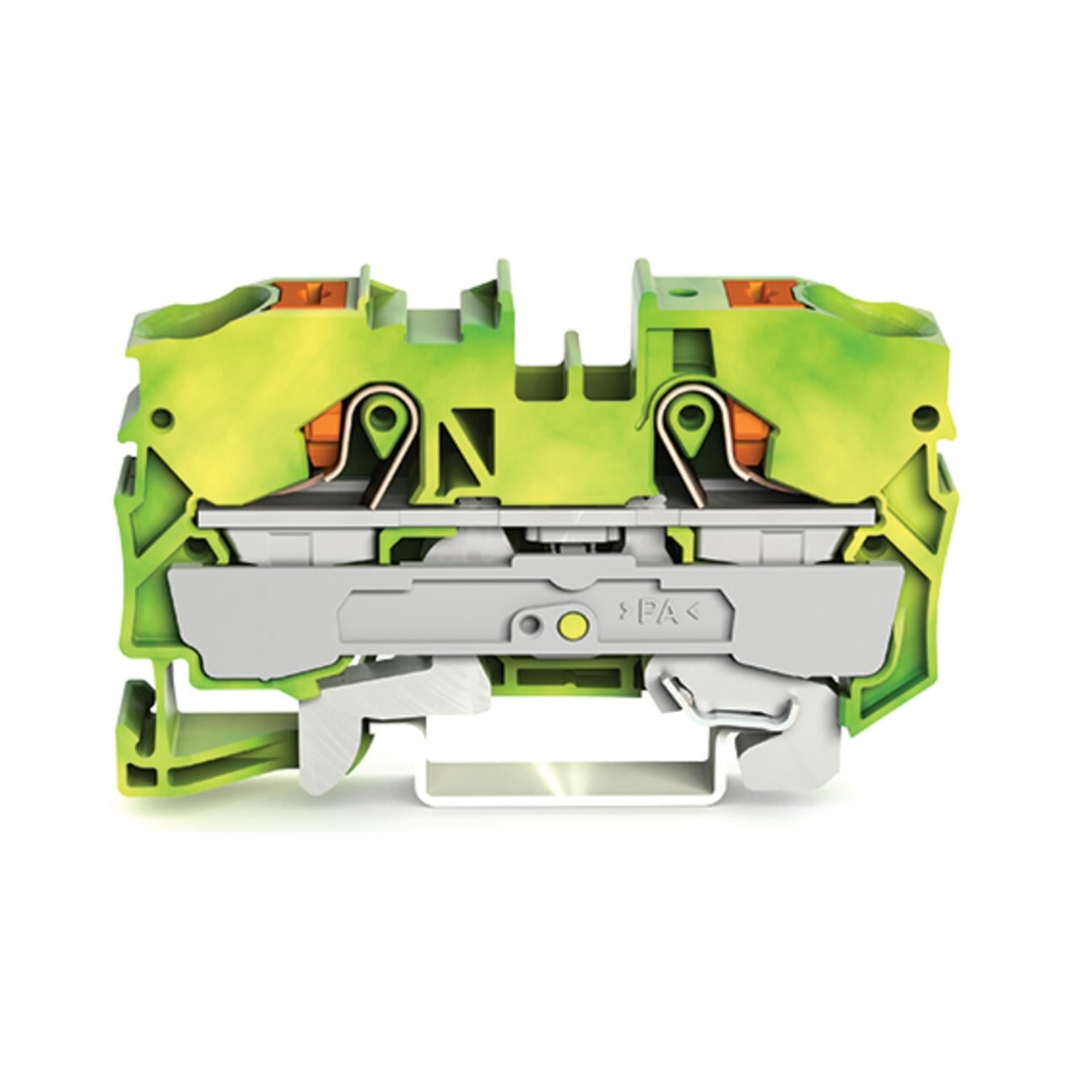

2210-1207-WAGO | 2-conductor ground terminal block; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; green-yellow

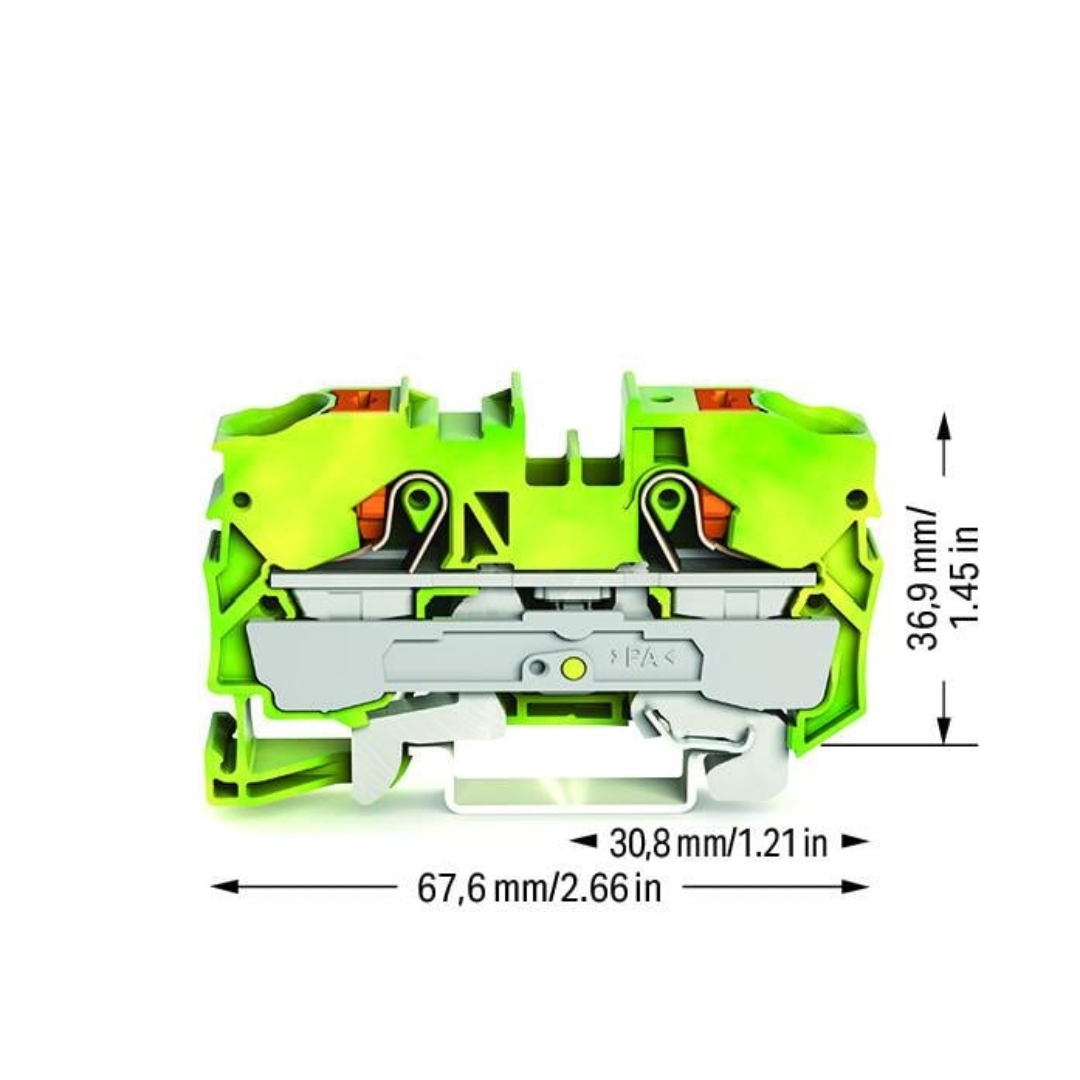

2210-1207-WAGO | 2-conductor ground terminal block; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; green-yellow - Image 2

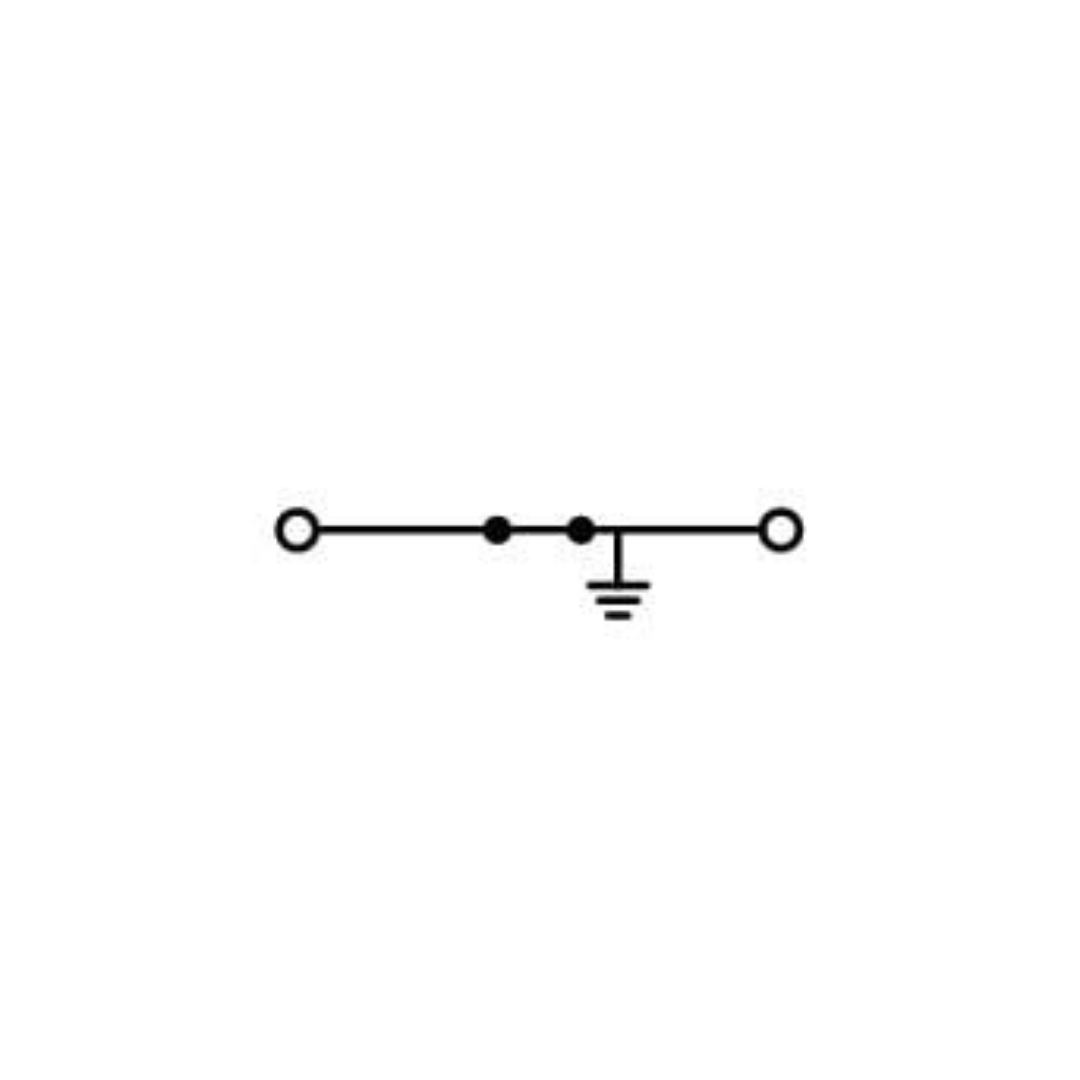

2210-1207-WAGO | 2-conductor ground terminal block; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; green-yellow - Image 3

2210-1207-WAGO | 2-conductor ground terminal block; 10 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; green-yellow

$ 9.42

The WAGO 2210-1207 Ground Terminal Block is a reliable solution for securely connecting ground conductors in industrial and building applications. Equipped with Push-in CAGE CLAMP® technology, this terminal block enables fast, tool-free connections for solid and fine-stranded copper conductors with cross-sections ranging from 0.5 mm² to 16 mm². The terminal block has a green-yellow housing made of durable polyamide (PA66) and features a front-entry wiring system for easy installation. With its two clamping points and jumper slots, it allows for efficient potential distribution. This ground terminal block is mounted on DIN-35 rails and is designed to meet high safety and environmental standards, including compliance with IEC, UL, and RoHS regulations. Its push-button actuation adds convenience to operations, making it an excellent choice for a variety of electrical installations.

150 in stock (can be backordered)

SKU: 2210-1207 Categories: ,

Product Description

The WAGO 2210-1207 Ground Terminal Block is a reliable solution for securely connecting ground conductors in industrial and building applications. Equipped with Push-in CAGE CLAMP® technology, this terminal block enables fast, tool-free connections for solid and fine-stranded copper conductors with cross-sections ranging from 0.5 mm² to 16 mm². The terminal block has a green-yellow housing made of durable polyamide (PA66) and features a front-entry wiring system for easy installation. With its two clamping points and jumper slots, it allows for efficient potential distribution. This ground terminal block is mounted on DIN-35 rails and is designed to meet high safety and environmental standards, including compliance with IEC, UL, and RoHS regulations. Its push-button actuation adds convenience to operations, making it an excellent choice for a variety of electrical installations.

Key Features

  • Push-in CAGE CLAMP® technology for easy, tool-free connections
  • Green-yellow polyamide (PA66) housing for clear identification
  • Rated for conductor cross-sections from 0.5 mm² to 16 mm²
  • Front-entry wiring for simple installation
  • Features two jumper slots for potential distribution
  • Operates with a push-button for easy actuation
  • Mountable on DIN-35 rails with side and center markings for easy identification
  • Ideal for industrial, building, and Ex applications (refer to datasheet for Ex specifications)
  • RoHS compliant and UL94 V0 flammability rating

Specifications

Attribute Value
Connection Technology Push-in CAGE CLAMP®
Nominal Cross-Section 10 mm²
Conductor Range Solid: 0.5 … 16 mm² / 20 … 6 AWG
Fine-stranded: 0.5 … 16 mm² / 20 … 6 AWG
Clamping Units 2
Total Number of Potentials 1
Number of Levels 1
Number of Jumper Slots 2
Mounting Type DIN-35 rail
Dimensions (WxHxD) 10 mm x 67.6 mm x 43.5 mm
Insulation Material Polyamide (PA66)
Actuator Color Orange
Environmental Temperature Range -60 … +105 °C (operating)
Weight 30.9 g
Color Green-yellow
Flammability Class UL94 V0
Approvals IEC/UL/CSA/ATEX/IECEx
RoHS Compliance Yes
Packaging Type Box
Country of Origin Germany
Weight 0.068123 lbs
Dimensions 1.453 × 0.394 × 2.661 in
Part Number
