Product Description

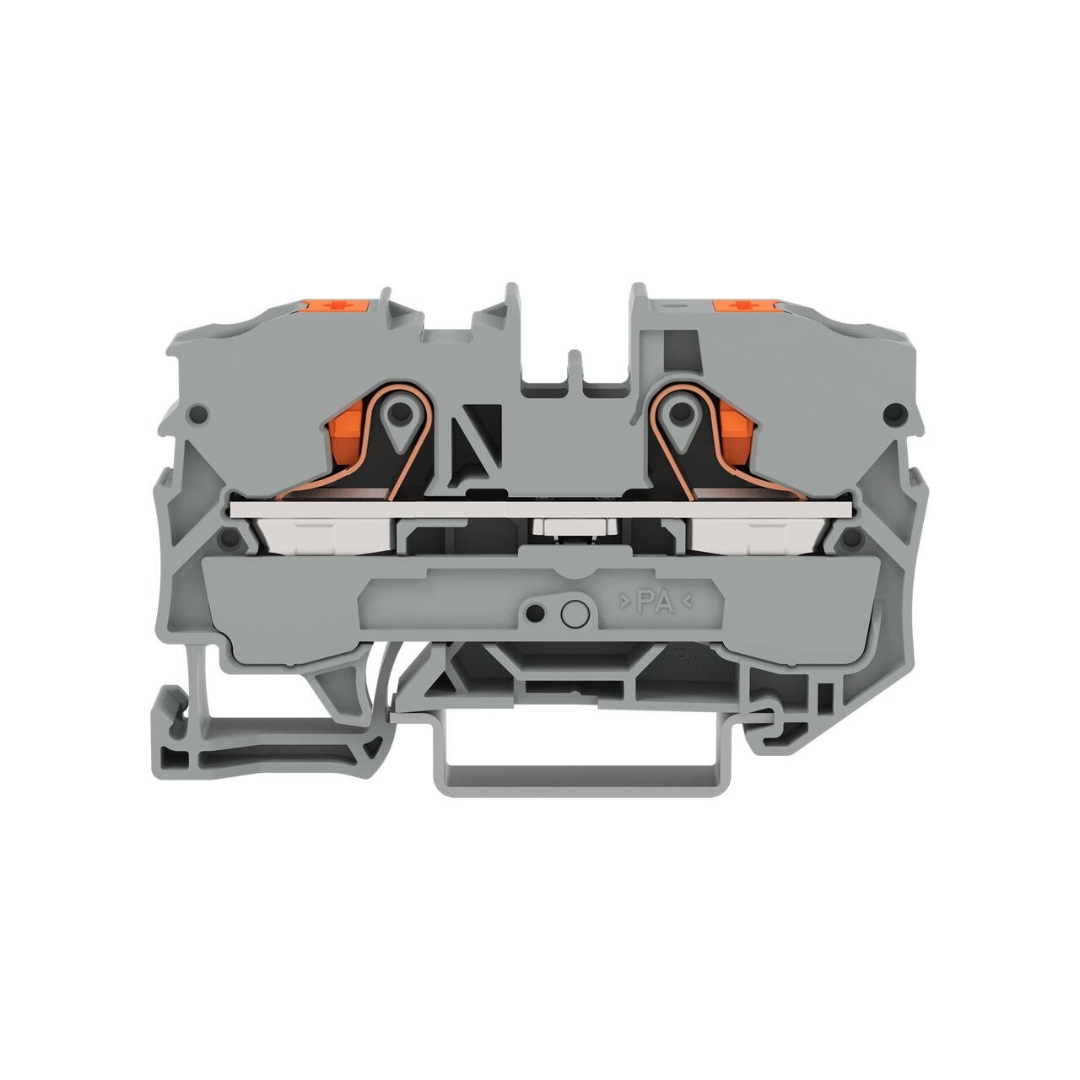

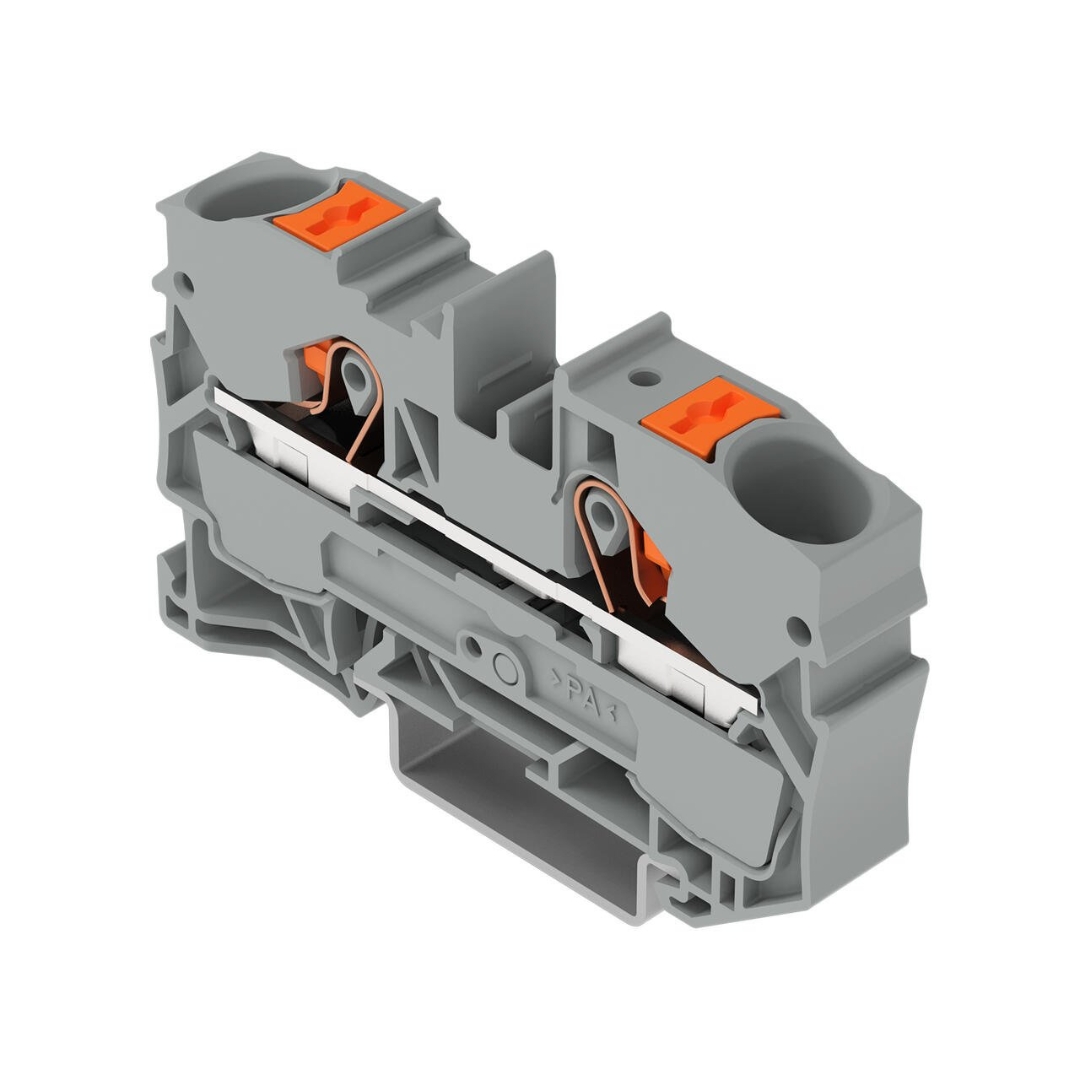

The WAGO 2210-1201 2-Conductor Through Terminal Block is an advanced solution for secure and efficient electrical installations. Featuring Push-in CAGE CLAMP® technology, this terminal block allows for fast and tool-free connections of solid and fine-stranded copper conductors, with cross-sections ranging from 0.5 mm² to 16 mm². It provides a reliable connection with a rated voltage of 800 V and a maximum current rating of 57 A. Ideal for use in industrial environments, the terminal block offers front-entry wiring and is designed for mounting on DIN-35 rails. The unit’s robust gray polyamide (PA66) housing ensures long-lasting durability, while its integrated test port and push-button actuation add convenience for installation and maintenance. This terminal block also complies with various IEC, UL, and CSA approvals, making it a versatile choice for applications that require strict safety standards.
Key Features
- Push-in CAGE CLAMP® technology for tool-free, secure connections
- Rated voltage of 800 V and rated current of 57 A
- Connects solid and fine-stranded copper conductors (0.5 mm² to 16 mm²)
- Front-entry wiring for easy installation
- Gray polyamide (PA66) housing with UL94 V0 flammability rating
- Includes a test port for easy troubleshooting
- Mountable on DIN-35 rails with side and center markings for easy identification
- Ideal for industrial and building applications, as well as Ex-rated environments (ATEX/IECEx)
- Two jumper slots for potential distribution
Specifications
| Attribute | Value |
|---|---|
| Connection Technology | Push-in CAGE CLAMP® |
| Nominal Cross-Section | 10 mm² |
| Conductor Range | Solid: 0.5 … 16 mm² / 20 … 6 AWG |
| Fine-stranded: 0.5 … 16 mm² / 20 … 6 AWG | |
| Rated Voltage | 800 V |
| Rated Current | 57 A |
| Surge Voltage | 8 kV |
| Clamping Units | 2 |
| Total Number of Potentials | 1 |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Mounting Type | DIN-35 rail |

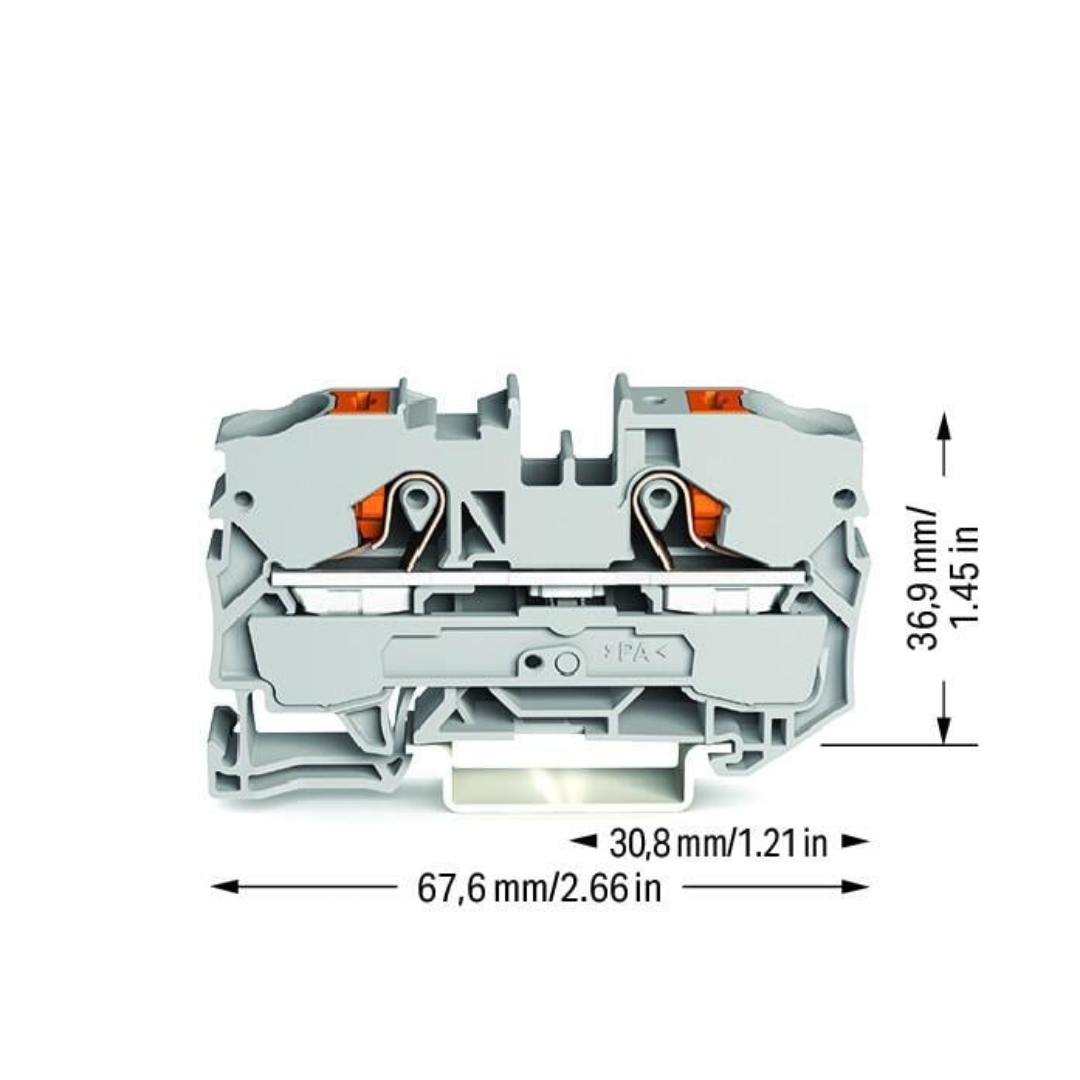

| Dimensions (WxHxD) | 10 mm x 67.6 mm x 43.5 mm |
| Insulation Material | Polyamide (PA66) |
| Actuator Color | Orange |
| Environmental Temperature Range | -35 … +85 °C (processing), -60 … +105 °C (operating) |
| Weight | 19 g |
| Color | Gray |
| Flammability Class | UL94 V0 |
| Approvals | IEC/UL/CSA/ATEX/IECEx |
| RoHS Compliance | Yes |
| Packaging Type | Box |
| Country of Origin | Germany |
