Product Description

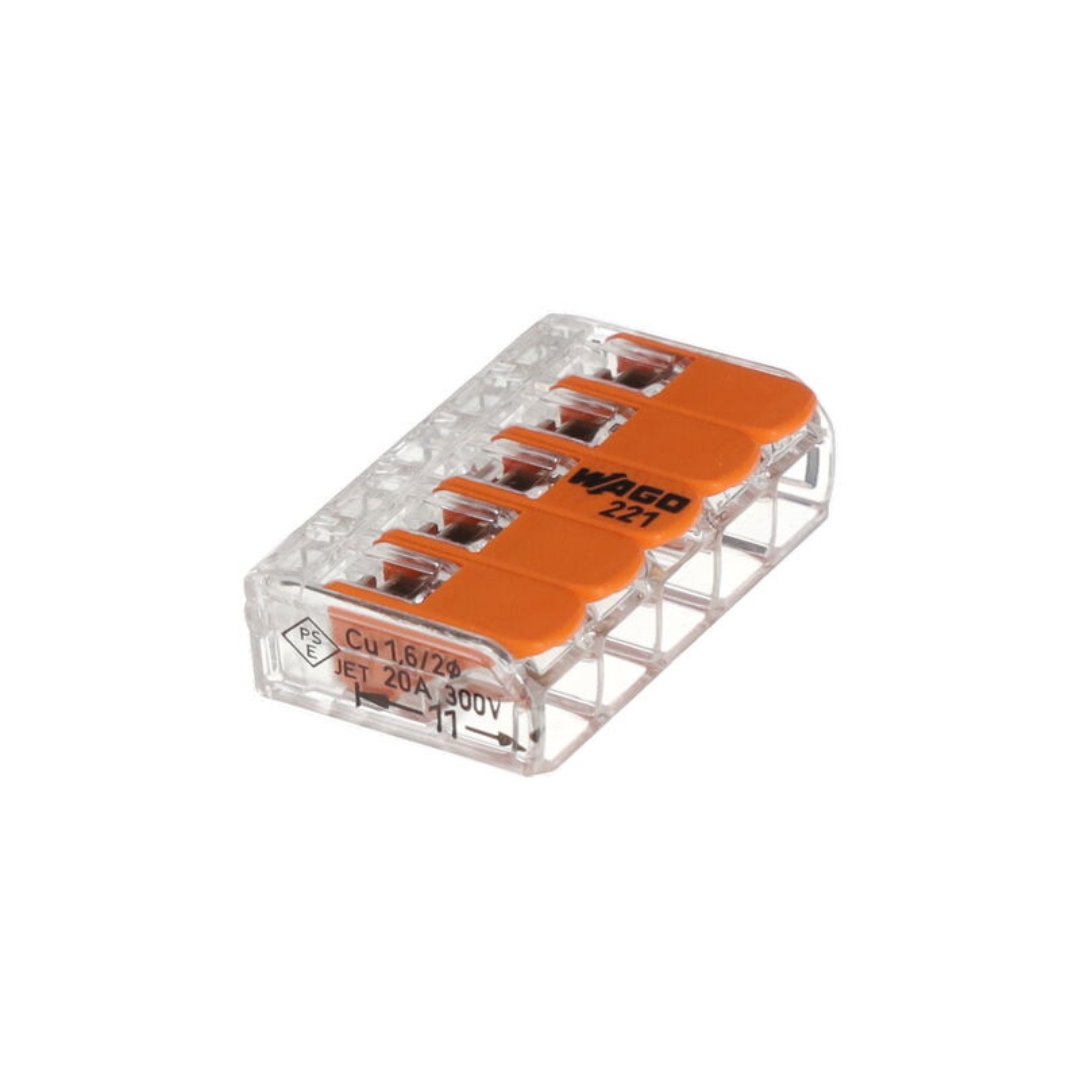

The WAGO 221-415 Lever-NUTS® splicing connector offers a secure and fast connection for up to five conductors, ideal for a wide range of electrical installations. This compact and user-friendly connector simplifies wiring by allowing easy insertion of solid, stranded, and flexible copper wires from 24 AWG to 12 AWG. Its transparent housing ensures visible inspection for correct wire strip length and insertion, while the ergonomic orange levers provide comfortable operation with lower forces. This box of 25 connectors is perfect for professionals looking for a reliable and efficient splicing solution in industrial, commercial, and residential settings.
Key Features
-
Versatile Connection: Compatible with solid, stranded, and flexible copper wires (24-12 AWG).
-
Transparent Housing: Allows visual inspection for proper strip length and wire insertion.
-
Ease of Use: Lower operating forces and familiar orange levers for comfortable operation.
-
Reliable Performance: Rated for up to 600V and 20A, providing robust connection reliability.
-
Efficient and Safe: Tools-free operation with secure, hands-on lever mechanism.
-
Compact and Reliable: Small design suitable for tight spaces without compromising performance.
Specifications
| Feature | Specification |
|---|---|
| Rated Voltage | 600V (1000V signs & fixtures) |
| Nominal Current | 20A |
| Wire Size (Solid) | 24 – 12 AWG |
| Wire Size (Stranded) | 24 – 12 AWG |
| Wire Size (Flexible) | 24 – 12 AWG |
| Strip Length | 11 mm (0.43 in.) |
| Operating Temperature | Max 105°C |
| Connector Type | 5-Conductor |
| Quantity per Box | 25 pcs |
| Housing Material | Transparent Plastic |
