Product Description

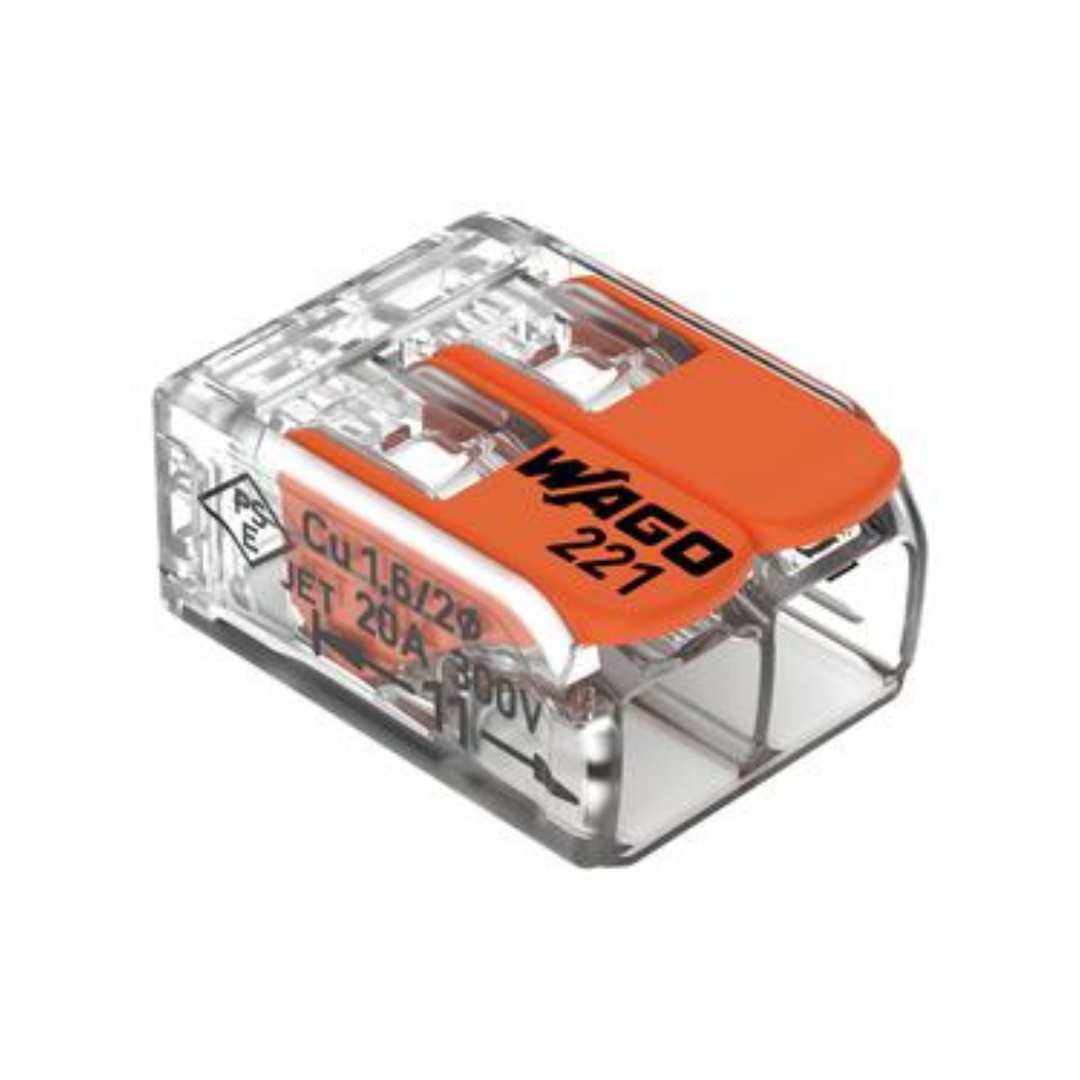

The 221 Series LEVER-NUTS® splicing connector is the ideal solution for fast, reliable wire connections. Designed with a user-friendly interface, the 2-conductor connector features clear, transparent housing for easy visual inspection. The operating levers are engineered to provide a comfortable and secure connection for solid, stranded, or flexible copper wires, ranging from 24-12 AWG. Whether for residential, commercial, or industrial installations, this compact connector simplifies the splicing process while enhancing safety with its quick visual verification system.
Key Features
-
Universal Compatibility: Works with solid, stranded, and flexible copper conductors (24-12 AWG)
-
Transparent Housing: Easily check for proper wire strip length and complete insertion
-
Ease of Use: Lower operating forces with familiar orange levers for effortless operation
-
High Safety: Rated for 600V with a nominal current of 20A, ensuring secure and reliable connections
-
Efficient Installation: Tool-free installation and easy wire management with clear marking surfaces
-
Long-Lasting Durability: Maximum operating temperature of 105°C for versatile applications in diverse environments
Specifications
| Feature | Specification |
|---|---|
| Item Number | 221-412/K194-4045-WAGO |
| Conductor Size | 24-12 AWG (Solid, Stranded, Flexible) |
| Rated Voltage | 600V (1000V for signs & fixtures) |
| Nominal Current | 20A |
| Strip Length | 11mm (0.43 in) |
| Maximum Operating Temp. | 105°C |
| Housing Type | Transparent |
| Quantity per Box | 100 pieces |
| Connector Type | 2-Conductor with Operating Levers |
| Connection Type | Tool-Free, Lever Action |
