Product Description

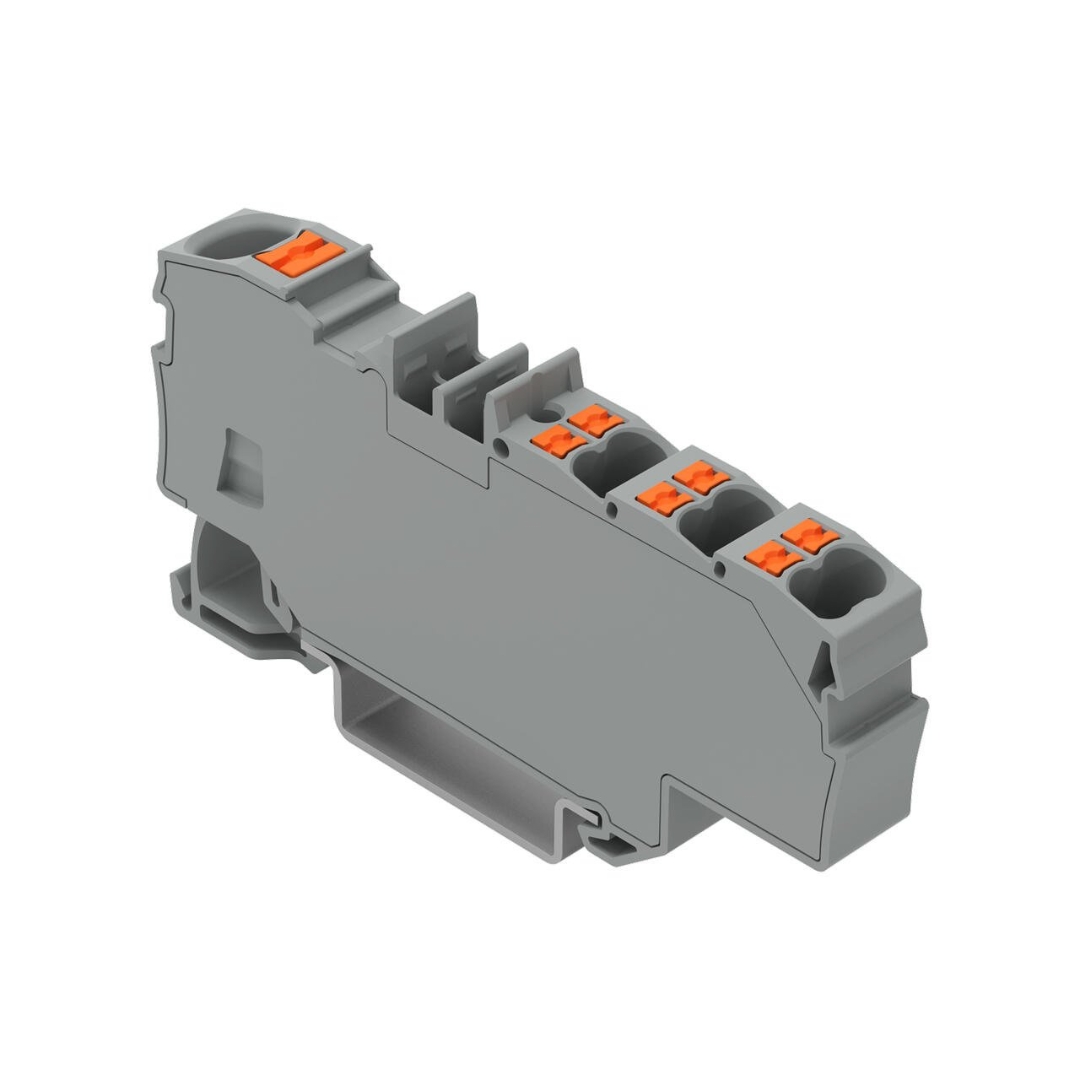

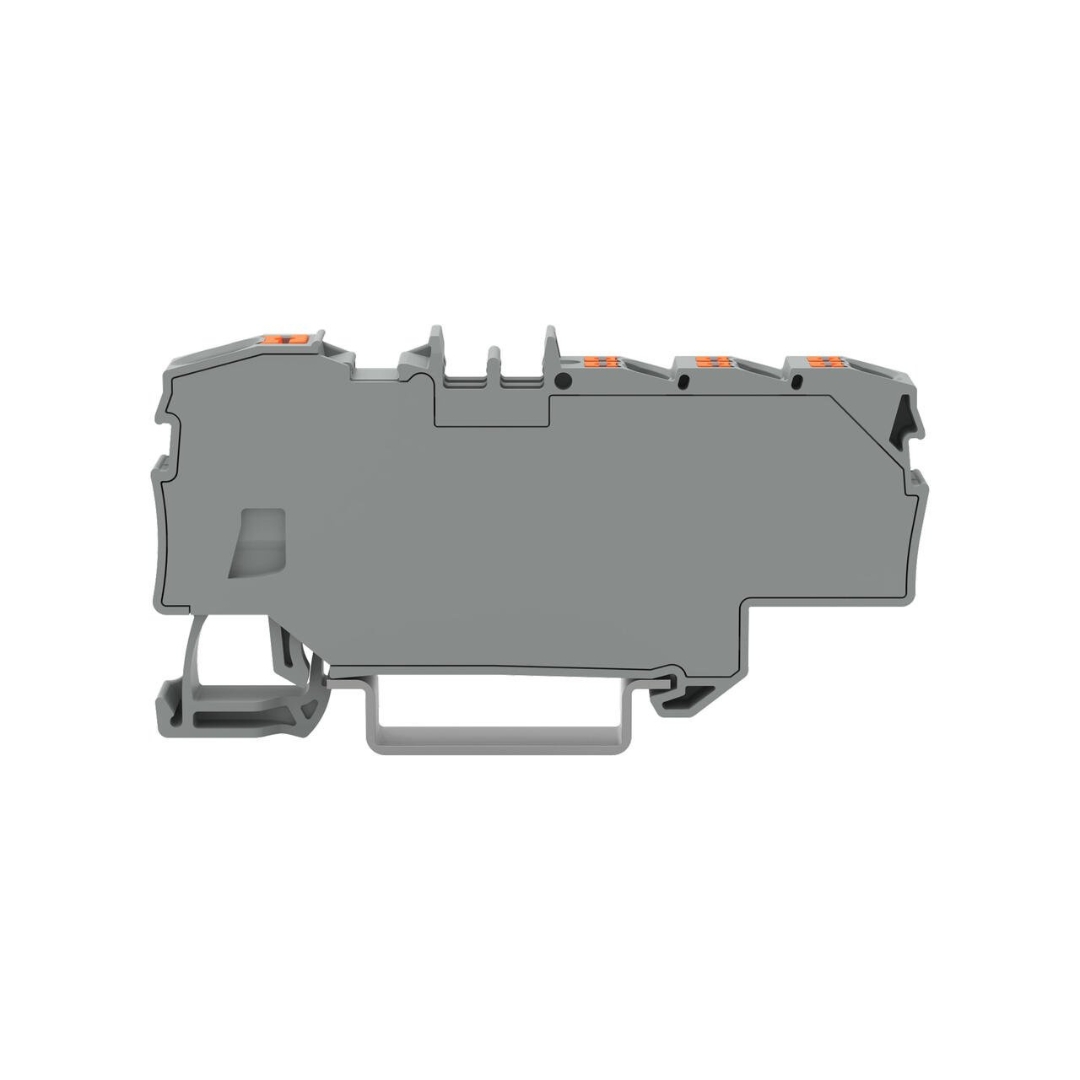

The WAGO 2206-8031 Distribution Terminal Block is a versatile and efficient solution designed for simplifying electrical installations. This terminal block allows the distribution of potentials through a single, compact unit, making it an excellent choice for applications that require connecting larger conductors on one side and several smaller ones on the other. It features the reliable Push-in CAGE CLAMP® technology, enabling tool-free, maintenance-free connections for both solid and fine-stranded conductors, including those with ferrules. With a rated voltage of 800 V and a rated current of 41 A, this terminal block is ideal for a wide range of industrial and building applications. The push-button actuation, combined with its compact design, ensures ease of use while maintaining robust performance. The gray housing made from polyamide (PA66) offers excellent insulation, and the chrome-nickel spring steel clamping ensures long-lasting, secure connections.
Key Features
- Push-in CAGE CLAMP® Technology: Tool-free and maintenance-free connection for solid and fine-stranded conductors, including those with ferrules.
- Compact Design: Space-saving terminal block with one level and seven clamping points for distributing potentials.
- High Rated Current: 41 A rated current ensures reliable performance for demanding applications.
- Versatile Conductor Compatibility: Supports conductor cross-sections from 0.5 mm² to 10 mm² on one side and from 0.25 mm² to 2.5 mm² on the other side.
- Reliable Insulation: Made of polyamide (PA66) with excellent electrical insulation properties.
- Durable Construction: Clamping spring made of chrome-nickel spring steel (CrNi) for secure connections.
- Push-Button Actuation: Easy-to-operate push-button for secure connection setup.
- Front-Entry Wiring: Simplifies installation with straightforward conductor insertion.
- Compliance and Testing: Meets IEC, UL, and CSA standards with a high level of reliability in various environments.
Specifications
| Category | Details |
|---|---|
| Product Type | Distribution Terminal Block |
| Clamping Units | 7 |
| Total Number of Potentials | 1 |
| Connection Technology | Push-in CAGE CLAMP® |
| Actuation Type | Push-button |
| Conductor Compatibility | 0.5 mm² to 10 mm² (Input), 0.25 mm² to 2.5 mm² (Output) |
| Nominal Cross-Section | 6 mm² (Input), 1.5 mm² (Output) |
| Solid Conductor Range | 0.5 … 10 mm² (Input), 0.25 … 2.5 mm² (Output) |
| Fine-Stranded Conductor Range | 0.5 … 10 mm² (Input), 0.25 … 2.5 mm² (Output) |
| Strip Length (Input) | 13 … 15 mm / 0.51 … 0.59 inches |
| Strip Length (Output) | 9 … 11 mm / 0.35 … 0.43 inches |
| Mounting Type | DIN-35 Rail |
| Material | Polyamide (PA66) |
| Clamping Spring Material | Chrome-nickel Spring Steel (CrNi) |
| Contact Plating | Tin |
| Color | Gray |
| Flammability Class (UL94) | V0 |
| Rated Voltage | 800 V |
| Rated Current | 41 A |
| Power Loss (Per Pole) | 1.311 W |

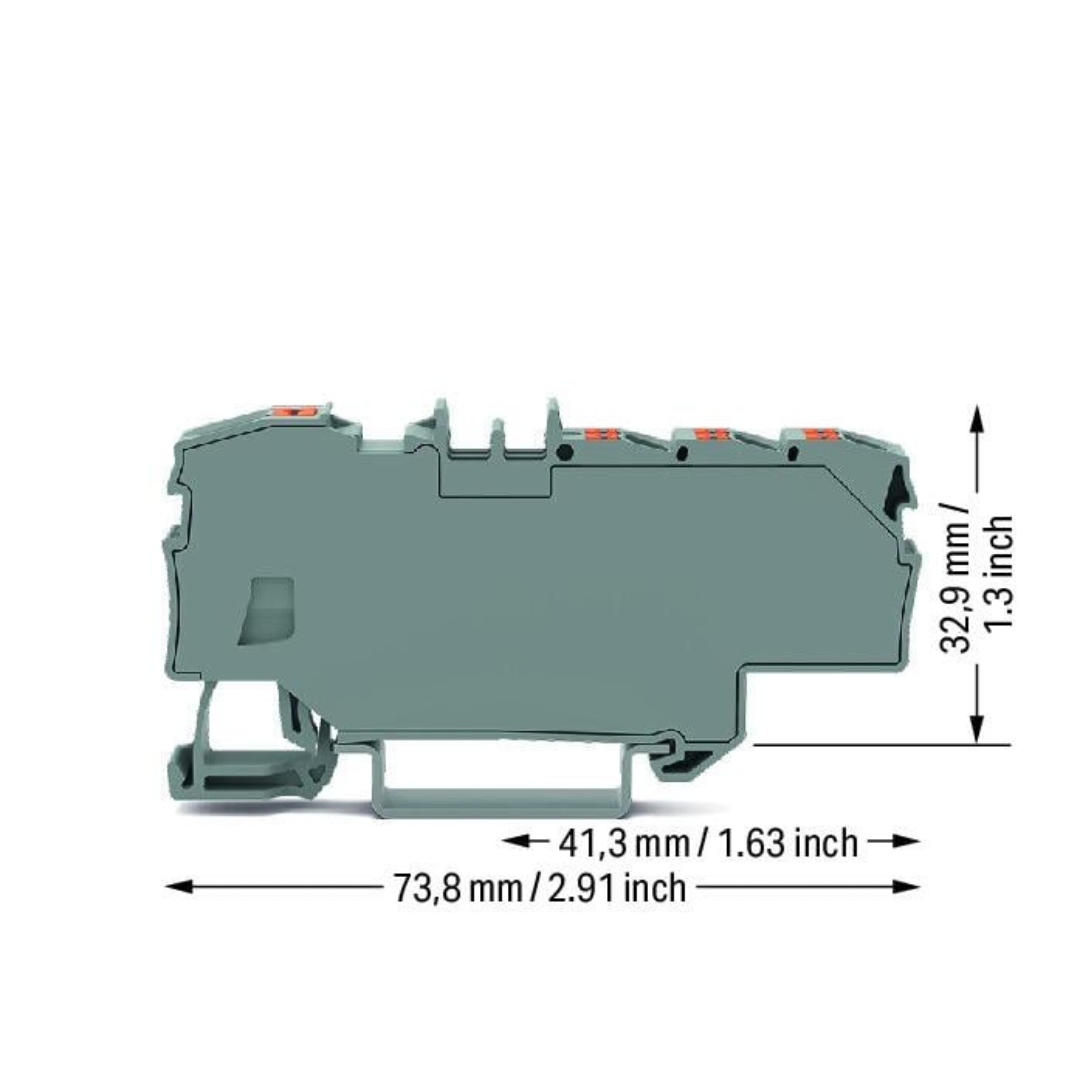

| Dimensions (W x H x D) | 9 mm x 73.8 mm x 32.9 mm |
| Weight | 16.3g |
| Operating Temperature Range | -60 … +105 °C |
| Environmental Testing | Passed various vibration and shock tests, including railway standards |
| Packaging Type | Box |
| GTIN | 4066966185805 |
| RoHS Compliance | Yes, No Exemption |
| Country of Origin | Germany |
| UNSPSC | 39121410 |
| ETIM 9.0 | EC000897 |
