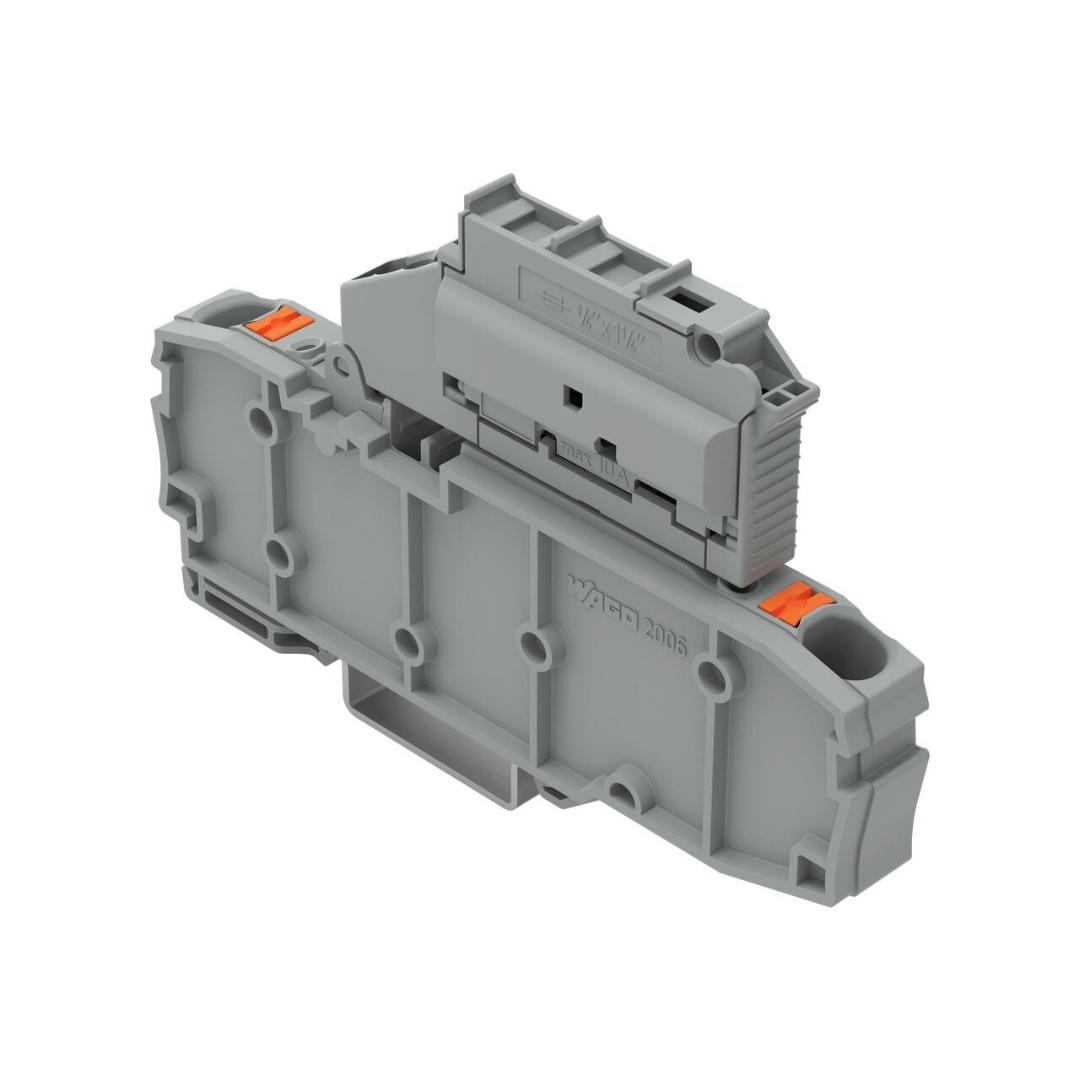

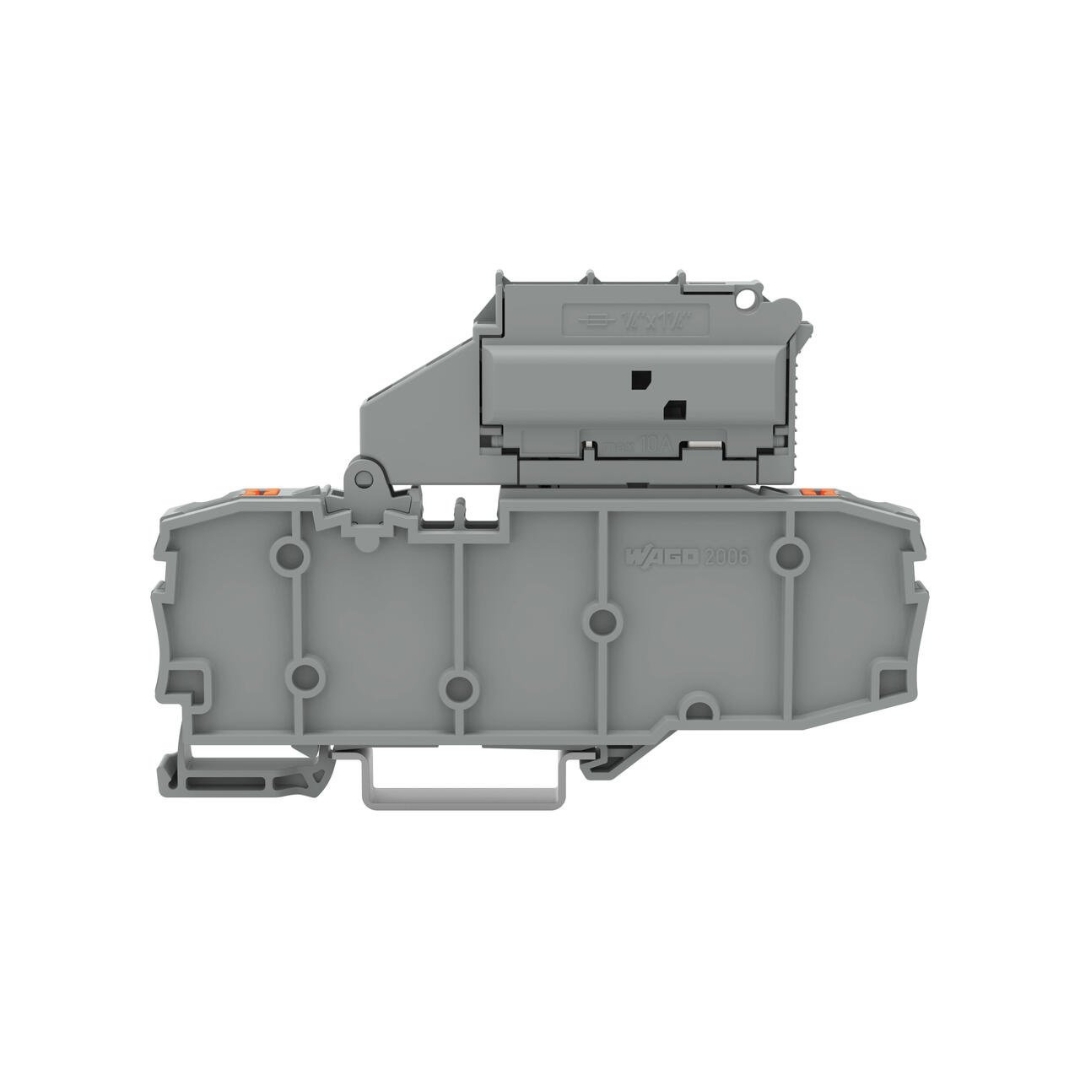

Product Description
The WAGO 2206-1631/099-000 2-Conductor Fuse Terminal Block is the ideal solution for quick and secure connections in electrical systems that require fuse protection. Designed for glass cartridge fuses (¼” x 1¼”), this terminal block features a pivoting fuse holder and an end plate for added security and convenience. With Push-in CAGE CLAMP® technology, it allows for effortless, tool-free insertion of both solid and fine-stranded conductors, making installation faster and easier. It supports conductor cross-sections ranging from 0.5 mm² to 10 mm² and can handle a rated current of up to 15 A. The terminal block is made from durable gray polyamide (PA66), ensuring reliable insulation, and is mounted on DIN-35 rails. Ideal for use in both industrial and building applications, it combines safety, versatility, and ease of use.
Key Features
- Pivoting Fuse Holder: Designed for glass cartridge fuses (¼” x 1¼”) for easy fuse replacement and secure fitting.
- Push-in CAGE CLAMP® Technology: Allows for tool-free, maintenance-free, and reliable connections of solid and fine-stranded conductors, including those with ferrules.
- Conductor Range: Supports conductor cross-sections from 0.5 mm² to 10 mm², providing flexibility for different applications.
- Rated Voltage: 800 V for safe and efficient use in various industrial environments.
- Rated Current: 15 A (UL), offering reliable performance under load conditions.
- Easy Installation: Front-entry wiring with a strip length of 13 to 15 mm ensures simple and quick setup.
- Durable Material: Made of high-quality polyamide (PA66) for excellent insulation and long-term reliability.
- Compact Design: Space-saving dimensions (10.4 x 96.3 x 59 mm) perfect for DIN-35 rail mounting.
- Flammability Class V0: Ensures the terminal block will not ignite or continue burning under certain fire conditions.
Specifications
| Category | Details |
|---|---|
| Product Type | 2-Conductor Fuse Terminal Block |
| Fuse Type | Cylindrical fuse, ¼” x 1¼” |
| Fuse Holder | Pivoting |
| Connection Technology | Push-in CAGE CLAMP® |
| Actuation Type | Push-button |
| Conductor Compatibility | 0.5 mm² to 10 mm² (solid and fine-stranded conductors) |
| Clamping Units | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Wiring Direction | Front-entry wiring |
| Strip Length | 13 … 15 mm / 0.51 … 0.59 inches |
| Mounting Type | DIN-35 Rail |
| Material | Polyamide (PA66) |
| Color | Gray |
| Flammability Class (UL94) | V0 |
| Temperature Range | -60 … +50 °C |
| Power Loss | 2.5 W (Max. overload and short-circuit protection) |

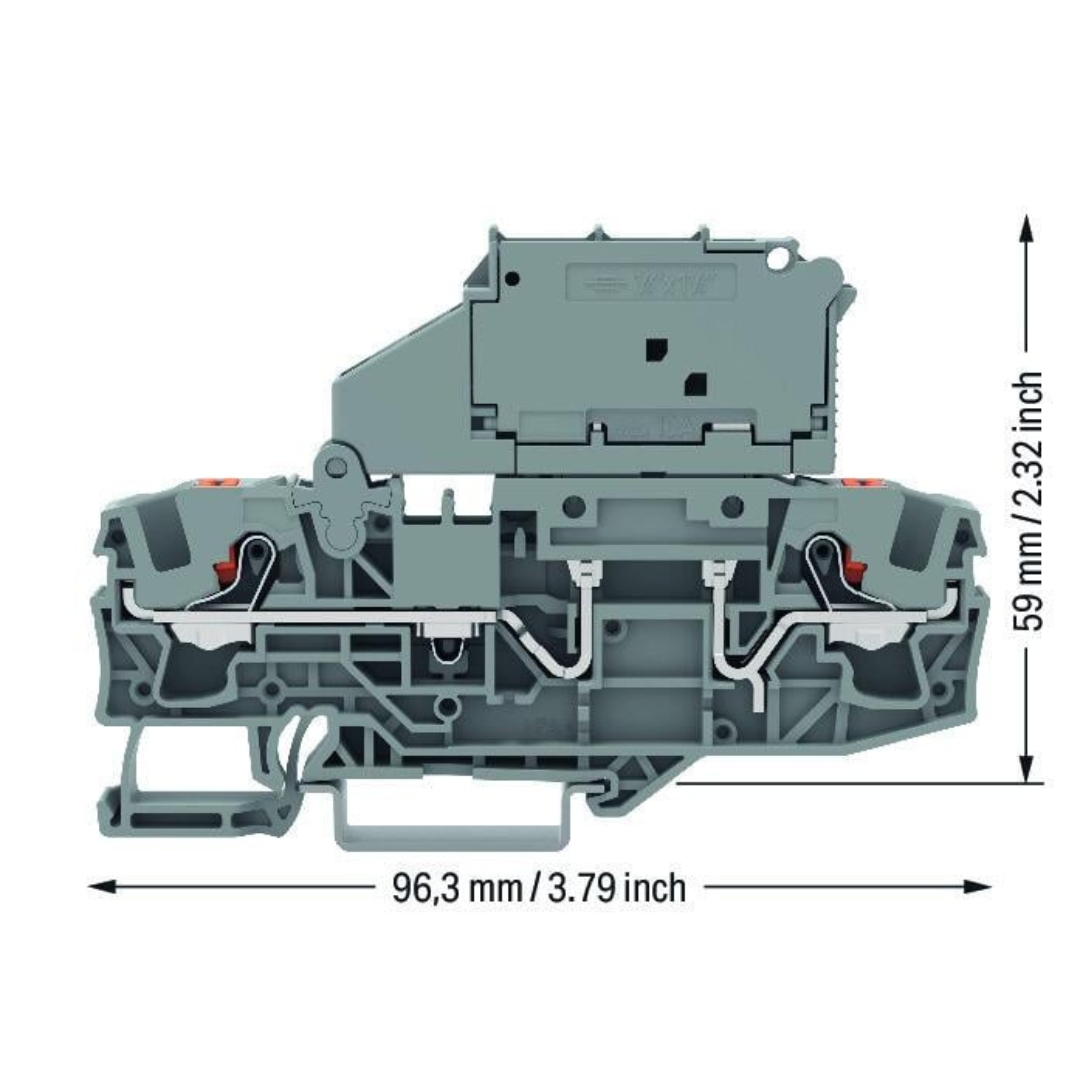

| Dimensions (W x H x D) | 10.4 mm x 96.3 mm x 59 mm |
| Weight | 24.8g |
| Rated Voltage | 800 V |
| Rated Current (UL) | 15 A |
| Rated Surge Voltage | 8 kV |
| Environmental Testing | Compliant with IEC/EN 60947-7-3, UL 1059 |
| Country of Origin | Poland |
| GTIN | 4066966318531 |
| RoHS Compliance | Yes, No Exemption |
| UNSPSC | 39121410 |
| ETIM 9.0 | EC000899 |
