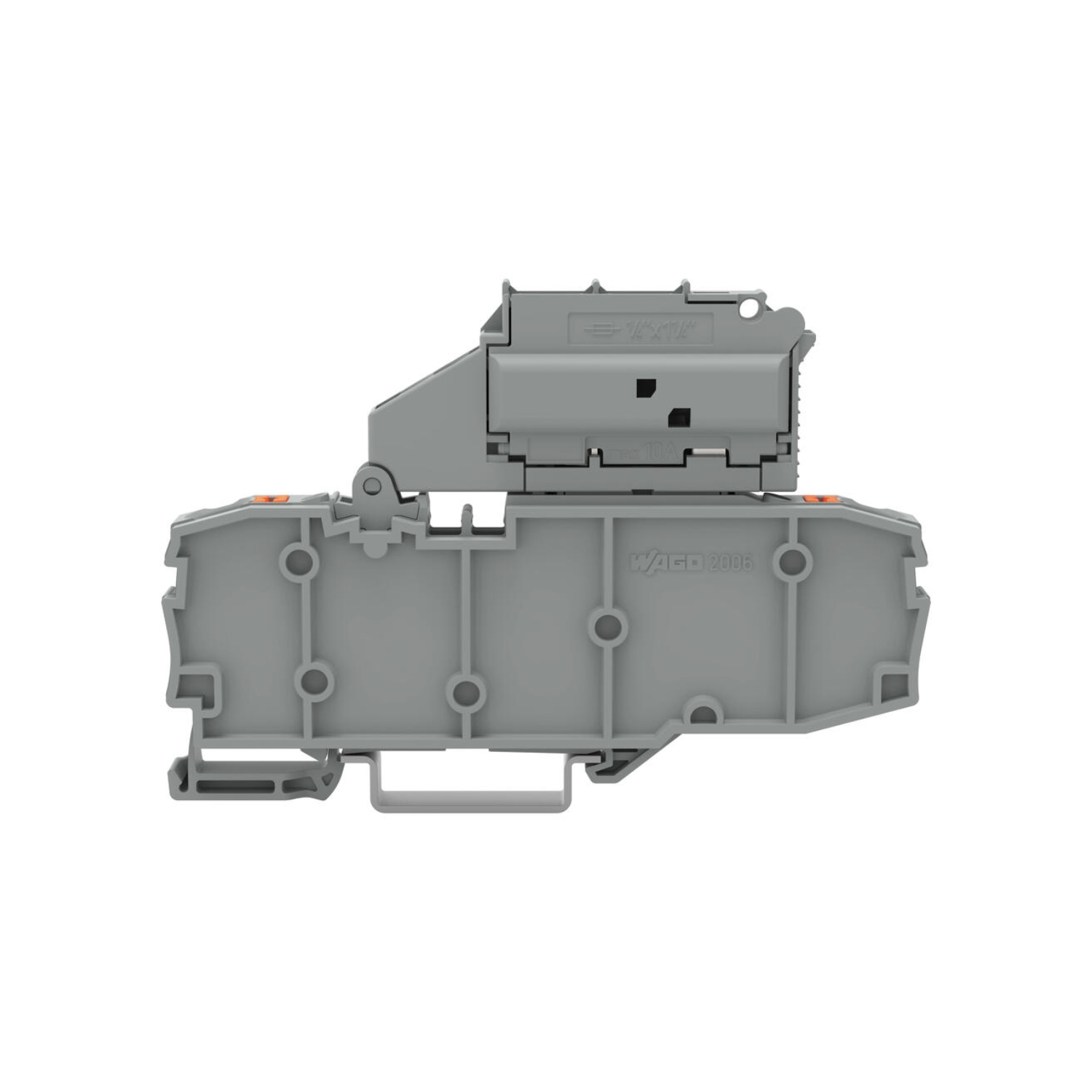

2206-1631/099-000 – WAGO | 2-conductor fuse terminal block; with pivoting fuse holder; and end plate; for glass cartridge fuse ¼” x 1¼”; with push-button; without blown fuse indication; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®; gray

Description

The WAGO 2206-1631/099-000 is a heavy-duty 2-conductor fuse terminal block designed for high-power applications requiring robust circuit protection. Specifically engineered to accommodate glass cartridge fuses (1/4″ x 1 1/4″), this terminal block features a pivoting fuse holder for safe and easy replacement. It utilizes WAGO’s 2206 Series technology, combining a 6 mm² nominal cross-section with an integrated orange push-button for intuitive, tool-free wiring. This model comes pre-assembled with an end plate and is optimized for use on standard DIN-35 rails. With its high voltage rating and Push-in CAGE CLAMP® reliability, it is an ideal solution for industrial power distribution and control systems.

Key Features

• Push-Button Actuation: The orange push-button allows for simple manual operation, providing a clear and easy way to open the clamping unit without specialized tools.
• Large Format Fuse Support: Features a pivoting holder specifically for 1/4″ x 1 1/4″ (6.3 x 32 mm) cylindrical glass fuses.
• Push-in CAGE CLAMP®: Enables fast, vibration-proof termination of solid and fine-stranded conductors up to 10 mm² (8 AWG).
• Pre-Assembled Convenience: Includes a factory-installed end plate, reducing the number of individual parts required for your rail assembly.
• High Capacity: Rated for up to 800 V (IEC) and a nominal cross-section of 6 mm², making it suitable for demanding power circuits.
• Safe Diagnostics: Includes a 2 mm test slot approved for high-impedance measurements up to 100 mA.
