Product Description
The WAGO 2206-1301 3-Conductor Through Terminal Block offers a reliable, tool-free connection solution for industrial and building applications. With its innovative Push-in CAGE CLAMP® technology, this terminal block enables quick and secure insertion of both solid and fine-stranded conductors, including those with ferrules, without the need for tools. Featuring a compact design, it is ideal for use in tight spaces and offers a high level of flexibility with support for conductor cross-sections ranging from 0.5 mm² to 10 mm². Rated for 800 V and up to 41 A, this terminal block is perfect for both typical through-wiring and potential distribution needs. With a durable gray polyamide (PA66) housing, a push-button for easy operation, and compatibility with DIN-35 rails, the 2206-1301 is a versatile and efficient solution for your electrical connection requirements.
Key Features
- Push-in CAGE CLAMP® Technology: Allows for tool-free connection of solid and fine-stranded conductors with ferrules.
- Rated Voltage: 800 V for reliable and safe electrical connections in industrial applications.
- Rated Current: 41 A, with a maximum current of 57 A for conductor cross-sections up to 6 mm².
- Conductor Compatibility: Supports conductor cross-sections from 0.5 mm² to 10 mm².

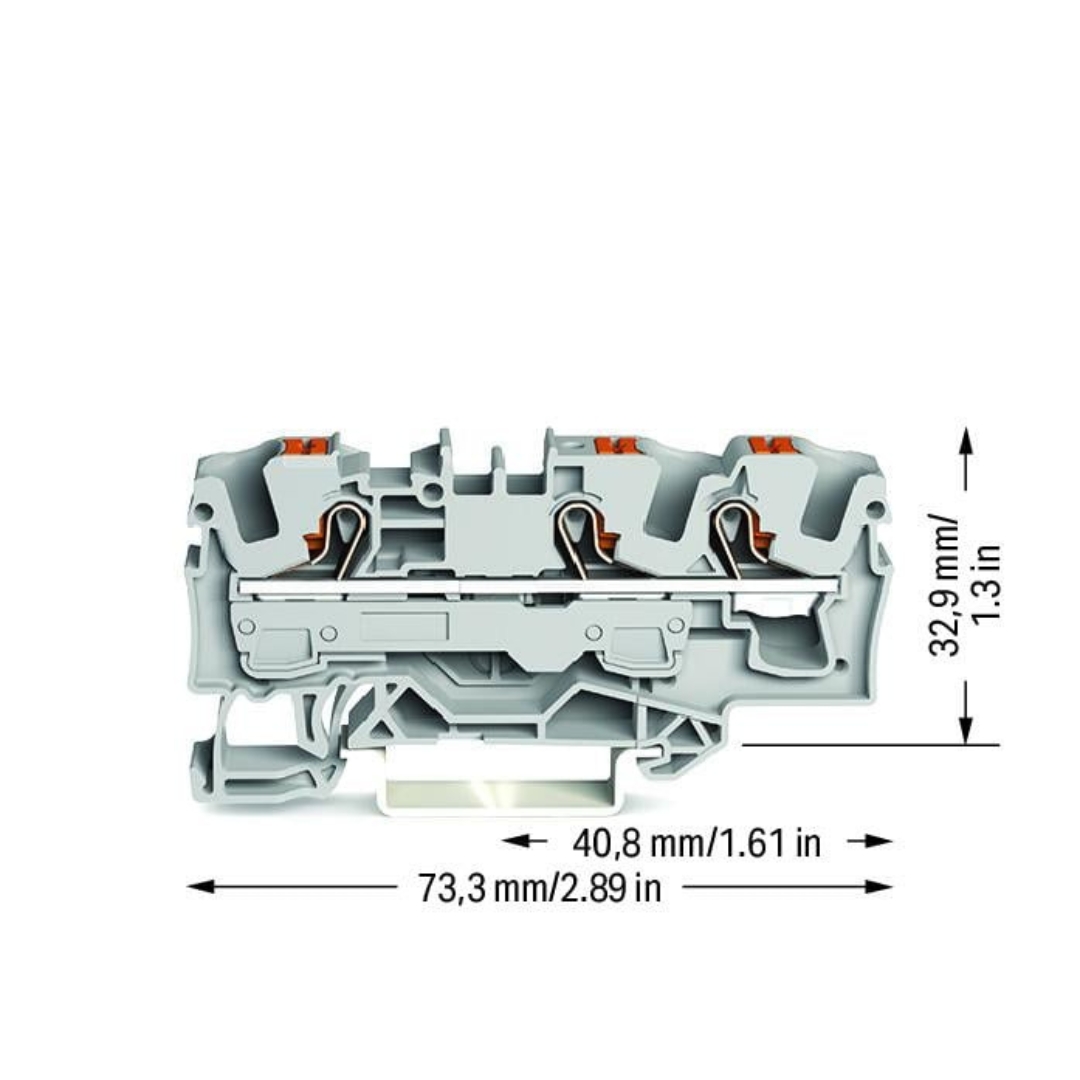

- Compact Dimensions: 7.5 x 73.3 x 39.5 mm (width x height x depth), ideal for space-constrained installations.
- Push-Button Actuation: Simple, user-friendly actuation for quick installation and disconnection.
- Jumper Slots: Two jumper slots for efficient potential distribution.
- Durable Polyamide Housing: Gray PA66 housing offers excellent insulation and durability.
- Environmental Compatibility: Suitable for environments with temperatures ranging from -60 °C to +105 °C.
- Ex Application Compatibility: Rated for specific Ex-rated applications (refer to datasheet).
- Flammability Class V0: Ensures safe operation even in hazardous conditions.
Specifications
| Category | Details |
|---|---|
| Product Type | 3-Conductor Through Terminal Block with Push-Button |
| Connection Technology | Push-in CAGE CLAMP® |
| Conductor Compatibility | 0.5 mm² to 10 mm² (solid and fine-stranded conductors) |
| Number of Clamping Units | 3 |

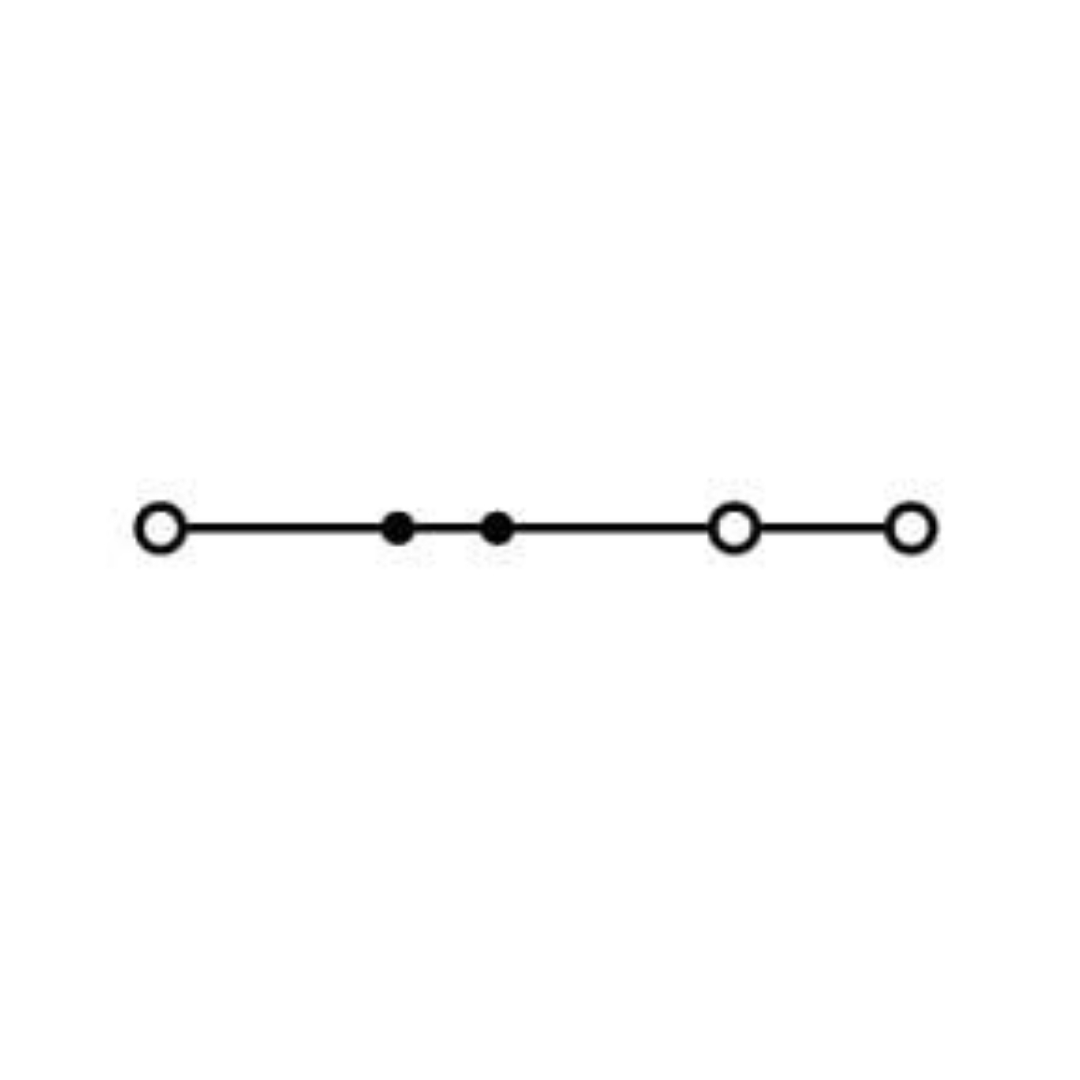

| Number of Potentials | 1 |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Material | Polyamide (PA66) |
| Color | Gray |
| Marking | Side and Center Marking |
| Mounting Type | DIN-35 Rail |
| Actuation Type | Push-Button |
| Strip Length | 13 … 15 mm / 0.51 … 0.59 inches |
| Wiring Direction | Front-Entry Wiring |
| Temperature Range | -60 … +105 °C |
| Dimensions (W x H x D) | 7.5 mm x 73.3 mm x 39.5 mm |
| Weight | 13g |
| Flammability Class (UL94) | V0 |
| Rated Voltage | 800 V |
| Rated Current | 41 A |
| Rated Surge Voltage | 8 kV |
| Power Loss | 0.799 W per pole |
| Environmental Testing | DIN EN 50155, DIN EN 61373 |
| Ex Application | PTB 18 ATEX 1007 U / IECEx: PTB 18.0014U (Ex e II) |
| Country of Origin | Germany |
| GTIN | 4055143712088 |
| RoHS Compliance | Yes, No Exemption |
| UNSPSC | 39121410 |
| ETIM 9.0 | EC000897 |
