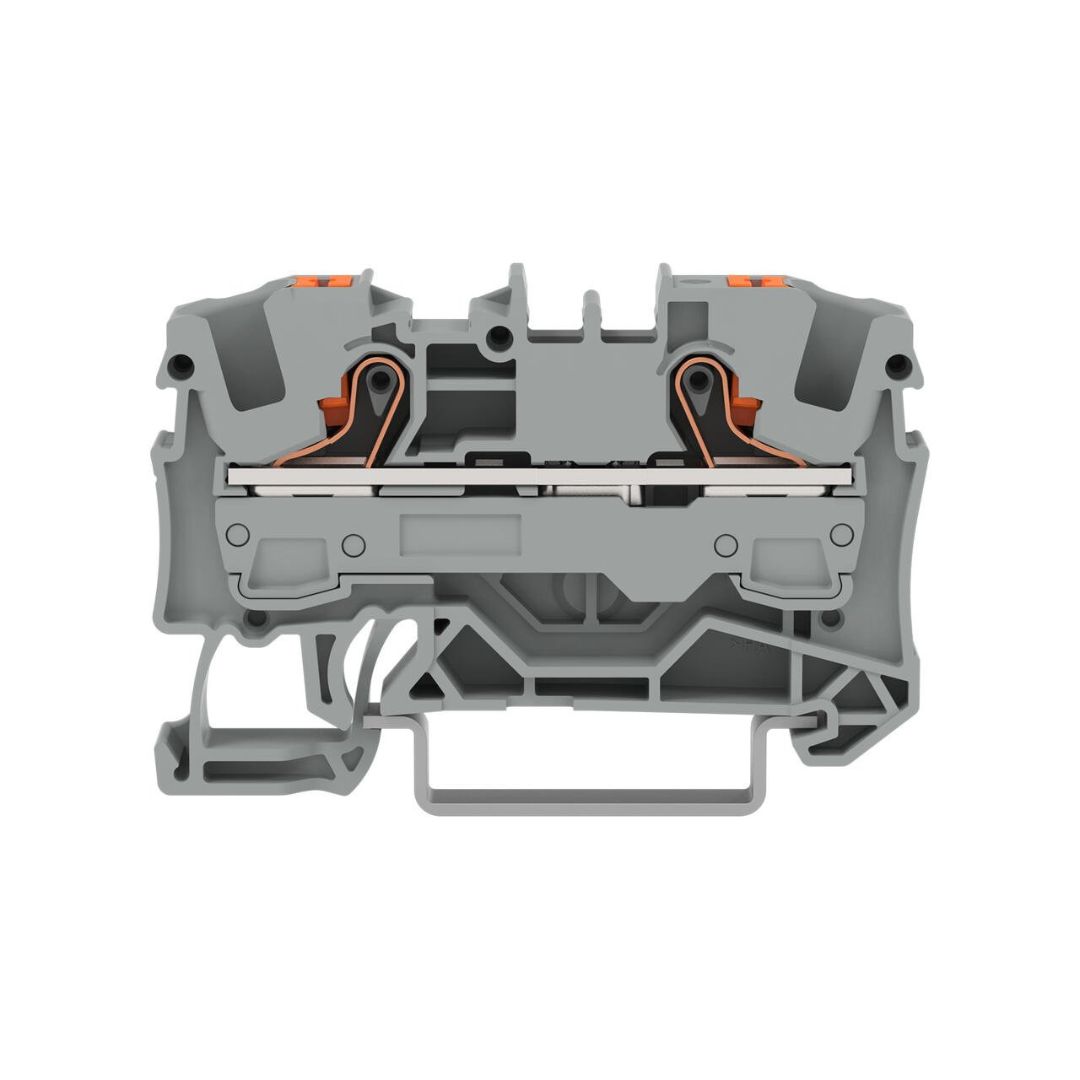

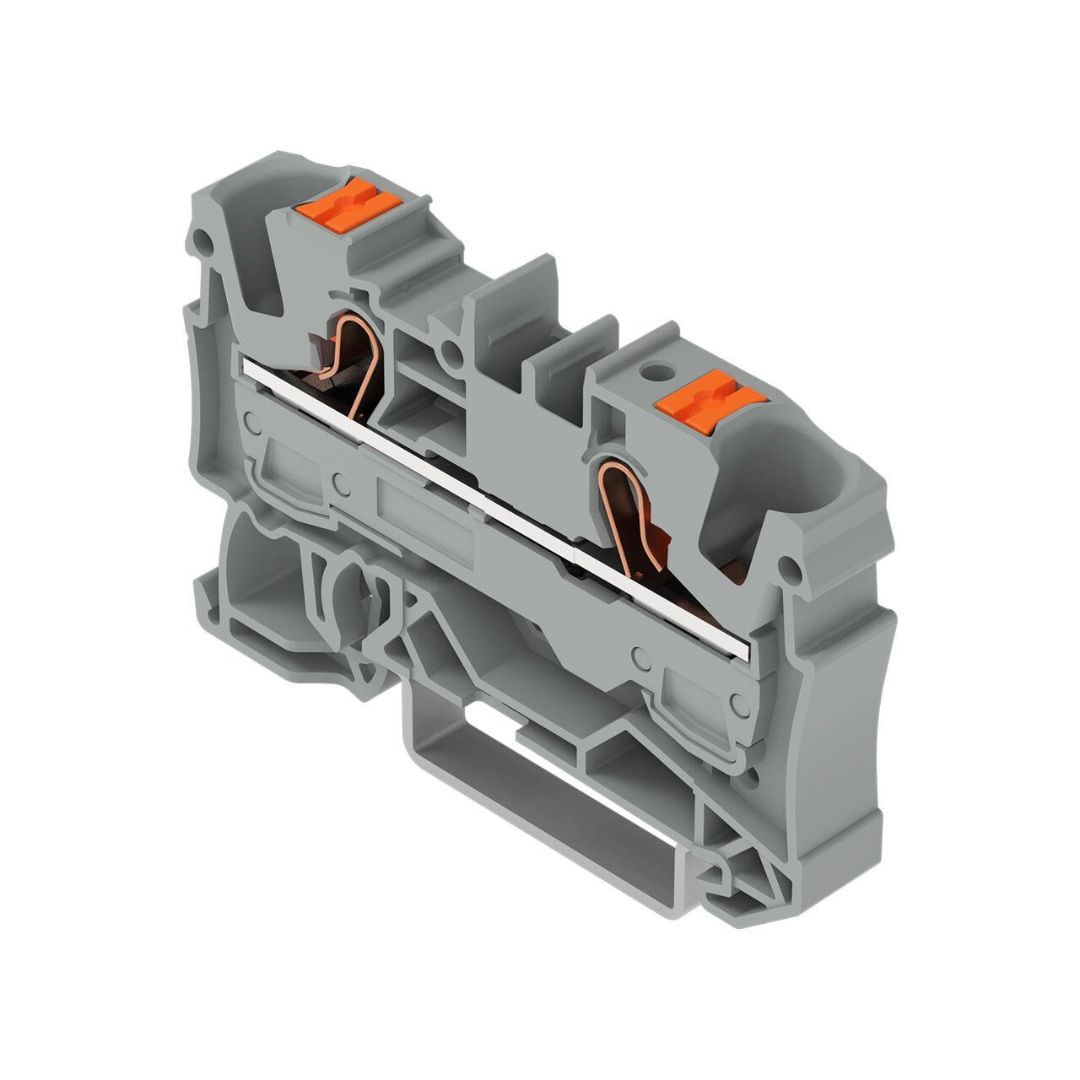

Product Description
The WAGO 2206-1201 2-Conductor Through Terminal Block is a reliable and efficient solution for securing electrical connections in industrial and building applications. With its Push-in CAGE CLAMP® technology, this terminal block allows for fast, tool-free insertion of both solid and fine-stranded conductors, making installation quicker and more convenient. Featuring a gray polyamide (PA66) housing, it ensures excellent insulation and durability. The terminal block is designed for use with DIN-35 rails and is equipped with a push-button for easy operation. It supports conductor cross-sections from 0.5 mm² to 10 mm² and offers a rated current of 41 A with a rated voltage of 800 V. Ideal for both through-wiring and potential distribution, this terminal block is a versatile component for modern electrical installations.
Key Features
- Push-in CAGE CLAMP® Technology: Tool-free and maintenance-free connection for all conductor types.
- Rated Voltage: 800 V for reliable performance in demanding applications.
- Rated Current: 41 A, suitable for high-power applications.
- Conductor Range: Supports solid and fine-stranded conductors from 0.5 mm² to 10 mm².
- Front-Entry Wiring: Easy connection of copper conductors.
- Compact Design: Dimensions of 7.5 x 57.3 x 39.5 mm for efficient use of space.
- Durable Housing: Gray polyamide (PA66) housing for enhanced insulation and long-lasting performance.
- Push-Button Actuation: Simple and convenient for quick installation and disconnection.
- Jumper Slots: Two jumper slots for potential distribution to other clamping points.
- Ex Application Compatibility: Suitable for specific Ex-rated applications (refer to datasheet).
- Flammability Class V0: Safe for use in hazardous environments.
Specifications

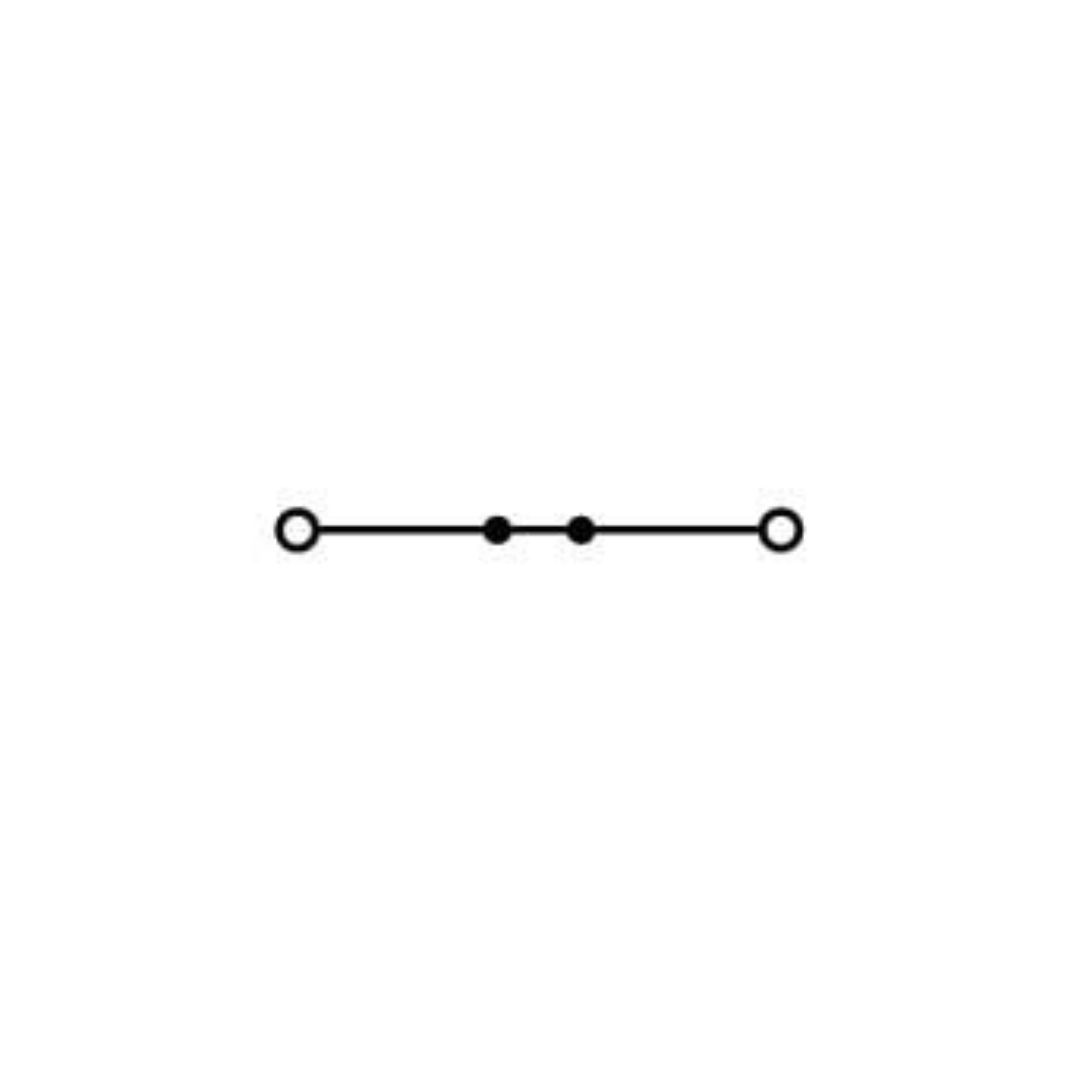

| Category | Details |
|---|---|
| Product Type | 2-Conductor Through Terminal Block with Push-Button |
| Connection Technology | Push-in CAGE CLAMP® |
| Conductor Compatibility | 0.5 mm² to 10 mm² (solid and fine-stranded conductors) |
| Number of Clamping Units | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Material | Polyamide (PA66) |
| Color | Gray |
| Marking | Side and Center Marking |
| Mounting Type | DIN-35 Rail |
| Actuation Type | Push-Button |
| Strip Length | 13 … 15 mm / 0.51 … 0.59 inches |
| Wiring Direction | Front-Entry Wiring |
| Temperature Range | -60 … +105 °C |

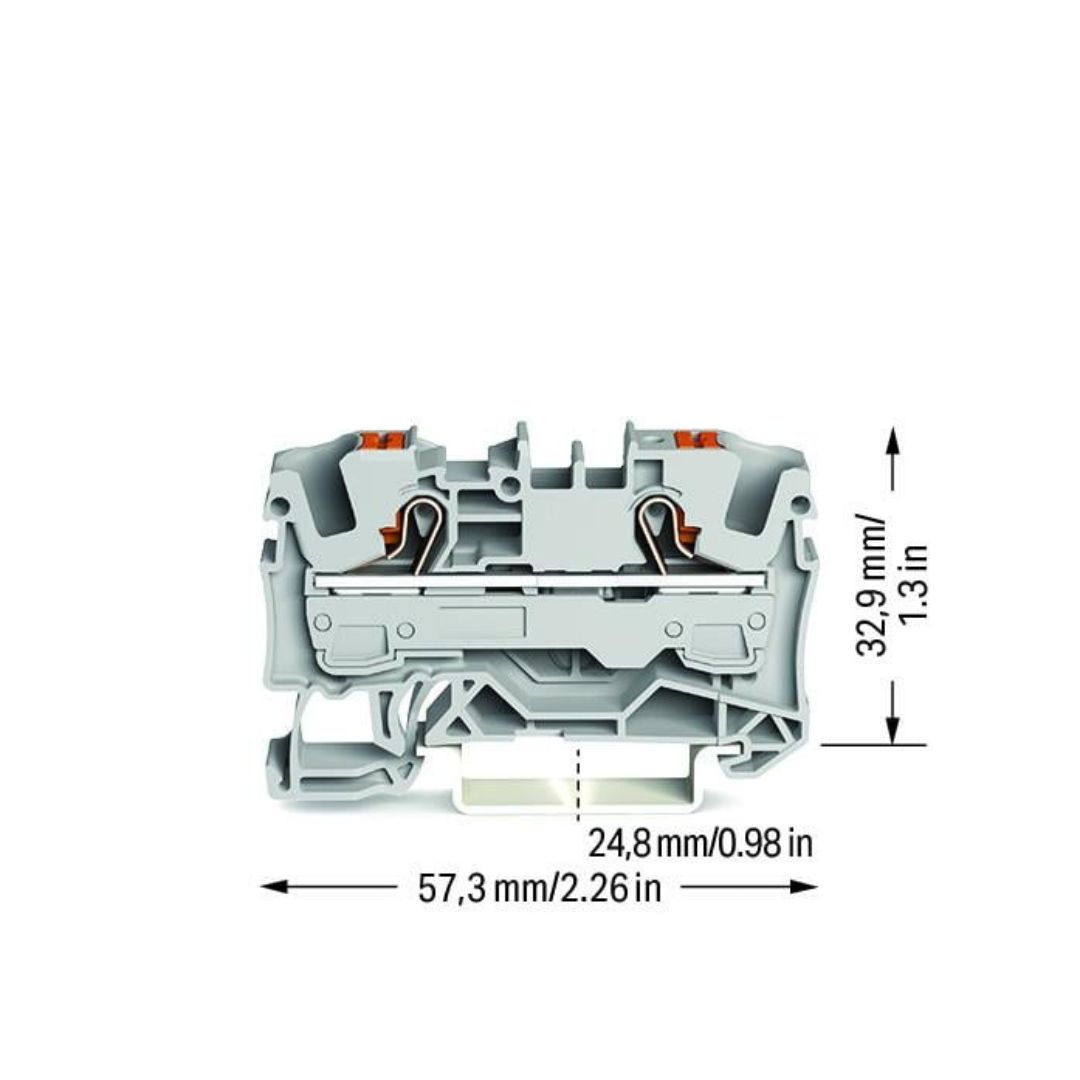

| Dimensions (W x H x D) | 7.5 mm x 57.3 mm x 39.5 mm |
| Weight | 10g |
| Flammability Class (UL94) | V0 |
| Rated Voltage | 800 V |
| Rated Current | 41 A |
| Rated Surge Voltage | 8 kV |
| Power Loss | 0.799 W per pole |
| Environmental Testing | DIN EN 50155, DIN EN 61373 |
| Ex Application | PTB 18 ATEX 1007 U / IECEx: PTB 18.0014U (Ex e II) |
| Country of Origin | Germany |
| GTIN | 4055143846615 |
| RoHS Compliance | Yes, No Exemption |
| UNSPSC | 39121410 |
| ETIM 9.0 | EC000897 |
