Product Description

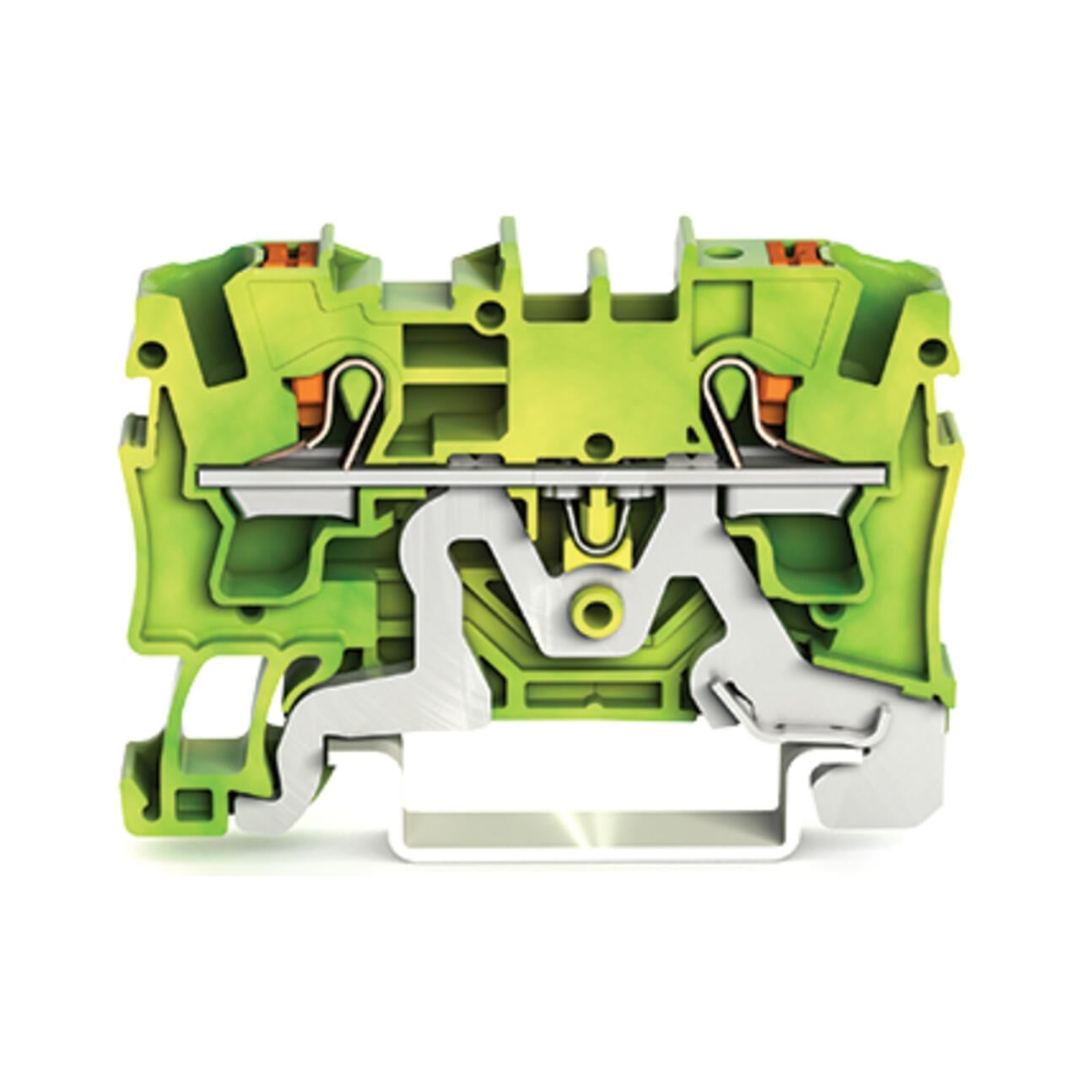

The WAGO 2204-1207 2-Conductor Ground Terminal Block is a versatile and reliable solution for establishing secure and stable connections in a variety of industrial and building installations. Designed for use on DIN-35 rails, this terminal block features Push-in CAGE CLAMP® technology, which allows for tool-free insertion of solid and fine-stranded conductors with ferrules. The terminal block is ideal for conductor cross-sections ranging from 0.5 mm² to 6 mm² and is designed with an integrated mounting foot for electrical and mechanical stability. The green-yellow polyamide (PA66) housing ensures excellent insulation and durability. This product also includes a push-button for easy operation and a test port for convenient verification of connections. With a compact design and the option for jumper slots, this ground terminal block is perfect for creating reliable connections in both low and high voltage environments.
Key Features
- Push-in CAGE CLAMP® Technology: Tool-free, universal connection for all conductor types.
- Green-Yellow Housing: Made from durable polyamide (PA66) for insulation.
- Rated for Conductor Cross-Sections: Supports 0.5 mm² to 6 mm² solid and fine-stranded conductors.
- Easy Operation: Features a push-button for simple connection and disconnection.
- Front-Entry Wiring: Allows easy copper conductor connections.
- Test Port: Simplifies connection verification.
- Jumper Slots: Two jumper slots for potential distribution to other clamping points.
- Compact and Robust Design: Dimensions of 6.2 x 52.3 x 39.5 mm for easy integration into tight spaces.
- Ex Application Compatibility: Suitable for specific Ex-rated applications (refer to datasheet for details).
- Flammability Class V0: Safe for use in high-risk environments.
Specifications
| Category | Details |
|---|---|
| Product Type | 2-Conductor Ground Terminal Block with Push-Button |
| Connection Technology | Push-in CAGE CLAMP® |
| Conductor Compatibility | 0.5 mm² to 6 mm² (solid and fine-stranded conductors) |
| Number of Clamping Units | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Material | Polyamide (PA66) |
| Color | Green-Yellow |
| Marking | Side and Center Marking |
| Mounting Type | DIN-35 Rail |
| Actuation Type | Push-Button |
| Test Port | Yes |
| Strip Length | 11 … 13 mm / 0.43 … 0.51 inches |
| Temperature Range | -60 … +105 °C |

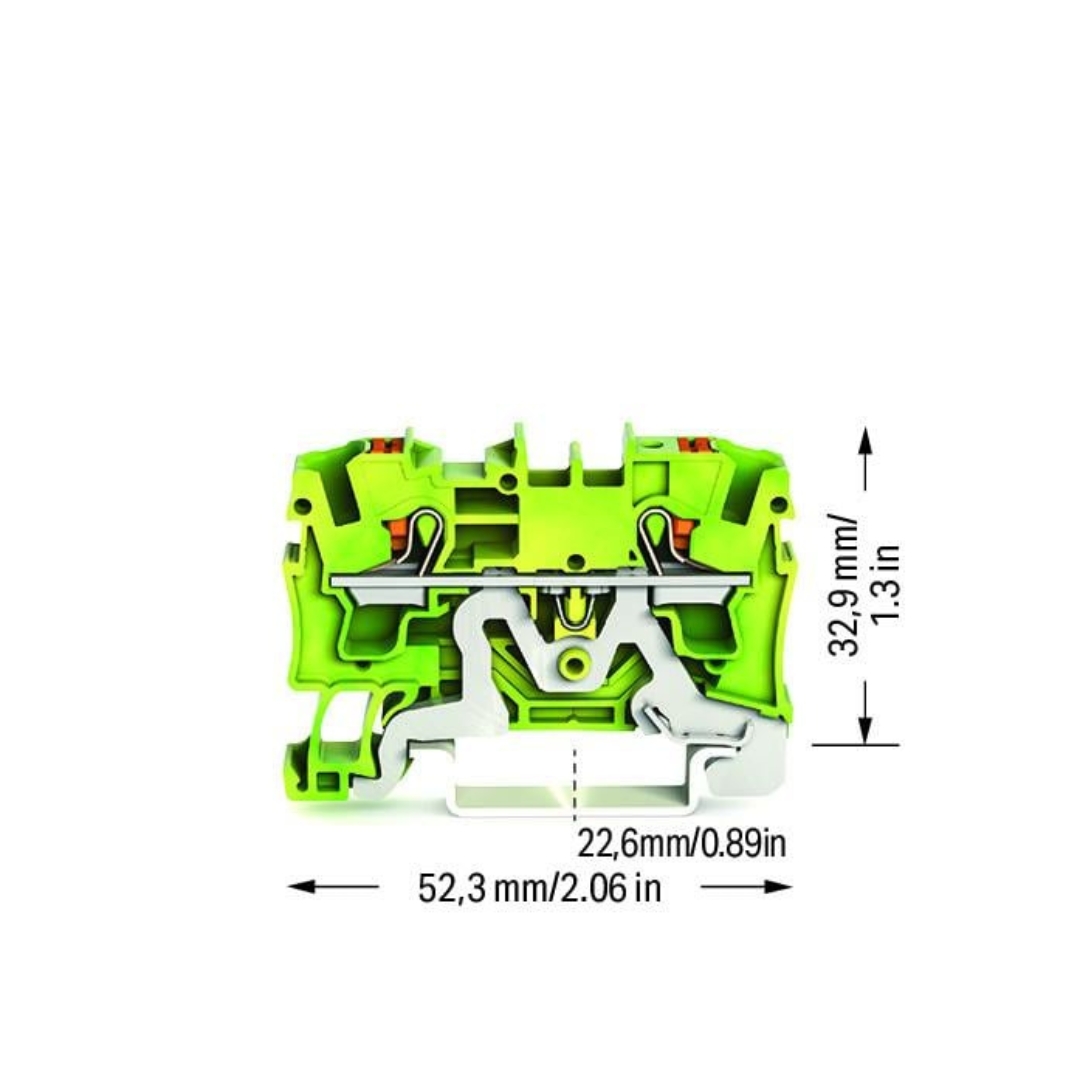

| Dimensions (W x H x D) | 6.2 mm x 52.3 mm x 39.5 mm |
| Weight | 12.7g |
| Packaging Type | Box |
| Country of Origin | Germany |
| GTIN | 4055143847094 |
| Flammability Class (UL94) | V0 |
| Environmental Testing | DIN EN 50155, DIN EN 61373 |
| Ex Application | PTB 18 ATEX 1006 U / IECEx: PTB 18.0013U (Ex eb IIC Gb) |
| Rated Voltage (Ex e II) | 550 V |
| Rated Current (Ex e II) | 31 A |
| RoHS Compliance | Yes, No Exemption |
| UNSPSC | 39121410 |
| ETIM 9.0 | EC000901 |
