2204-1201-WAGO | 2-conductor through terminal block; with push-button; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; gray

Product Description

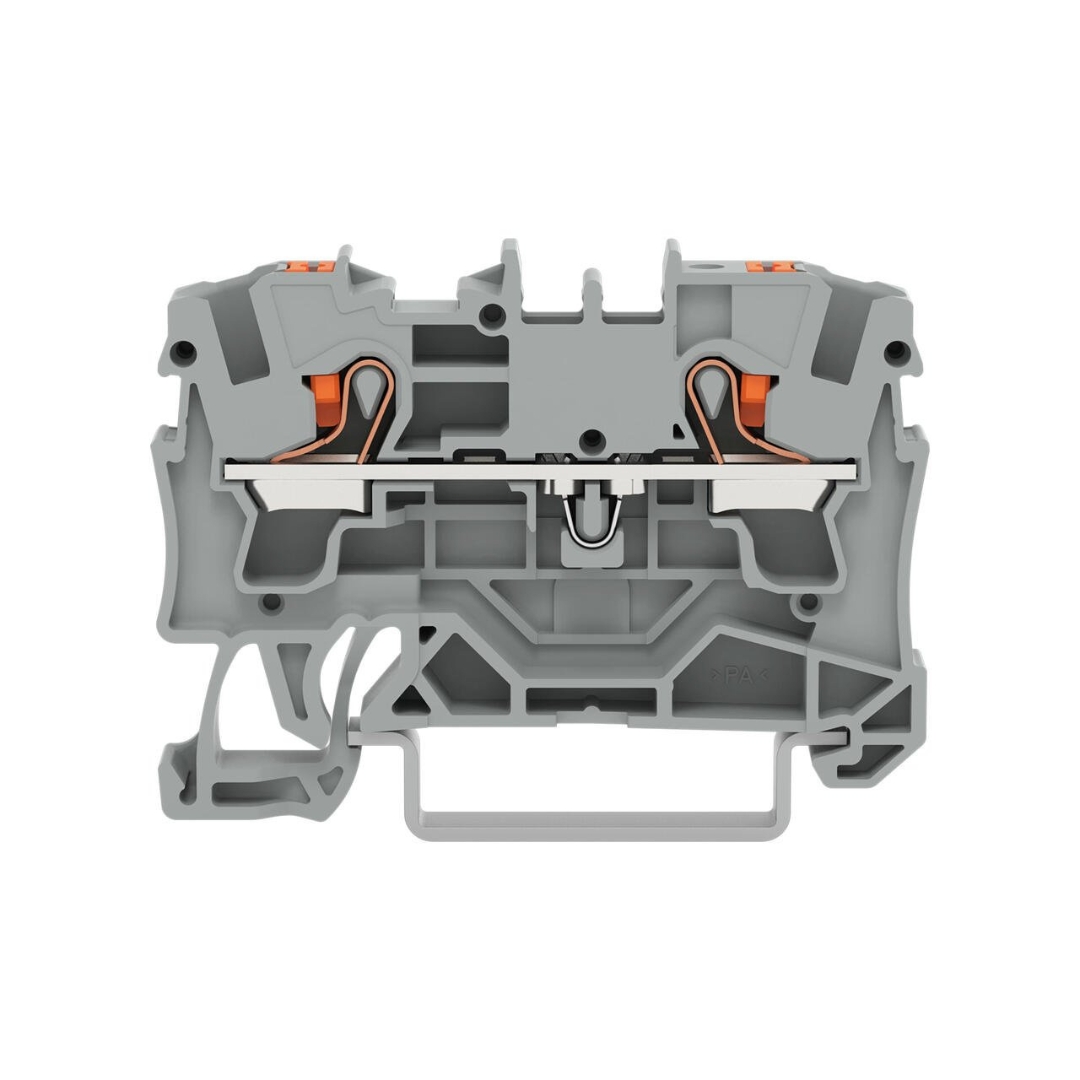

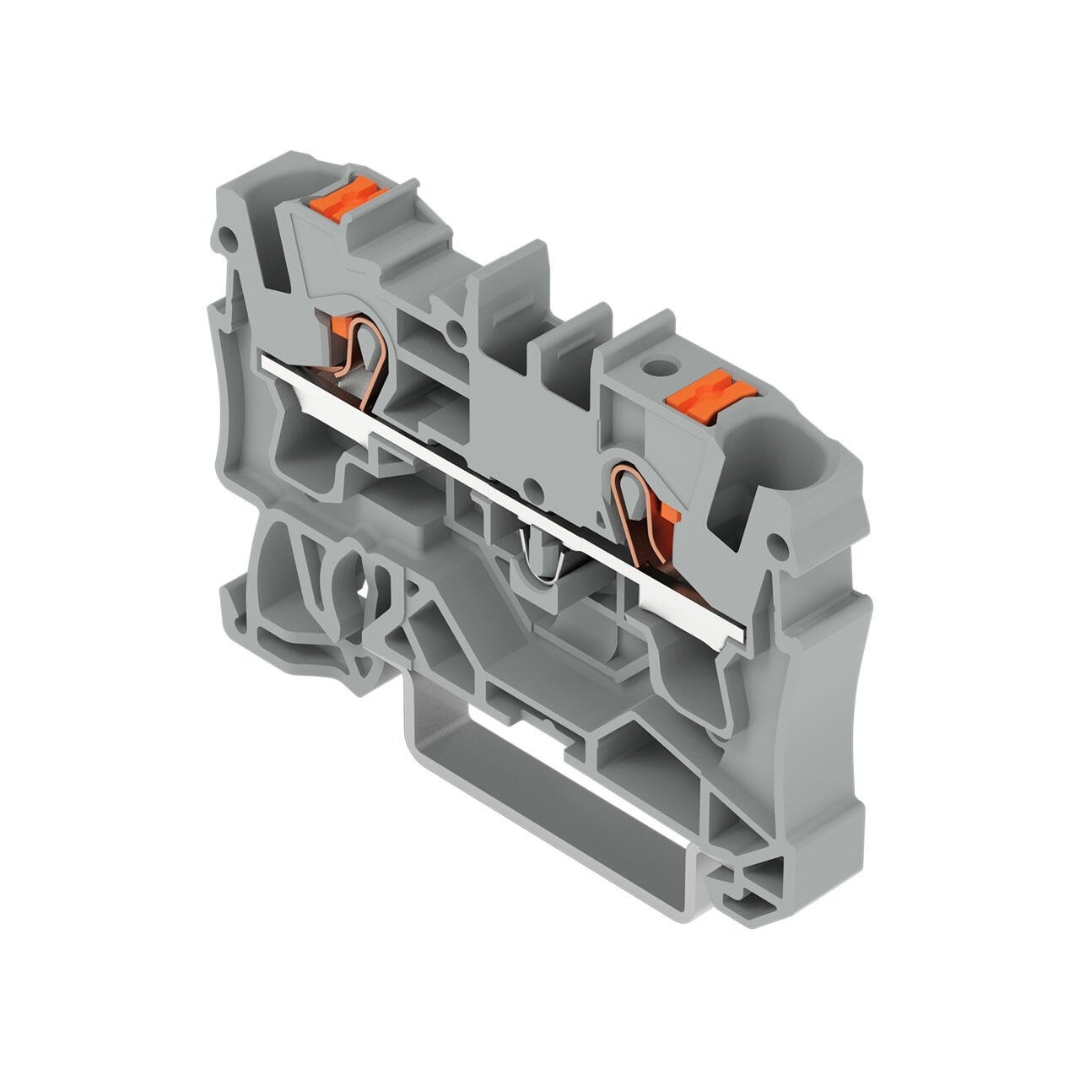

The WAGO 2204-1201 2-Conductor Through Terminal Block with Push-Button and Test Port offers a fast, secure, and efficient solution for connecting electrical conductors in both industrial and building applications. With its Push-in CAGE CLAMP® technology, this terminal block provides a tool-free, universal connection for solid and fine-stranded conductors with or without ferrules. It accommodates conductor cross-sections ranging from 0.5 mm² to 6 mm² and is rated for 800 V and 32 A, making it suitable for a wide range of applications. Designed for DIN-35 rail mounting, this terminal block ensures quick and reliable connections, with a compact design (6.2 x 52.3 x 39.5 mm). The included test port simplifies connection verification, and the robust polyamide (PA66) housing ensures durability and reliability. The terminal block is also suitable for Ex-rated environments, adding versatility to its range of uses.

Key Features

• Push-in CAGE CLAMP® Technology: Tool-free, universal connection for solid and fine-stranded conductors with or without ferrules.
• Test Port: Built-in test port for easy connection verification.
• Rated Voltage and Current: 800 V and 32 A, ideal for industrial and building applications.
• Wide Conductor Compatibility: Accommodates conductor cross-sections from 0.5 mm² to 6 mm².

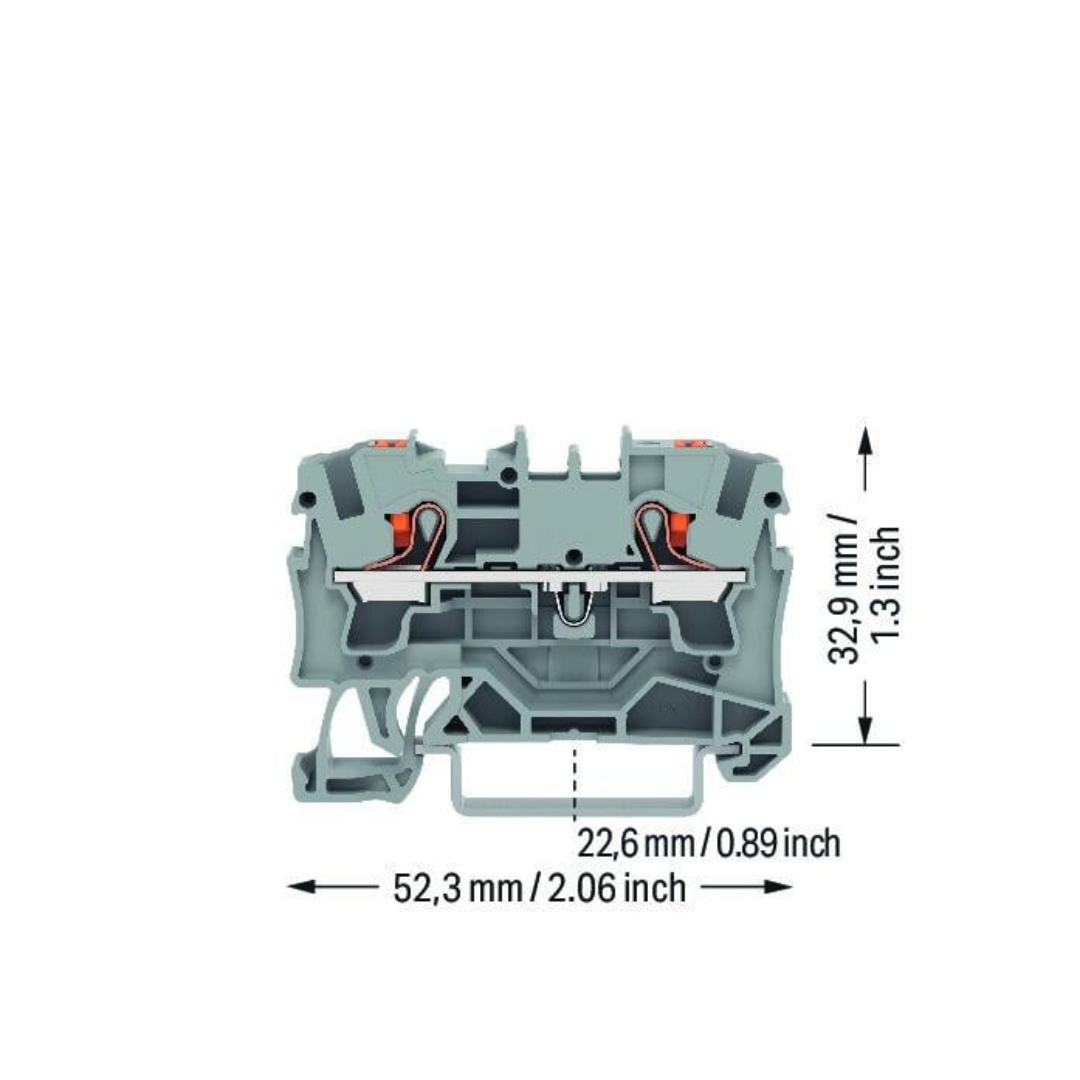

• Compact Design: Dimensions of 6.2 x 52.3 x 39.5 mm (width x height x depth).
• Jumper Slots: Two jumper slots for easy potential distribution to other clamping points.
• Front-Entry Wiring: Simplifies copper conductor connections.
• Ex Application Compatibility: Suitable for Ex-rated environments (refer to datasheet for details).
• Flammability Class V0: Ensures safety in high-risk environments.
