Product Description

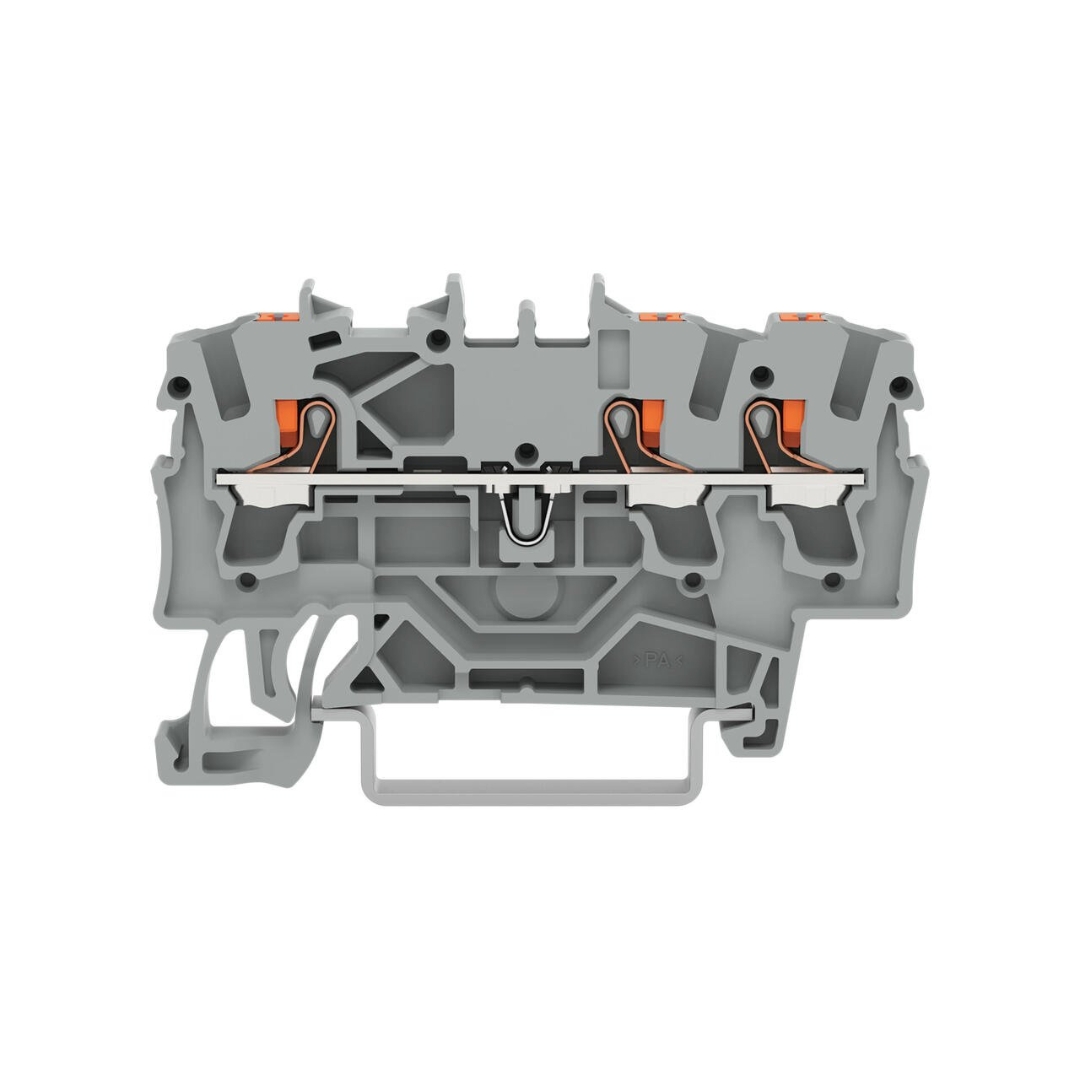

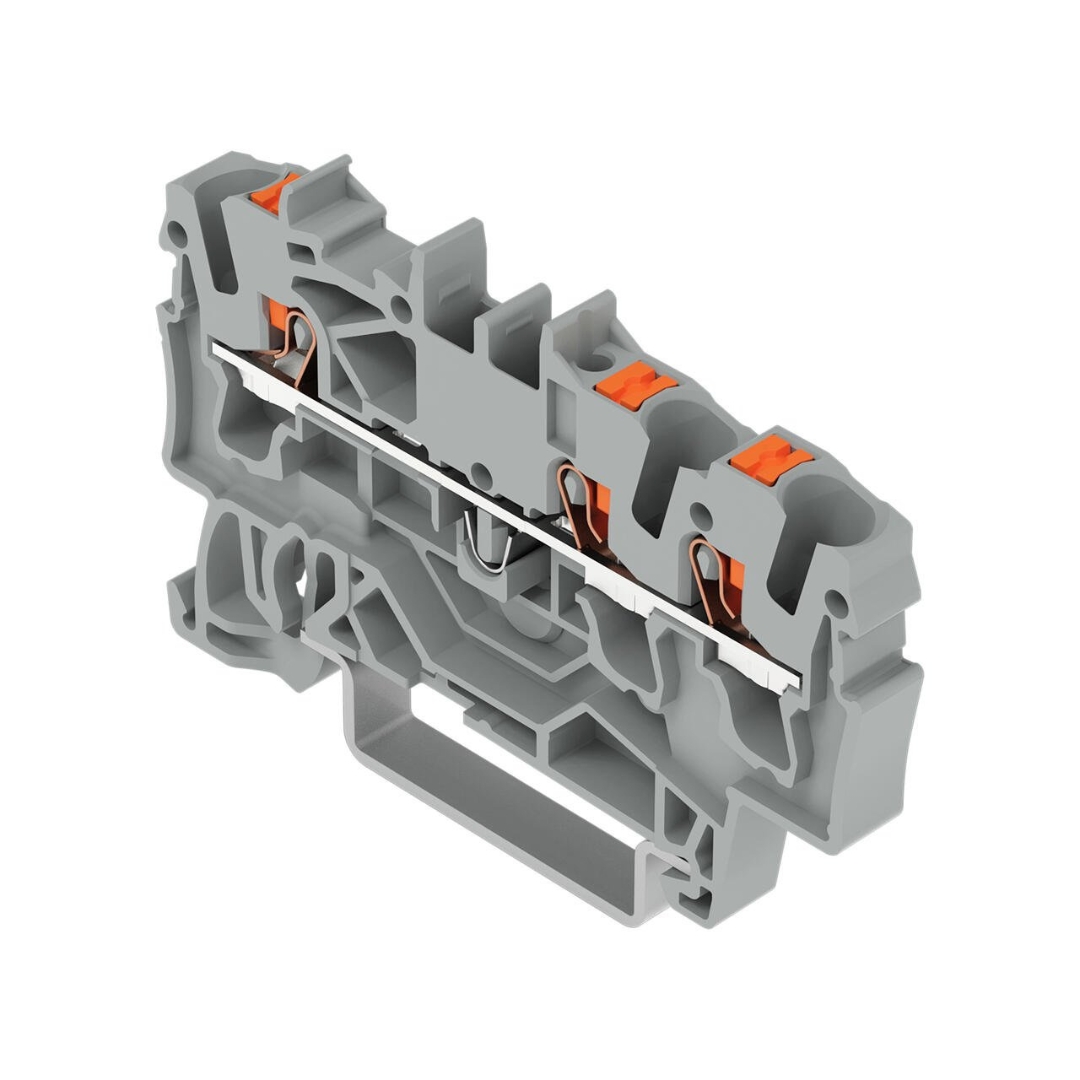

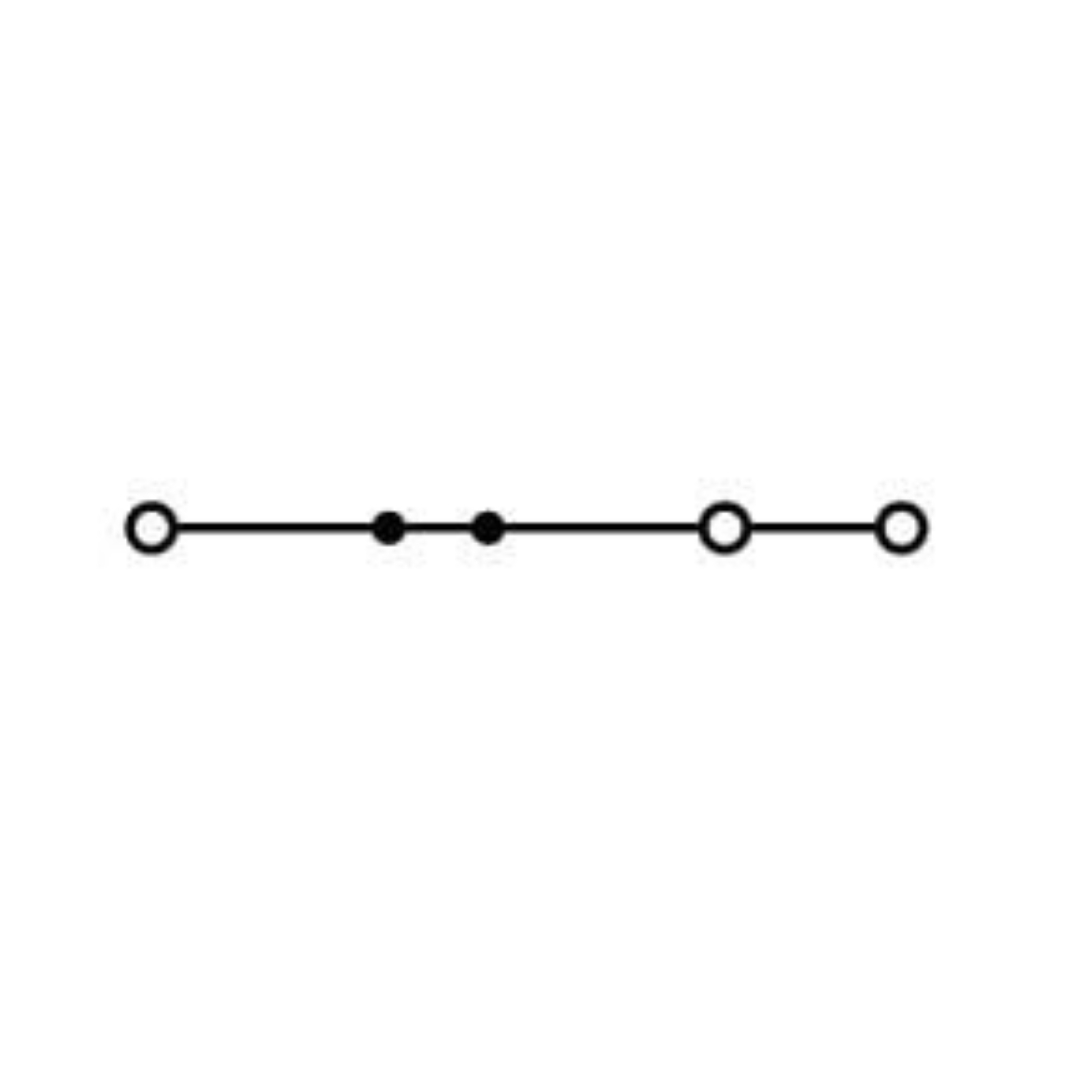

The WAGO 2202-1301 3-Conductor Through Terminal Block with Push-Button and Test Port offers a fast, secure, and tool-free connection solution for various electrical installations. Featuring the innovative Push-in CAGE CLAMP® technology, this terminal block allows for quick and efficient connections for both solid and fine-stranded conductors, with or without ferrules. It accommodates conductor cross-sections ranging from 0.25 mm² to 4 mm² and offers a rated voltage of 800 V and a rated current of 24 A. This terminal block is mounted on DIN-35 rails and is ideal for industrial and building applications. With its durable polyamide (PA66) housing and built-in test port, it ensures reliable performance and easy verification of connections. Additionally, the product is designed for specific Ex applications, adding versatility to its use in hazardous areas.
Key Features
-
- Push-in CAGE CLAMP® Technology: Tool-free, secure connection for solid and fine-stranded conductors with ferrules.
- Test Port: Convenient port for testing and verifying connections.
- Gray Polyamide Housing (PA66): Provides excellent insulation and durability.
- Wide Conductor Compatibility: Supports cross-sections from 0.25 mm² to 4 mm².
- Rated Voltage and Current: 800 V and 24 A, ideal for industrial and building applications.
- Front-Entry Wiring: Simplifies copper conductor connection.
- Jumper Slots: Two jumper slots for easy potential distribution to other clamping points.
- Ex Application Compatibility: Suitable for Ex-rated environments (refer to datasheet for specifics).
- Flammability Class V0: Ensures safety in high-risk environments.
Specifications
| Category | Details |
|---|---|
| Product Type | 3-Conductor Through Terminal Block with Push-Button |
| Connection Technology | Push-in CAGE CLAMP® |
| Conductor Compatibility | 0.25 mm² to 4 mm² (solid and fine-stranded conductors) |
| Number of Clamping Units | 3 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Material | Polyamide (PA66) |
| Color | Gray |
| Marking | Side and Center Marking |
| Mounting Type | DIN-35 Rail |
| Actuation Type | Push-Button |
| Test Port | Yes |
| Strip Length | 10 … 12 mm / 0.39 … 0.47 inches |
| Temperature Range | -60 … +105 °C |

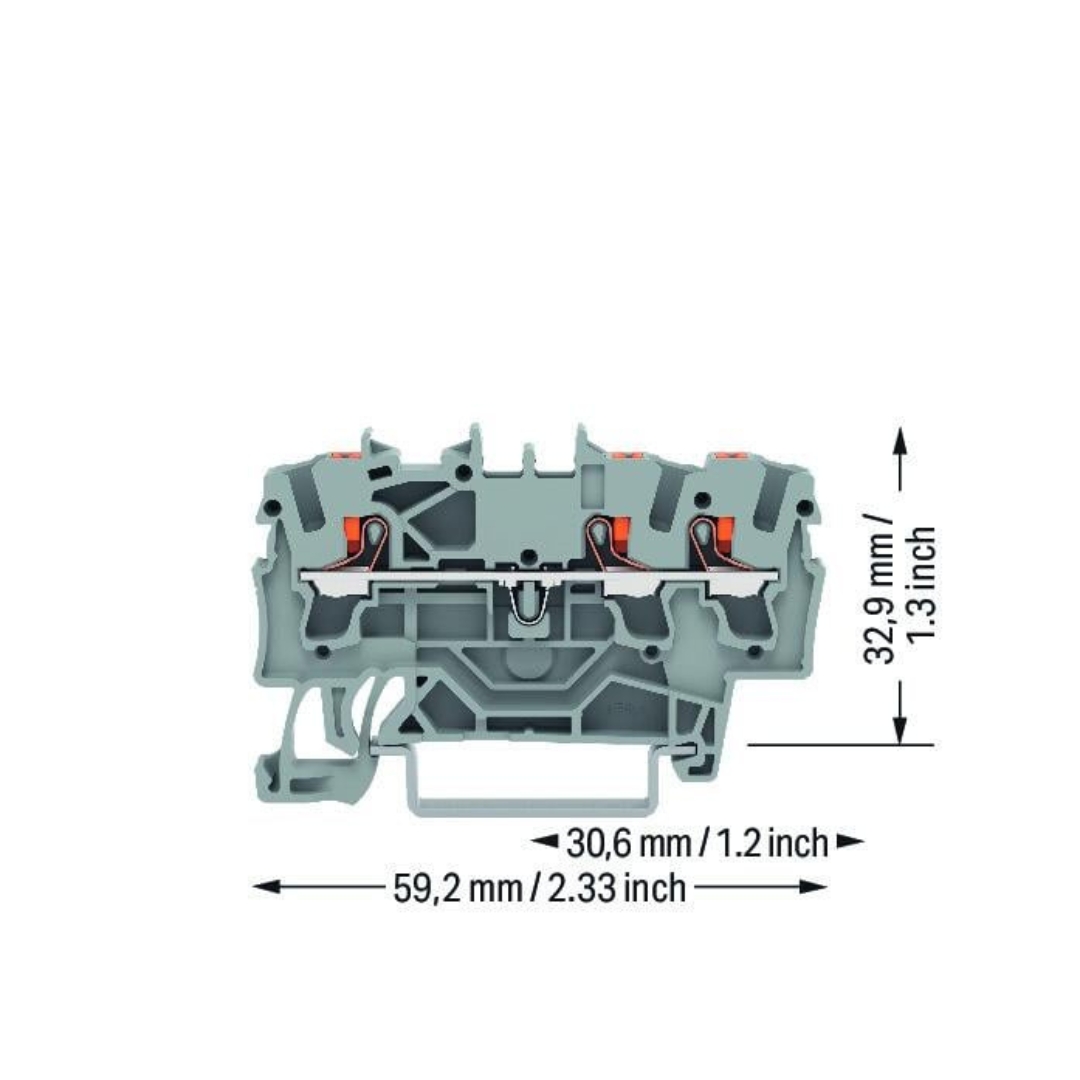

| Dimensions (W x H x D) | 5.2 mm x 59.2 mm x 39.5 mm |
| Weight | 6.4g |
| Packaging Type | Box |
| Country of Origin | Germany |
| GTIN | 4055143713795 |
| Flammability Class (UL94) | V0 |
| Environmental Testing | DIN EN 50155, DIN EN 61373 |
| Ex Application | PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb) |
| Rated Voltage (Ex e II) | 550 V |
| Rated Current (Ex e II) | 22 A |
| RoHS Compliance | Yes, No Exemption |
| UNSPSC | 39121410 |
| ETIM 9.0 | EC000897 |
