2202-1207-WAGO | 2-conductor ground terminal block; with push-button; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow

Product Description

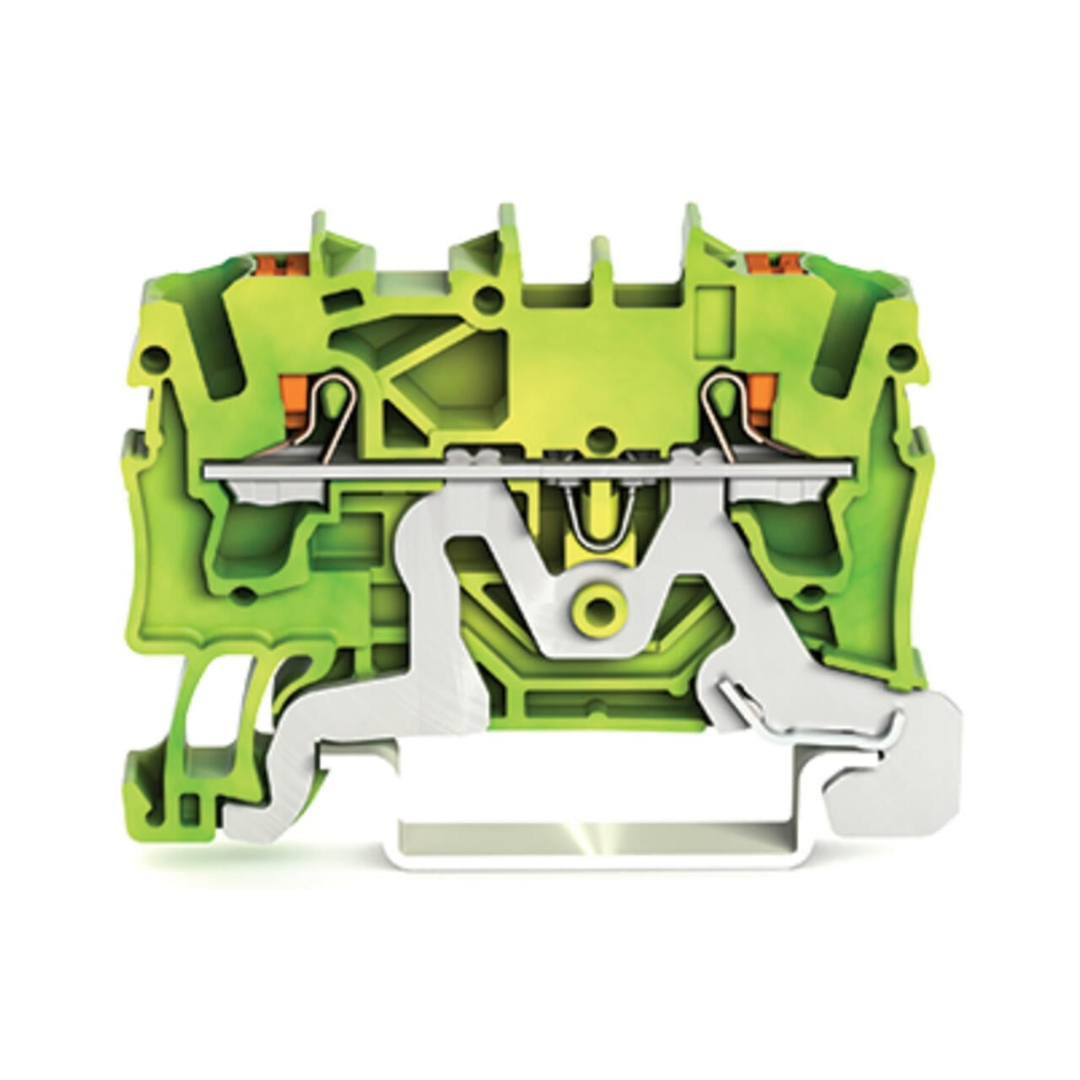

The WAGO 2202-1207 2-Conductor Ground Terminal Block with Push-Button and Test Port is designed to provide a reliable and efficient electrical connection in various industrial and building installations. With its Push-in CAGE CLAMP® connection technology, this terminal block offers a tool-free, secure connection for solid and fine-stranded conductors ranging from 0.25 mm² to 4 mm². The green-yellow housing, made of durable polyamide (PA66), ensures excellent insulation and safety. Featuring a test port for easy verification, this ground terminal block is built for robust performance in demanding environments, including railway applications. With its compact design and compatibility with DIN-35 rails, it simplifies installation while maintaining high-quality standards.

Key Features

• Push-in CAGE CLAMP® Connection Technology: Enables tool-free connection for solid and fine-stranded conductors with ferrules.

• Test Port: Provides a convenient port for easy testing and verification of connections.

• Green-Yellow Polyamide Housing (PA66): Ensures durable insulation and safe electrical connections.

• Wide Conductor Compatibility: Accommodates conductor cross-sections from 0.25 mm² to 4 mm².

• Front-Entry Wiring: Allows easy access and convenient connection of copper conductors.

• Mounting on DIN-35 Rail: Ensures secure and easy installation in various applications.

• Robust Environmental Performance: Complies with railway standards for shock and vibration resistance (DIN EN 50155 & DIN EN 61373).

• Tested for Harsh Conditions: Suitable for environments with temperatures from -60°C to +105°C.

Specifications
