Description

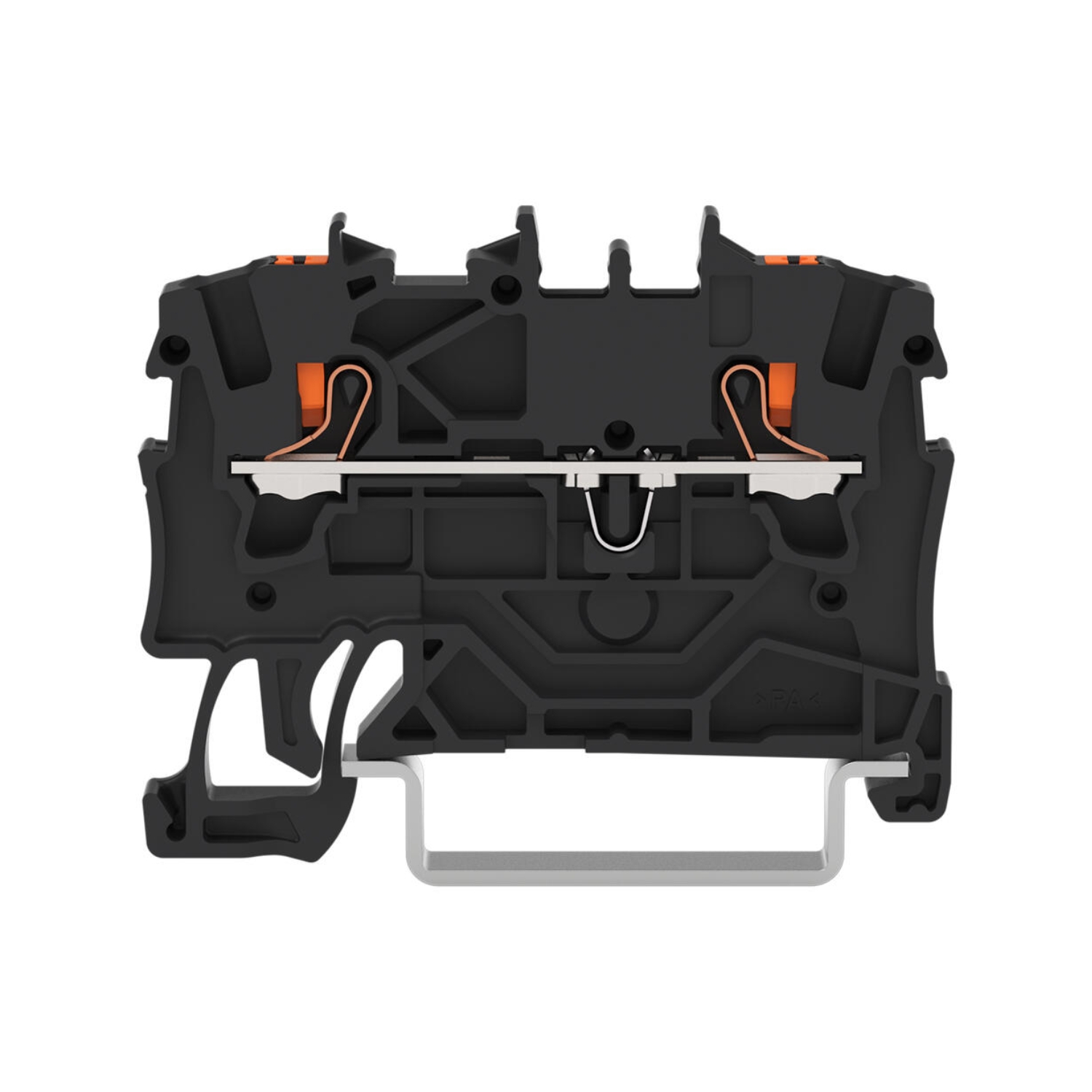

The WAGO 2201-1205 is a high-performance 2-conductor through terminal block designed for efficiency and safety in demanding industrial environments. This sleek black terminal block features an integrated orange push-button, allowing for intuitive, tool-free actuation of the Push-in CAGE CLAMP® mechanism. Specifically engineered for 1.5 mm² nominal cross-sections, it is fully certified for Ex e II hazardous area applications, making it a reliable choice for explosive atmospheres. Its compact 4.2 mm width optimizes space on DIN-35 rails, while the integrated test port ensures easy troubleshooting without disrupting the circuit.
Key Features
- Push-Button Actuation: The orange actuator allows for easy manual operation using any common tool or by hand, ensuring clear visibility of the connection point.
- Ex e II Certified: Approved for use in hazardous areas (ATEX/IECEx), ensuring maximum safety in potentially explosive environments.
- Push-in CAGE CLAMP®: Fast and reliable vibration-proof connections for solid, fine-stranded, and ferruled conductors.
- Vibration & Shock Resistant: Tested to DIN EN 61373 standards, making it suitable for railway rolling stock and heavy-duty machinery.
- Compact Footprint: A slim 4.2 mm width allows for high-density wiring configurations on standard DIN-35 rails.
- Universal Marking: Supports both center and side marking for clear circuit identification.
Specifications
| Technical Attribute | Value |
|---|---|
| Nominal Cross-Section | 1.5 mm² |
| Rated Voltage (IEC/EN) | 800 V (Standard) / 550 V (Ex e II) |
| Rated Current | 17.5 A (Standard & Ex e II) / 15 A (UL/CSA) |
| Connection Technology | Push-in CAGE CLAMP® with Push-button |
| Solid Conductor Size | 0.25 … 2.5 mm² / 22 … 14 AWG |
| Width | 4.2 mm / 0.165 inches |
| Color | Black (Main Housing) / Orange (Actuator) |
| Mounting Type | DIN-35 x 15; 35 x 7.5 rail |
| Continuous Operating Temp | -60 °C to +105 °C |
| Hazardous Area Rating | Ex eb IIC Gb (ATEX: PTB 18 ATEX 1004 U) |
