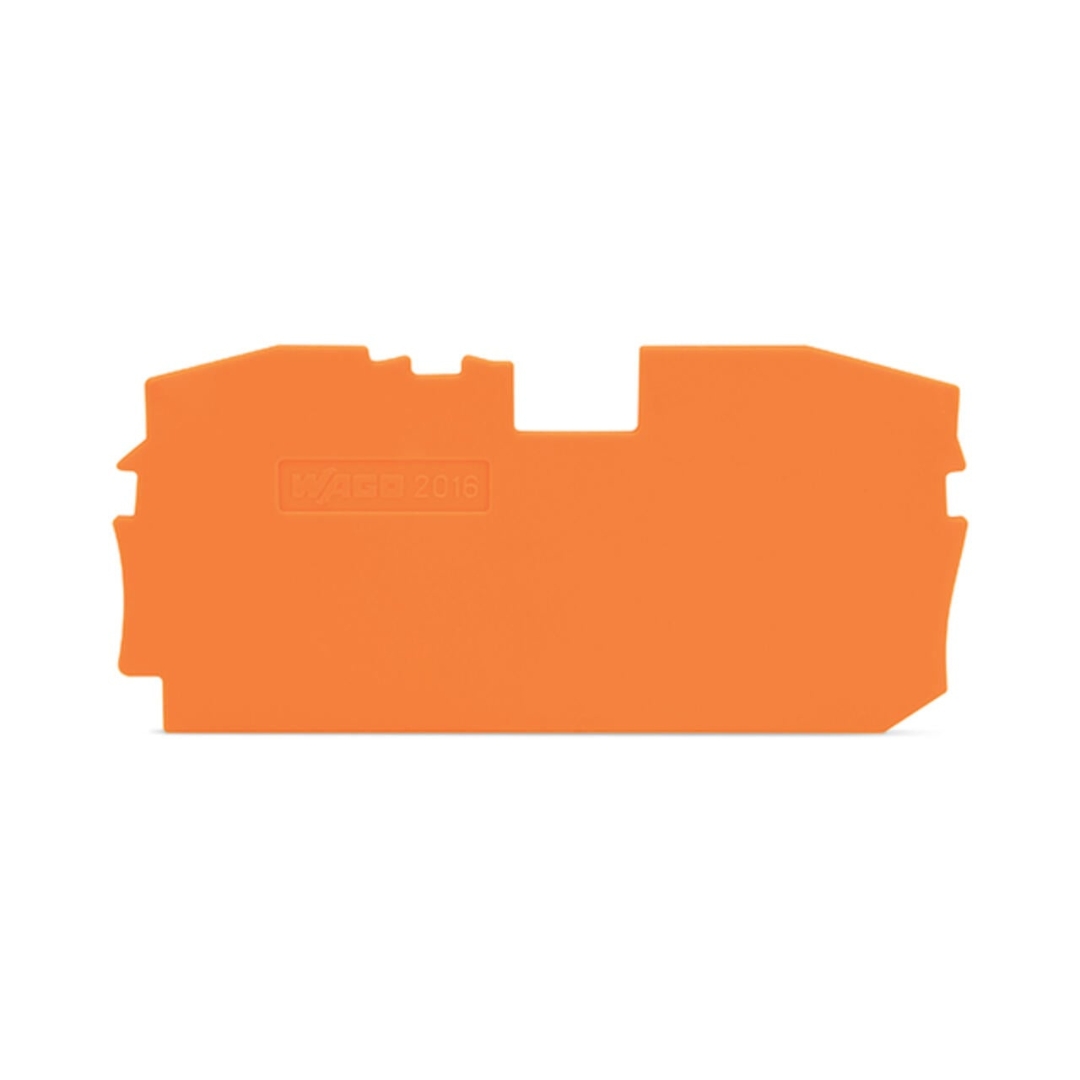

2016-1292-WAGO | End and intermediate plate; 1 mm thick; orange

2016-1292-WAGO | End and intermediate plate; 1 mm thick; orange

$ 1.55

The WAGO 2016-1292 End and Intermediate Plate is a versatile and durable component designed for use with WAGO terminal blocks. With a thickness of 1 mm, this plate is built to securely mount on a DIN rail system, providing mechanical support for terminal blocks in a variety of applications. Its snap-on mounting type ensures easy and quick installation, making it an excellent choice for industrial electrical installations. Constructed from high-quality polyamide (PA66), this plate is flame-retardant and has a V0 flammability class rating, making it safe for use in demanding environments. The orange-colored plate is designed for compatibility with WAGO’s TOPJOB® S terminal block system, offering reliable electrical connection solutions for a wide range of installations.

95 in stock (can be backordered)

SKU: 2016-1292 Categories: , ,

Product Description

The WAGO 2016-1292 End and Intermediate Plate is a versatile and durable component designed for use with WAGO terminal blocks. With a thickness of 1 mm, this plate is built to securely mount on a DIN rail system, providing mechanical support for terminal blocks in a variety of applications. Its snap-on mounting type ensures easy and quick installation, making it an excellent choice for industrial electrical installations. Constructed from high-quality polyamide (PA66), this plate is flame-retardant and has a V0 flammability class rating, making it safe for use in demanding environments. The orange-colored plate is designed for compatibility with WAGO’s TOPJOB® S terminal block system, offering reliable electrical connection solutions for a wide range of installations.

Key Features

  • Snap-on Mounting: Easy and quick installation with a snap-on design for secure fitting on DIN rails.

  • Durable Construction: Made from polyamide (PA66) for strength and longevity.

  • Flame-Retardant: V0-rated material ensures resistance to flames for enhanced safety.

  • Compact and Lightweight: Weighs only 2.4g, with a thickness of 1 mm for space-saving installation.

  • Environmental Compliance: RoHS compliant and suitable for use in electronic and rolling stock applications.

  • Compatibility: Perfectly integrates with WAGO’s TOPJOB® S terminal block system for seamless electrical setups.

Specifications

Category Details
Product Type End and Intermediate Plate
Material Polyamide (PA66)
Flammability Class (UL94) V0
Color Orange
Mounting Type Snap-on Type
Width 1 mm (0.039 inches)
Height 69.4 mm (2.732 inches)
Depth 33.5 mm (1.319 inches)
Weight 2.4g
Environmental Testing DIN EN 50155, DIN EN 61373
Temperature Range (Operating) -60°C to +105°C
Packaging Box (100 pcs, 25 pcs per unit)
Country of Origin China
GTIN 4044918121828
RoHS Compliance Yes, No Exemption
UNSPSC 39121702
eCl@ss 10.0 27-14-11-33
ETIM 9.0 EC000886
Weight 0.005291 lbs
Dimensions 1.319 × 0.039 × 2.732 in
