Product Description

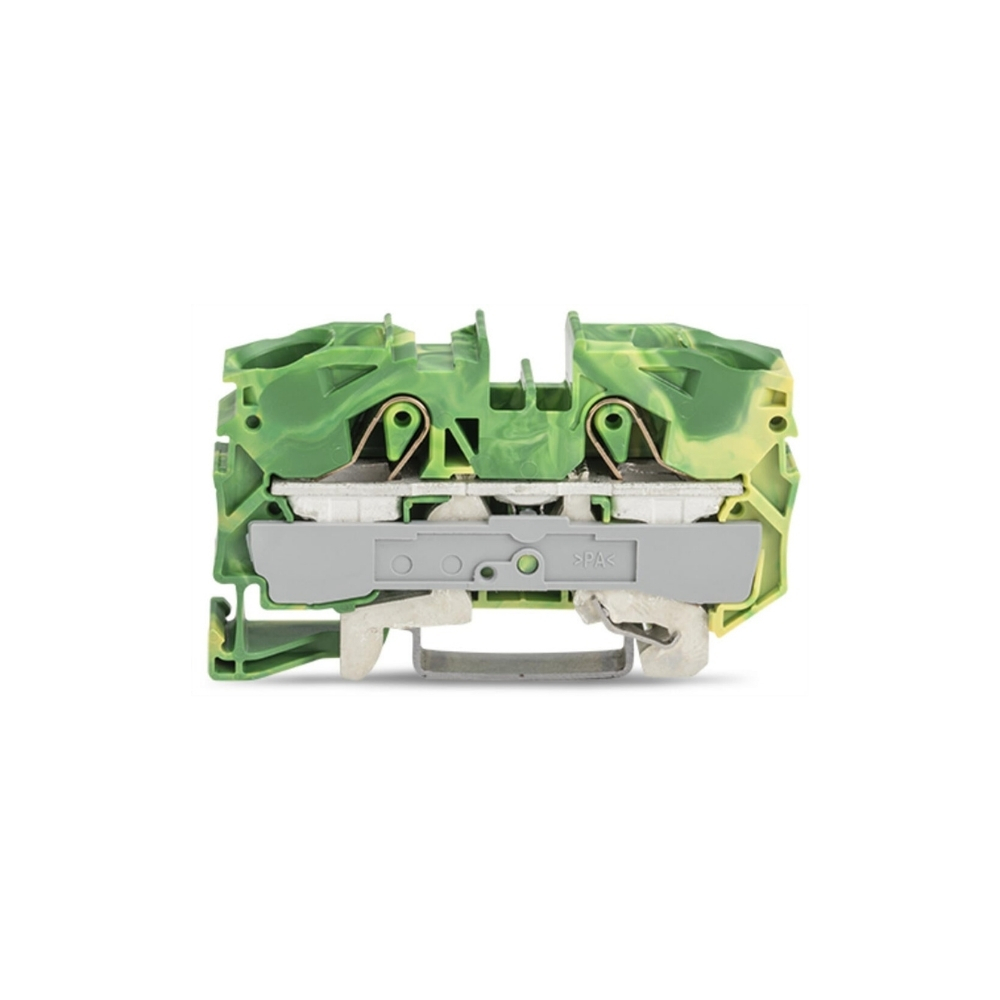

The WAGO 2016-1207 2-conductor ground terminal block is designed to deliver reliable, quick, and secure connections for industrial and building installations. Featuring Push-in CAGE CLAMP® technology, this ground terminal block ensures maintenance-free, tool-free connections for solid and fine-stranded conductors with ferrules. With a conductor cross-section range of 0.5 mm² to 16 mm², it provides a flexible solution for electrical installations, offering optimal safety in Ex e II applications. The terminal block has one level and two clamping points, allowing for easy connection of a single potential. The green-yellow polyamide (PA66) housing ensures durability and electrical insulation, while the front-entry wiring and DIN-35 rail mounting make installation hassle-free. This terminal block is an ideal choice for applications requiring secure grounding and reliable electrical connections.
Key Features
-
Push-in CAGE CLAMP® Technology: Tool-free, maintenance-free connection for solid and fine-stranded conductors.
-
Ex e II Rated: Certified for Ex e II hazardous areas, ensuring safe operation in potentially explosive environments.
-
Wide Conductor Compatibility: Supports conductor cross sections from 0.5 mm² to 16 mm².
-
Durable and Safe: Green-yellow polyamide (PA66) housing with V0 flammability class for added protection.
-
Flexible Installation: Front-entry wiring and DIN-35 rail mounting for easy integration into systems.
-
Jumper Slots for Potential Distribution: Two jumper slots allow potential distribution to additional clamping points.
-
High-Quality Construction: Designed to meet IEC/EN and UL/CSA standards for reliable electrical performance.
Specifications
| Category | Details |
|---|---|
| Product Type | 2-conductor Ground Terminal Block |
| Conductor Cross-Section | 0.5 mm² to 16 mm² |
| Clamping Units | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Connection Technology | Push-in CAGE CLAMP® |
| Conductor Materials | Copper |
| Actuation Type | Operating Tool |
| Strip Length | 18 – 20 mm (0.71 – 0.79 inches) |
| Wiring Direction | Front-entry |
| Mounting Type | DIN-35 Rail |
| Dimensions (WxHxD) | 12 mm x 69.8 mm x 43.5 mm |
| Weight | 38.5g |
| Color | Green-yellow |
| Material | Polyamide (PA66) |
| Flammability Class (UL94) | V0 |
| Temperature Range (Processing) | -35°C to +85°C |
| Temperature Range (Operating) | -60°C to +105°C |
| Environmental Compliance | RoHS Compliant |
| Ex Certifications | ATEX: PTB 05 ATEX 1031 U, IECEx: PTB 05.0015U (Ex eb IIC Gb) |
| Packaging | Box (20 pcs) |
| Country of Origin | Germany |
| GTIN | 4017332076654 |
