Product Description

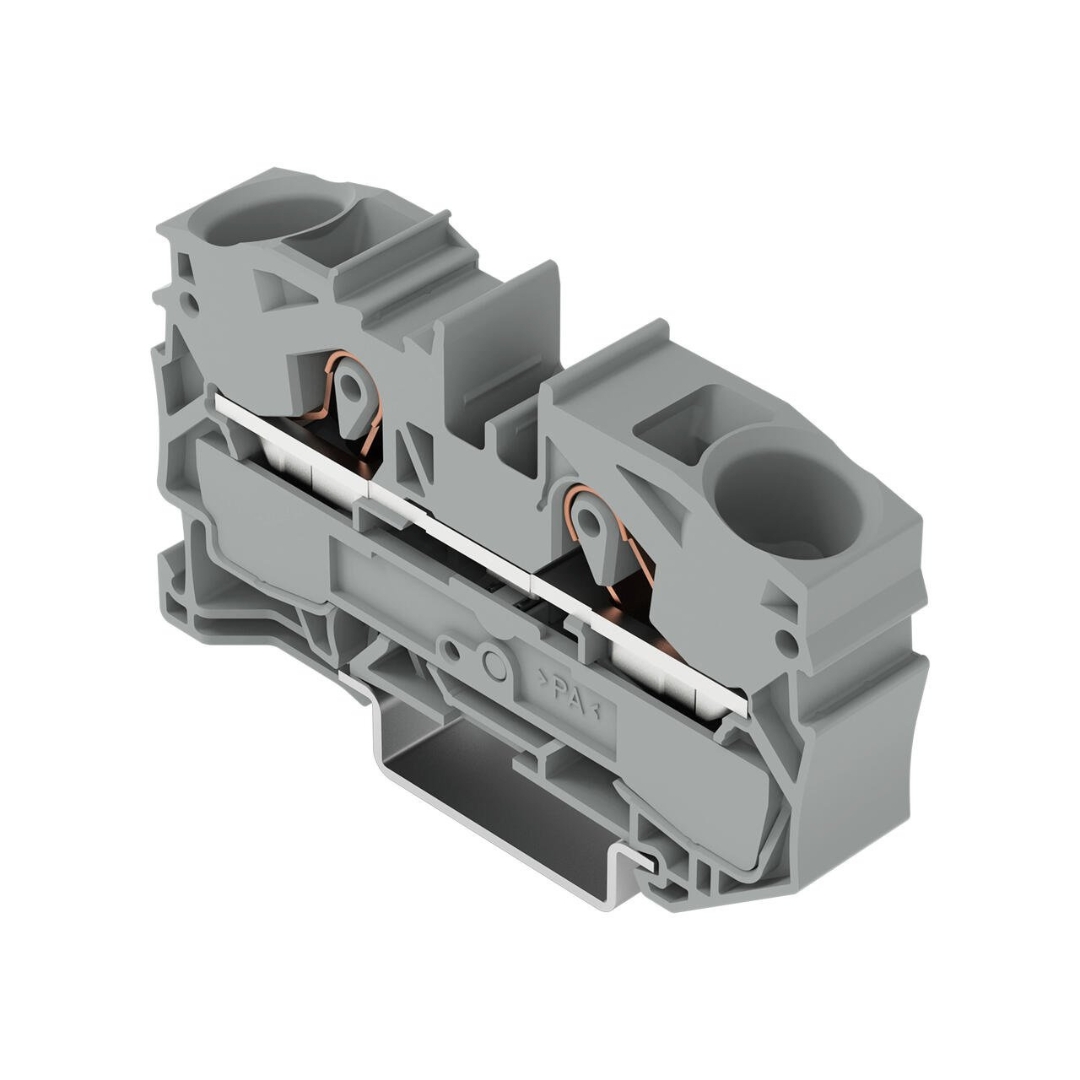

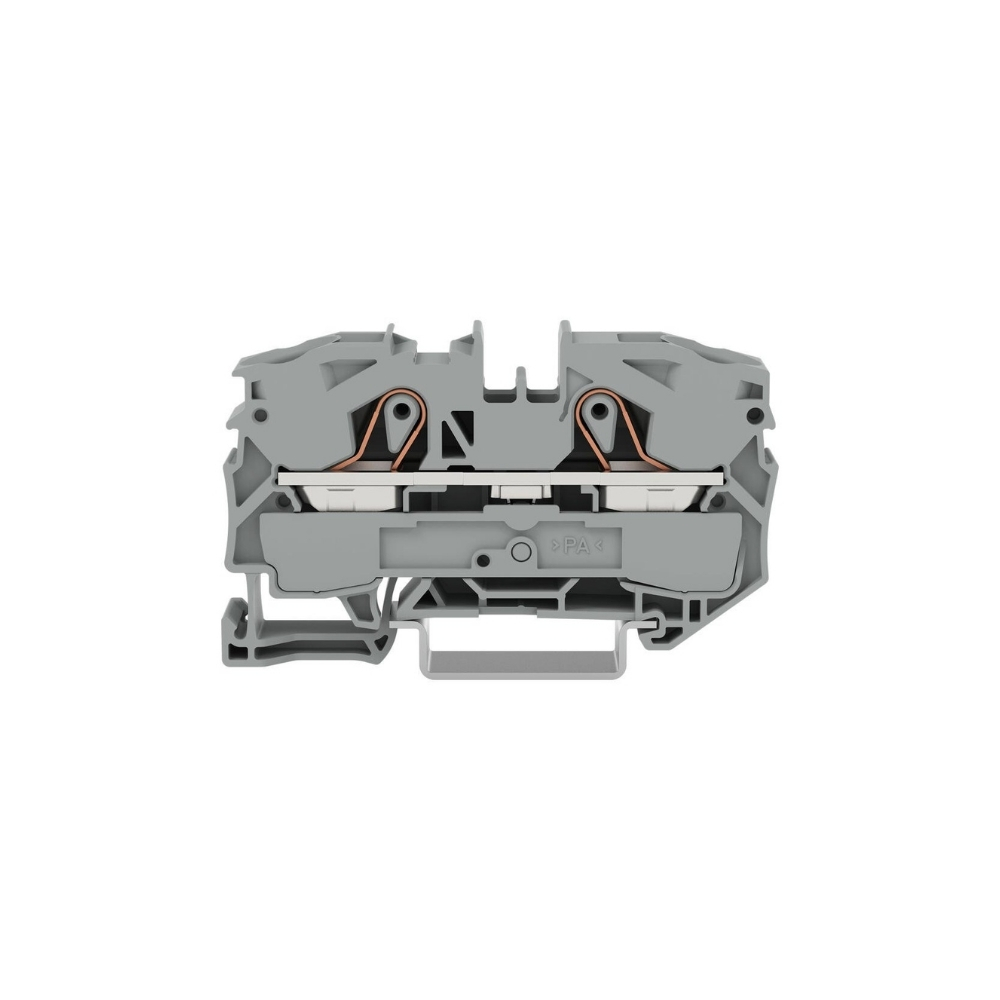

The WAGO 2016-1201 2-conductor through terminal block is a reliable and versatile solution for industrial and building installations, offering quick, secure, and tool-free connections. Designed for use in Ex e II applications, this terminal block features Push-in CAGE CLAMP® technology, allowing for easy connection of both solid and fine-stranded conductors without the need for tools or preparation. With a rated voltage of 800 V and a current capacity of up to 76 A, this terminal block ensures safe and efficient conductor management. It is mounted on a DIN-35 rail and features a gray polyamide (PA66) housing for insulation, making it a durable and reliable choice for demanding environments. Ideal for use in a variety of applications, this terminal block ensures a fast and secure electrical connection, with features like front-entry wiring and jumper slots for potential distribution.
Key Features
-
Push-in CAGE CLAMP® Technology: Tool-free and maintenance-free connection for solid and fine-stranded conductors.
-
Versatile Application: Suitable for both classic through-wiring and potential distribution.
-
Ex e II Rated: Certified for use in Ex e II hazardous areas with ATEX and IECEx approvals.
-
High Rated Voltage and Current: Rated voltage of 800 V and a rated current of 76 A for efficient power handling.
-
Wide Conductor Compatibility: Compatible with conductor cross sections from 0.5 mm² to 16 mm².
-
Durable Construction: Polyamide (PA66) housing with a V0 flammability class for enhanced safety.
-
DIN Rail Mounting: Easy installation on standard DIN-35 rails.
-
Front-entry Wiring: Simplifies wiring and installation for copper conductors.
Specifications
| Category | Details |
|---|---|
| Product Type | 2-conductor Through Terminal Block |
| Conductor Cross-Section | 0.5 mm² to 16 mm² |
| Rated Voltage | 800 V |
| Rated Current | 76 A |
| Clamping Units | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Connection Technology | Push-in CAGE CLAMP® |
| Conductor Materials | Copper |
| Actuation Type | Operating Tool |
| Strip Length | 18 – 20 mm (0.71 – 0.79 inches) |
| Wiring Direction | Front-entry |
| Mounting Type | DIN-35 Rail |

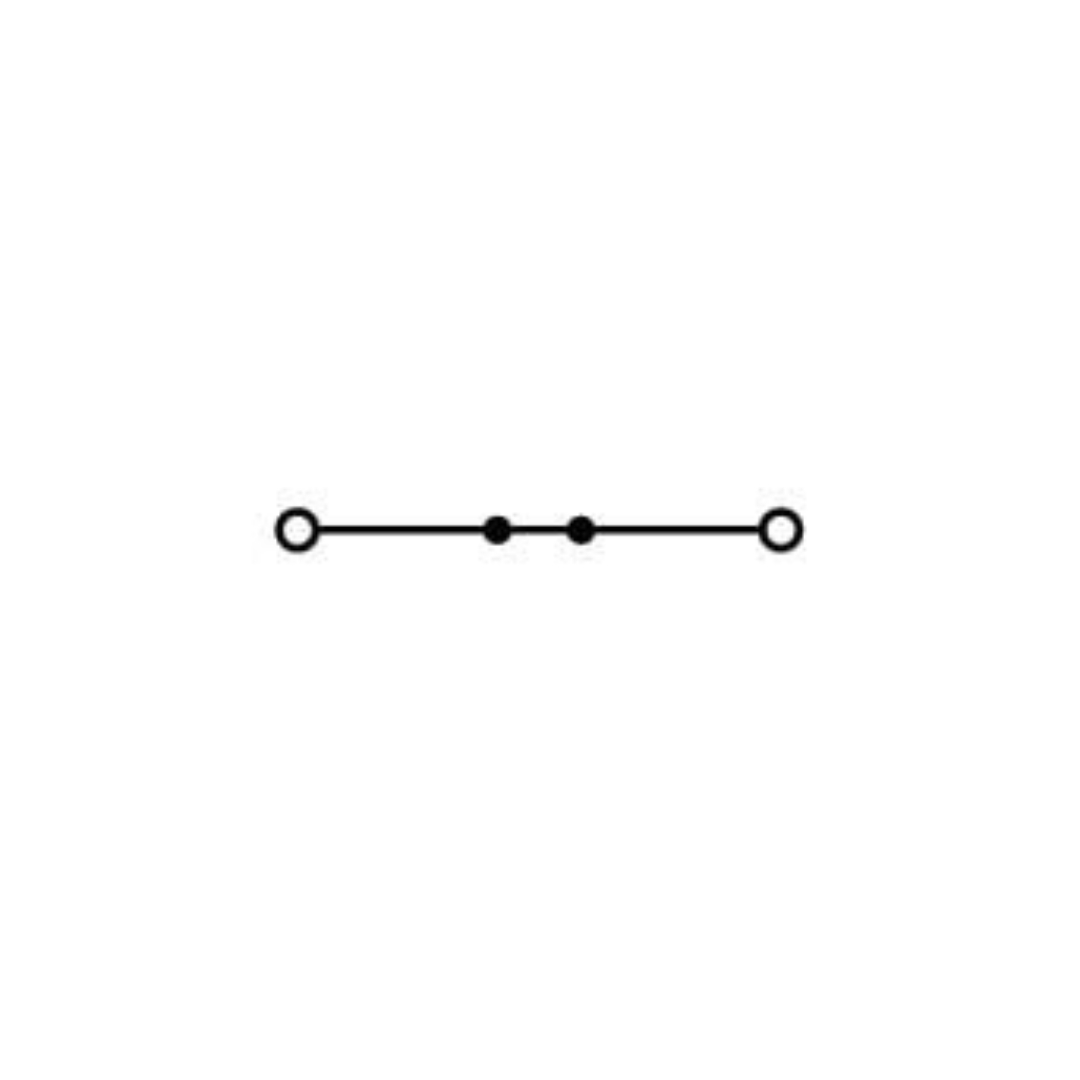

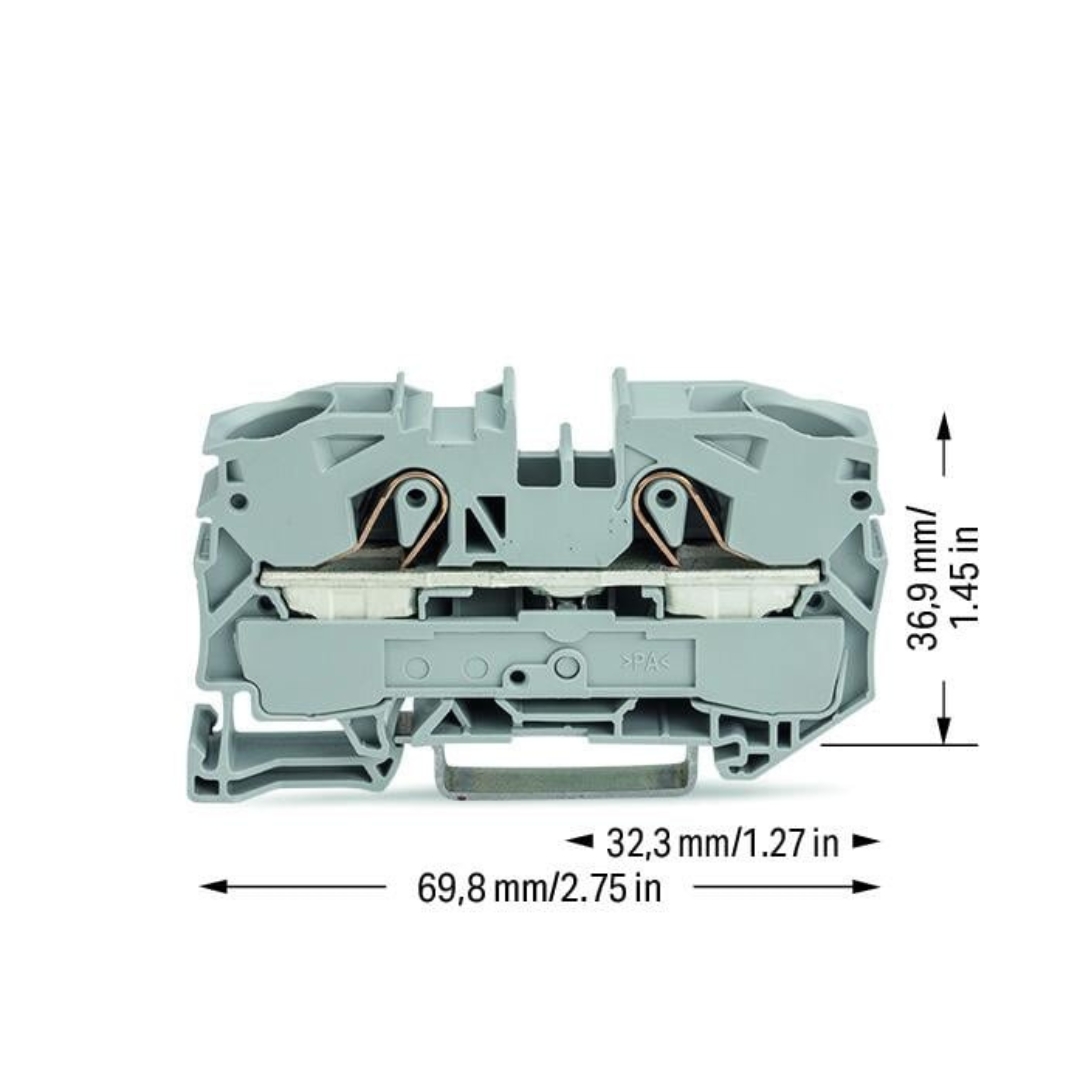

| Dimensions (WxHxD) | 12 mm x 69.8 mm x 43.5 mm |
| Weight | 22.6g |
| Color | Gray |
| Material | Polyamide (PA66) |
| Flammability Class (UL94) | V0 |
| Temperature Range (Processing) | -35°C to +85°C |
| Temperature Range (Operating) | -60°C to +105°C |
| Environmental Compliance | RoHS Compliant |
| Ex Certifications | ATEX: PTB 05 ATEX 1031 U, IECEx: PTB 05.0015U (Ex eb IIC Gb) |
| Rated Voltage (Ex e II) | 550 V |
| Rated Current (Ex e II) | 70 A |
| Power Loss per Pole | 2.426 W |
| Packaging | Box (20 pcs) |
| Country of Origin | Germany |
| GTIN | 4017332076494 |
