Product Description

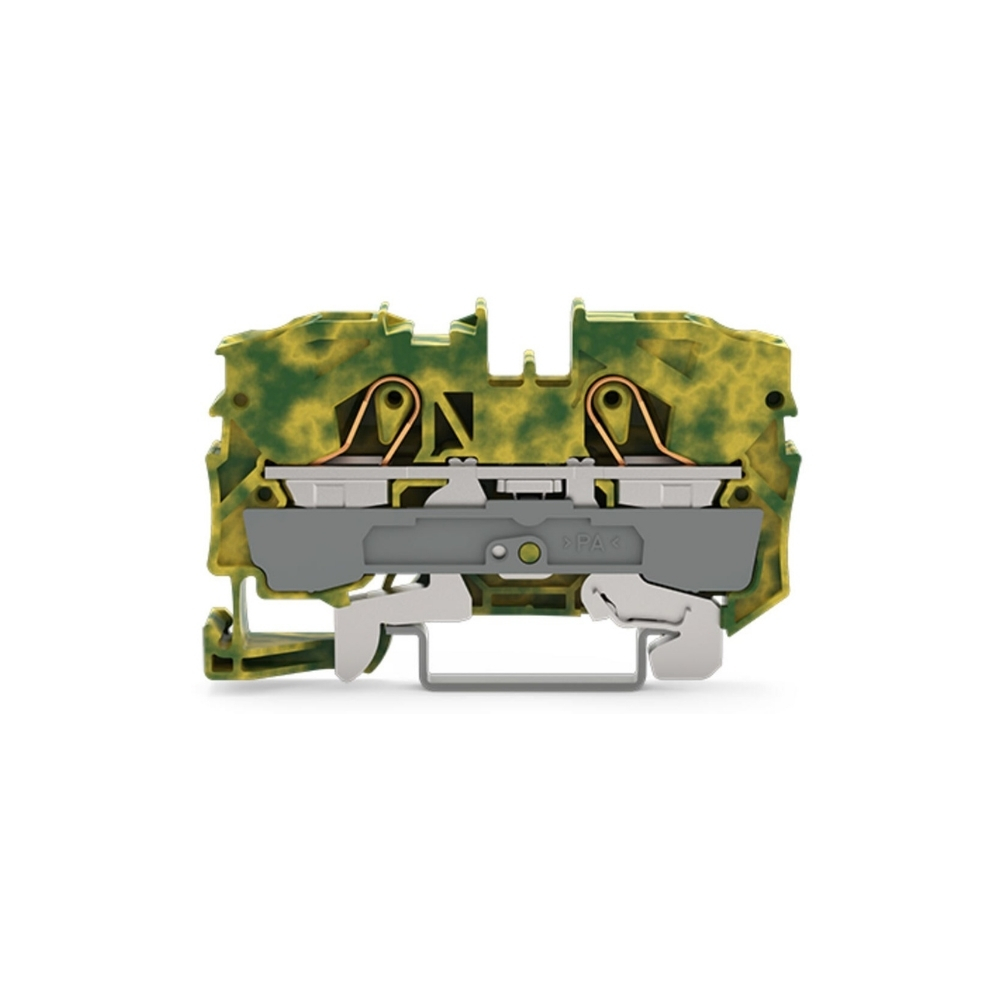

The WAGO 2010-1207 2-Conductor Ground Terminal Block is designed for quick and secure electrical connections in a variety of industrial and building installations, including hazardous Ex e II applications. This ground terminal block ensures both electrical and mechanical stability between the mounting rail and conductors with its integrated mounting foot. Featuring Push-in CAGE CLAMP® technology, it allows for easy, tool-free connections of solid and fine-stranded conductors with ferrules. This makes it ideal for a wide range of applications, offering versatility and reliability. With its green-yellow polyamide housing and top-tier insulation, the terminal block meets demanding environmental and safety standards. It is mounted on DIN-35 rails, ensuring easy integration into electrical systems, and it supports conductor sizes from 0.5 mm² to 16 mm², making it an adaptable solution for your wiring needs.
Key Features
-
Push-in CAGE CLAMP® Technology: Tool-free connection for solid and fine-stranded conductors with ferrules, ensuring fast and reliable installation.
-
Ex e II Applications: Suitable for hazardous environments, providing safe connections for ground applications in explosive atmospheres.
-
Wide Conductor Compatibility: Supports conductor cross-sections from 0.5 mm² to 16 mm², offering flexibility for various electrical needs.
-
DIN-35 Rail Mounting: Easily installed on standard DIN-35 rails for seamless integration into electrical systems.
-
Dual Marking: Includes both side and center marking for easy identification during installation and maintenance.
-
Polyamide Housing: Durable and insulating, made from high-quality PA66 material with a flammability rating of UL94 V0.
-
Front-Entry Wiring: Allows for efficient copper conductor connections with a strip length of 17-19 mm.
Specifications
| Category | Details |
|---|---|
| Product Type | 2-Conductor Ground Terminal Block |
| Connection Technology | Push-in CAGE CLAMP® |
| Nominal Cross-Section | 10 mm² |
| Clamping Units | 2 |
| Number of Potentials | 1 |
| Number of Levels | 1 |
| Jumper Slots | 2 |
| Conductor Size (Solid) | 0.5 … 16 mm² / 20 … 6 AWG |
| Conductor Size (Fine-Stranded) | 0.5 … 16 mm² / 20 … 6 AWG |
| Conductor Size (With Ferrules) | 4 … 10 mm² / 12 … 8 AWG |
| Strip Length | 17 … 19 mm / 0.67 … 0.75 inches |
| Wiring Direction | Front-entry wiring |
| Mounting Type | DIN-35 Rail |
| Color | Green-Yellow |
| Material | Polyamide (PA66) |
| Flammability Class (UL94) | V0 |
| Fire Load | 0.303 MJ |
| Weight | 30.1g |
| Environmental Compliance | RoHS Compliant |
| Operating Temperature | -35 … +85 °C |
| Continuous Temperature | -60 … +105 °C |

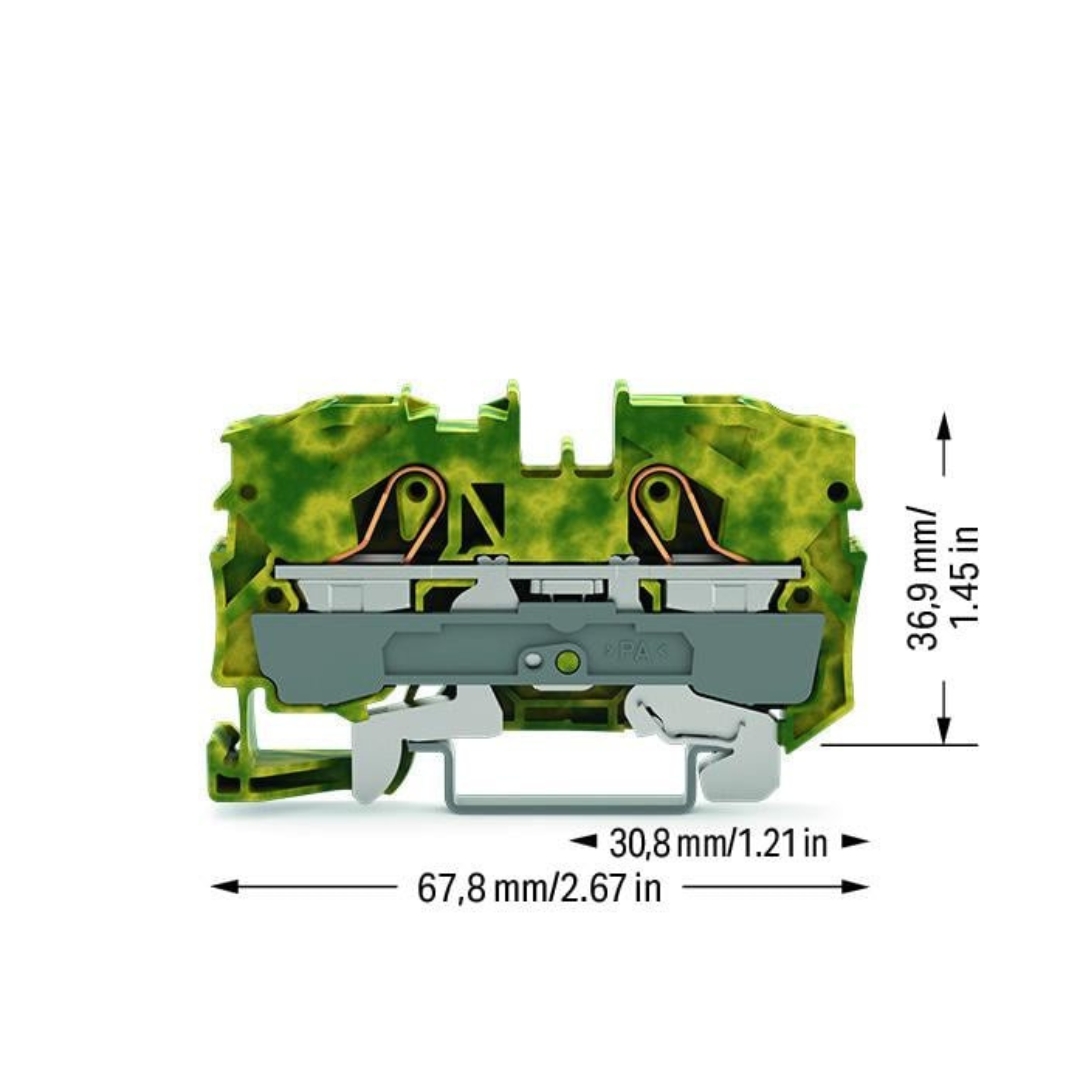

| Dimensions (WxHxD) | 10 mm x 67.8 mm x 43.5 mm |
| Environmental Testing | Complies with DIN EN 50155, DIN EN 61373 |
| Packaging | Box (25 pcs) |
| Country of Origin | Germany |
| GTIN | 4017332076180 |
| Product Group | 22 (TOPJOB S) |
