Product Description

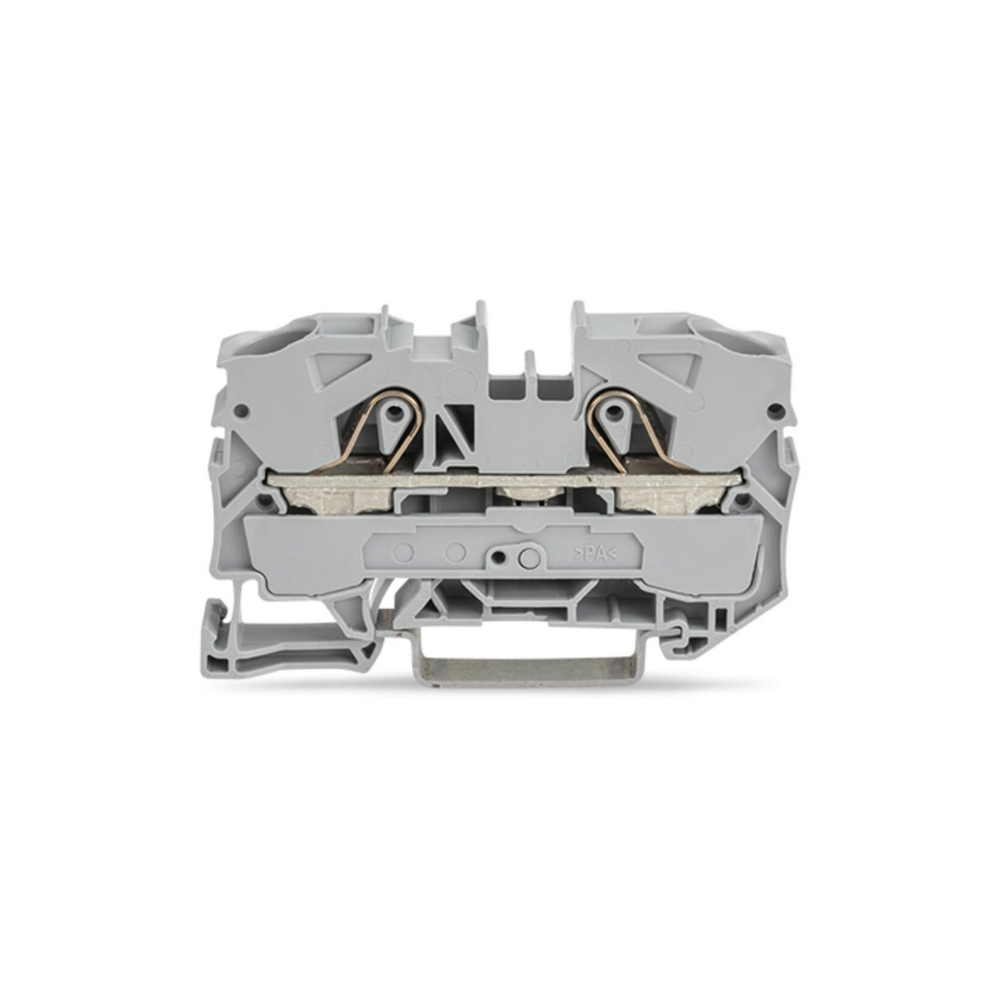

The WAGO 2010-1201 2-Conductor Through Terminal Block is an advanced, versatile connection solution designed for reliable and efficient electrical installations. With its Push-in CAGE CLAMP® technology, this terminal block simplifies the wiring process, allowing for quick, tool-free connections of both solid and fine-stranded conductors. It is ideal for use in industrial, building, and Ex e II applications, offering superior durability and safety. This rail-mount terminal block is designed to fit on DIN-35 rails and is compatible with a wide range of conductor sizes, from 0.5 mm² to 16 mm². Its high-quality polyamide housing ensures insulation and resistance to harsh conditions, making it an excellent choice for demanding environments. The gray terminal block features both center and side marking for easy identification, and it meets the latest environmental and safety standards.
Key Features
-
Push-in CAGE CLAMP® Technology: Allows tool-free connection for both solid and fine-stranded conductors, making wiring quicker and easier.
-
Wide Conductor Compatibility: Supports conductor cross-sections from 0.5 mm² to 16 mm², offering flexibility for various wiring applications.
-
Ex e II Applications: Certified for use in hazardous environments, providing secure connections for safety-critical installations.
-
DIN-35 Rail Mounting: Easy to install on standard DIN-35 rails for seamless integration into electrical systems.
-
Dual Marking: Includes both side and center marking for clear and easy identification during installation and maintenance.
-
Polyamide Housing: Ensures robust insulation and durability with a flammability rating of UL94 V0, ideal for harsh conditions.
-
Environmental Testing Compliance: Passes rigorous shock, vibration, and environmental stress tests, suitable for railway and industrial applications.
Specifications
| Category | Details |
|---|---|
| Product Type | 2-Conductor Through Terminal Block |
| Connection Technology | Push-in CAGE CLAMP® |
| Nominal Cross-Section | 10 mm² |
| Clamping Units | 2 |

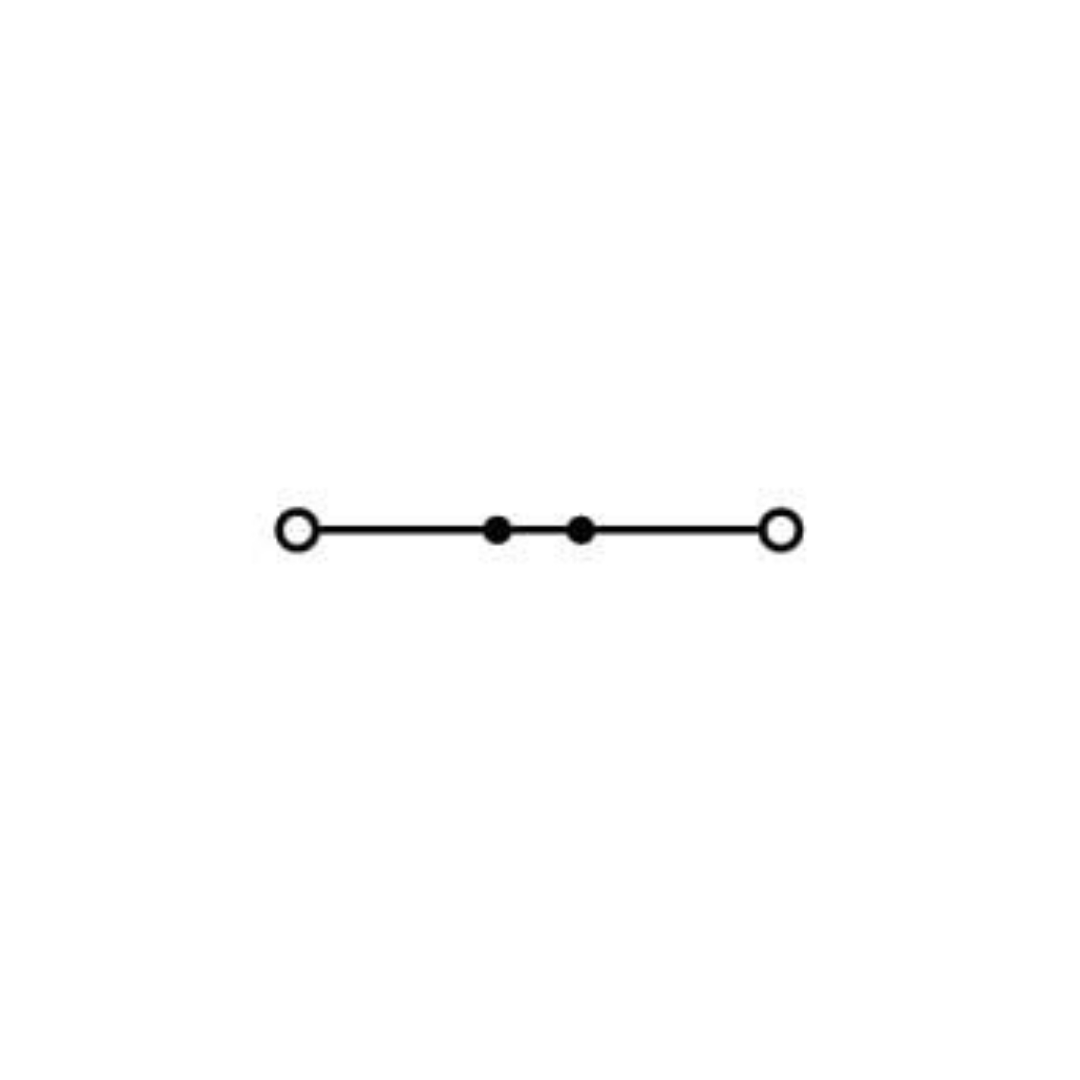

| Number of Potentials | 1 |
| Number of Levels | 1 |
| Jumper Slots | 2 |
| Conductor Size (Solid) | 0.5 … 16 mm² / 20 … 6 AWG |
| Conductor Size (Fine-Stranded) | 0.5 … 16 mm² / 20 … 6 AWG |
| Conductor Size (With Ferrules) | 4 … 10 mm² / 12 … 8 AWG |
| Strip Length | 17 … 19 mm / 0.67 … 0.75 inches |
| Wiring Direction | Front-entry wiring |
| Mounting Type | DIN-35 Rail |
| Color | Gray |
| Material | Polyamide (PA66) |
| Flammability Class (UL94) | V0 |
| Fire Load | 0.329 MJ |
| Weight | 17.1g |
| Environmental Compliance | RoHS Compliant |
| Operating Temperature | -35 … +85 °C |
| Continuous Temperature | -60 … +105 °C |

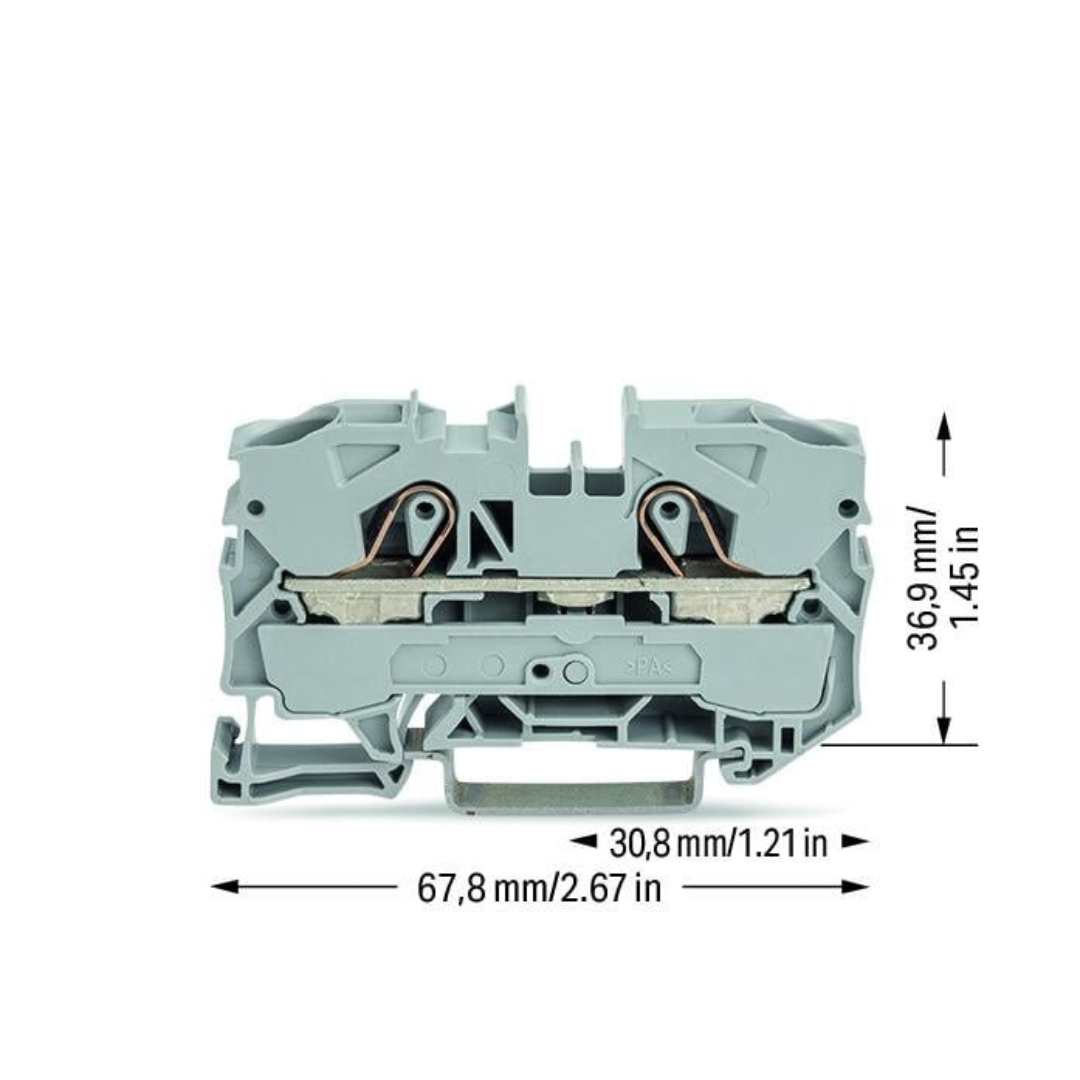

| Dimensions (WxHxD) | 10 mm x 67.8 mm x 43.5 mm |
| Environmental Testing | Complies with DIN EN 50155, DIN EN 61373 |
| Packaging | Box (25 pcs) |
| Country of Origin | Germany |
| GTIN | 4017332076005 |
| Product Group | 22 (TOPJOB S) |
