Product Description
The 2006-1631-WAGO 2-Conductor Fuse Terminal Block is a reliable and high-performance solution for fuse protection in electrical circuits. Designed for glass cartridge fuses (¼” x 1¼”), this terminal block features a pivoting fuse holder for secure and easy fuse placement. With a robust gray polyamide (PA66) housing, it offers excellent insulation and protection against environmental factors. The terminal block supports Push-in CAGE CLAMP® technology, enabling tool-free, fast, and secure connections for both solid and fine-stranded conductors. Ideal for applications that require high reliability, it is approved for use in industrial, commercial, and transportation sectors, including rolling stock. This fuse terminal block is perfect for efficient conductor connection and fuse integration in DIN-35 rail-mounted systems.
Key Features
-
Tool-Free Installation: Push-in CAGE CLAMP® connection technology enables quick, tool-free installation for both solid and fine-stranded conductors.
-
Pivoting Fuse Holder: Designed for cylindrical glass cartridge fuses (¼” x 1¼”) with a pivoting fuse holder for easy fuse replacement.
-
Wide Conductor Range: Compatible with conductor cross-sections ranging from 0.5 mm² to 10 mm² (solid and fine-stranded conductors with ferrules).
-
Durable Polyamide Housing: The gray polyamide (PA66) housing offers strong insulation and durability, ensuring long-lasting performance.
-
High Overvoltage and Surge Voltage Ratings: Rated for 800 V with an 8 kV surge voltage, meeting the requirements of IEC/EN 60947-7-3.
-
DIN Rail Mounting: Designed for easy mounting on DIN-35 rails, ensuring secure installation in industrial environments.
-

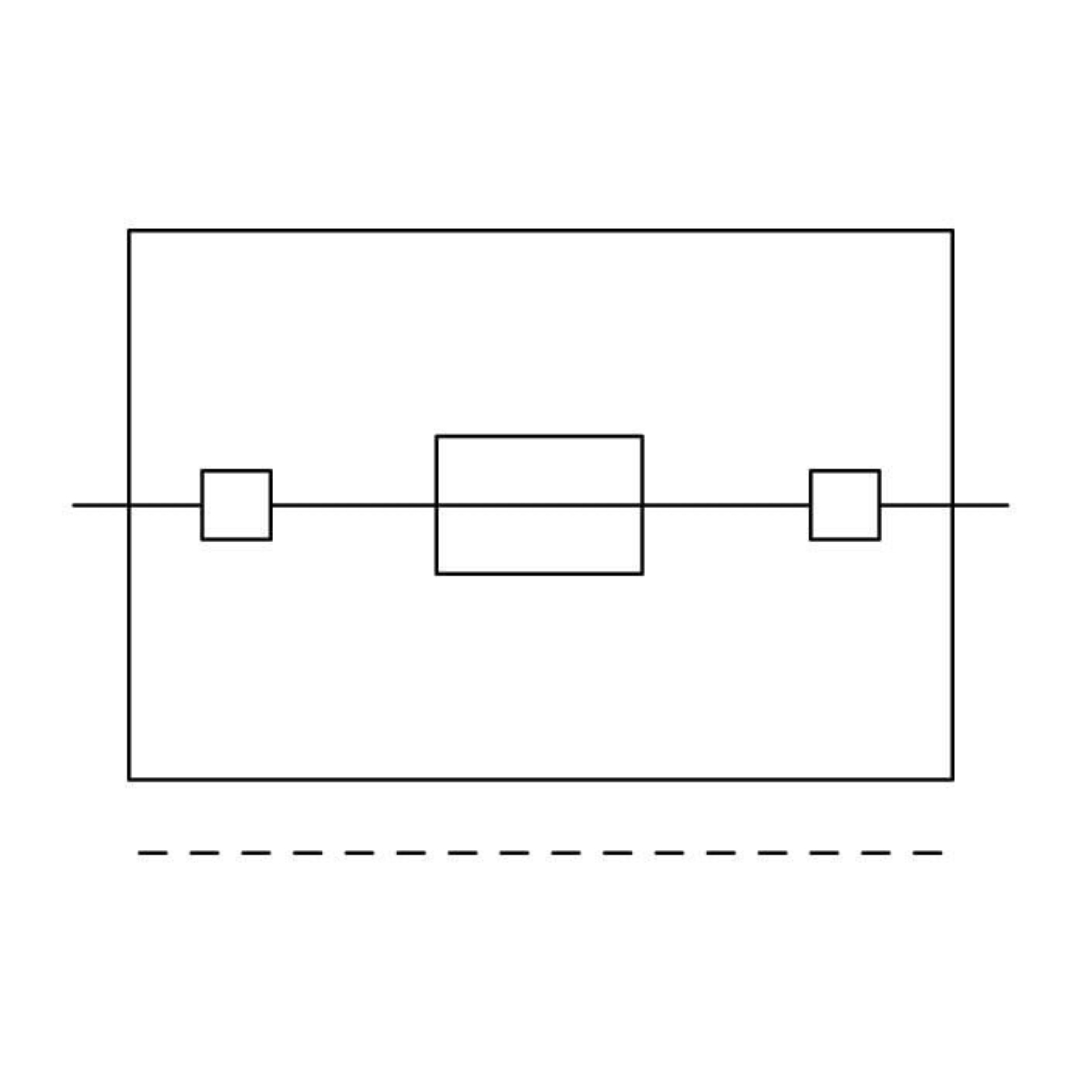

Compact and Efficient: Supports one level with two clamping points, allowing you to connect a single potential with ease.
Specifications
| Category | Details |
|---|---|
| Product Type | 2-Conductor Fuse Terminal Block |
| Fuse Type | Glass Cartridge Fuse ¼” x 1¼” |
| Connection Technology | Push-in CAGE CLAMP® |
| Nominal Voltage | 800 V |
| Rated Current | 10 A |
| Rated Surge Voltage | 8 kV |
| Conductor Range | 0.5 … 10 mm² / 20 … 8 AWG (Solid/Fine-Stranded) |
| Fuse Holder | Pivoting |
| Material | Polyamide (PA66) |
| Color | Gray |
| Mounting Type | DIN-35 Rail (35 x 15 and 35 x 7.5) |

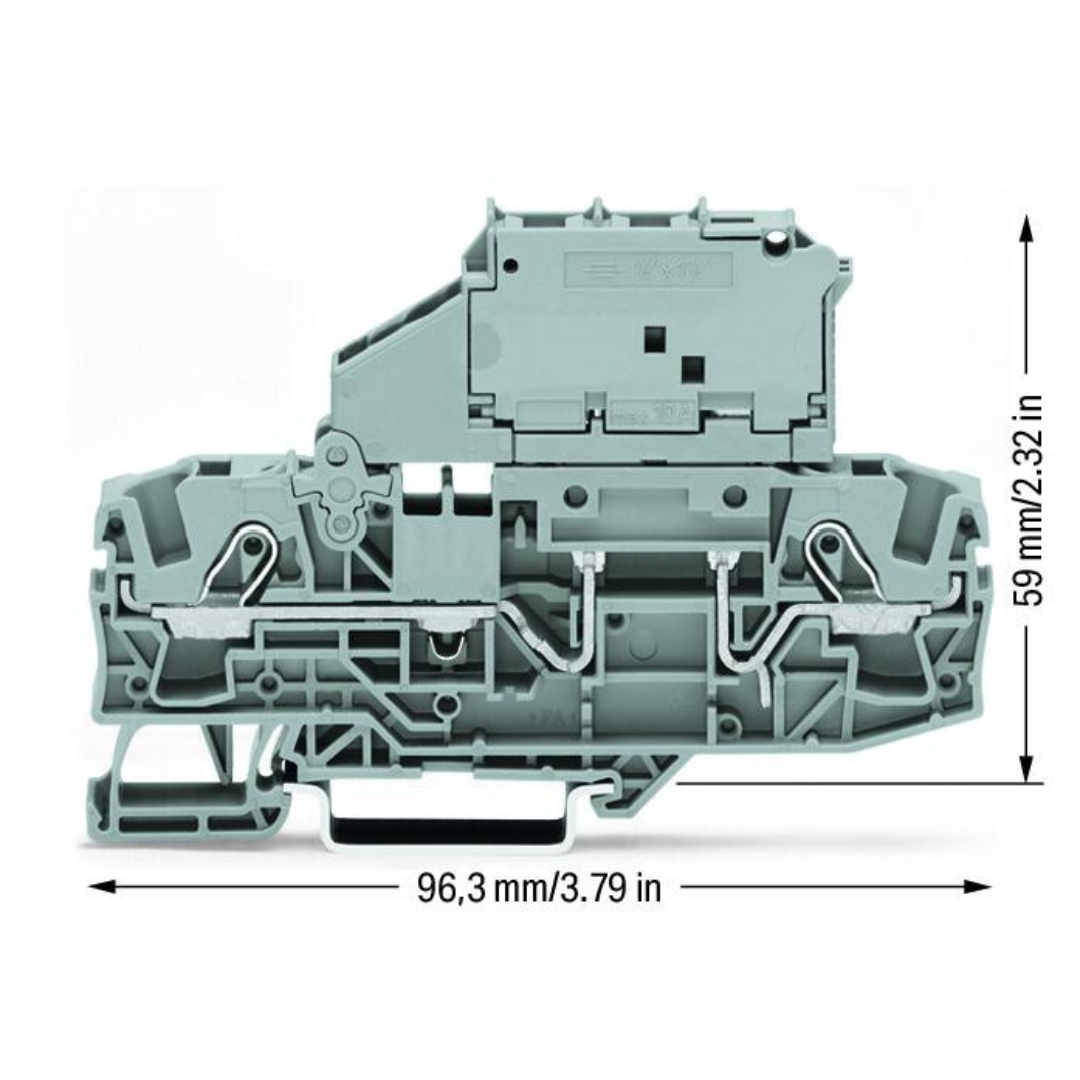

| Dimensions (W x H x D) | 7.5 mm x 96.3 mm x 59 mm |
| Strip Length | 13 … 15 mm / 0.51 … 0.59 inches |
| Flammability Class (UL94) | V0 |
| Power Loss (Max) | 1.6W (Overload and Short-circuit Protection) |
| Operating Temperature | -60 … +105 °C |
| Weight | 24.6g |
| Packaging | Box (25 pcs) |
| Country of Origin | China |
| GTIN | 4045454821180 |
| RoHS Compliance | Compliant, No Exemption |
