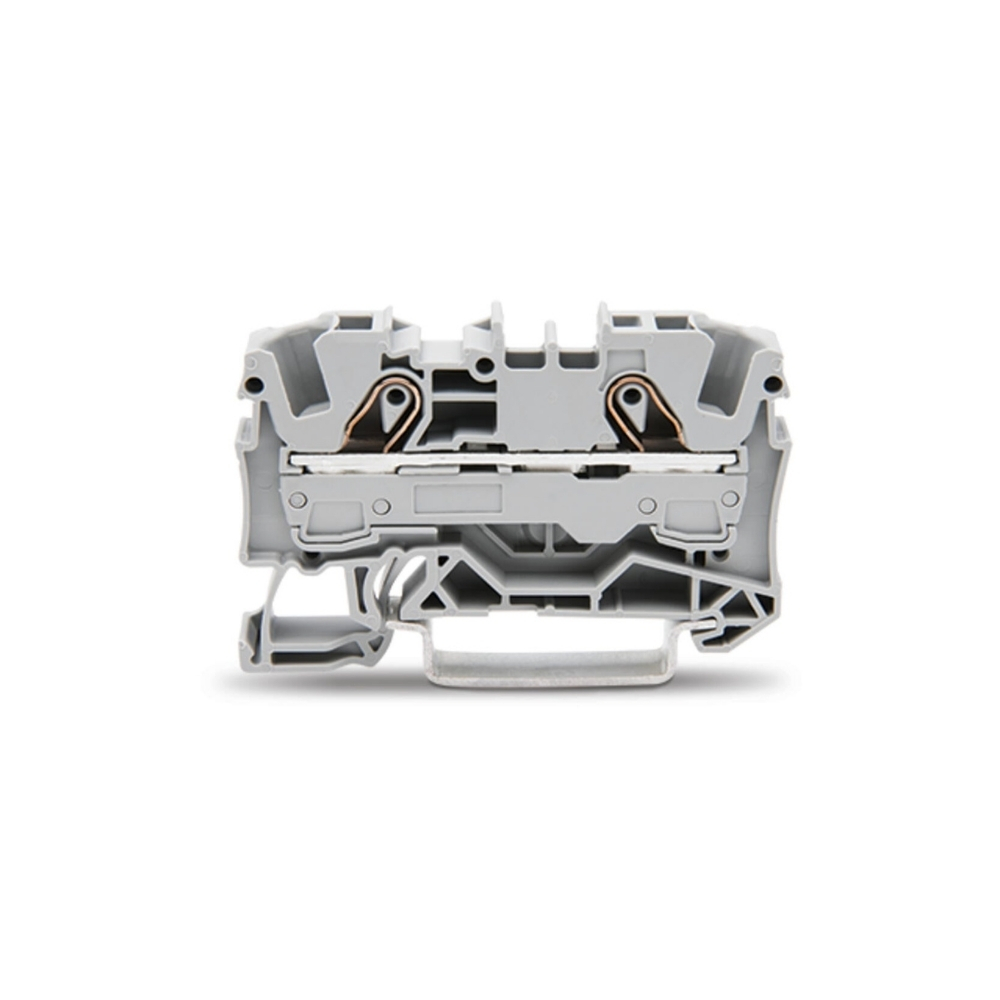

2006-1201-WAGO | 2-conductor through terminal block; 6 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; gray

Product Description

The 2006-1201-WAGO 2-Conductor Through Terminal Block is a high-quality, reliable solution for electrical installations that require secure and efficient conductor connections. Designed for Ex e II applications, this terminal block provides optimal performance with its Push-in CAGE CLAMP® connection technology, enabling fast and tool-free connections for both solid and fine-stranded conductors. The block is rated for a nominal current of 41A and a voltage of up to 800V, making it ideal for a variety of industrial and building applications. Its robust polyamide housing (PA66) ensures excellent insulation, while the side and center markings make for easy identification and installation. Perfect for applications that require both safety and versatility, this terminal block offers a reliable solution for projects that demand high performance and compliance with rigorous standards.

Key Features

• Push-In CAGE CLAMP® Technology: Provides tool-free, secure connections for both solid and fine-stranded conductors.

• Ex e II Applications: Suitable for hazardous area installations with compliance to ATEX and IECEx standards.

• High Rated Current: Rated for 41A, capable of handling demanding electrical applications.

• Wide Conductor Range: Compatible with solid conductors from 0.5 to 10 mm² and fine-stranded conductors with ferrules from 0.5 to 6 mm².

• Front-Entry Wiring: Ensures easy and efficient connection to copper conductors.

• Durable Construction: Made from polyamide (PA66) with a V0 flammability rating for high safety and longevity.

• Marking Levels: Features both side and center markings for easy identification during installation.

• Versatile Mounting: Designed for mounting on standard DIN-35 rails.

• Environmental Compliance: RoHS compliant, free of hazardous substances.

Specifications
