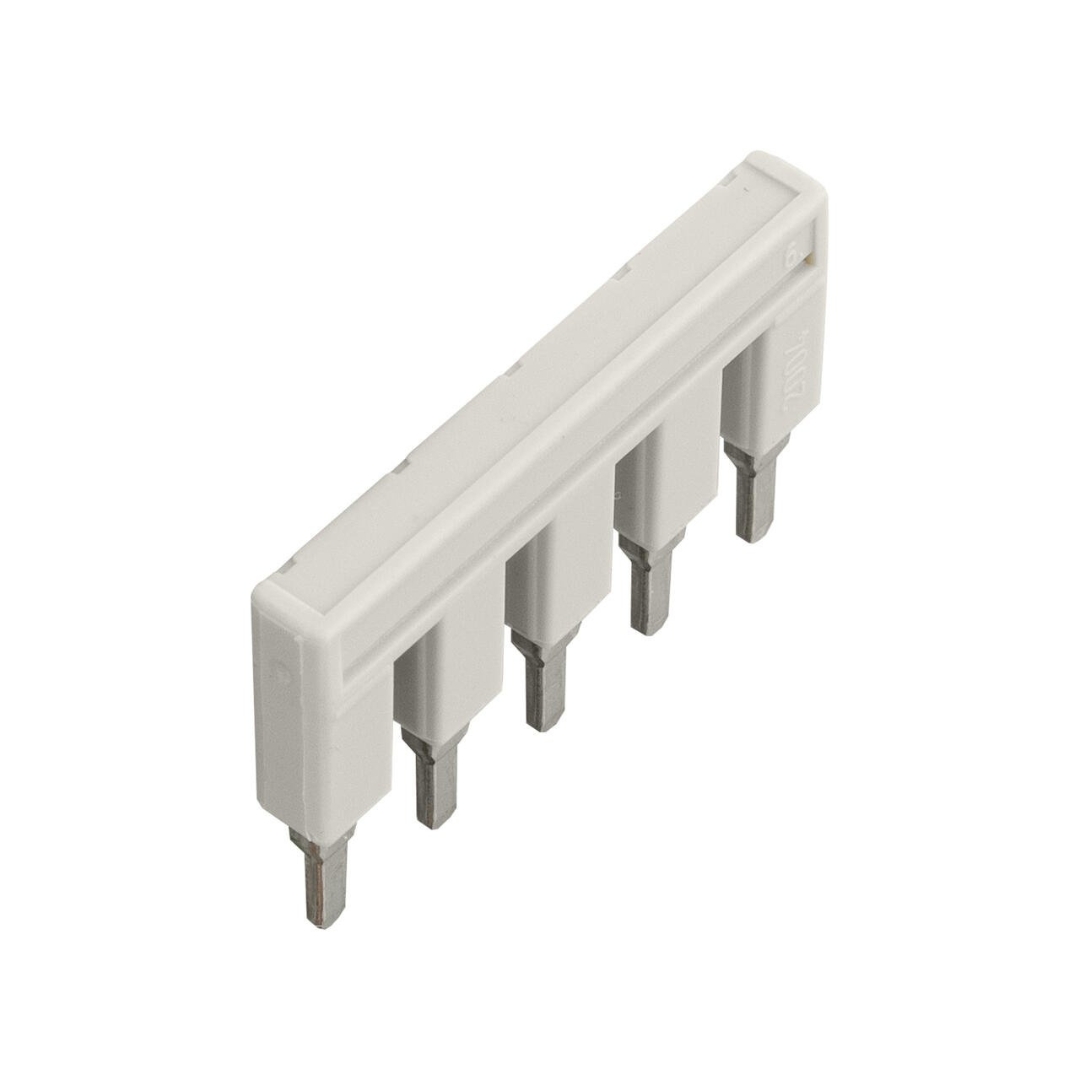

2004-405-WAGO | Push-in type jumper bar; insulated; 5-way; Nominal current 32 A; light gray

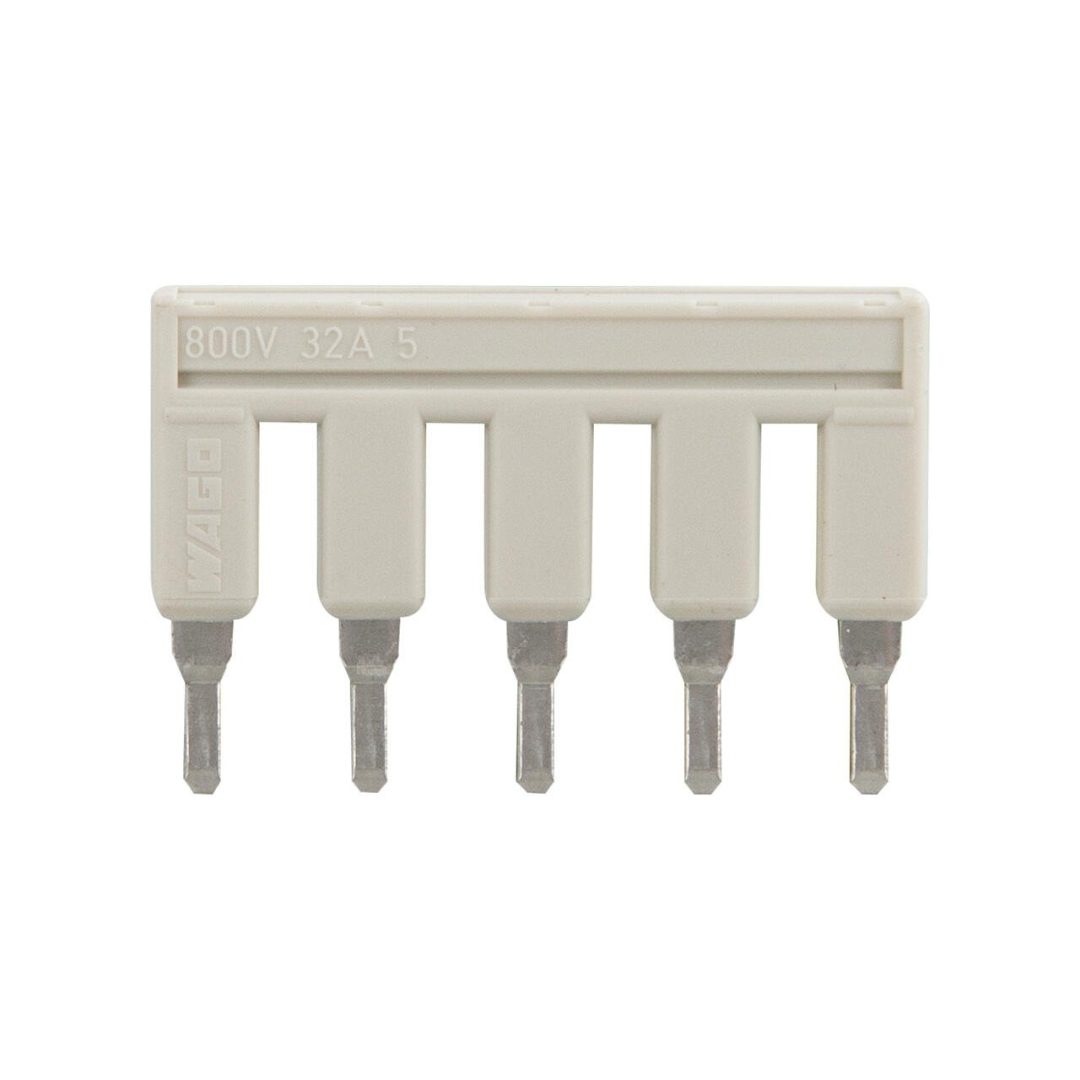

2004-405-WAGO | Push-in type jumper bar; insulated; 5-way; Nominal current 32 A; light gray - Image 2

2004-405-WAGO | Push-in type jumper bar; insulated; 5-way; Nominal current 32 A; light gray

$ 3.02

The 2004-405-WAGO Push-In Type Jumper Bar is a reliable and versatile component designed to facilitate quick and secure connections in various electrical applications. Featuring a 5-way configuration, this insulated jumper bar is rated for a nominal current of 32A and is suitable for use in environments with a maximum voltage of 800V. Its light gray color and durable polyamide (PA66) housing offer excellent electrical insulation, making it an ideal choice for industries that require high levels of safety and performance. This jumper bar is engineered to meet rigorous standards for shock and vibration resistance, ensuring long-lasting and stable performance in even the most challenging environments. It is an essential component for applications in electronic equipment, railway systems, and more.

35 in stock (can be backordered)

SKU: 2004-405 Categories: , ,

Product Description

The 2004-405-WAGO Push-In Type Jumper Bar is a reliable and versatile component designed to facilitate quick and secure connections in various electrical applications. Featuring a 5-way configuration, this insulated jumper bar is rated for a nominal current of 32A and is suitable for use in environments with a maximum voltage of 800V. Its light gray color and durable polyamide (PA66) housing offer excellent electrical insulation, making it an ideal choice for industries that require high levels of safety and performance. This jumper bar is engineered to meet rigorous standards for shock and vibration resistance, ensuring long-lasting and stable performance in even the most challenging environments. It is an essential component for applications in electronic equipment, railway systems, and more.

Key Features

  • Push-In Type: Simple and efficient push-in mechanism for quick, secure connections.

  • Nominal Current: Rated for 32A, suitable for high-power applications.

  • Voltage Rating: Can handle voltages up to 800V (III / 3).

  • 5-Way Jumper: Ideal for more complex configurations with five connection points.

  • Insulated Housing: Made from polyamide (PA66) for excellent electrical insulation.

  • Flammability Class V0: High level of fire safety with a V0 flammability rating.

  • Temperature Range: Designed to operate in temperatures between -60°C and +105°C.

  • Vibration & Shock Resistant: Passes stringent vibration and shock tests, ideal for harsh environments.

  • RoHS Compliant: Free from hazardous substances, ensuring environmental safety.

Specifications

Category Details
Jumper Type Push-In Type
Jumper Assignment 1-2-3-4-5
Rated Voltage 800V (III / 3)
Rated Current 32A
Rated Current (Ex e II) 30A
Color Light Gray
Flammability Class UL94 V0
Fire Load 0.019MJ
Weight 3.7g
Width 29 mm / 1.142 inches
Height 4.1 mm / 0.161 inches
Depth 19 mm / 0.748 inches
Processing Temperature -35°C to +85°C
Continuous Operating Temperature -60°C to +105°C
Vibration & Shock Compliance DIN EN 61373, DIN EN 50155, VDE 0115
Product Group 22 (TOPJOB S)
Packaging Type Bag
Country of Origin DE (Germany)
GTIN 4017332069335
RoHS Compliance Compliant, No Exemption
Weight 0.008157 lbs
Dimensions 0.748 × 1.142 × 0.161 in
