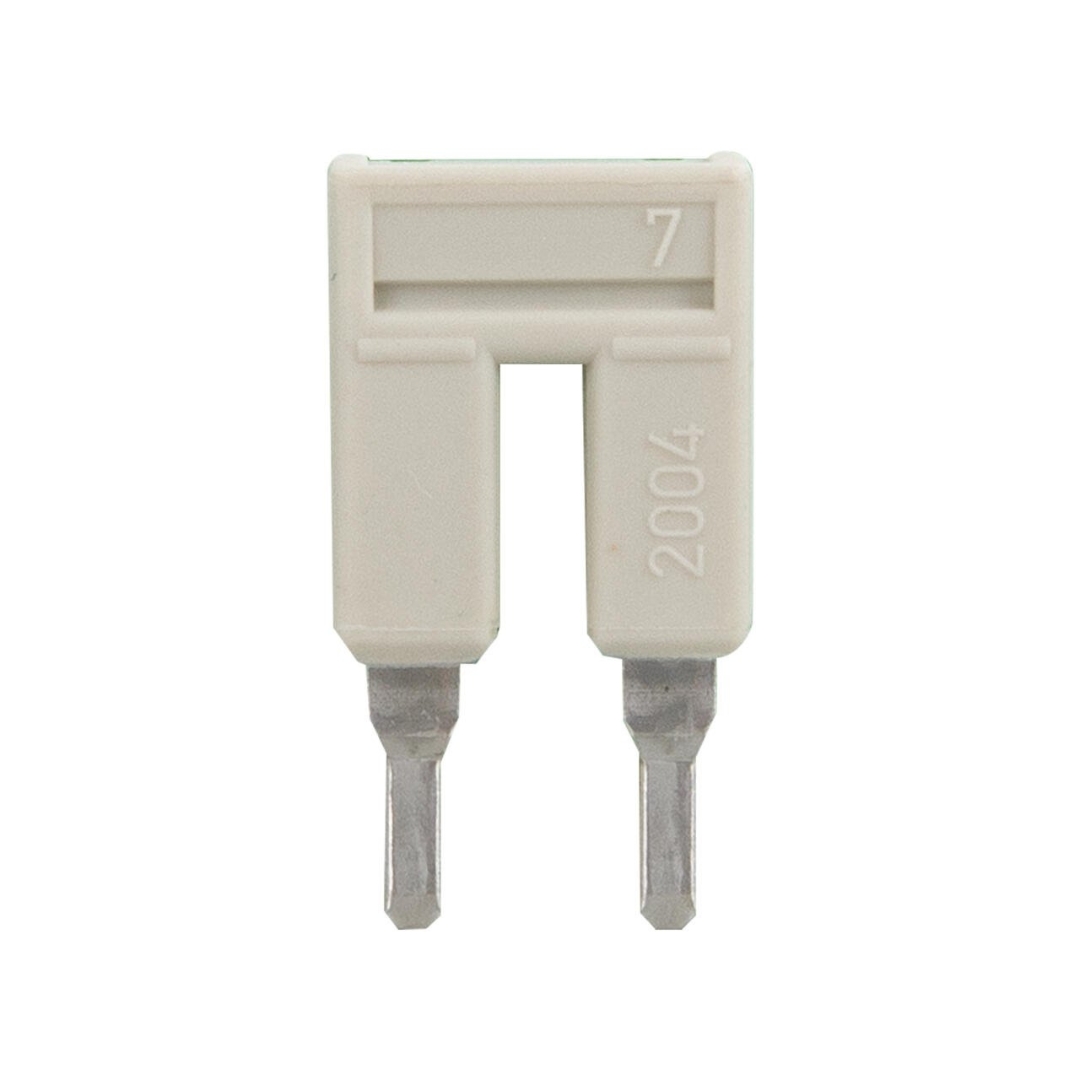

2004-402-WAGO | Push-in type jumper bar; insulated; 2-way; Nominal current 32 A; light gray

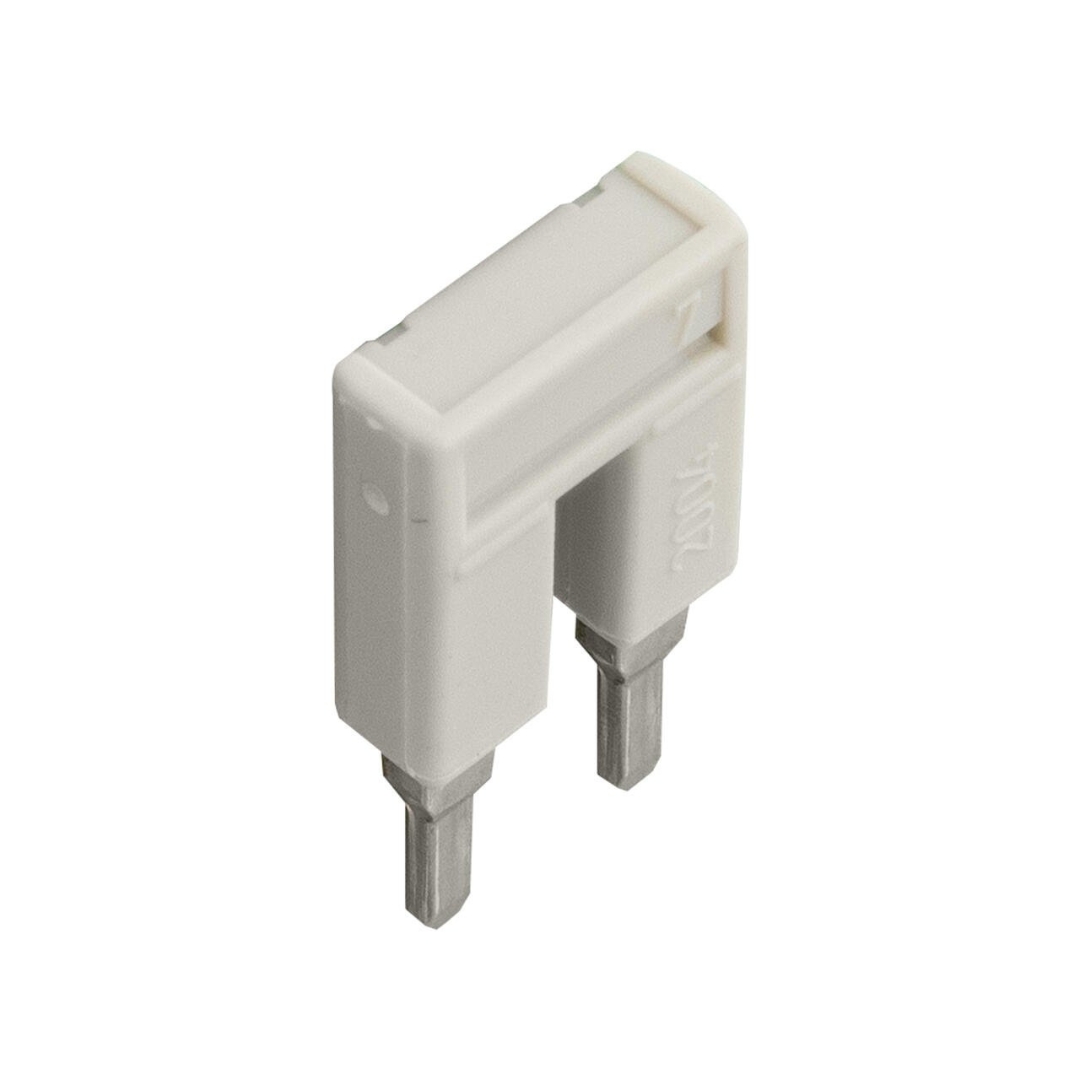

2004-402-WAGO | Push-in type jumper bar; insulated; 2-way; Nominal current 32 A; light gray - Image 2

2004-402-WAGO | Push-in type jumper bar; insulated; 2-way; Nominal current 32 A; light gray

$ 0.75

The 2004-402-WAGO Push-In Type Jumper Bar is a high-performance electrical component designed to provide seamless connectivity and ensure reliable connections between terminal blocks. Offering a 2-way configuration, this insulated jumper bar is rated for a nominal current of 32A and is suitable for use in environments with a maximum voltage of 800V. Its light gray color and polyamide (PA66) housing contribute to its robust durability, making it an ideal solution for applications requiring high levels of safety and efficiency. The jumper bar is engineered to withstand harsh environmental conditions, with a wide operating temperature range of -60°C to +105°C, and meets industry standards for vibration and shock resistance. Whether you’re working in industrial, railway, or electronic sectors, the 2004-402-WAGO jumper bar ensures consistent and secure performance.

39 in stock (can be backordered)

SKU: 2004-402 Categories: , ,

Product Description

The 2004-402-WAGO Push-In Type Jumper Bar is a high-performance electrical component designed to provide seamless connectivity and ensure reliable connections between terminal blocks. Offering a 2-way configuration, this insulated jumper bar is rated for a nominal current of 32A and is suitable for use in environments with a maximum voltage of 800V. Its light gray color and polyamide (PA66) housing contribute to its robust durability, making it an ideal solution for applications requiring high levels of safety and efficiency. The jumper bar is engineered to withstand harsh environmental conditions, with a wide operating temperature range of -60°C to +105°C, and meets industry standards for vibration and shock resistance. Whether you’re working in industrial, railway, or electronic sectors, the 2004-402-WAGO jumper bar ensures consistent and secure performance.

Key Features

  • Push-In Type: Easy installation with a reliable push-in mechanism.

  • Nominal Current: Rated for 32A, ensuring reliable power distribution.

  • Voltage Rating: Suitable for voltages up to 800V (III / 3).

  • Insulated Housing: Made from high-quality polyamide (PA66), offering excellent electrical insulation.

  • Vibration & Shock Resistant: Passed extensive vibration and shock testing according to DIN EN 61373, ensuring durability in demanding environments.

  • Temperature Resilience: Operating temperature range from -60°C to +105°C, making it suitable for various industrial applications.

  • Flammability Class V0: Ensures a high level of fire safety in critical applications.

  • Compact Design: With a width of just 10.3 mm, it’s ideal for space-constrained installations.

  • RoHS Compliant: Free from hazardous substances, ensuring environmental safety.

Specifications

Category Details
Jumper Type Push-In Type
Jumper Assignment 1-2
Rated Voltage 800V (III / 3)
Rated Current 32A
Rated Current (Ex e II) 30A
Color Light Gray
Material Polyamide (PA66)
Flammability Class UL94 V0
Fire Load 0.007MJ
Weight 1.4g
Width 10.3 mm / 0.406 inches
Height 4.1 mm / 0.161 inches
Depth 19 mm / 0.748 inches
Processing Temperature -35°C to +85°C
Continuous Operating Temperature -60°C to +105°C
Vibration & Shock Compliance DIN EN 61373, DIN EN 50155, VDE 0115
Product Group 22 (TOPJOB S)
Packaging Type Bag
Country of Origin DE (Germany)
GTIN 4055143700153
RoHS Compliance Compliant, No Exemption
Weight 0.003086 lbs
Dimensions 0.748 × 0.406 × 0.161 in
Part Number
