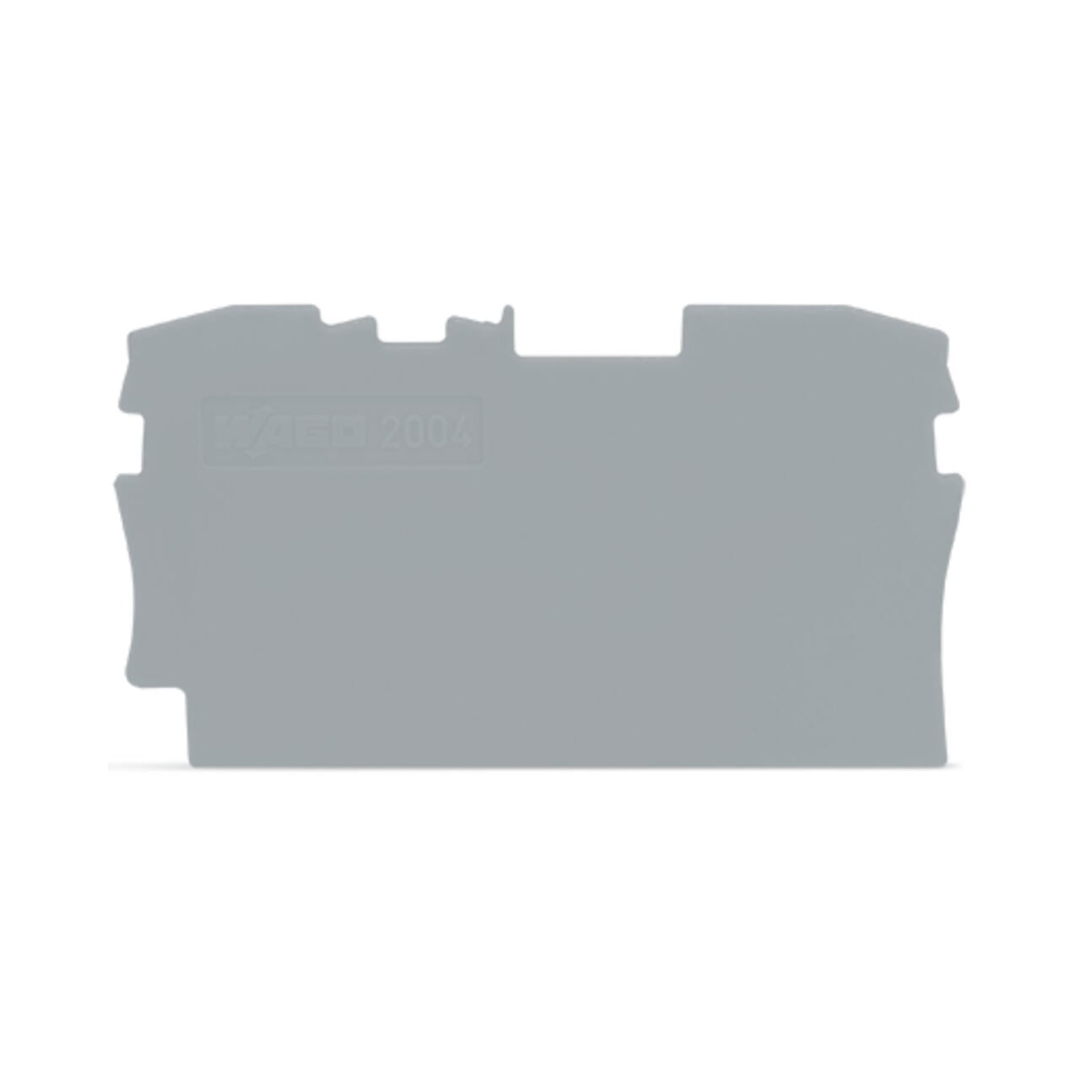

2004-1291-WAGO | End and intermediate plate; 1 mm thick; gray

2004-1291-WAGO | End and intermediate plate; 1 mm thick; gray

$ 1.09

The 2004-1376 Snap-On Terminal Block is designed to simplify electrical installations while ensuring top-tier performance. Made of high-quality polyamide (PA66), this gray terminal block is ideal for a wide range of industrial applications. Its compact design with a width of just 1 mm and height of 51.8 mm allows it to fit seamlessly into tight spaces. The snap-on mounting type enables quick and secure installation, making it a convenient choice for various electrical projects. The terminal block is suitable for environments with a wide temperature range, from -60°C to +105°C, and has passed rigorous shock and vibration testing, making it perfect for demanding conditions, such as rolling stock or railway applications. With RoHS compliance and a lightweight design of just 1.6g, this terminal block is a reliable and eco-friendly solution for all your electrical connection needs.

98 in stock (can be backordered)

SKU: 2004-1291 Categories: , ,

Product Description

The 2004-1376 Snap-On Terminal Block is designed to simplify electrical installations while ensuring top-tier performance. Made of high-quality polyamide (PA66), this gray terminal block is ideal for a wide range of industrial applications. Its compact design with a width of just 1 mm and height of 51.8 mm allows it to fit seamlessly into tight spaces. The snap-on mounting type enables quick and secure installation, making it a convenient choice for various electrical projects. The terminal block is suitable for environments with a wide temperature range, from -60°C to +105°C, and has passed rigorous shock and vibration testing, making it perfect for demanding conditions, such as rolling stock or railway applications. With RoHS compliance and a lightweight design of just 1.6g, this terminal block is a reliable and eco-friendly solution for all your electrical connection needs.

Key Features

  • Compact design for use in tight spaces (1 mm width, 51.8 mm height)

  • Snap-on mounting for easy and secure installation

  • High-quality polyamide (PA66) housing for durability and insulation

  • RoHS compliant and eco-friendly construction

  • UL94 V0 flammability rating for added safety

  • Suitable for environments with temperatures ranging from -60°C to +105°C

  • Shock and vibration tested according to DIN EN 61373 standards

  • Passed extended testing for contact faults, interruptions, and voltage drop measurements

  • Ideal for use in rolling stock and electronic equipment

Specifications

Category Details
Mounting Type Snap-on
Width 1 mm / 0.039 inches
Height 51.8 mm / 2.039 inches
Depth 29.7 mm / 1.169 inches
Color Gray
Material Polyamide (PA66)
Flammability Class UL94 V0
Fire Load 0.048 MJ
Weight 1.6 g
Processing Temperature -35°C to +85°C
Continuous Operating Temperature -60°C to +105°C
Shock and Vibration Compliance DIN EN 61373, DIN EN 50155, VDE 0115
Environmental Test Passed Function test, Shock test, Vibration test
Packaging Unit 100 pcs (box), 25 pcs per SPU
Country of Origin China (CN)
GTIN 4017332071376
RoHS Compliance Compliant, No Exemption
Weight 0.003527 lbs
Dimensions 1.169 × 0.039 × 2.039 in
