Product Description

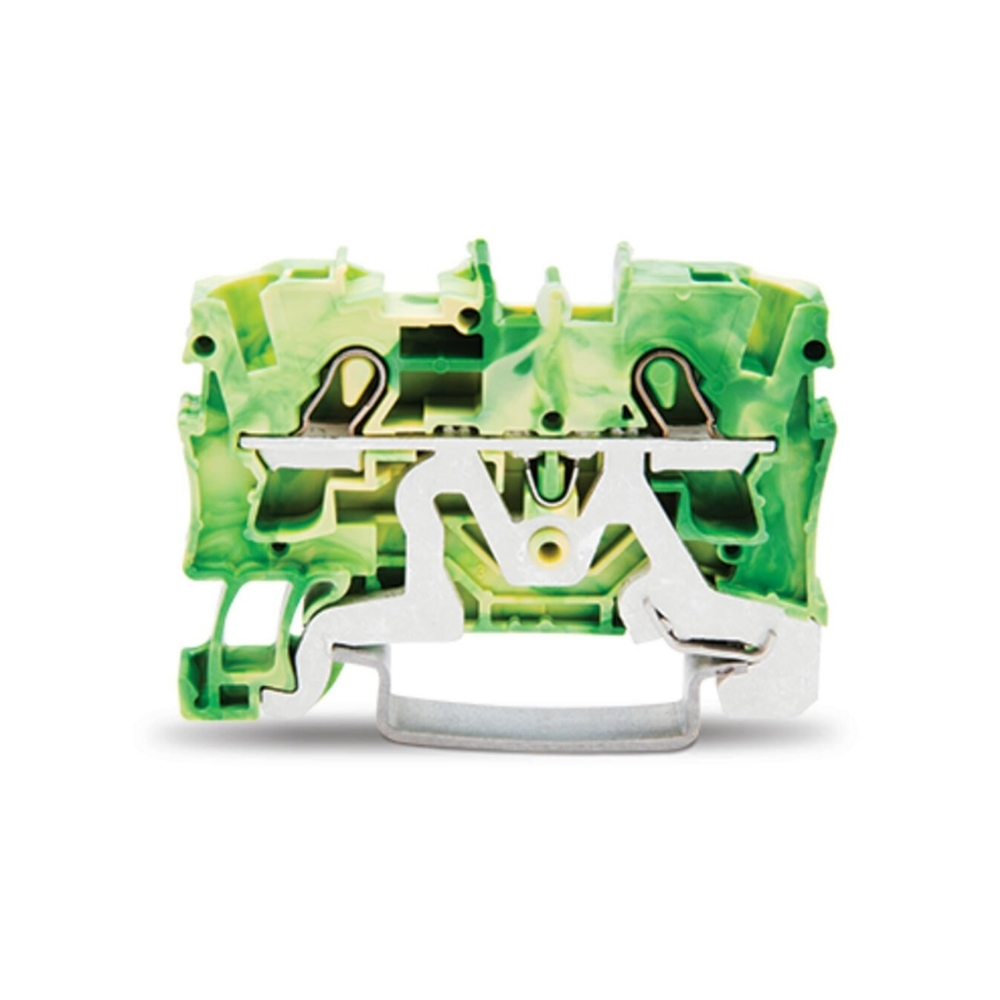

Ensure a safe and efficient ground connection with the 2004-1207 Ground Terminal Block. Engineered for reliability and ease of use, this terminal block connects directly to a DIN-35 mounting rail via its integrated contact foot—creating a stable electrical and mechanical connection. Built with the robust Push-in CAGE CLAMP® technology, it allows tool-free insertion of solid and fine-stranded copper conductors, including those with ferrules. Its green-yellow polyamide (PA66) housing offers exceptional durability and insulation. Ideal for industrial control panels, automation systems, and building installations, this ground terminal block supports conductor sizes from 0.5 mm² to 6 mm² and is tested to meet rigorous shock, vibration, and environmental standards. With front-entry wiring, dual jumper slots, and a single-level design, this block delivers versatility and performance for modern electrical installations worldwide.
Key Features
-
Tool-free Push-in CAGE CLAMP® connection for all conductor types
-
Integrated contact foot for automatic ground connection to DIN-35 rail
-
Supports solid and fine-stranded copper conductors up to 6 mm²
-
Green-yellow PA66 housing with UL94 V0 flammability rating
-
Tested to withstand vibration, shock, and environmental stress
-
2 jumper slots for easy potential distribution
-
One-level, single-potential ground terminal design
-
Compliant with RoHS and designed for Ex-rated environments
Specifications
| Category | Details |
|---|---|
| Connection Technology | Push-in CAGE CLAMP® |
| Clamping Units | 2 |

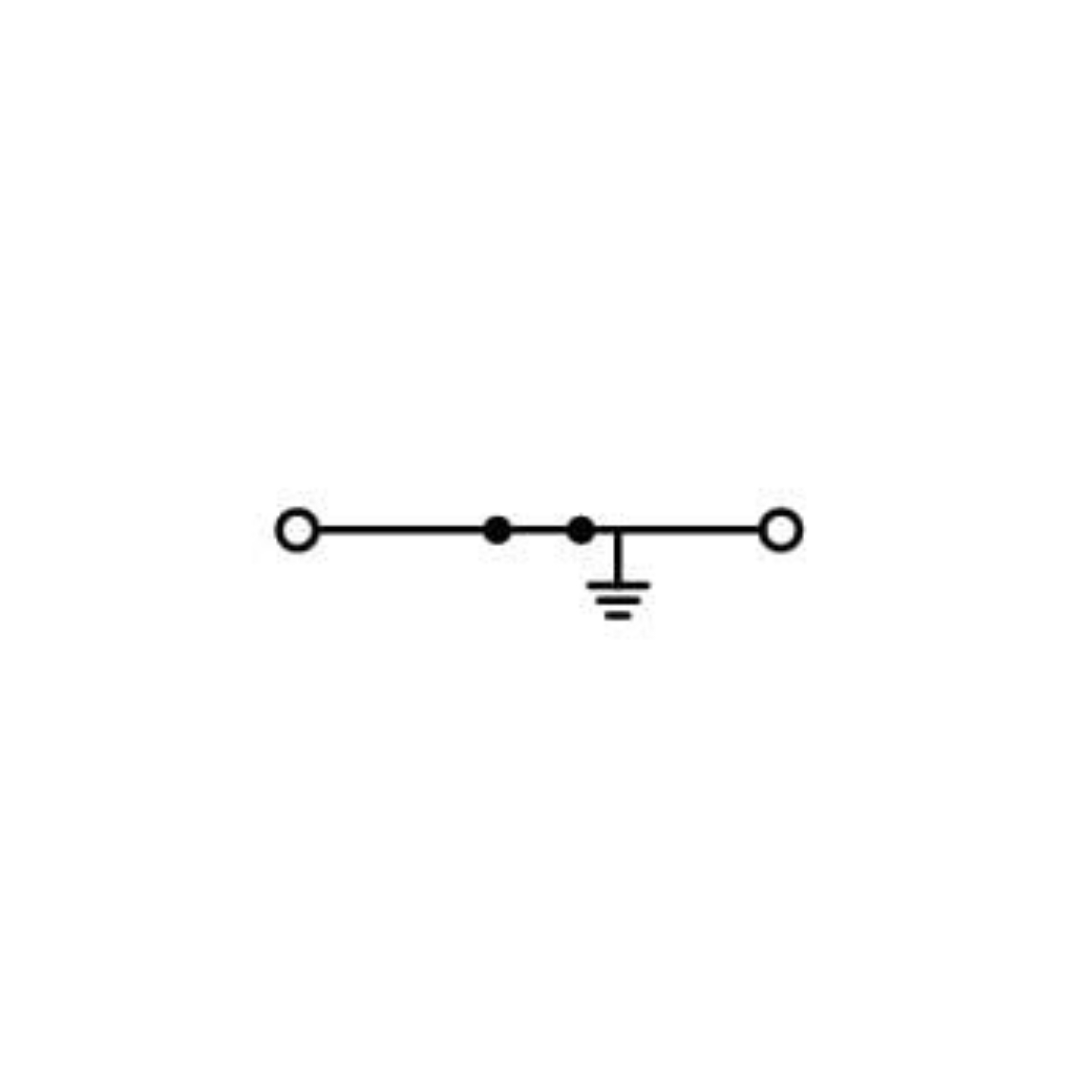

| Number of Potentials | 1 |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Conductor Material | Copper |
| Nominal Cross-section | 4 mm² |
| Solid Conductor Range | 0.5–6 mm² (20–10 AWG) |
| Solid Conductor (Push-in) | 1.5–6 mm² (14–10 AWG) |
| Fine-stranded Conductor | 0.5–6 mm² (20–10 AWG) |
| Fine-stranded w/ Ferrule | 0.5–4 mm² (20–12 AWG) |
| Ferrule (Push-in) | 1.5–4 mm² (18–12 AWG) |
| Strip Length | 11–13 mm (0.43–0.51 in) |
| Wiring Direction | Front-entry |
| Mounting Type | DIN-35 rail |
| Material | Polyamide (PA66) |
| Color | Green-yellow |
| Flammability Class | UL94 V0 |
| Fire Load | 0.126 MJ |
| Weight | 12.4 g |

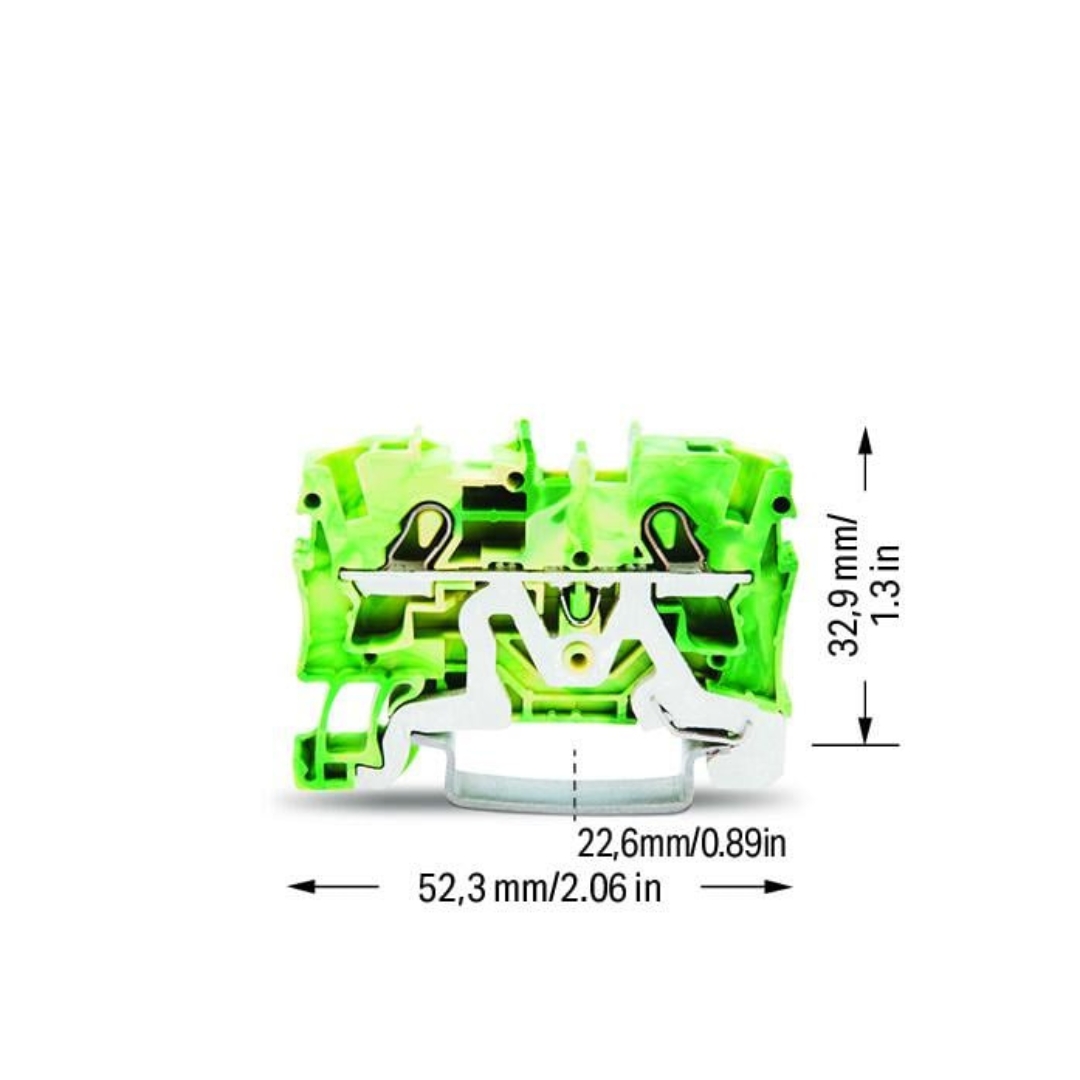

| Dimensions (W x H x D) | 6.2 x 52.3 x 39.5 mm |
| Operating Temperature | -60 to +105 °C (continuous) |
| Processing Temperature | -35 to +85 °C |
| Railway Vibration Compliance | DIN EN 61373 / DIN EN 50155 |
| Ex Information | See technical section for ATEX/IECEx details |
| Packaging Unit | 50 pcs (box) |
| Country of Origin | Germany (DE) |
| GTIN | 4017332071345 |
| RoHS Compliance | Compliant, No Exemption |
