Product Description

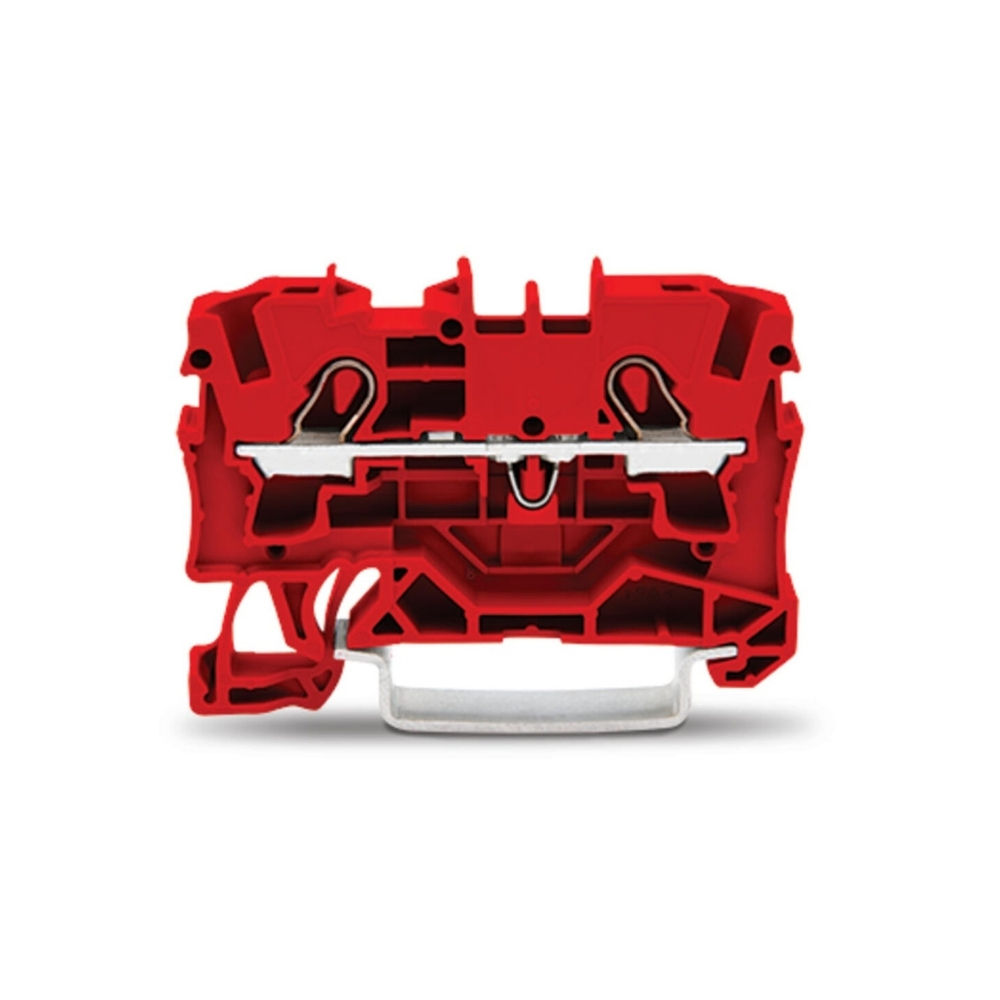

The TOPJOB® S Through Terminal Block (Item 2004-1203) is engineered for fast, tool-free conductor connections in industrial control panels and building installations. Designed with WAGO’s Push-in CAGE CLAMP® technology, this DIN-rail mounted terminal block ensures secure and maintenance-free connectivity for a wide range of solid and stranded conductors. Its red polyamide housing allows for easy circuit identification, while its compact 6.2 mm width supports high-density panel layouts. With international certifications including IEC, UL, CSA, and ATEX/IECEx for Ex applications, it provides outstanding safety and versatility even in demanding environments like railway and hazardous areas.
Key Features
-
Tool-Free Wiring: Push-in CAGE CLAMP® enables fast, secure connections without tools
-
Universal Conductor Support: Connects solid, fine-stranded, and ferrule-fitted wires with ease
-
Compact and Durable Design: Just 6.2 mm wide; made with flame-retardant PA66 housing
-
International Approvals: Certified to IEC, UL, CSA, ATEX, and IECEx standards
-
Shock & Vibration Tested: Passes EN 61373 railway specs for long-term reliability
-
DIN-Rail Compatible: Easy installation on DIN-35 rails with center/side marking support
-
Clear Circuit Visibility: Red color improves visual differentiation and safety during wiring
Specifications
| Category | Specification |
|---|---|
| Item Number | 2004-1203 |
| Nominal Voltage (IEC) | 800 V |
| Rated Current (IEC) | 32 A |
| Rated Surge Voltage | 8 kV |
| Max Conductor Current | 41 A |
| UL/CSA Voltage / Current | 600 V / 30 A (Use Groups B, C, D) |
| ATEX/IECEx Rating | Ex eb IIC Gb – 550 V / 30 A |
| Power Loss (Per Pole) | 1.024 W |
| Resistance Value | 0.001 Ω |
| Conductor Size Range | 0.5 mm² to 6 mm² |
| Conductor Strip Length | 11 mm – 13 mm |
| Connection Type | Push-in CAGE CLAMP® |
| Mounting Type | DIN-35 rail |
| Jumper Slots | 2 |
| Number of Levels | 1 (single potential) |

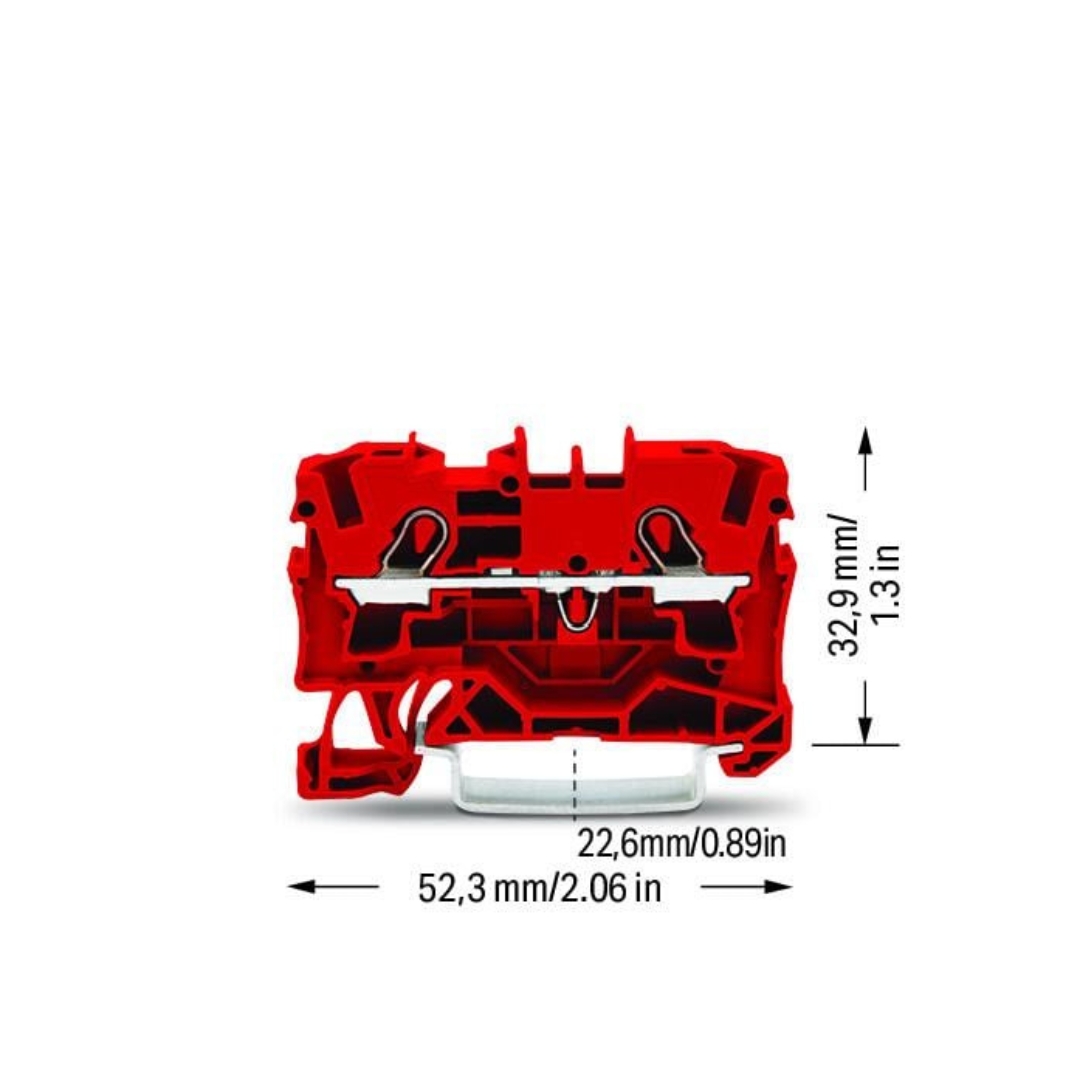

| Dimensions (W x H x D) | 6.2 x 52.3 x 39.5 mm |
| Depth from DIN Rail | 32.9 mm |
| Color | Red |
| Insulation Material | Polyamide (PA66), UL94 V0 flame rating |
| Operating Temperature | -60°C to +105°C |
| Processing Temperature | -35°C to +85°C |
| Railway Certifications | DIN EN 50155 / EN 61373 (shock & vibration passed) |
| Weight | 6.9 g |
| Packaging Unit (PU) | 50 pcs |
| Country of Origin | Germany |
| GTIN / Customs Tariff Number | 4045454290641 / 8536904000 |
| UNSPSC / eCl@ss / ETIM Codes | 39121402 / 27-14-11-20 / EC000897 |
| RoHS Compliance | Compliant, No Exemption |
| ECCN | No US Classification |
