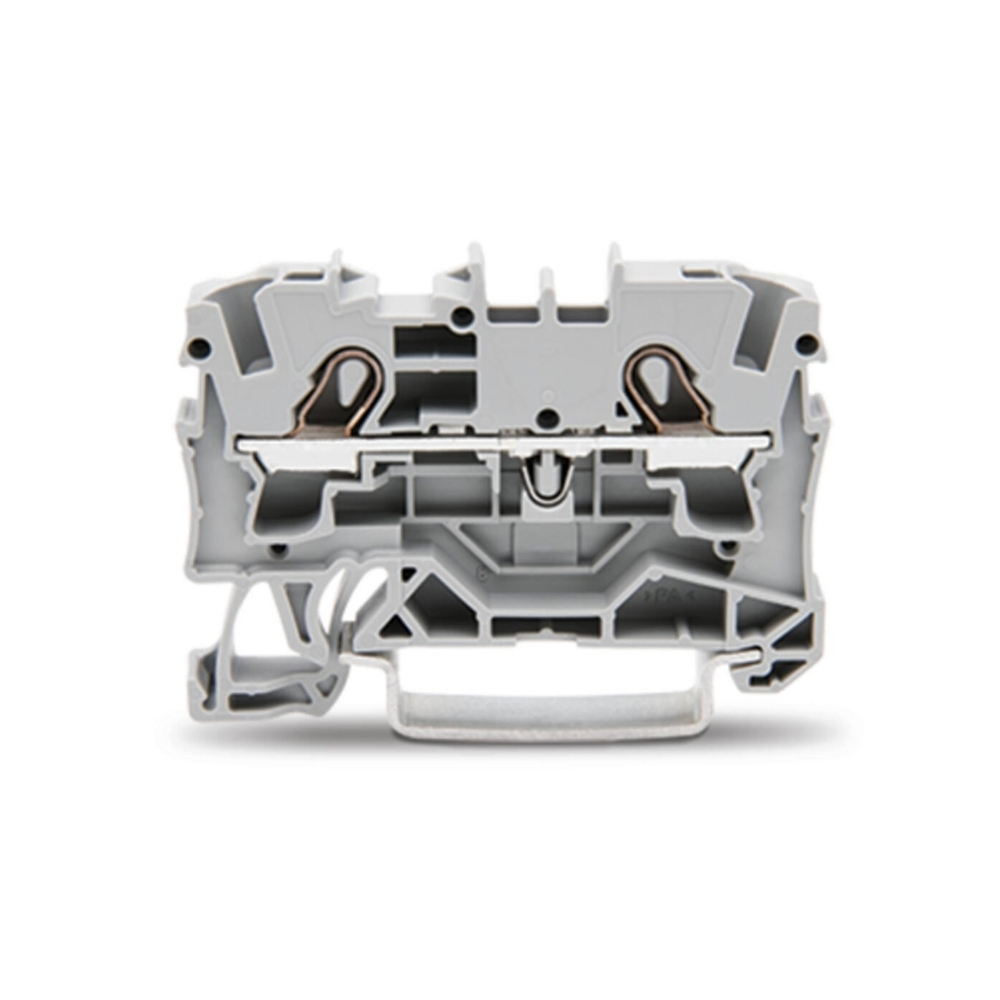

2004-1201-WAGO | 2-conductor through terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; gray
2004-1201-WAGO | 2-conductor through terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; gray - Image 2

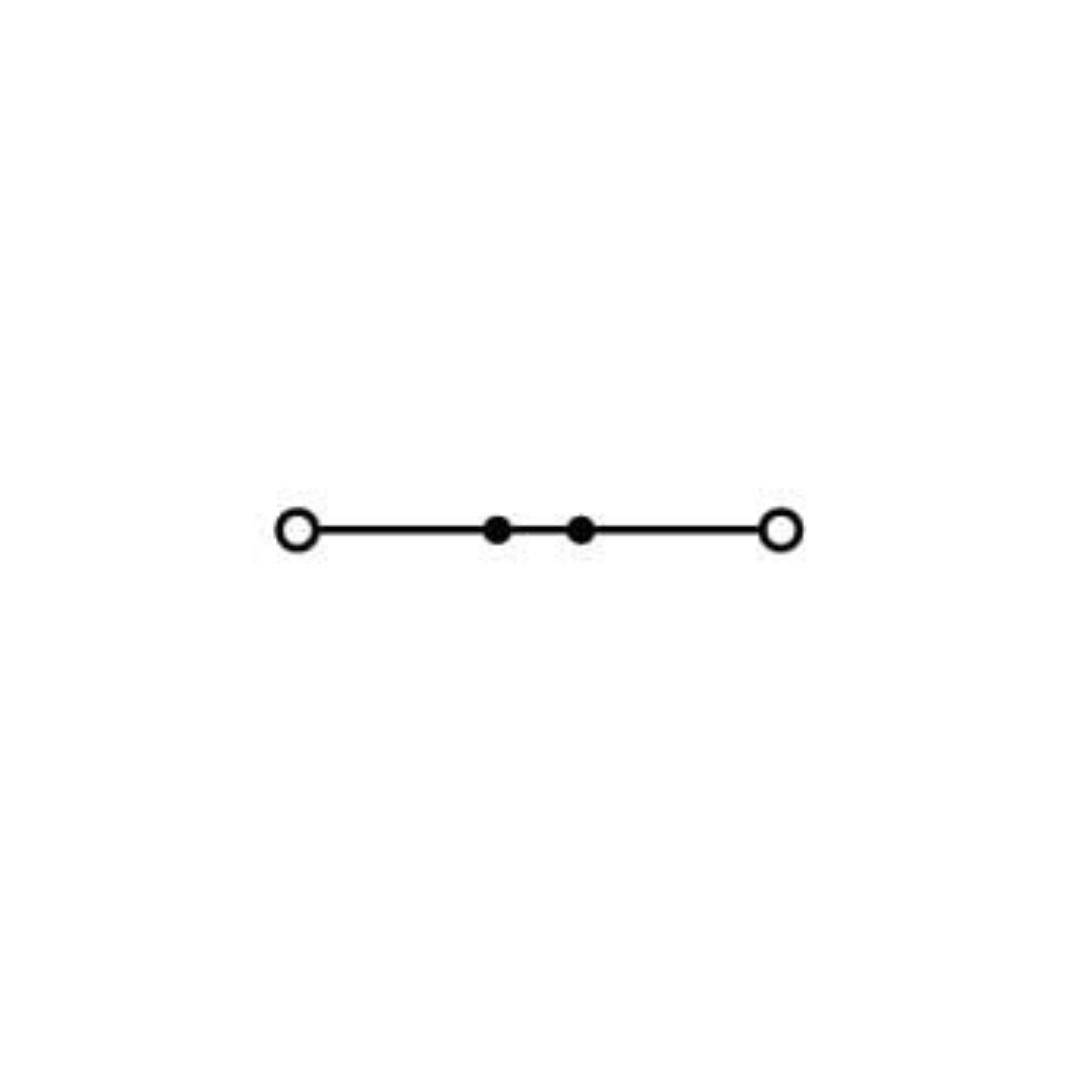

2004-1201-WAGO | 2-conductor through terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; gray - Image 3

2004-1201-WAGO | 2-conductor through terminal block; 4 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; gray

$ 2.34

The TOPJOB® S Terminal Block delivers exceptional electrical performance in a compact 6.2 mm footprint. Designed for reliable DIN-rail mounting, this terminal block is engineered for high current ratings, vibration resistance, and extreme environmental durability. With multiple international certifications including IEC, UL, CSA, and Ex approvals, it’s ideal for use in industrial automation, power distribution, and railway applications. The UL94 V0-rated polyamide housing offers superior flame resistance, while optimized connection technology ensures minimal power loss and maximum reliability.

109 in stock (can be backordered)

SKU: 2004-1201 Categories: ,

Product Description

The TOPJOB® S Terminal Block delivers exceptional electrical performance in a compact 6.2 mm footprint. Designed for reliable DIN-rail mounting, this terminal block is engineered for high current ratings, vibration resistance, and extreme environmental durability. With multiple international certifications including IEC, UL, CSA, and Ex approvals, it’s ideal for use in industrial automation, power distribution, and railway applications. The UL94 V0-rated polyamide housing offers superior flame resistance, while optimized connection technology ensures minimal power loss and maximum reliability.

Key Features

  • High Electrical Ratings: Rated up to 32 A and 800 V (IEC) and 30 A/600 V (UL & CSA)

  • Compact Footprint: Only 6.2 mm wide for efficient panel space utilization

  • DIN-Rail Mounted: Secure and tool-free installation on standard DIN-35 rail

  • Vibration & Shock Resistant: Fully tested for harsh environments per EN 61373

  • Certified for Hazardous Locations: ATEX and IECEx approvals for Ex e II applications

  • Heat & Flame Resistant: Made with UL94 V0-rated PA66 insulation material

  • Wide Temperature Range: Operating from -60°C to +105°C

Specifications

Attribute Value
Nominal Voltage (IEC) 800 V
Rated Current (IEC) 32 A
Surge Voltage Rating 8 kV
Rated Current at Max Conductor Cross-Section 41 A
UL Rated Voltage / Current 600 V / 30 A (Groups B, C)
CSA Rated Voltage / Current 600 V / 30 A (Groups B, C)
ATEX / IECEx Ratings 550 V / 30 A (Ex e II, Zone 1)
Power Loss per Pole 1.024 W
Resistance per Pole 0.001 Ω

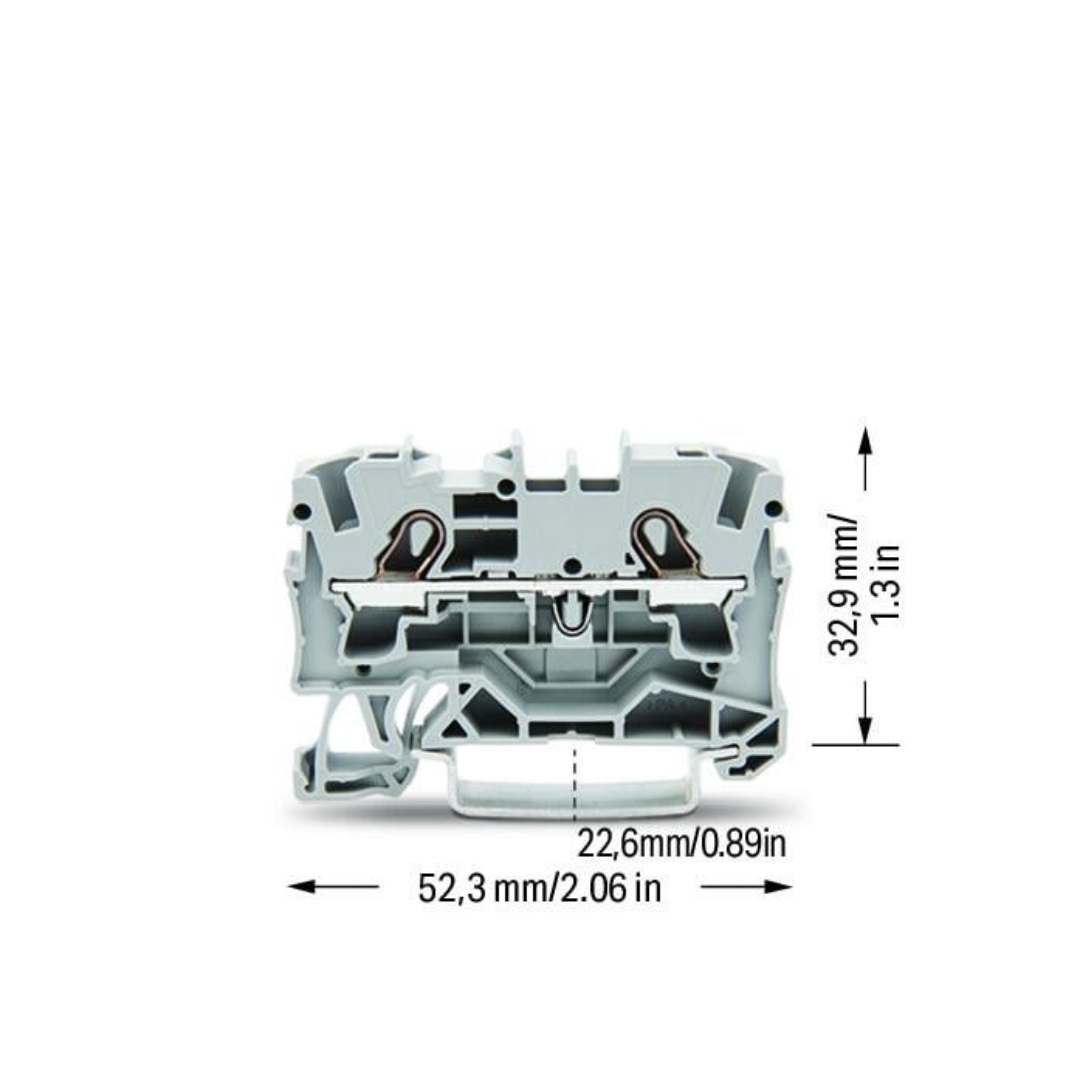

Width 6.2 mm / 0.244 in
Height 52.3 mm / 2.059 in
Depth from DIN-Rail 32.9 mm / 1.295 in
Total Depth 39.5 mm / 1.555 in
Mounting Type DIN-35 rail
Marking Level Center/side
Color Gray
Material (Housing) Polyamide (PA66)
Flammability (UL94) V0
Fire Load 0.135 MJ
Weight 6.9 g
Operating Temperature -60°C to +105°C
Processing Temperature -35°C to +85°C
Railway Testing Standard DIN EN 50155 / DIN EN 61373 (shock, vibration: passed)
GTIN / Customs Code 4017332071055 / 8536904000
Country of Origin Germany (DE)
Packaging Unit 50 pcs
Packaging Type Box
RoHS Compliance Compliant, No Exemption
UNSPSC 39121410
eCl@ss / ETIM 27-14-11-20 / EC000897 (v9.0 & 10.0)
ECCN No US Classification
Weight 0.015212 lbs
Dimensions 1.555 × 0.244 × 2.059 in
Part Number
