2002-992-WAGO | End plate for fuse terminal blocks; 2 mm thick; orange

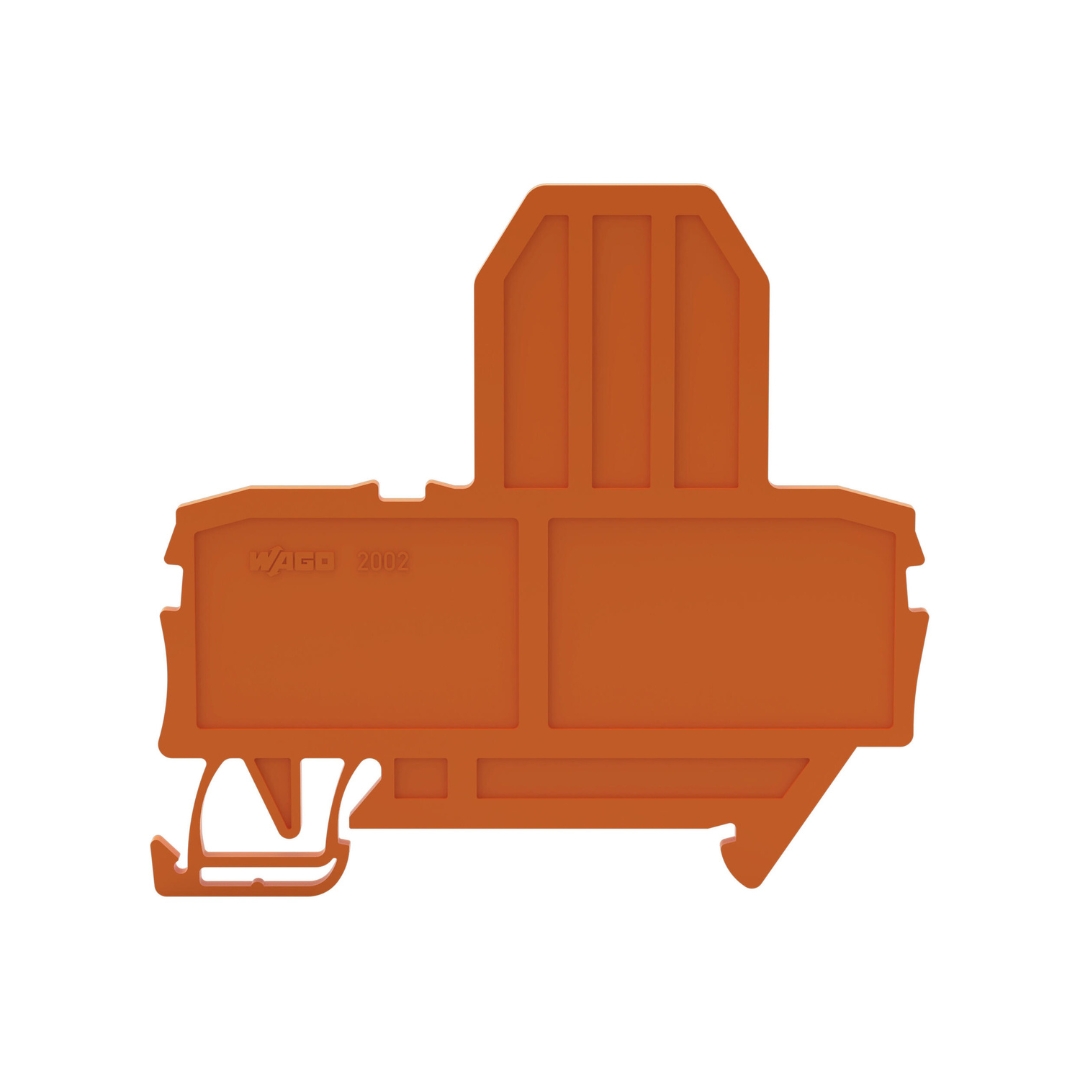

2002-992-WAGO | End plate for fuse terminal blocks; 2 mm thick; orange - Image 2

2002-992-WAGO | End plate for fuse terminal blocks; 2 mm thick; orange

$ 1.25

The TOPJOB® S End and Intermediate Plate offers secure separation and insulation between terminal blocks in modular DIN-rail mounted assemblies. Designed for snap-on installation, this lightweight component ensures electrical safety while supporting streamlined panel design. Made from UL94 V0-rated flame-retardant polyamide (PA66), the plate delivers high mechanical and environmental resilience, making it ideal for use in railway rolling stock and other vibration-prone applications. Its bright orange color ensures easy identification and improves system organization.

25 in stock (can be backordered)

SKU: 2002-992 Categories: , ,

Product Description

The TOPJOB® S End and Intermediate Plate offers secure separation and insulation between terminal blocks in modular DIN-rail mounted assemblies. Designed for snap-on installation, this lightweight component ensures electrical safety while supporting streamlined panel design. Made from UL94 V0-rated flame-retardant polyamide (PA66), the plate delivers high mechanical and environmental resilience, making it ideal for use in railway rolling stock and other vibration-prone applications. Its bright orange color ensures easy identification and improves system organization.

Key Features

  • Snap-On Mounting: Enables fast and secure installation without tools

  • Flame-Retardant Construction: UL94 V0-rated PA66 housing for fire safety

  • Shock and Vibration Certified: Fully compliant with DIN EN 61373 testing standards

  • Slim Profile: Only 2 mm wide, allowing for dense panel layouts

  • High Durability: Lightweight yet robust design suitable for harsh environments

  • Railway-Approved: Tested per DIN EN 50155 for rolling stock applications

  • RoHS Compliant: Meets environmental compliance standards with no exemption

Specifications

Attribute Value
Width 2 mm / 0.079 inches
Height 67 mm / 2.638 inches
Depth from Upper Edge of DIN-Rail 57.2 mm / 2.252 inches
Mounting Type Snap-on type
Color Orange
Material Group I
Insulation Material Polyamide (PA66)
Flammability Class (UL94) V0
Fire Load 0.113 MJ
Weight 3.8 g
Environmental Standard DIN EN 50155 (Railway Electronic Equipment)
Shock & Vibration Test DIN EN 61373 (Passed – all axes, Category 1, Class A/B)
GTIN / Customs Tariff Number 4045454779245 / 8538906000
Country of Origin Germany (DE)
Packaging Unit (PU) 100 pcs (25 pcs per sub-pack)
Packaging Type Box
Product Group 22 (TOPJOB S)
RoHS Compliance Compliant, No Exemption
UNSPSC 39121410
eCl@ss Classification 27-14-11-33 (v9.0 & v10.0)
ETIM Classification EC000886 (v8.0 & v9.0)
ECCN No US Classification
Weight 0.008378 lbs
Dimensions 2.252 × 0.079 × 2.638 in
Part Number
