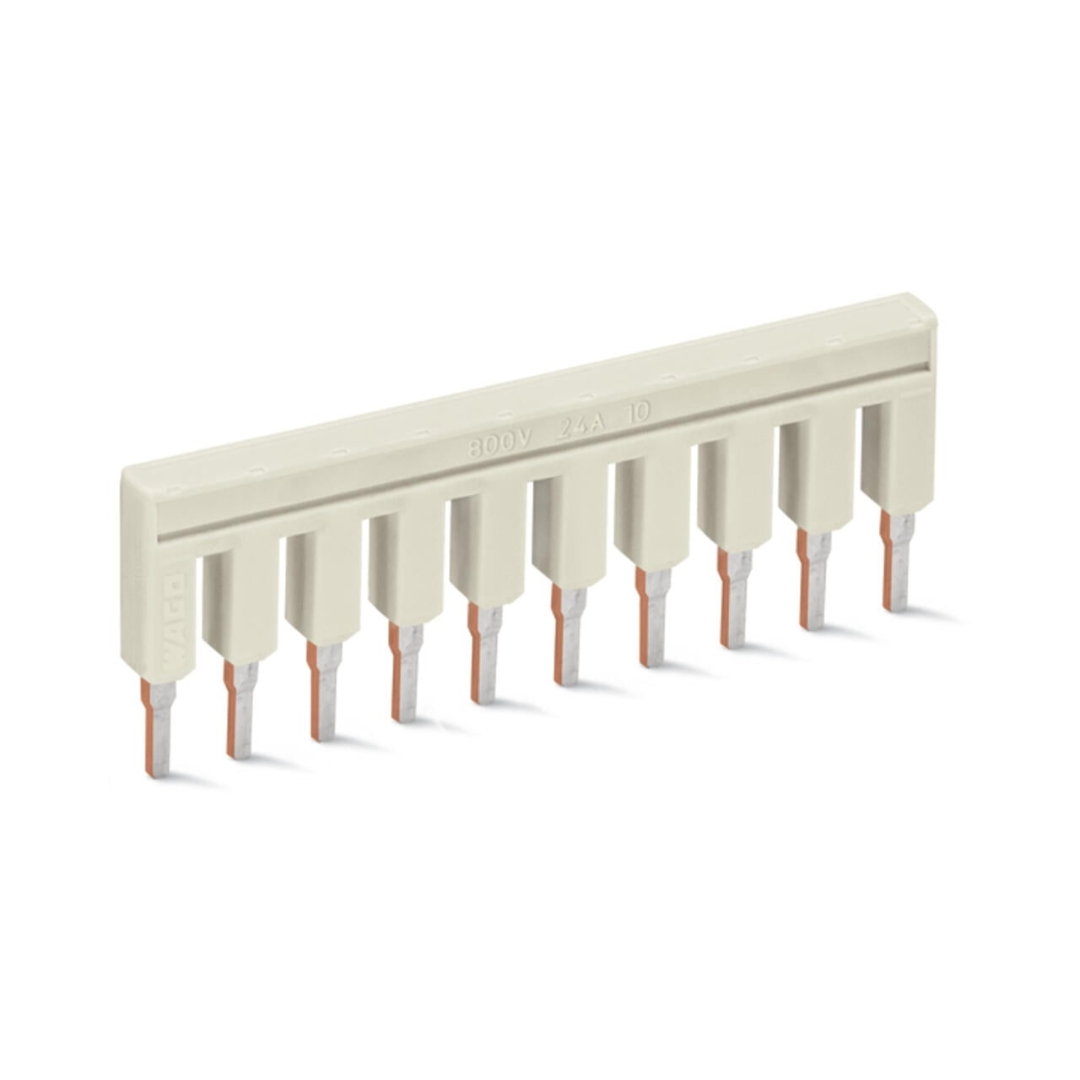

2002-410-WAGO | Push-in type jumper bar; insulated; 10-way; Nominal current 25 A; light gray

2002-410-WAGO | Push-in type jumper bar; insulated; 10-way; Nominal current 25 A; light gray

$ 6.23

The TOPJOB® S 10-Conductor Jumper offers a streamlined, reliable solution for bridging up to ten terminal blocks in a single compact unit. Engineered for efficiency in panel wiring and built to the most rigorous industrial and railway standards, this jumper is ideal for applications requiring dependable multi-point connections under harsh conditions. With IEC approval for 800V and 25A (20A for Ex e II environments), and full compliance with DIN EN 50155 and EN 61373, this component ensures reliable performance even under continuous vibration and shock. Its compact design, low fire load, and RoHS compliance make it a smart, safe choice for modern electrical installations.

46 in stock (can be backordered)

SKU: 2002-410 Categories: , ,

Product Description

The TOPJOB® S 10-Conductor Jumper offers a streamlined, reliable solution for bridging up to ten terminal blocks in a single compact unit. Engineered for efficiency in panel wiring and built to the most rigorous industrial and railway standards, this jumper is ideal for applications requiring dependable multi-point connections under harsh conditions. With IEC approval for 800V and 25A (20A for Ex e II environments), and full compliance with DIN EN 50155 and EN 61373, this component ensures reliable performance even under continuous vibration and shock. Its compact design, low fire load, and RoHS compliance make it a smart, safe choice for modern electrical installations.

Key Features

  • Bridges 10 Conductors: Perfect for high-density connections across terminal blocks

  • High Electrical Ratings: Handles 800V and up to 25A (20A for Ex e II applications)

  • Shock & Vibration Resistant: Certified per railway standards for mobile environments

  • Durable Design: Flame-retardant PA66 housing ensures operational safety

  • Slim and Lightweight: Only 4.1 mm high and 5g in weight for easy integration

  • RoHS Compliant: Environmentally responsible with no exemption status

  • Quick Installation: Reduces wiring complexity in control panels

  • Certified for Rolling Stock: Fully tested under DIN EN 50155 and EN 61373 protocols

Specifications

Attribute Value
Rated Voltage (IEC – Overvoltage Cat III / Pollution Degree 3) 800 V
Rated Current 25 A
Rated Current (Ex e II) 20 A
Jumper Assignment 1-2-3-4-5-6-7-8-9-10
Width 50.4 mm / 1.984 inches
Height 4.1 mm / 0.161 inches
Depth 19 mm / 0.748 inches
Color Light gray
Material Polyamide (PA66), UL94 V0
Fire Load 0.035 MJ
Weight 5 g
Environmental Standard DIN EN 50155 (Railway Electronic Equipment)
Shock & Vibration Test DIN EN 61373 (Passed all axes, Category 1, Class A/B)
GTIN / Customs Tariff Number 4055143690386 / 8536698000
Country of Origin Germany (DE)
Packaging Unit (PU) 25 pcs
Packaging Type Bag
Product Group 22 (TOPJOB S)
RoHS Compliance Compliant, No Exemption
UNSPSC 39121421
eCl@ss Classification 27-14-11-40 (v9.0 & v10.0)
ETIM Classification EC000489 (v8.0 & v9.0)
ECCN No US Classification
Weight 0.011023 lbs
Dimensions 0.748 × 1.984 × 0.161 in
Part Number
