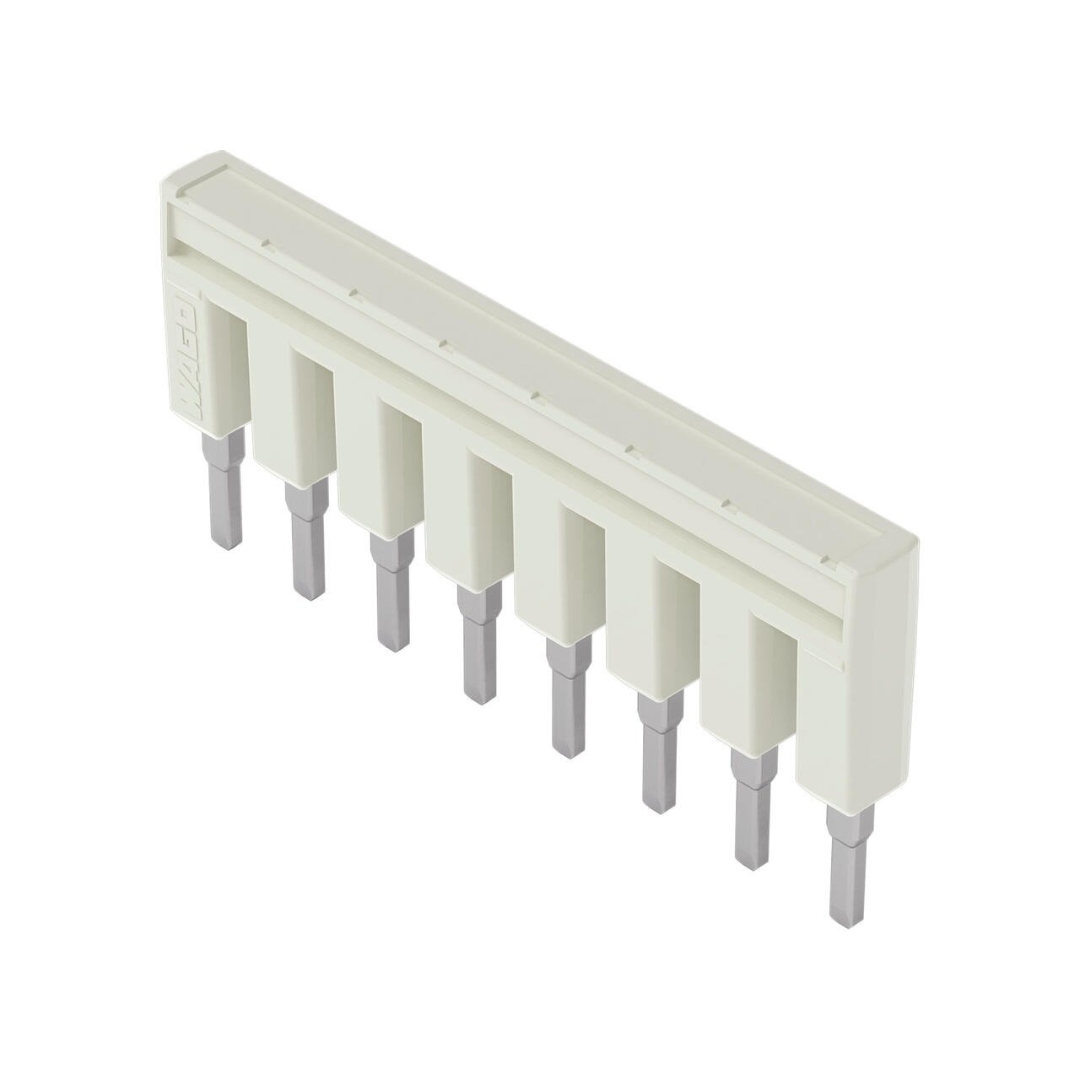

2002-408-WAGO | Push-in type jumper bar; insulated; 8-way; Nominal current 25 A; light gray

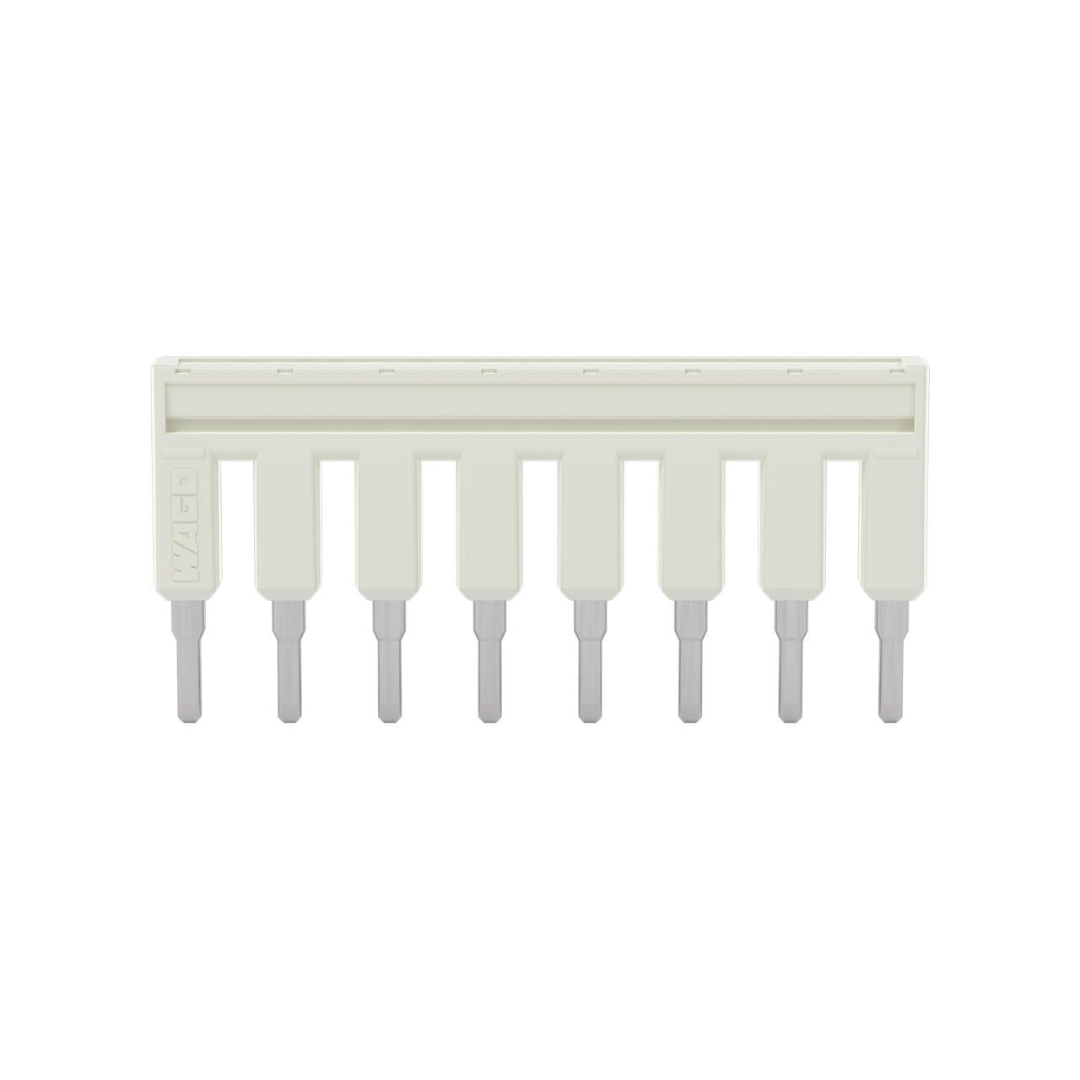

2002-408-WAGO | Push-in type jumper bar; insulated; 8-way; Nominal current 25 A; light gray - Image 2

2002-408-WAGO | Push-in type jumper bar; insulated; 8-way; Nominal current 25 A; light gray

$ 4.82

The TOPJOB® S 1-2-3-4-5-6-7-8 Jumper is a high-performance bridging solution designed for demanding industrial and railway applications. Rated for 800V and up to 25A, this jumper efficiently connects up to eight terminal blocks in a compact form factor, optimizing space and reducing wiring time in control cabinets. Built to endure the toughest conditions, it exceeds vibration and shock test standards outlined in DIN EN 61373, making it ideal for use in mobile and rail-based applications. With RoHS compliance and a flame-retardant PA66 housing, it delivers safety, reliability, and versatility in a single, ready-to-use component.

16 in stock (can be backordered)

SKU: 2002-408 Categories: , ,

Product Description

The TOPJOB® S 1-2-3-4-5-6-7-8 Jumper is a high-performance bridging solution designed for demanding industrial and railway applications. Rated for 800V and up to 25A, this jumper efficiently connects up to eight terminal blocks in a compact form factor, optimizing space and reducing wiring time in control cabinets. Built to endure the toughest conditions, it exceeds vibration and shock test standards outlined in DIN EN 61373, making it ideal for use in mobile and rail-based applications. With RoHS compliance and a flame-retardant PA66 housing, it delivers safety, reliability, and versatility in a single, ready-to-use component.

Key Features

  • Multi-Terminal Connectivity: Bridges up to 8 conductors (positions 1–8)

  • High Electrical Rating: Supports 800V and 25A (20A in Ex e II environments)

  • Railway Certified: Tested to DIN EN 50155 and EN 61373 standards

  • Durable and Safe: Made from flame-retardant PA66 with UL94 V0 classification

  • Shock and Vibration Resistant: Passes all axis and frequency tests

  • Compact and Lightweight: Just 4.1 mm high and under 4g in weight

  • Environmentally Compliant: RoHS compliant with no exemptions

  • Efficient Installation: Reduces wiring time and simplifies panel layouts

Specifications

Attribute Value
Rated Voltage (IEC – Overvoltage Cat III / Pollution Degree 3) 800 V
Rated Current 25 A
Rated Current (Ex e II) 20 A
Jumper Assignment 1-2-3-4-5-6-7-8
Width 39.9 mm / 1.571 inches
Height 4.1 mm / 0.161 inches
Depth 19 mm / 0.748 inches
Color Light gray
Material Polyamide (PA66), UL94 V0
Fire Load 0.028 MJ
Weight 3.9 g
Environmental Standard DIN EN 50155 (Railway Electronic Equipment)
Shock & Vibration Test DIN EN 61373 (Passed all axes, Category 1, Class A/B)
GTIN / Customs Tariff Number 4055143690300 / 8536698000
Country of Origin Germany (DE)
Packaging Unit (PU) 25 pcs
Packaging Type Bag
Product Group 22 (TOPJOB S)
RoHS Compliance Compliant, No Exemption
UNSPSC 39121421
eCl@ss Classification 27-14-11-40 (v9.0 & v10.0)
ETIM Classification EC000489 (v8.0 & v9.0)
ECCN No US Classification
Weight 0.008598 lbs
Dimensions 0.748 × 1.571 × 0.161 in
