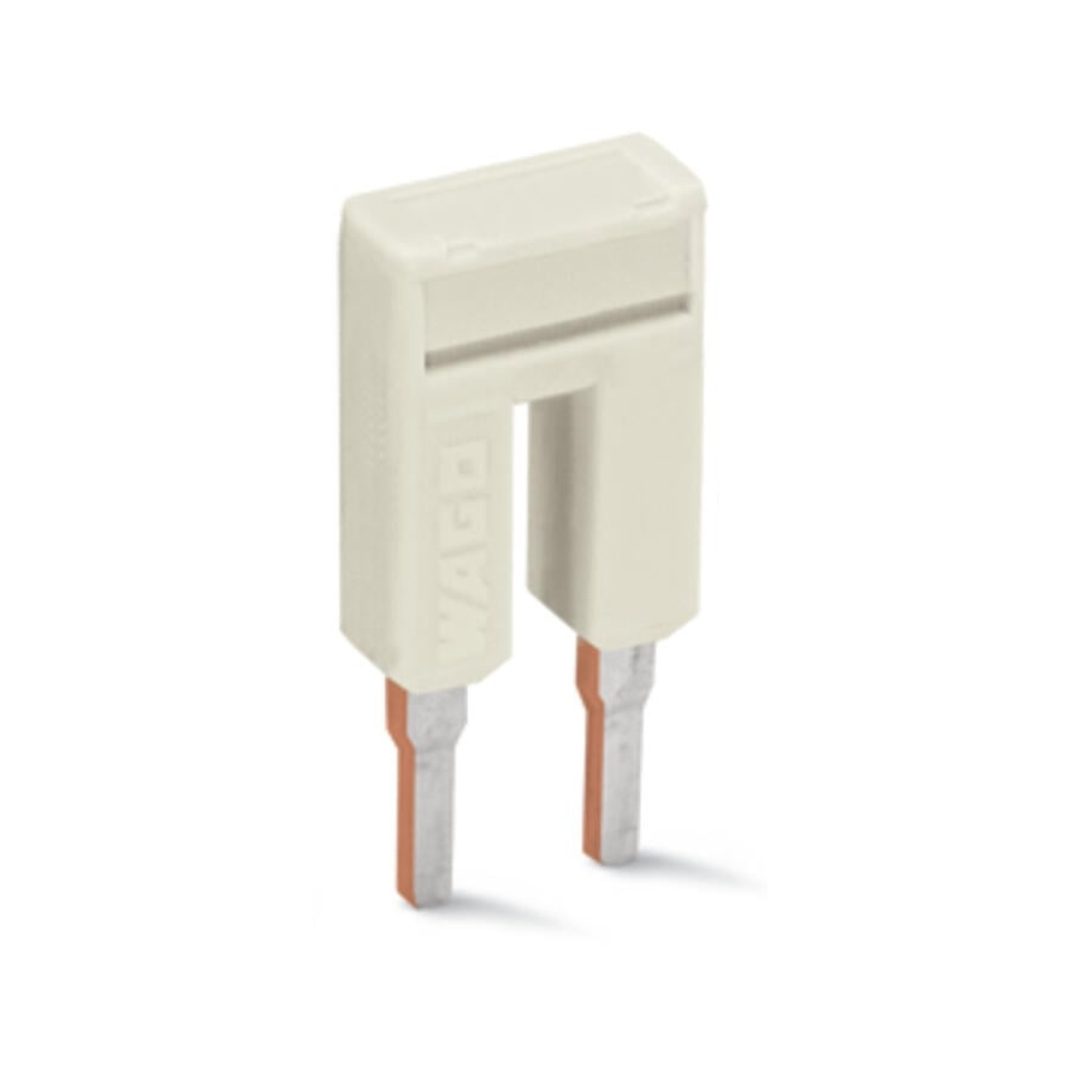

2002-402-WAGO | Push-in type jumper bar; insulated; 2-way; Nominal current 25 A; light gray

2002-402-WAGO | Push-in type jumper bar; insulated; 2-way; Nominal current 25 A; light gray

$ 0.69

The TOPJOB® S 1-2 Jumper is an efficient, high-performance solution for bridging terminal blocks in industrial and control applications. With a rated voltage of 800V and a rated current of 25A, this jumper is ideal for connecting terminal blocks in high-voltage environments. It is designed with a compact profile, offering flexibility in installation, and is constructed with flame-retardant polyamide (PA66) for enhanced safety. This jumper is well-suited for use in demanding environments, including railway and rolling stock equipment, thanks to its robust shock and vibration resistance. Additionally, it is approved for Ex e II applications, making it a versatile choice for explosive atmosphere zones.

43 in stock (can be backordered)

SKU: 2002-402 Categories: , ,

Product Description

The TOPJOB® S 1-2 Jumper is an efficient, high-performance solution for bridging terminal blocks in industrial and control applications. With a rated voltage of 800V and a rated current of 25A, this jumper is ideal for connecting terminal blocks in high-voltage environments. It is designed with a compact profile, offering flexibility in installation, and is constructed with flame-retardant polyamide (PA66) for enhanced safety. This jumper is well-suited for use in demanding environments, including railway and rolling stock equipment, thanks to its robust shock and vibration resistance. Additionally, it is approved for Ex e II applications, making it a versatile choice for explosive atmosphere zones.

Key Features

  • Rated Voltage: 800V, supporting high-voltage installations

  • Rated Current: 25A for optimal current flow

  • Ex e II Approval: Rated for explosive atmospheres, ensuring safety in hazardous environments

  • Compact Dimensions: Measures 8.6 mm in width for space-saving installation

  • Vibration & Shock Resistance: Passed rigorous tests (DIN EN 61373) for rolling stock applications

  • Flame-retardant Housing: Made from polyamide (PA66), meeting UL94 V0 standards

  • Environmental Compliance: RoHS compliant and tested to international standards

  • Reliable Performance: Withstands extreme conditions, including high shock and vibration levels

  • Lightweight: Weighs only 0.9g, reducing the overall load on electrical panels

Specifications

Attribute Value
Rated Voltage (IEC – Overvoltage Cat III / Pollution Degree 3) 800 V
Rated Current 25 A
Rated Current (Ex e II) 20 A
Jumper Assignment 1-2
Width 8.6 mm / 0.339 inches
Height 4.1 mm / 0.161 inches
Depth 19 mm / 0.748 inches
Color Light gray
Material Polyamide (PA66), UL94 V0
Fire Load 0.007 MJ
Weight 0.9 g
Environmental Standard DIN EN 50155 (Railway Applications – Electronic Equipment)
Shock & Vibration Test DIN EN 61373 (Passed all axes)
GTIN / Customs Tariff Number 4055143687171 / 8536698000
Country of Origin Germany (DE)
Packaging Unit (PU) 25 pcs
Packaging Type Bag
Product Group 22 (TOPJOB S)
RoHS Compliance Compliant, No Exemption
UNSPSC 39121421
eCl@ss Classification 27-14-11-40 (v9.0 & v10.0)
ETIM Classification EC000489 (v8.0 & v9.0)
ECCN No US Classification
Weight 0.001984 lbs
Dimensions 0.748 × 0.339 × 0.161 in
Part Number
