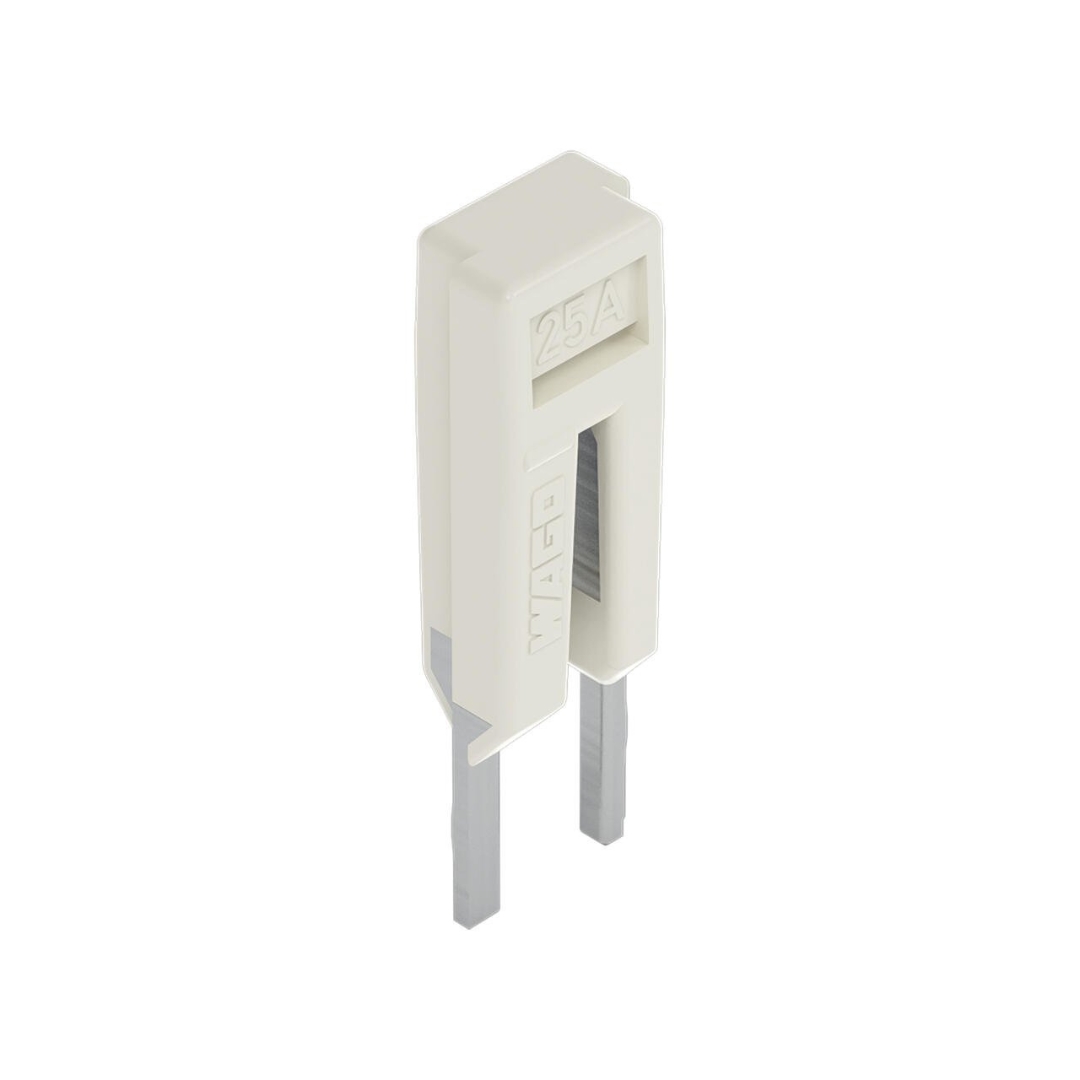

2002-400-WAGO | Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A; light gray
2002-400-WAGO | Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A; light gray - Image 2

2002-400-WAGO | Adjacent jumper for continuous commoning; insulated; 2-way; Nominal current 25 A; light gray

$ 1.15

Ensure fast and reliable potential distribution with the TOPJOB® S 1-2 Jumper, designed for connecting two terminal blocks in a secure, space-efficient manner. With a rated current of 25 A and a high-rated impulse withstand voltage of 8 kV, this jumper delivers robust performance in high-demand applications. Its slim, compact construction allows easy installation even in tight panel configurations. Made from flame-retardant polyamide (PA66) and tested to stringent railway industry standards, this jumper is built to withstand mechanical stress, shock, and vibration, making it ideal for industrial automation, transportation, and control systems.

Available on backorder

SKU: 2002-400 Categories: , ,

Product Description

Ensure fast and reliable potential distribution with the TOPJOB® S 1-2 Jumper, designed for connecting two terminal blocks in a secure, space-efficient manner. With a rated current of 25 A and a high-rated impulse withstand voltage of 8 kV, this jumper delivers robust performance in high-demand applications. Its slim, compact construction allows easy installation even in tight panel configurations. Made from flame-retardant polyamide (PA66) and tested to stringent railway industry standards, this jumper is built to withstand mechanical stress, shock, and vibration, making it ideal for industrial automation, transportation, and control systems.

Key Features

  • Rated up to 800V / 25A for reliable current distribution

  • 1-2 jumper assignment simplifies terminal block bridging

  • Compact footprint (only 5.7 mm wide) conserves space in control cabinets

  • UL94 V0-rated flame-retardant PA66 housing for added safety

  • Tested to DIN EN 61373 for vibration and shock resistance in rolling stock

  • Lightweight and easy to install at just 0.7 g

  • RoHS compliant and environmentally safe

Specifications

Attribute Value
Rated Voltage (IEC – Overvoltage Cat III / Pollution Degree 3) 800 V
Rated Impulse Withstand Voltage (III / 3) 8 kV
Rated Current 25 A
Jumper Assignment 1-2
Width 5.7 mm / 0.224 inches
Height 4.1 mm / 0.161 inches
Depth 18.5 mm / 0.726 inches
Color Light gray
Material Polyamide (PA66), UL94 V0
Fire Load 0.005 MJ
Weight 0.7 g
Environmental Standard DIN EN 50155 (Railway Applications – Electronic Equipment)
Shock & Vibration Test DIN EN 61373 (Category 1, Class A/B – Passed all axes)
GTIN / Customs Tariff Number 4055143686877 / 8536698000
Country of Origin Germany (DE)
Packaging Unit (PU) 25 pcs
Packaging Type Bag
Product Group 22 (TOPJOB S)
RoHS Compliance Compliant, No Exemption
UNSPSC 39121421
eCl@ss Classification 27-14-11-40 (v9.0 & v10.0)
ETIM Classification EC000489 (v8.0 & v9.0)
ECCN No US Classification
Weight 0.001543 lbs
Dimensions 0.726 × 0.224 × 0.161 in
