2002-2201-WAGO | Double-deck terminal block; Through/through terminal block; L/L; without marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Product Description

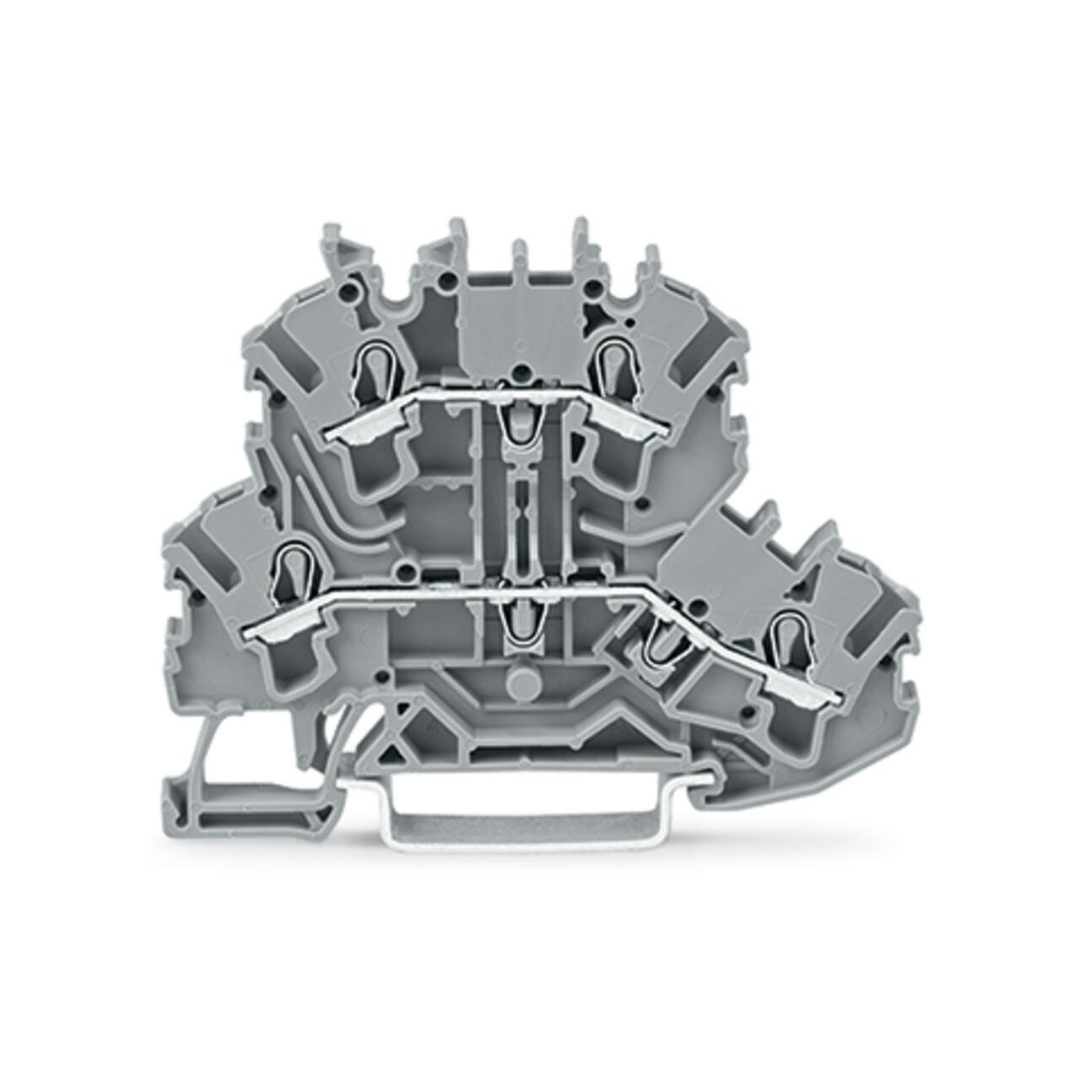

The Double-Deck Terminal Block (Item #2002-2201) is a high-performance, dual-level solution engineered for industrial, hazardous, and railway applications requiring robust connectivity and circuit protection. Certified for ATEX/IECEx (Ex eb IIC Gb) and compliant with IEC/EN 60947-7-1, UL 1059, and CSA 22.2 No 158, this DIN-35 rail-mounted block features Push-in CAGE CLAMP® technology for tool-free connections of solid or fine-stranded conductors (0.25–4 mm²). Designed for high-voltage applications up to 500V (IEC) and 440V (Ex), it supports currents up to 24A (IEC) and 20A (UL/Ex) with a surge rating of 6 kV. Its dual-deck design enables two independent potentials, while the flame-retardant polyamide (PA66) housing and railway-grade vibration/shock resistance ensure reliability in extreme environments (-60°C to +105°C).

Key Features

• Multi-Certified Safety: Compliant with IEC/EN 60947-7-1, UL 1059, CSA 22.2, and ATEX/IECEx (Ex eb IIC Gb) for hazardous areas.

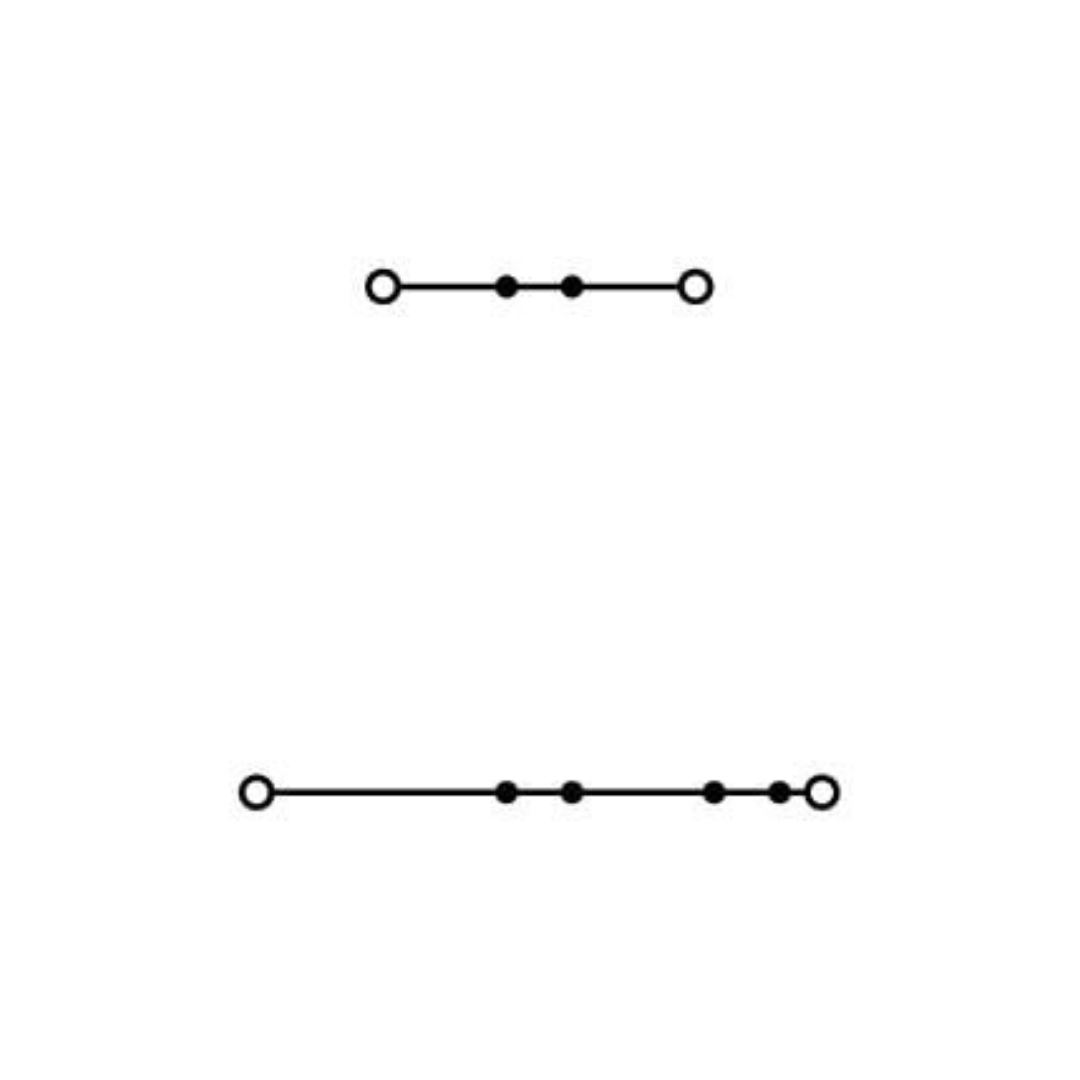

• Dual-Level Efficiency: Two independent potentials with four clamping points, ideal for complex wiring systems.

• High-Current Capacity: Rated up to 24A (IEC) and 20A (UL/Ex), supporting conductor cross-sections up to 4 mm².

• Industrial Durability: UL94 V0 flame-retardant housing, tested per DIN EN 61373 for railway vibration/shock (5g acceleration, 5–150Hz).

• Tool-Free Installation: Push-in CAGE CLAMP® accommodates solid/stranded conductors (0.25–4 mm²) with front-entry wiring.

• Extended Thermal Range: Operates reliably from -60°C to +105°C, with low power loss (0.766W per pole).

• RoHS Compliant: Meets environmental standards with no exemptions required.
