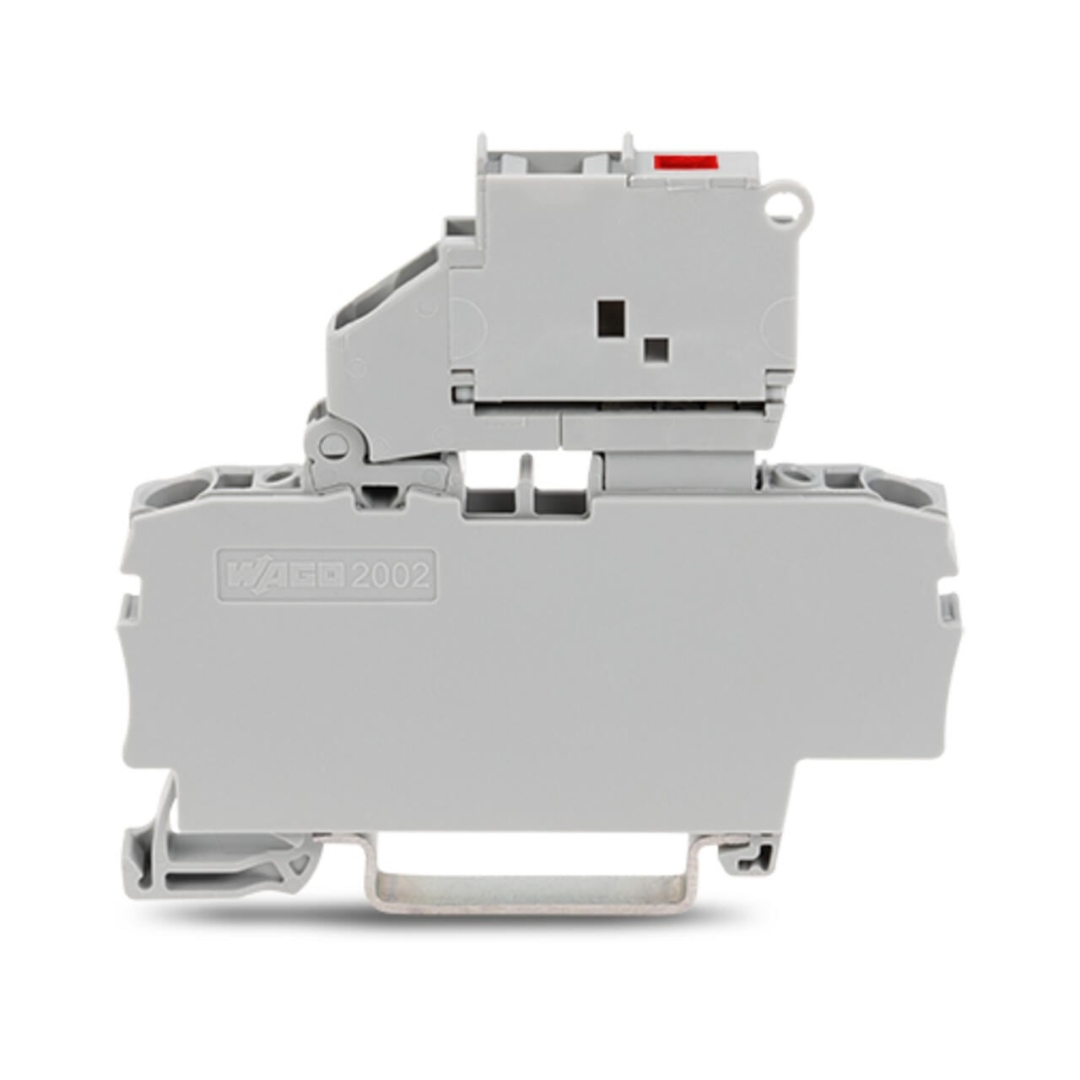

2002-1611/1000-867-WAGO | 2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 120 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Product Description

The Fuse Terminal Block (Item #2002-1611/1000-867) is a precision-engineered solution for secure, efficient circuit protection in industrial, hazardous, and railway environments. Certified for ATEX/IECEx (Ex ec IIC Gc) and compliant with IEC, UL, CSA, and railway standards, this DIN-35 rail-mounted block features Push-in CAGE CLAMP® technology for tool-free connections of solid or fine-stranded conductors (0.25–4 mm²). Designed for 120V (UL/CSA/Ex) and 250V (IEC) applications, it offers robust surge protection (6 kV IEC) and a pivoting fuse receptacle for 5x20mm cylindrical fuses. The flame-retardant polyamide (PA66) housing, extended operating range (-60°C to +105°C), and railway-grade vibration/shock resistance ensure reliability in extreme conditions.

Key Features

• Multi-Certified Safety: Compliant with IEC/EN 60947-7-3, UL 1059, CSA 22.2 No 158, and ATEX/IECEx (Ex ec IIC Gc) for hazardous areas.

• Effortless Connectivity: Maintenance-free Push-in CAGE CLAMP® accepts 0.25–4 mm² conductors (solid/stranded, with/without ferrules) via front-entry wiring.

• Industrial Durability: UL94 V0 flame-retardant housing, tested per DIN EN 61373 for railway vibration/shock (5g acceleration, 5–150Hz).

• Wide Voltage Support: Rated for 120V (UL/CSA/Ex) and 250V (IEC), with 6.3A–10A current capacity.

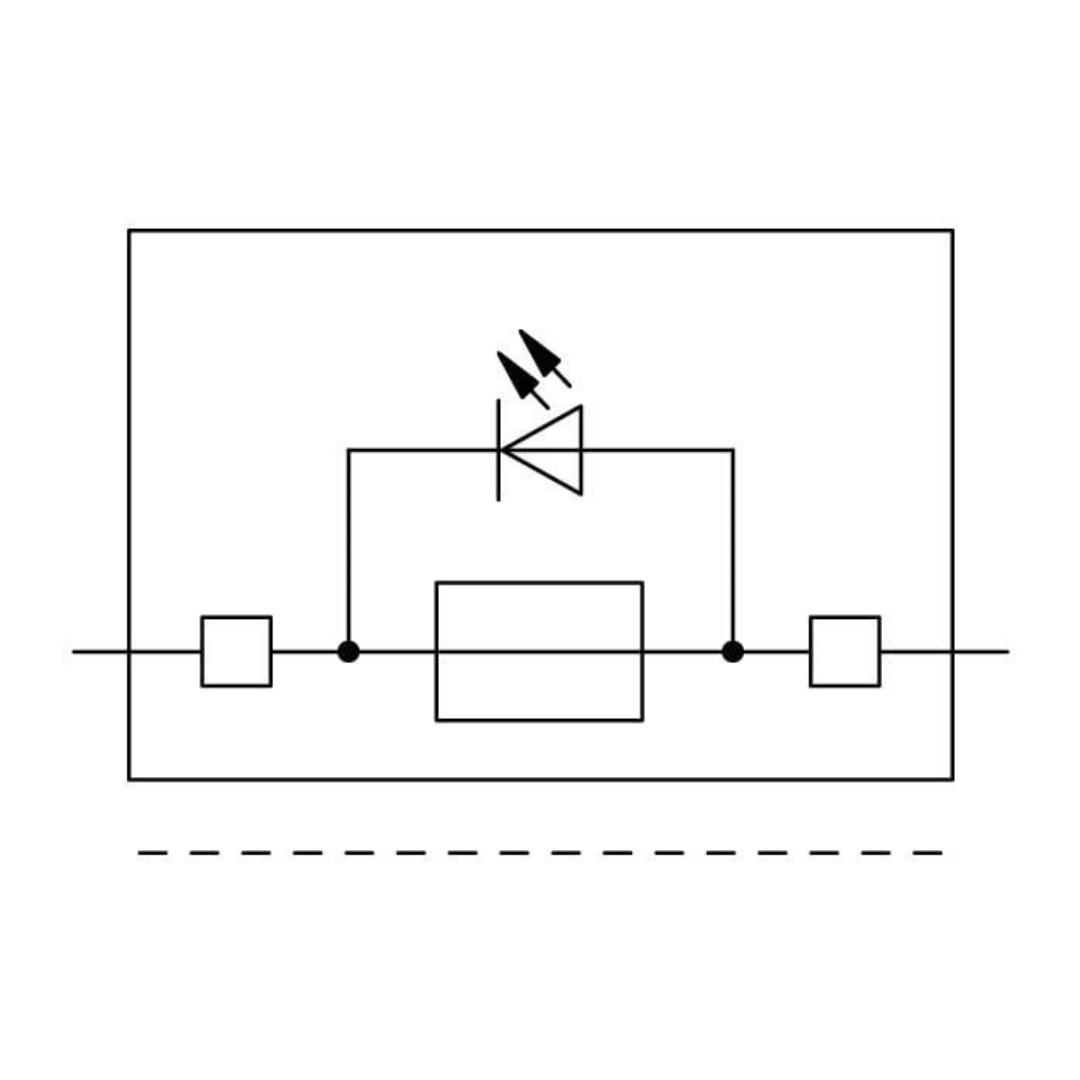

• Blown Fuse Detection: LED indicates fuse status with 2 mA leakage current protection.

• Extended Thermal Resilience: Operates reliably from -60°C to +105°C, ideal for harsh environments.

Specifications
